190-953-000 - MTD Linkage Kit (1987) Linkage Kit Parts Diagram

Linkage Kit

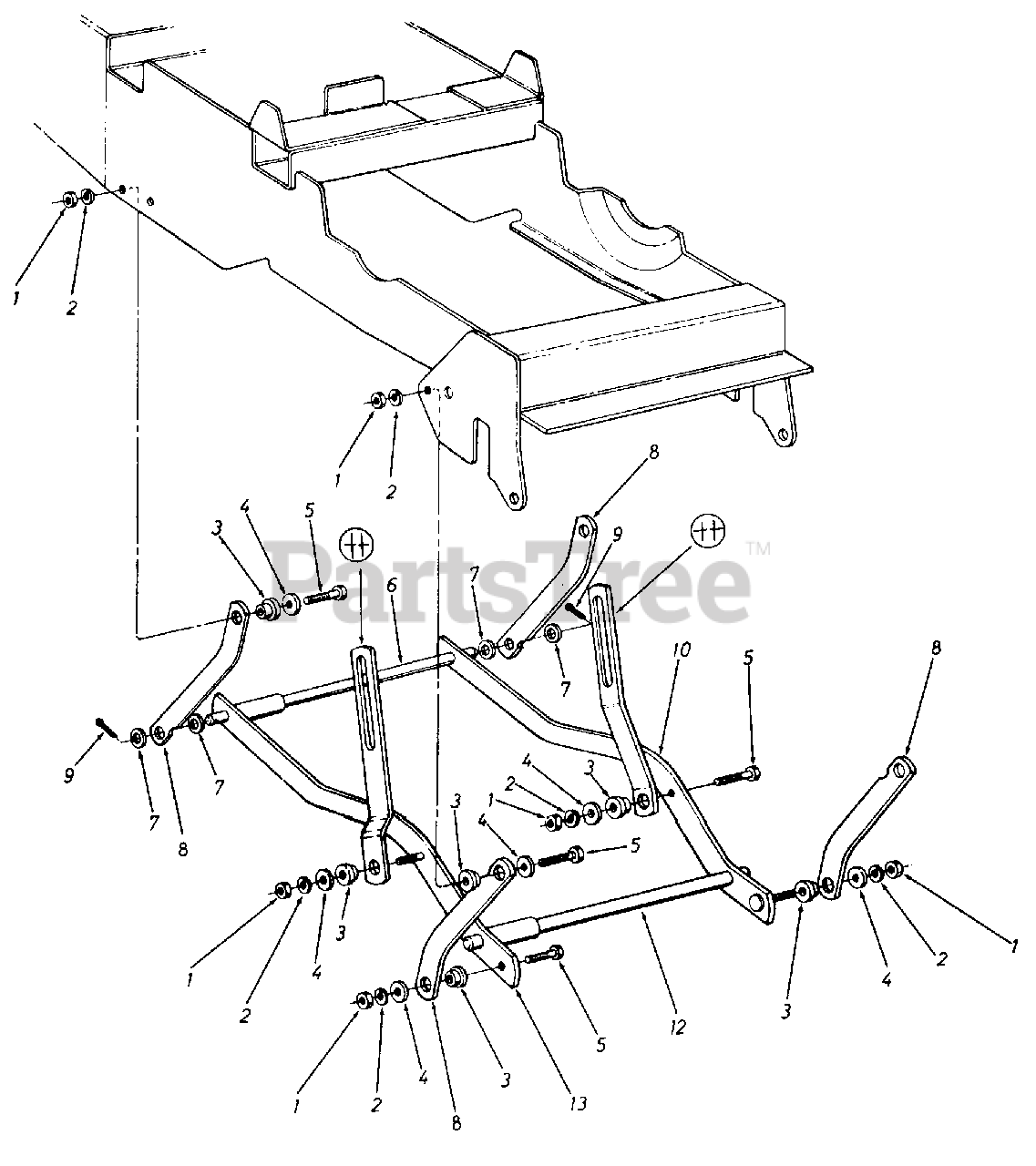

Linkage Kit Parts Diagram

  • Title
1

MTD 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 13

0

2

MTD 736-0217

L.-Wash. 3/8" Scr. Heavy Duty

$4.49

$

In Stock, Qty 9

0

3

MTD 748-0241

Shoulder Spacer

$

$

Not available

4

MTD 736-0258

Fl.-Wash. 3/8"1.D. x 1.0" O.D.

$4.49

$

In Stock, only 1 left!

0

5

MTD 710-0459

Hex Scr. 3/8-24 x 1.50" Lg. Grade 5
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

6

MTD 13163

Cross Shaft Ass'y.-Rear

$

$

Currently unavailable

7

MTD 736-0156

Fl.-Wash. 5/8" I.D. x 1-1/8" 0.D.

$4.49

$

In Stock, Qty 12

0

8

MTD 13043

Lift Arm

$

$

Currently unavailable

9

15449

Cotter Pin 5/32" Dia. x 1.25" Lg.

$

$

Not available

10

MTD 13118

LiftArm LinkAss'y.-L.H.

$

$

Currently unavailable

MTD 714-0147

Hair Pin Cotter

$4.99

$

In Stock, Qty 7

0

12

MTD 13162

Cross Shaft Ass'y.-Front

$

$

Currently unavailable

13

MTD 13117

Lift Arm Link Ass'y.-R.H.

$

$

Currently unavailable
