190-935-190 - White Outdoor 44" Mower Deck, Side Discharge (1989) 44" Side Discharge Deck Assembly Parts Diagram

44" Mower Deck, Side Discharge

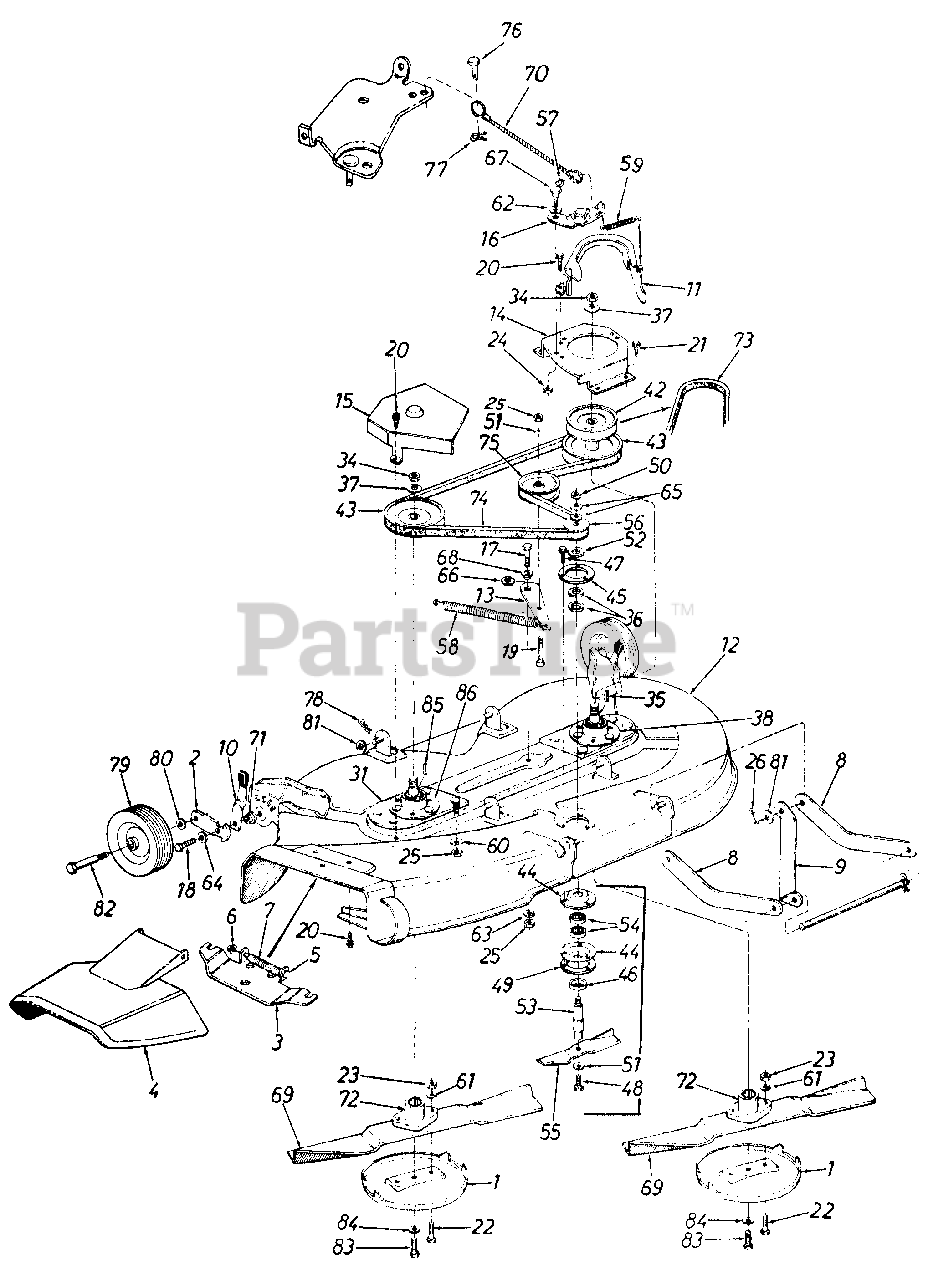

44" Side Discharge Deck Assembly Parts Diagram

  • Title

1

White Outdoor 07919

Anti-Scalp Plate
(Superseded to 07919B-0637)

$

$

Not available

2

White Outdoor 10937

Wheel Pivot Bar

$

$

Not available

3

White Outdoor 11396

Adapter

$

$

Not available

4

11574

Chute Cover Ass'y.

$

$

Not available

5

White Outdoor 711-0571

Hinge Pin

$

$

Not available

6

White Outdoor 726-0106

Cap Speed Nut 1/4" Rod.

$3.99

$

Usually ships in 3-6 days

0

7

White Outdoor 732-0261

Torsion Spring

$

$

Not available

8

White Outdoor 13866

Deck Stabilizer

Variations

White Outdoor 13866-0637

No Longer Available STABILIZER-DECK - POWDER BLACK (0637)

$

$

Not available

$

$

9

White Outdoor 13867

Diagonal Brace

Variations

White Outdoor 13867-0637

No Longer Available BRACE-DIAGONAL - POWDER BLACK (0637)

$

$

Not available

$

$

10

White Outdoor 14082

Spring Lever Ass'y.

$

$

Not available

11

White Outdoor 14258

Belt Guard
(Superseded to 14258B-0637)

$

$

Not available

12

16320

44" Deck Ass'y.

$

$

Not available

13

White Outdoor 16331

Idler Bracket

$

$

Not available

14

White Outdoor 16333

Pulley Cover-L.H.

$

$

Not available

15

White Outdoor 16334

Pulley Cover-R.H.

Variations

White Outdoor 16334-0637

No Longer Available COVER-PULLEY-RH - POWDER BLACK (0637)

$

$

Not available

$

$

16

16339

Spindle Brake Arm Ass'y.

$

$

Not available

17

White Outdoor 710-0152

Hex Bolt 3/8-24 x 1.00"*
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 710-0191

Hex Bolt 3/8-24 x 1.25"Lg.*

$4.99

$

In Stock, Qty 9

0

19

White Outdoor 710-0459

Hex Bolt 3/8-24 x 1.50"*
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

20

White Outdoor 710-0599

Hex Wash. S-Tapp Scr.1/4-20 x .50"*

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 710-0726

Hex Wash. Hd. Tapp Scr. 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 710-0672

Hex Bolt 5/16-24 x 1.25" (Grade 5)

$4.49

$

In Stock, Qty 16

0

23

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.*
(Superseded to 912-3057)

$6.99

$

In Stock, only 2 left!

0

24

White Outdoor 712-0158

Hex Cent. L.-Nut 5/16-18 0 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

25

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 13

0

26

White Outdoor 714-0111

Cotter Pin 3/32 Dia. x 1.00" Lg.*

$4.99

$

In Stock, Qty 13

0

31

UNKNOWN

$

$

Not available

34

White Outdoor 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 12

0

35

White Outdoor 714-0168

Square Key 3/16 x 2.25" Lg.

$

$

Not available

36

White Outdoor 736-0302

Fl. Wash. 5/8" I.D. x 15/16" O.D.

$

$

Not available

37

White Outdoor 736-0317

Bell. Wash. .630 I.D. x 1.25 x .090

$7.99

$

In Stock, Qty 20+

0

38

White Outdoor 717-0909

L.H. Blade Spindle Ass'y. Comp.
(Superseded to 917-0909)

$

$

Not available

42

White Outdoor 756-0329

5/8 "V"Pulley .79 I.D. x 5.75 O.D.

$96.99

$

In Stock, only 1 left!

0

43

White Outdoor 756-0470

"V"Pulley .79 I.D. x 6.50 0 O.D.
(Superseded to 756-0470A)

$

$

Not available

44

White Outdoor 15319

1-3/8" I.D.-Bearing Housing
(Superseded to 15319B)

$10.99

$

In Stock, only 3 left!

0

45

White Outdoor 16348

Reinforcement Plate
(Superseded to 16348B)

$9.49

$

Usually ships in 3-6 days

0

46

White Outdoor 16400

Bearing Shield

$

$

Not available

47

White Outdoor 710-0588

Hex "B" Tap Scr. .250" x, 1.0" Lg.
(Superseded to 710-0788)

$7.49

$

In Stock, only 2 left!

0

48

White Outdoor 710-0877

Hex Cl.-Scr. 3/8-24 x .88 0 Lg.
(Superseded to 710-0696)

$6.99

$

In Stock, only 2 left!

0

49

White Outdoor 16348

Reinforcement Plate
(Superseded to 16348B)

$9.49

$

Usually ships in 3-6 days

0

50

White Outdoor 712-0922

Hex Jam Nut 1/2-20 Thd
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

51

White Outdoor 736-0105

Bell.-Wash. .400 I.D. x .88 0 O.D. x .060

$4.49

$

In Stock, Qty 20+

0

52

White Outdoor 736-0162

Fl.-Wash. .635 x 1.04 O.D. x .1 20"

$4.49

$

In Stock, Qty 20+

0

53

White Outdoor 738-0627

6.5" Blade Spindle
(Superseded to 938-0627)

$

$

Not available

54

White Outdoor 741-0155

Ball Brg. .62 I.D. x 1.30" O.D. x 44"
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 13

0

55

White Outdoor 742-0252

6.50" Blade

$

$

Not available

56

White Outdoor 756-0468

1/2" V-Pulley Half .625 I.D. x 2.25" O.D.

$9.49

$

Usually ships in 3-6 days

0

57

White Outdoor 726-0106

Cap Speed Nut 1/4" Rod.

$3.99

$

Usually ships in 3-6 days

0

58

White Outdoor 732-0121

Extension Spring .73 O.D. x 4.31 Lg.
(Superseded to 932-0121)

$14.99

$

In Stock, only 1 left!

0

59

White Outdoor 732-0395

Extension Spring
(Superseded to 932-0395)

$

$

Not available

60

White Outdoor 736-0105

Bell.-Wash. .400 I.D. x .88 0 O.D. x .060

$4.49

$

In Stock, Qty 20+

0

61

White Outdoor 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

62

White Outdoor 736-0141

Spring Wash. .445 I.D. x .75 O.D. x .017
(Superseded to 936-0141)

$6.99

$

In Stock, only 2 left!

0

63

UNKNOWN

$

$

Not available

64

White Outdoor 736-0219

Bell.-Wash. .400 I.D. x 1.13 0 O.D. x .030
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

65

White Outdoor 736-0253

Bell.-Wash. .505 I.D. x 1.00 0 O.D. x .075

$3.99

$

In Stock, Qty 20+

0

66

White Outdoor 736-0174

Spring Wash. .650 I.D. x .875 O.D. x .015 Thk.

$6.99

$

In Stock, Qty 8

0

67

White Outdoor 738-0140

Shld. Bolt .437 Dia. x .180

$5.99

$

In Stock, Qty 15

0

68

White Outdoor 738-0347

Shld. Spacer .625 I.D.
(Superseded to 938-0347)

$10.99

$

Usually ships in 3-6 days

0

69

White Outdoor 742-0295

Mower Blade 21.88

$

$

Not available

70

White Outdoor 746-0237

Brake Cable Ass'y.
(Superseded to 946-0237)

$

$

Not available

71

White Outdoor 748-0279

Shld. Spacer

$

$

Not available

72

White Outdoor 748-0300

Blade Adapter

$13.99

$

In Stock, only 3 left!

0

73

White Outdoor 754-0230

"V"Belt 1/2 x 56" Lg.
(Superseded to 954-0230)

$32.99

$

Usually ships in 3-6 days

0

74

White Outdoor 754-0293

"V"Belt 1/2 x 74" Lg.
(Superseded to 954-0293)

Note: (Drive Belt)

$32.99

$

Usually ships in 3-6 days

0

75

White Outdoor 756-0365

Fl.-ldler w/Flanges 3.50 0 O.D.
(Superseded to 956-0365)

$48.99

$

In Stock, Qty 7

0

76

White Outdoor 711-0701

Clevis Pin 1/4 Dia. x .53 0 Lg.
(Superseded to 911-0701)

$6.99

$

In Stock, only 1 left!

0

77

White Outdoor 714-0104

Intern. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

78

White Outdoor 714-0145

Intern. Cotter Pin 1/2" Dia.

$4.99

$

In Stock, Qty 20+

0

79

White Outdoor 734-0974

Deck Wheel 6 0 x 1.38

$20.99

$

Usually ships in 3-6 days

0

80

White Outdoor 736-0105

Bell.-Wash. .400 I.D. x .88 0 O.D. x .060

$4.49

$

In Stock, Qty 20+

0

81

White Outdoor 736-0192

Fl.-Wash. .531 I.D. x .93 0 O.D. x .090

$4.49

$

In Stock, Qty 16

0

82

White Outdoor 738-0455

Shoulder Bolt 3/8-16 x 1.41
(Superseded to 938-0455)

$

$

Not available

83

White Outdoor 710-0877

Hex Bolt 3/8-24 x .88" Lg.
(Superseded to 710-0696)

Note: (Special)

$6.99

$

In Stock, only 2 left!

0

84

White Outdoor 736-0169

L.-Washer 3/8 I.D.

$3.99

$

In Stock, Qty 20+

0

85

White Outdoor 714-0122

Sq. Key 3/16 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

86

White Outdoor 717-0910

R.H. Blade Spindle Ass'y. Comp.
(Superseded to 917-0910)

$

$

Not available

White Outdoor 917-0910

R.H. Spindle Ass'y.

$

$

Not available

White Outdoor 717-0619

Center Spindle Ass'y.

$

$

Not available

White Outdoor 917-0909

L.H. Spindle Ass'y.

$

$

Not available
