190-931-190 - White Outdoor 44" Mower Deck, Rear Discharge (1988) Blade Assembly Parts Diagram

44" Mower Deck, Rear Discharge

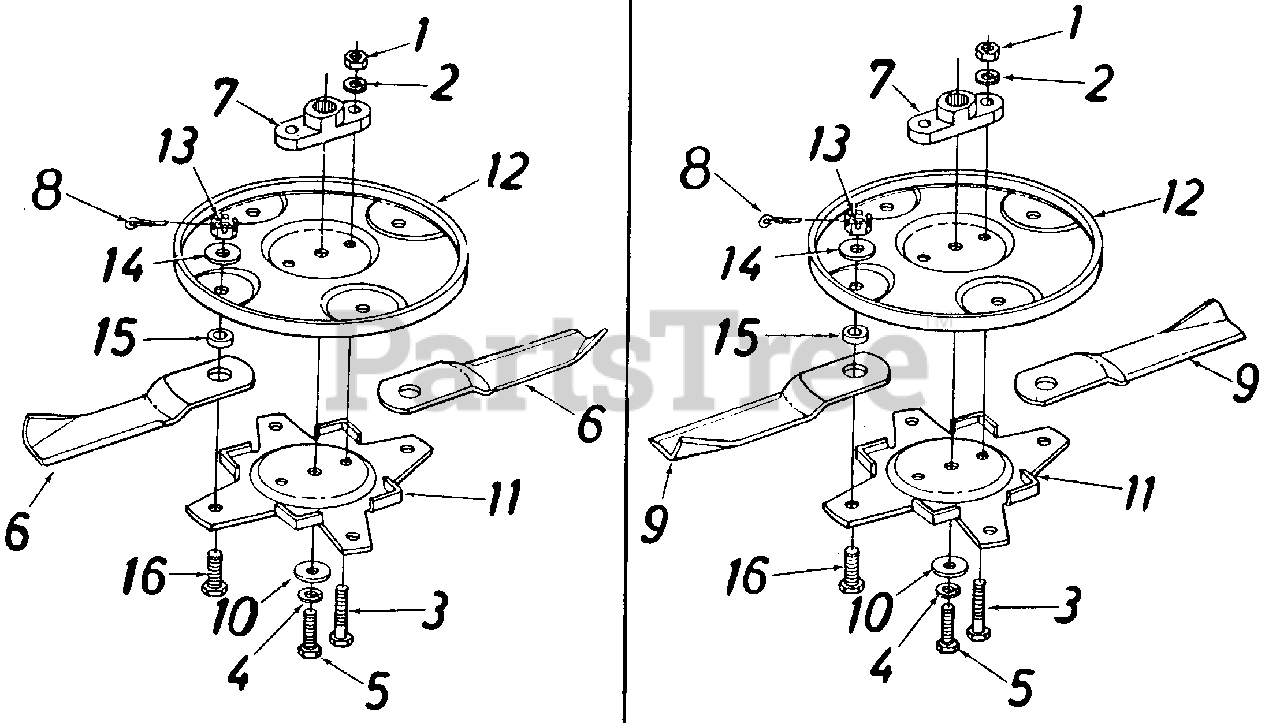

Blade Assembly Parts Diagram

  • Title

1

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

2

White Outdoor 736-0119

L.-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

3

White Outdoor 710-0888

Hex BoltS/16-24 x 1.00" Lg.

Note: (Spccial)

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 736-0217

L. Wash. 3/8" I.D., H.D.

$4.49

$

In Stock, Qty 8

0

5

White Outdoor 710-0696

Hex Bolt 3/8-24 x .88" Lg. (Grade 5)

$6.99

$

In Stock, only 2 left!

0

6

White Outdoor 742-0277

Blade L.H. Rotation

$

$

Not available

7

White Outdoor 748-0235

Blade Adapter

$

$

Not available

8

White Outdoor 714-0111

Cottar Pin 3/32" Dia. x 1 00" Lg.

$4.99

$

In Stock, Qty 13

0

9

White Outdoor 742-0278

Blade-R.H. Rotation
(Superseded to 942-0278)

$

$

Not available

10

White Outdoor 736-0227

Flat Washer

$6.49

$

In Stock, Qty 13

0

11

White Outdoor 742-0279

Lower Blade Disc

Variations

White Outdoor 742-0279-0637

BLADE DISC-LOWER - POWDER BLACK (0637)

$

$

Not available

$

$

12

White Outdoor 742-0265

Upper Blade Disc
(Superseded to 742-0286-0637)

$

$

Not available

13

White Outdoor 712-0114

Slotted Hex Nut 1/2-20Thd.
(Superseded to 912-0114)

$

$

Not available

14

White Outdoor 736-0179

Fl.-Wash. .531" I.D. x 1.25" O.D.

$4.99

$

In Stock, only 2 left!

0

15

White Outdoor 750-0610

Spacer
(Superseded to 950-0610)

$

$

Not available

16

White Outdoor 738-0587

Shld. Scr. .50" Dia. x .36"
(Superseded to 938-0587)

Note: (Special)

$

$

Not available
