190-930-190 - White Outdoor 40" Snow Thrower Attachment (1987) Thrower Assembly Parts Diagram

40" Snow Thrower Attachment

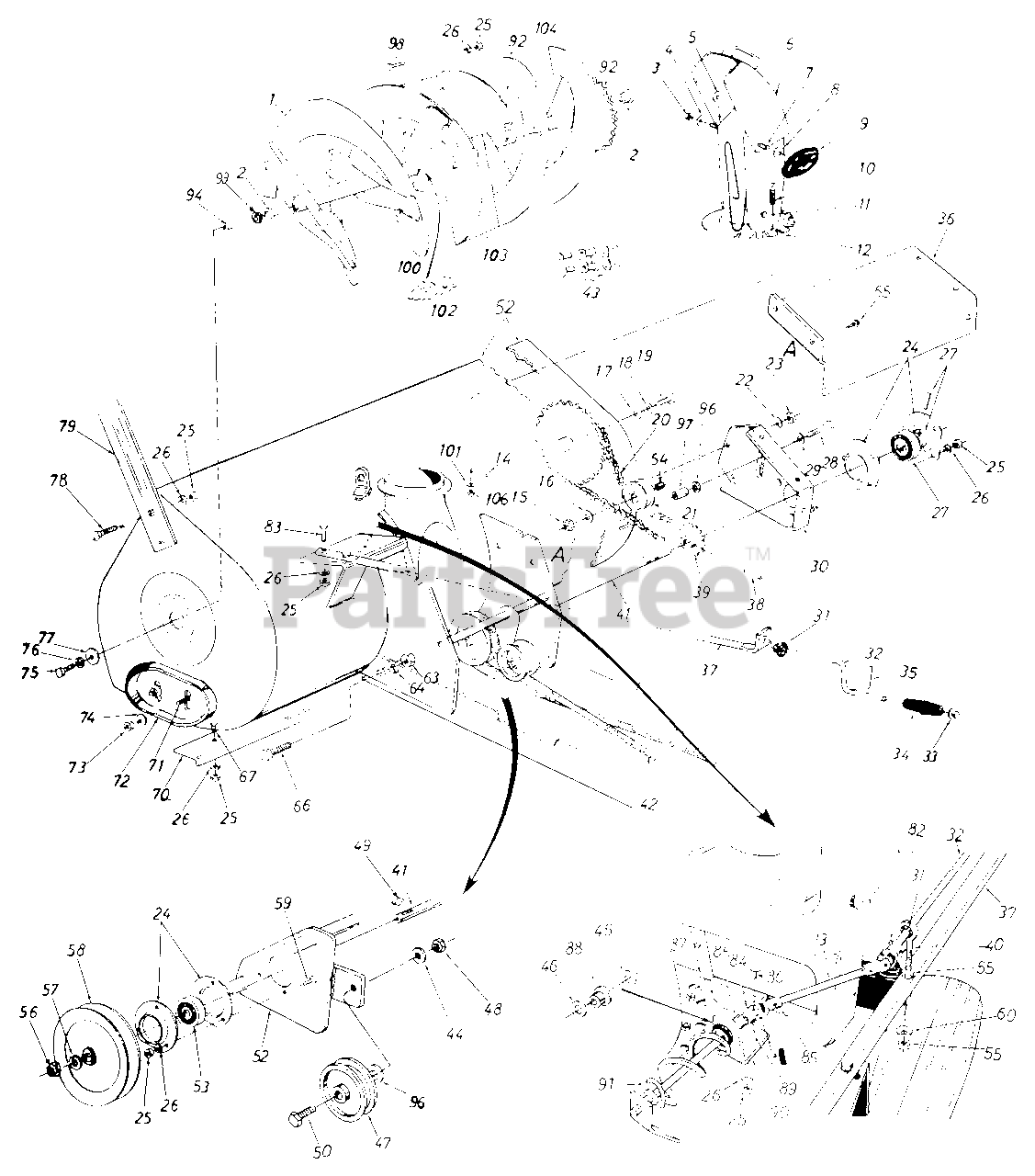

Thrower Assembly Parts Diagram

  • Title

1

MTD 784-5221-0637

Spirai Ass'y. (L.H.)

$

$

Not available

2

MTD 741-0227

Flange Bearing

$11.99

$

In Stock, Qty 20+

0

3

MTD 912-0158

Hex Cent. L.-Nut 5/16-18 Thd.

$3.49

$

In Stock, Qty 18

0

4

MTD 736-0105

Belleville Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

5

MTD 936-0179

Flat Washer 3/8" I.D.
(Superseded to 736-0179)

$4.99

$

In Stock, only 2 left!

0

6

MTD 05225

Top Chute Ass'y.

Note: NLA

$

$

Currently unavailable

7

MTD 710-0260A

Carriage Bolt 5/16-18 x .62"-Lg.*

$4.49

$

In Stock, Qty 20+

0

8

MTD 736-0105

Belleville Washs. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

9

MTD 720-04072A

Hand Knob

$6.99

$

In Stock, Qty 20+

0

10

MTD 710-0924

Truss Mach Scr. 1/4-20 x .75"-Lg.

$4.49

$

In Stock, Qty 20+

0

11

MTD 726-0111

Push Cap .188" Dia. Rod

$

$

Not available

12

MTD 05954

Chute Ass'y.

Note: NLA

$

$

Currently unavailable

13

MTD 747-0523

Chute Crank Extension Rod

Note: NLA

$

$

Not available

14

MTD 731-0851A

Chute Flange Keeper

$4.49

$

In Stock, Qty 20+

0

15

MTD 712-0375

L.-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

16

MTD 936-0300

Fl.-Wash.
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

17

MTD 936-0179

Fl.-Wash.
(Superseded to 736-0179)

$4.99

$

In Stock, only 2 left!

0

18

MTD 936-0253

Belleville Wash.
(Superseded to 736-0253)

$

$

Not available

19

MTD 710-3131

Hex Bolt 1/2-13 x 1.00" Lg.*

$5.49

$

In Stock, only 1 left!

0

20

MTD 713-0189

#420 Chain 1/2" Pitch x 77 Links

Note: NLA

$

$

Not available

21

MTD 756-0358

Plastic Idler 2.00" O.D.

Note: NLA

$

$

Not available

22

MTD 936-0329

L.-Wash. 1/4" I.D.*

$4.49

$

In Stock, Qty 9

0

23

MTD 912-0287

Hex Nut 1/4-20 Thd.*

$4.99

$

In Stock, only 1 left!

0

24

MTD 941-0311

Bearing Housing

$

$

Not available

25

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

26

MTD 936-0119

L.-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

27

MTD 941-0310

Self-Aligning Bearing

$

$

Not available

28

MTD 710-0347

Hex Bolt 3/8-16 x 175" Lg *

$5.49

$

In Stock, Qty 20+

0

29

MTD 736-0105

Belleville Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

30

MTD 05721

Chain Guard Ass'y.

Note: NLA

$

$

Not available

31

MTD 941-0475

Nylon Bushing

$4.49

$

In Stock, Qty 20+

0

32

MTD 747-0522

Chute Crank .375 Dia. x 33"-Lg.

Note: NLA

$

$

Not available

33

MTD 926-0100

Push Nut 3/8" Rod
(Superseded to 726-0100)

$

$

Not available

34

MTD 720-0201A

Knob (Black)

$10.99

$

In Stock, only 4 left!

0

35

MTD 915-0138

Roll Pin

$4.99

$

Usually ships in 3-6 days

0

36

MTD 784-5092

Drive Shaft Cover

Note: NLA

$

$

Not available

37

MTD 749-0675

Crank Support Tubing

Note: NLA

Variations

MTD 749-0675-0637

No Longer Available TUBING-SUP - POWDER BLACK (0637)

$

$

Not available

$

$

38

MTD 915-0118

Spring Pin Spiral 5/16" Dia. x 1.75" Lg.
(Superseded to 715-0118)

$

$

Not available

39

MTD 713-0188

14 Teeth Sprocket Ass'y.

$70.99

$

Usually ships in 3-6 days

0

40

MTD 747-0481

Eyebolt 5/16-18 x 3.0" Lg.

$

$

Not available

41

MTD 784-5078

Drive Shaft

Note: NLA

$

$

Not available

42

MTD 954-0291A

VBelt 1/2" x 88" Lg. Kevlar

$57.99

$

In Stock, only 1 left!

0

43

MTD 913-0154

Master Link for #420 Chain

$

$

Not available

44

MTD 936-0169

L.-Wash. 3/8" I.D.*
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

45

MTD 936-0140

Fl.-Wash. .385 I.D. x .62" O.D.
(Superseded to 736-0140)

$

$

Not available

46

MTD 736-0234

Fl.-Wash. .390 I.D. x 1.50" O.D.

$6.49

$

Usually ships in 3-6 days

0

47

MTD 956-0417

Fl.-ldler with Flanges

$

$

Not available

48

MTD 712-0342

Hex Jam L.-Nut 3/8-26 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

49

MTD 914-0388

#61 Hi-Pro Key

$7.99

$

In Stock, Qty 20+

0

50

MTD 710-0520

Hex Bolt 3/8-16 x 1.50" Lg.*

$4.49

$

In Stock, Qty 5

0

52

MTD 05725

Spiral Housing Ass'y.

Note: NLA

$

$

Currently unavailable

53

MTD 941-0309

Self-Aligning Bearing

$74.99

$

Usually ships in 3-6 days

0

54

MTD 741-0322

Sleeve Bearing .50" I.D.

$

$

Not available

55

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

56

MTD 712-0301

Hex Nut 3/4-10 Thd.

$7.99

$

In Stock, only 1 left!

0

57

MTD 936-0364

L.-Wash. 3/4" I.D.

$

$

Not available

58

MTD 756-0456

VPulley .750" I.D. x 6.00" O.D.

Note: NLA

$

$

Not available

59

MTD 910-0198

Hex Sems Bolt 5/16-18 x .75" Lg.*

$

$

Not available

60

MTD 736-0242

Bell.-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

63

MTD 912-0239

Hex L.-Nut 1/2-20 Thd.
(Superseded to 712-0239)

$

$

Not available

64

MTD 936-0921

L.-Wash. 1/2"I.D.*
(Superseded to 736-0921)

$4.49

$

In Stock, only 2 left!

0

65

MTD 710-0599

Hex Wash. Hd. Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

66

MTD 710-0504

Hex Bolt 1i2-20 x 1.25" Lg.*

Note: NLA

$

$

Not available

67

MTD 710-0260A

Carriage Bolt 5/16-18 x .62"*

$4.49

$

In Stock, Qty 20+

0

70

MTD 05723

Shave Plate

Note: NLA

Variations

MTD 05723-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

71

MTD 710-0389

Carriage Bolt 3/8-16 x .75" Lg.*

$4.49

$

Usually ships in 3-6 days

0

72

MTD 784-5038B-0637

Skid Shoe

$27.99

$

In Stock, only 4 left!

0

73

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, Qty 6

0

74

MTD 736-0105

Belleville Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

75

MTD 710-3131

Hex Bolt 1/2-13 x 1.00" 4.*

$5.49

$

In Stock, only 1 left!

0

76

MTD 936-0253

Belleville Wash. 1/2" I.D.
(Superseded to 736-0253)

$

$

Not available

77

MTD 936-0179

Fl.-Wash.
(Superseded to 736-0179)

$4.99

$

In Stock, only 2 left!

0

78

MTD 710-0260A

Carriage Bolt 5/16-18 x .62" Lg.*

$4.49

$

In Stock, Qty 20+

0

79

MTD 790-00181-0637

Drift Cutter

$43.99

$

Usually ships in 3-6 days

0

82

MTD 914-0111

Cotter Pin
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

83

MTD 710-0805

Hex Bolt 5/16-18 x 1.50" Lg.*
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

84

MTD 711-0584

Joint Block

$

$

Not available

85

MTD 05066

Joint Bracket Ass'y.

Note: NLA

$

$

Not available

86

MTD 728-0147

Oval Head Rivet

$

$

Not available

87

MTD 715-0103

Spring Pin Roll 1/8" Dia. x .75" Lg.*

Note: NLA

$

$

Not available

88

MTD 941-0475

Nylon Bushing

$4.49

$

In Stock, Qty 20+

0

89

MTD 710-0260A

Carriage Bolt 5/16-18 x .62

$4.49

$

In Stock, Qty 20+

0

90

MTD 784-5085A

Chute Crank Bracket

$

$

Not available

91

MTD 784-5084

Chute Crank Ass'y.

Note: *CHOOSE COLOR WHEN ORDERING*

$

$

Not available

92

MTD 784-5222-0637

Spiral Ass'y. (R.H.)

$

$

Not available

94

MTD 738-0229

Spiral Axle

Note: NLA

$

$

Not available

96

MTD 736-0247

Flat Washer

$9.49

$

In Stock, Qty 12

0

97

MTD 950-0252

Idler Spacer

$21.99

$

In Stock, Qty 5

0

98

MTD 710-0451

Carriage Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

99

MTD 736-0250

Fl.-Wash. 1.0" I.D. x 1.75" O.D.

$4.49

$

In Stock, Qty 20+

0

100

MTD 736-0265

Fl.-Wash. 1.03" I.D. x 1.62" O.D.

$

$

Not available

101

MTD 736-0270

Bell. Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

102

MTD 741-0227

Plastic Bushing

$11.99

$

In Stock, Qty 20+

0

103

MTD 784-5216-0637

Rotor Paddel Ass'y.

$

$

Not available

104

MTD 715-1118

Spring Pin Spir. 5/16" Dia. x 1.75" Lg.

Note: NLA

$

$

Currently unavailable

106

MTD 912-0287

Hex Nut 1/4-20 Thd.

$4.99

$

In Stock, only 1 left!

0
