190-930-000 - MTD 40" Snow Thrower Attachment (1988) 40" Snow Thrower Attachment Parts Diagram

40" Snow Thrower Attachment

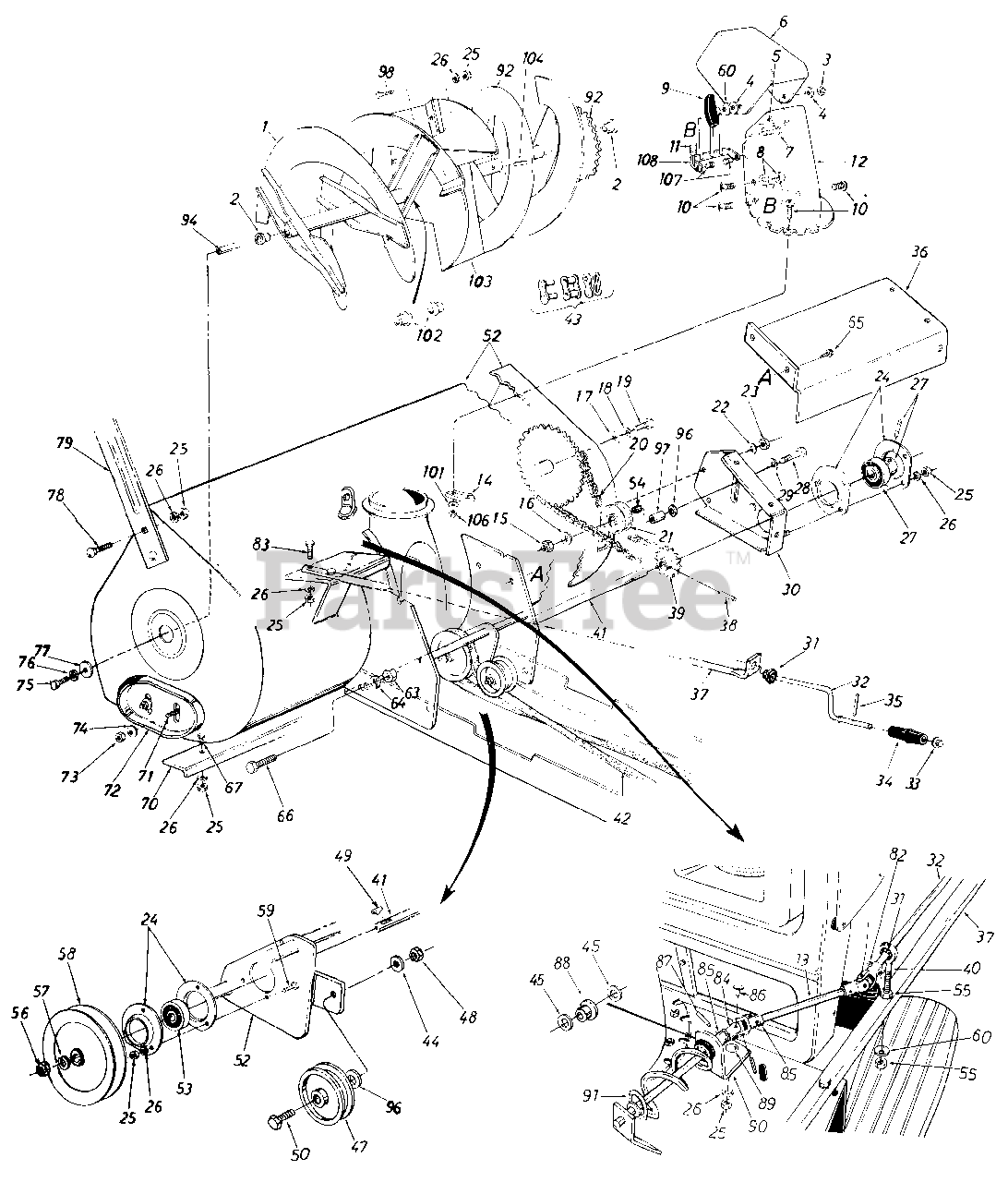

40" Snow Thrower Attachment Parts Diagram

  • Title

1

MTD 784-5221

Spiral Ass'y.
(Superseded to 784-5221-0637)

Note: (L.H.)

Variations

MTD 784-5221-0498

SPIRAL-LH - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-5221-0637

SPIRAL-LH - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 741-0227

Flange Bearing

$11.99

$

In Stock, Qty 20+

0

3

MTD 712-0158

Hex Cent. L.Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

4

MTD 736-0231

Fl.Wash. .344" I.D.

$4.99

$

In Stock, Qty 11

0

5

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

6

MTD 731-0846

Upper Chute
(Superseded to 731-0846C)

$52.99

$

Usually ships in 3-6 days

0

7

MTD 710-0276

Carriage Bolt 5/16-18 x 1.0" Lg.*

$3.99

$

In Stock, Qty 14

0

8

MTD 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

9

MTD 09966

Hand Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

10

MTD 710-0255

Truss Mach Scr. 1/ 4 20 x .75" Lg.
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

11

MTD 732-0118

Ext. Sprlng
(Superseded to 732-0118A)

$10.99

$

Usually ships in 3-6 days

0

12

MTD 731-0843

Lower Chute
(Superseded to 931-0843B)

$

$

Not available

13

MTD 747-0523

Chute Crank Extension Rod

$

$

Not available

14

MTD 731-0851

Chute Flange Keeper
(Superseded to 731-0851A)

$4.49

$

In Stock, Qty 20+

0

15

MTD 712-0375

L.Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

16

MTD 736-0300

Fl.Wash.

$4.49

$

In Stock, Qty 20+

0

17

MTD 736-0179

Fl.Wash.

$4.99

$

In Stock, only 2 left!

0

18

MTD 736-0253

Belleville Wash.

$3.99

$

In Stock, Qty 20+

0

19

MTD 710-0493

Hex Bolt 1/2-13 x 1.00" Lg.*
(Superseded to 710-3131)

$5.49

$

In Stock, only 1 left!

0

20

MTD 713-0189

#420 Chain 1/2" Pitch x 77 Links

$

$

Not available

21

MTD 756-0358

Plastic Idler 2.00" O.D.

$

$

Not available

22

MTD 736-0329

L.Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

23

MTD 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

24

MTD 741-0311

Bearing Housing
(Superseded to 941-0311)

$

$

Not available

25

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

26

MTD 736-0119

L.Wash. 5/l 6" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

27

MTD 741-0310

Self-Aligning Bearing

$

$

Not available

28

MTD 710-0347

Hex Bolt 3/8-16 x 1.75" Lg.*

$5.49

$

In Stock, Qty 20+

0

29

MTD 736-0105

Belleville Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

30

MTD 05721

Chain Guard Ass'y.

$

$

Not available

31

MTD 741-0475

Nylon Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

32

MTD 747-0438

Chute Crank .375 Dia. x 34.5" Lg.

$

$

Not available

33

MTD 726-0100

Push Nut 3/8" Rod

$4.49

$

In Stock, only 3 left!

0

34

MTD 720-0201

Knob (Black)
(Superseded to 720-0201A)

$10.99

$

In Stock, only 4 left!

0

35

MTD 715-0138

Roll Pin
(Superseded to 915-0138)

$4.99

$

In Stock, only 1 left!

0

36

MTD 784-5092

Drive Shaft Cover

$

$

Not available

37

MTD 749-0675

Crank Support Tubing

Variations

MTD 749-0675-0637

No Longer Available TUBING-SUP - POWDER BLACK (0637)

$

$

Not available

$

$

38

MTD 715-0118

Spring Pin Spiral 5/16" Dia. x 1.75" Lg.

$12.99

$

In Stock, Qty 7

0

39

MTD 713-0188

14 Teeth Sprocket Ass'y.

$70.99

$

Usually ships in 3-6 days

0

40

MTD 747-0481

Eyebolt 5/16-18 x 3.0" Lg.

$

$

Not available

41

MTD 784-5078

Drive Shaft

$

$

Not available

42

MTD 754-0291

"V" Belt
(Superseded to 954-0291A)

$57.99

$

In Stock, only 1 left!

0

43

MTD 713-0154

Master Link for #420 Chain
(Superseded to 913-0154)

$

$

Not available

44

MTD 736-0169

L.Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

45

MTD 736-0140

Fl.Wash. .385 I.D. x .62" O.D.

$7.49

$

In Stock, Qty 7

0

47

MTD 756-0417

Fl.ldler with Flanges

$

$

Not available

48

MTD 712-0342

Hex Jam L.Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

49

MTD 714-0388

#61 Hi-Pro Key 3/16 x 518" Dia.
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 5

0

50

MTD 710-0347

Hex Bolt 3/8-16 x 1.75" Lg.*

$5.49

$

In Stock, Qty 20+

0

52

MTD 784-5081

Spiral Housing Ass'y.

$

$

Not available

53

MTD 741-0309

Self-Aligning Bearing
(Superseded to 941-0309)

$74.99

$

In Stock, only 2 left!

0

54

MTD 741-0322

Sleeve Bearing .50" I.D.

$

$

Not available

55

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

56

MTD 712-0301

Hex Nut 3/4-10 Thd.

$7.99

$

In Stock, only 1 left!

0

57

MTD 736-0367

L.Wash. 3/4" I.D.
(Superseded to 936-0364)

$

$

Not available

58

MTD 756-0456

"V"Pulley 750" I.D. x 6.00" O.D.

$

$

Not available

59

MTD 710-0198

Hex Sems Bolt 5/16-18 x .75" Lg.
(Superseded to 910-0198)

$

$

Not available

60

MTD 736-0242

Bell Wash. .345" 1 D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

63

MTD 712-0206

Hex Nut 1/2-13 Trd.

$4.49

$

In Stock, Qty 20+

0

64

MTD 736-0921

L.Wash. 1/2" I.D.'

$4.49

$

In Stock, Qty 5

0

MTD 710-0599

Hex Wash. Hd. Tap Scr. 1/4-20 x .50" L-g.

$4.49

$

In Stock, Qty 20+

0

66

MTD 710-0490

Hex Bolt 1/2-13 x 2.75" Lg.*

$

$

Not available

67

MTD 710-0451

Carriage Bolt 5/l6-18 x .75"*

$4.49

$

In Stock, Qty 20+

0

70

MTD 05723

Shave Plate

Variations

MTD 05723-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

71

MTD 710-0790

Carriage Bolt 3/8-16 x .62" Lg.*
(Superseded to 710-0389)

$4.49

$

In Stock, Qty 10

0

72

MTD 784-5038

Skid Shoe
(Superseded to 784-5038B-0637)

$27.99

$

In Stock, Qty 11

0

73

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

74

MTD 736-0105

Belleville Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

75

MTD 710-0493

Hex Bolt 1/2-13 x 1.00" Lg.*
(Superseded to 710-3131)

$5.49

$

In Stock, only 1 left!

0

76

MTD 736-0253

Belleville Wash. 1/2" I.D.

$3.99

$

In Stock, Qty 20+

0

77

MTD 736-0179

Fl.Wash.

$4.99

$

In Stock, only 2 left!

0

78

MTD 710-0260

Carriage Bolt 5/16-18 x .62" Lg.*
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

79

MTD 05139

Grift Cutter
(Superseded to 790-00181-0637)

$43.99

$

Usually ships in 3-6 days

0

82

MTD 714-0111

Coter Pin

$4.99

$

In Stock, Qty 13

0

83

MTD 710-0442

Hex Bolt 5/16-18 x 1.50" Lg.*
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

84

MTD 711-0584

Joint Block

$

$

Not available

85

MTD 05066

Joint Bracket Ass'y.

$

$

Not available

86

MTD 728-0147

Oval Head Rivet

$

$

Not available

87

MTD 715-0129

Spring Pin Roll 1/8" Dia. x .75" Lg.*

$4.99

$

In Stock, only 1 left!

0

88

MTD 741-0475

Nylon Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

89

MTD 710-0451

Carriage Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

90

MTD 784-5085

Chute Crank Bracket

$

$

Not available

91

MTD 784-5084

Chute Crank Ass'y.

$

$

Not available

92

MTD 784-5222

Spiral Ass'y.

Note: (R.H.)

Variations

MTD 784-5222-0637

Spiral Ass'y. R.H. - POWDER BLACK (0637)

$

$

Not available

MTD 784-5222-0498

No Longer Available SPIRAL-RH - OLD CUB YELLOW (0498)

$

$

Not available

$

$

94

MTD 05737

Spiral Axle

$

$

Not available

96

MTD 736-0247

Flat Washel

$9.49

$

In Stock, Qty 16

0

97

MTD 750-0252

Idler Spacer
(Superseded to 950-0252)

$21.99

$

In Stock, Qty 5

0

98

MTD 710-0451

Carriage Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

101

MTD 736-0142

Fl. Wash. 1/4" I.D.

$4.99

$

In Stock, only 4 left!

0

102

MTD 741-0227

Plastic Bushing

$11.99

$

In Stock, Qty 20+

0

103

MTD 784-5216

Rotor Paddle Ass'y.
(Superseded to 784-5216-0637)

Variations

MTD 784-5216-0637

PADDLE ASSY-ROTOR - POWDER BLACK (0637)

$

$

Not available

$

$

104

MTD 715-0118

Spring Pin Spir. 5/16" Dia. x 1.75" Lg.

$12.99

$

In Stock, Qty 7

0

106

MTD 712-0107

Hex L.Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

107

MTD 738-0561

Shld. Nut 1/4-20 Thd.
(Superseded to 938-0561)

$9.49

$

In Stock, only 2 left!

0

108

MTD 784-5192

Chute Guard Ass'y.
(Superseded to 784-5192-0637)

Variations

MTD 784-5192-0637

GUARD ASSY-CHUTE - POWDER BLACK (0637)

$99.99

$

Usually ships in 3-6 days

0

$99.99

$

Usually ships in 3-6 days

0
