190-862-190 - White Outdoor Electric Lift Kit (1994) Electric Lift Parts Diagram

Electric Lift Kit

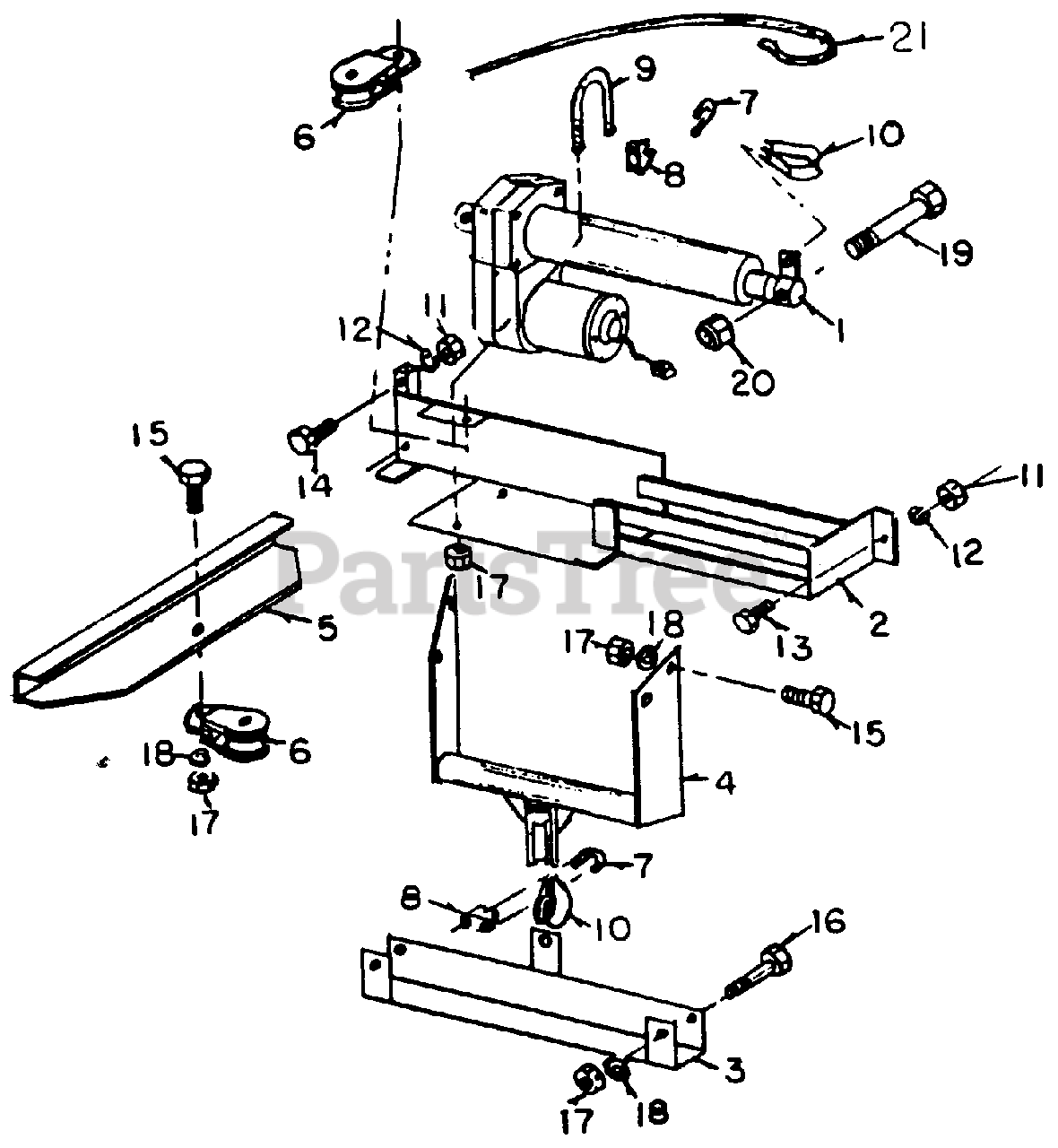

Electric Lift Parts Diagram

  • Title

1

MTD WD-900-2033

Actuator

Note: NLA

$

$

Not available

2

MTD WD-450-0000

Actuator Mount

Note: NLA

$

$

Not available

3

MTD WD-450-0002

Deck Lift Adapter

Note: NLA

$

$

Not available

4

MTD WD-450-0003

Cable Mount, Nose

Note: NLA

$

$

Not available

5

MTD WD-450-0001

Cable Mount Side

Note: NLA

$

$

Currently unavailable

6

MTD WD-900-5589

Cable Pulley

Note: NLA

$

$

Not available

7

MTD WD-C37616

U-bolt

$

$

Not available

8

MTD WD-900-5593

Cable Clamp

Note: NLA

$

$

Not available

9

MTD WD-900-5592

U-bolt, Actuator

Note: NLA

$

$

Currently unavailable

10

MTD WD-900-5599

Cable Thimble

Note: NLA

$

$

Not available

11

MTD WD-900-6026

Hex Nut, 1/4-20

Note: NLA

$

$

Currently unavailable

12

MTD WD-900-6028

Lockwasher, 1/4"

Note: NLA

$

$

Currently unavailable

13

MTD WD-900-6039

Hex Capscrew, 114-20 x 3/4", GRS

Note: NLA

$

$

Currently unavailable

14

MTD WD-900-6031

Hex Capscrew, 1/4-20 x 1", GRS

Note: NLA

$

$

Currently unavailable

15

MTD WD-900-6056

Hex Capscrew, 5/16-18 x 1", GRS

Note: NLA

$

$

Currently unavailable

16

MTD WD-900-6061

Hex Capscrew, 5/16-18 x 2", GRS

Note: NLA

$

$

Currently unavailable

17

MTD WD-900-6050

Hex Nut, 5/16-18

Note: NLA

$

$

Currently unavailable

18

MTD WD-900-6051

Lockwasher, 5/16"

Note: NLA

$

$

Currently unavailable

19

MTD WD-450-0005

Actuator Bolt

Note: NLA

$

$

Currently unavailable

20

MTD WD-900-6126

Hex Locknut, 1/2-13

Note: NLA

$

$

Currently unavailable

21

MTD WD-900-5591

Cable, 3/16" x 64"

Note: NLA

$

$

Not available
