190-858-190 - White Outdoor 54" Snow Blade (1993) 54" Dozer Blade Parts Diagram

54" Snow Blade

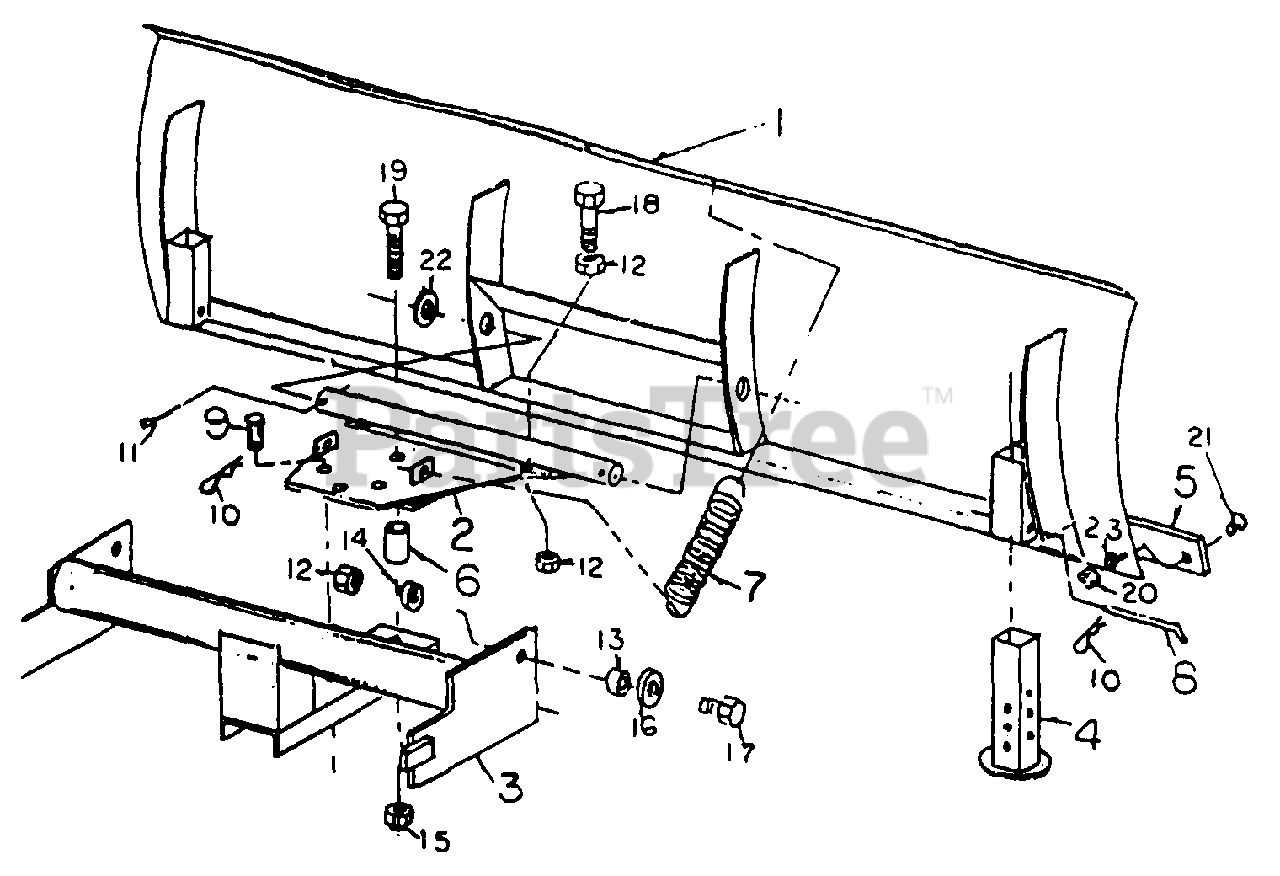

54" Dozer Blade Parts Diagram

  • Title

1

WD-440-0000

Blade, 54"

$

$

Not available

2

White Outdoor WD-440-0001

Pivot Mount

$

$

Not available

3

White Outdoor WD-440-0002

Blade Mount, 54"

$

$

Not available

4

White Outdoor WD-440-0004

Skid Plate

$

$

Not available

5

WD-440-0003

Replaceable Blade

$

$

Not available

6

White Outdoor WD-440-0005

Bushing

$

$

Not available

7

White Outdoor WD-900-5516

Spring

$

$

Not available

8

White Outdoor WD-900-5536

Pin, 3/8"

$

$

Not available

9

White Outdoor WD-900-5607

Clevis Pin, 1/2"

$

$

Not available

10

White Outdoor WD-900-5520

Hair Pin

$

$

Not available

11

WD-900-6178

Cotter Pin, 3/16" x 1"

$

$

Not available

12

White Outdoor WD-900-6125

Hex Nut, 1/2-13
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor WD-300-0013S

Bushing
(Superseded to WD-C37576)

$

$

Not available

14

White Outdoor WD-900-6127

Lockwasher, 1/2"
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 6

0

15

WD-900-6126

Hex Locknut, 1/2"

$

$

Not available

16

WD-900-6128

Flatwasher, 1/2"

$

$

Not available

17

WD-900-6130

Hex Capscrew, 1/2-13 x 1 1/2", GR5

$

$

Not available

18

WD-900-6131

Hex Capscrew, 1/2-13 x 2 1/4", GR5

$

$

Not available

19

WD-900-6132

Hex Capscrew, 1/2-13 x 3", GR5

$

$

Not available

20

WD-900-6050

Hex Nut, 5/16-18

$

$

Not available

21

WD-900-6057

Carriage Bolt, 5/16-18 x 1"

$

$

Not available

22

White Outdoor WD-900-6003

Machine Washer, 3/4"

$

$

Not available

23

WD-900-6051

Lockwasher, 5/16"

$

$

Not available
