190-857-190 - White Outdoor 51" Snow Thrower Attachment (1995) 51-Inch Snow Blower Parts Diagram

51" Snow Thrower Attachment

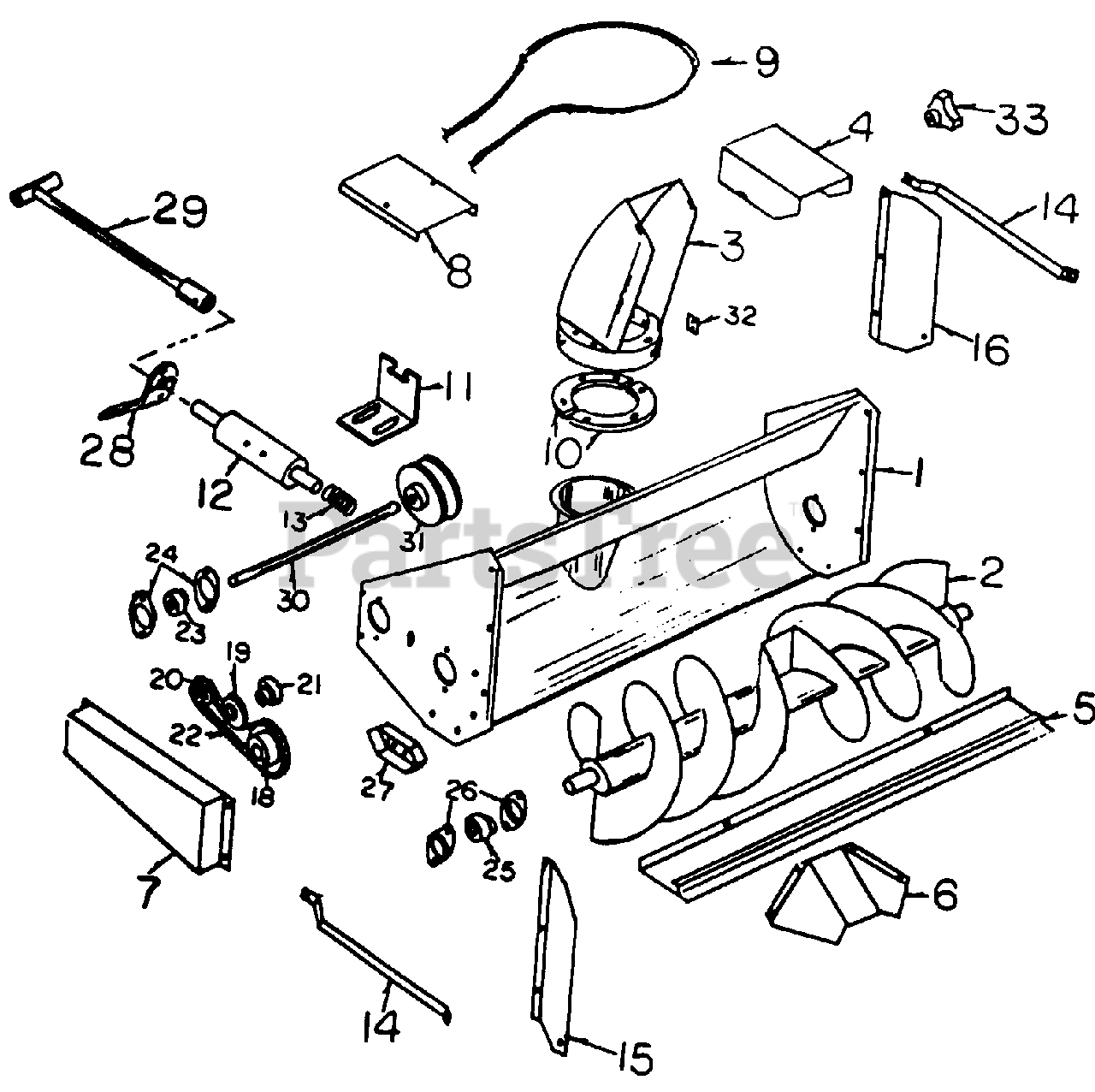

51-Inch Snow Blower Parts Diagram

  • Title
1

MTD WD-430-0000

Snow Blower Housing

Note: NLA

$

$

Currently unavailable

2

MTD WD-430-0001

Auger

Note: NLA

$

$

Currently unavailable

3

MTD WD-430-0019

Chute

Note: NLA

$

$

Currently unavailable

4

MTD WD-430-0003

Snow Deflector

Note: NLA

$

$

Currently unavailable

5

MTD WD-430-0026

Snow Blower Bit

Note: NLA

$

$

Not available

6

MTD WD-430-0005

Snow Retainer

Note: NLA

$

$

Not available

7

MTD WD-430-0006

Chain Cuard

Note: NLA

$

$

Currently unavailable

8

MTD WD-430-0007

Belt Cuard

Note: NLA

$

$

Currently unavailable

9

MTD WD-900-5602

Cable, 1/8" x 84"

Note: NLA

$

$

Not available

10

MTD WD-430-0020

Chute Clamp

Note: NLA

$

$

Not available

11

MTD WD-430-0022

Cable Retainer

Note: NLA

$

$

Not available

12

MTD WD-430-0023

Cable Pulley

Note: NLA

$

$

Currently unavailable

13

MTD WD-900-5600

Spring

Note: NLA

$

$

Currently unavailable

14

MTD WD-430-0012

Extender Brace

Note: NLA

$

$

Currently unavailable

15

MTD WD-430-0013

Extender, RH

Note: NLA

$

$

Currently unavailable

16

MTD WD-430-0014

Extender, LH

Note: NLA

$

$

Not available

18

MTD WD-900-1508

Auger Sprocket

Note: NLA

$

$

Currently unavailable

19

MTD WD-900-1507

Idler Sprocket

Note: NLA

$

$

Not available

20

MTD WD-900-1506

Drive Sprocket(1800)

Note: NLA

$

$

Not available

20

MTD WD-900-1509

Drive Sprocket(2000)

Note: NLA

$

$

Not available

21

MTD WD-430-0016

Idler Sprocket Bushing

Note: NLA

$

$

Not available

22

MTD WD-900-1006

Chain

Note: NLA

$

$

Not available

23

MTD 941-0310

Bearing, 3/4"

$

$

Not available

24

MTD 941-0311

Bearing Flange, 3/4"

$

$

Not available

25

MTD 741-0303

Bearing, 1"

$114.99

$

In Stock, only 2 left!

0

26

MTD 741-0242

Bearing Flange, 1"

$11.99

$

In Stock, only 4 left!

0

27

MTD WD-430-0017

Skid Shoe

Note: NLA

$

$

Not available

28

MTD WD-430-0021

Cable Pulley Support

Note: NLA

$

$

Currently unavailable

29

MTD WD-430-0024

Handle

Note: NLA

$

$

Currently unavailable

30

MTD WD-430-0018

Shaft

Note: NLA

$

$

Currently unavailable

31

MTD WD-900-2510

Snow Blower Pulley(1800)

Note: NLA

$

$

Not available

31

MTD WD-900-2544

Snow Blower Pulley(2000)

Note: NLA

$

$

Not available

32

MTD WD-430-0025

Cable Clamp

Note: NLA

$

$

Currently unavailable

33

MTD WD-900-5601

Wing Nut 2

Note: NLA

$

$

Not available

MTD WD-6D5209

1/2 Link, #40(2000)

Note: NLA

$

$

Currently unavailable
