190-840-190 - White Outdoor 48" Snow Blade (1995) Snow Blade Parts Diagram

48" Snow Blade

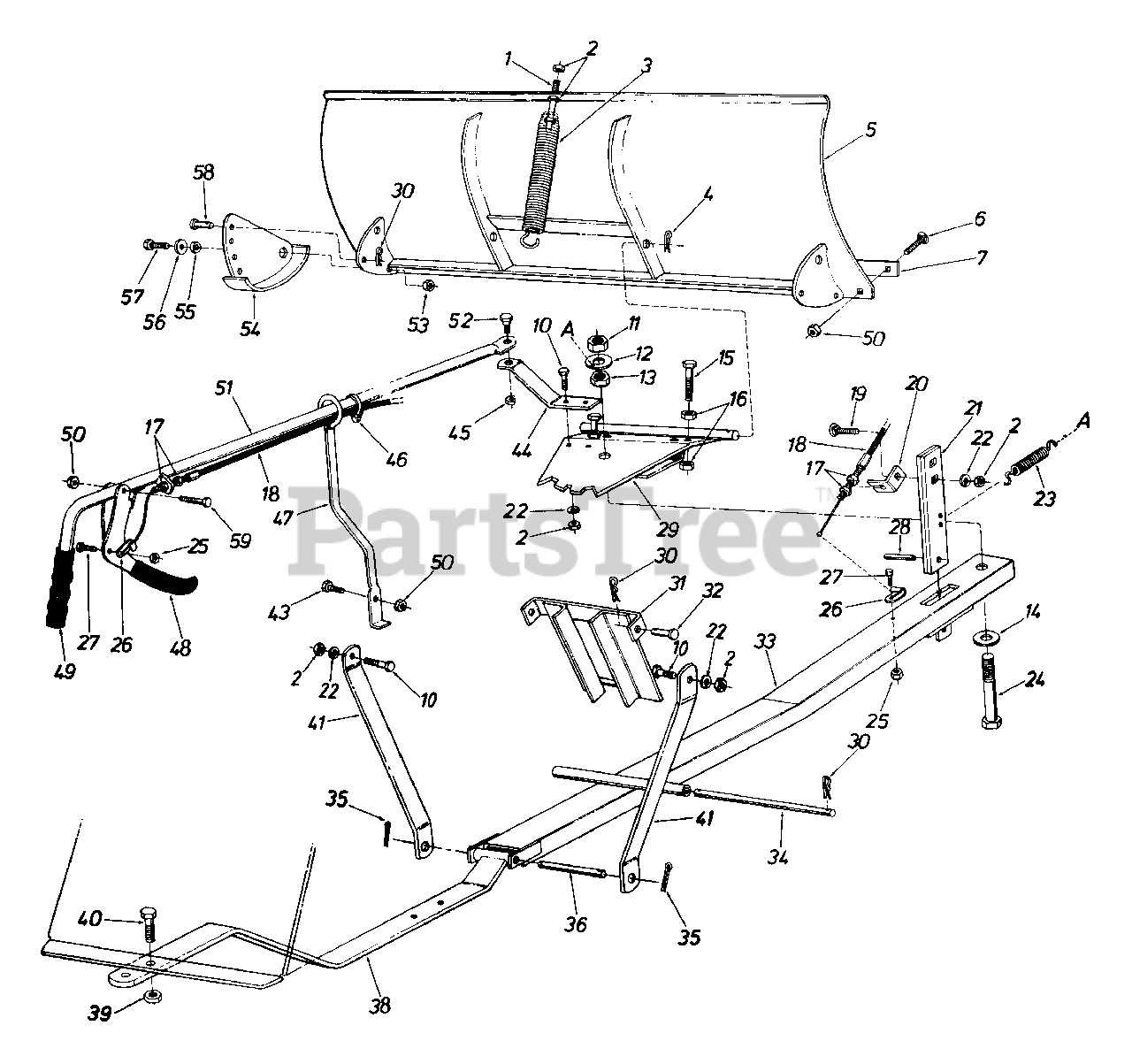

Snow Blade Parts Diagram

  • Title

1

White Outdoor 710-0693

Hex Bolt 3/8-16 x 4.5" Lg.

$14.99

$

In Stock, only 2 left!

0

2

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

3

White Outdoor 732-0359

Blade Adjustment Spring

$

$

Not available

4

White Outdoor 714-0117

Hairpin Clip 5/32" Dia.

$4.49

$

In Stock, Qty 16

0

5

White Outdoor 05741

48" Blade Ass'y.

$

$

Not available

6

White Outdoor 710-0451

Carriage Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 05754

Wear Plate 48"

$

$

Not available

10

White Outdoor 710-0253

Hex Bolt 3/8-16 x 1.0" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 712-0205

Hex L-Nut 3/4-10 Thd.

$

$

Not available

12

White Outdoor 736-0306

Fl-Wash. .81" I.D. x 2.0" O.D.

Note: (Special)

$

$

Not available

13

White Outdoor 712-0301

Hex Jam Nut 3/4-10 Thd.

$7.99

$

In Stock, only 1 left!

0

14

White Outdoor 736-0305

Fl-Wash. .81" I.D. x 2" O.D.
(Superseded to 736-0306)

$

$

Not available

15

White Outdoor 710-0489

Hex Bolt 1/2-13 x 2.0" Lg.

$7.49

$

Usually ships in 3-6 days

0

16

White Outdoor 712-0206

Hex Nut 1/2-13 Thd.

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 712-0256

Hex Jam Nut 5/16-24 Thd.

$

$

Not available

18

White Outdoor 746-0366

Control Cable Ass'y.
(Superseded to AF-49808P)

$118.99

$

Usually ships in 3-6 days

0

19

White Outdoor 710-0305

Carriage Bolt 3/8-16 x 1.25" Lg.
(Superseded to 710-0431)

$4.99

$

Usually ships in 3-6 days

0

20

White Outdoor 05762

Cable Guide Bracket

$

$

Not available

21

White Outdoor 05665

Angle - Lock Bar
(Superseded to AF-23151)

$38.99

$

Usually ships in 3-6 days

0

22

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

23

White Outdoor 732-0360

Angle Lock Spring
(Superseded to AF-43348)

$36.99

$

In Stock, only 1 left!

0

24

White Outdoor 710-0764

Hex Scr. 3/4-10 x 4.0" Lg.

Note: (Special)

$

$

Not available

25

White Outdoor 712-0107

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

26

White Outdoor 746-0260

Clevis Lanyard Fitting

$

$

Not available

27

White Outdoor 710-0252

Hex Bolt 1/4-20 x .75" Lg.
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

28

White Outdoor 715-0114

Roll Pin 1/4" Dia. x 1.0" Lg.

$9.49

$

In Stock, Qty 20+

0

29

White Outdoor 05764

Pivot Plate Ass'y.

$

$

Not available

30

White Outdoor 714-0101

Hairpin Clip 3/32" Dia.

$4.99

$

In Stock, only 2 left!

0

31

White Outdoor 05751A

Guide Bracket Ass'y.

$

$

Not available

32

White Outdoor 711-0310

Clevis Pin 1/2" Dia. x 1.0" Lg.

$10.99

$

Usually ships in 3-6 days

0

White Outdoor 711-0309

Clevis Pin 5/8" Dia. x 1.25" Lg.
(Superseded to 711-0309A)

$12.99

$

In Stock, Qty 7

0

33

White Outdoor 05744

Push Bar Ass'y.

$

$

Not available

34

White Outdoor 738-0454

Lift Shaft

$

$

Not available

35

White Outdoor 714-0121

Cotter Pin 5/32" Dia. x 1.0" Lg.
(Superseded to 914-0121)

$

$

Not available

36

White Outdoor 738-0638

Pivot Shaft

$

$

Not available

?37

White Outdoor 710-0342

Hex Bolt 3/8-16 x 1.25" Lg.
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

38

White Outdoor 05749A

Hanger Bracket Ass'y.

$

$

Not available

39

White Outdoor 712-0261

Hex L-Nut 5/8-11 Thd.
(Superseded to 912-0261)

$

$

Not available

40

710-0367

Hex Bolt 5/8-11 x 1.5" Lg.

$

$

Not available

41

White Outdoor 16367

Hanger Link

$

$

Not available

43

White Outdoor 710-0376

Hex Bolt 5/16-18 x 1.0" Lg.

$3.99

$

In Stock, Qty 20+

0

44

White Outdoor 05757

Blade Pivot Bracket

$

$

Not available

45

White Outdoor 712-0375

Hex L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

46

White Outdoor 726-0178

Nylon Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

47

White Outdoor 05761

Tube Guide Ass'y.

$

$

Not available

48

White Outdoor 05639

Clutch Grip Ass'y.

$

$

Not available

49

White Outdoor 07071

Grip - 3/4" Handle

$12.99

$

Usually ships in 3-6 days

0

50

White Outdoor 712-0158

Hex L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

51

White Outdoor 05758

Tube Handle Ass'y.

$

$

Not available

52

White Outdoor 738-0234

Shld. Bolt - Special 3/8-16 Thd.

$10.99

$

Usually ships in 3-6 days

0

53

White Outdoor 712-0375

Hex L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

54

White Outdoor 05655

Skid Assembly

$

$

Not available

55

White Outdoor 750-0437

Spacer
(Superseded to AF-42846)

$

$

Not available

56

White Outdoor 736-0258

Fl-Wash. .385" I.D. x 1.0" O.D.

$4.49

$

In Stock, only 3 left!

0

57

White Outdoor 710-0216

Hex Bolt 3/8-16 x 4.75" Lg.

$4.49

$

In Stock, Qty 15

0

58

White Outdoor 711-0686

Clevis Pin 5/16" Dia. x .75" Lg.

$

$

Not available

59

White Outdoor 710-0442

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

?60

White Outdoor 05755

Mounting Brkt. - L.H.

$

$

Not available

?61

05756

Mounting Brkt. - R.H.

$

$

Not available
