190-836-000 - MTD Mower Deck Assembly Only (1989) 36" "Deep" Mowing Deck Parts Diagram

Mower Deck Assembly Only

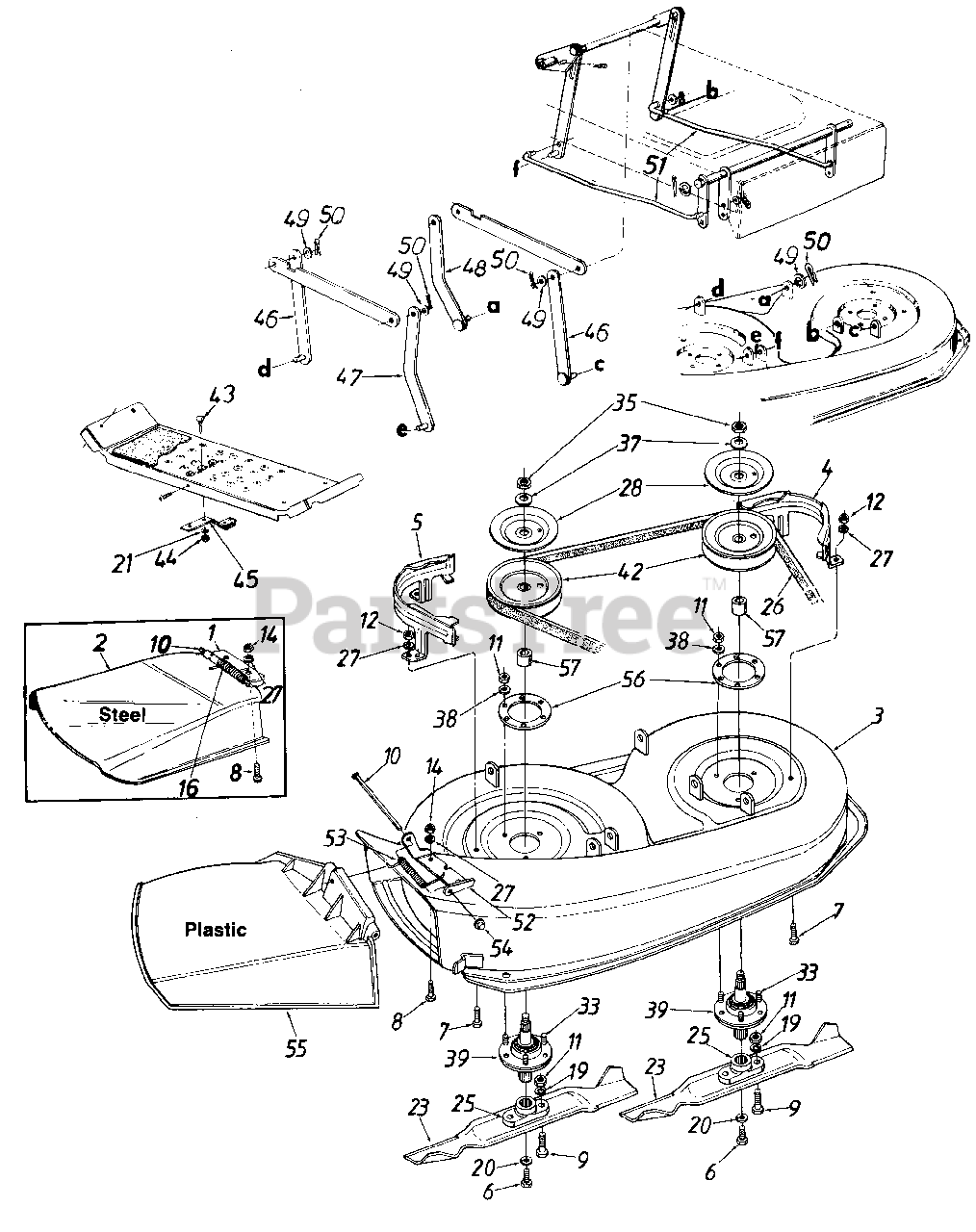

36" "Deep" Mowing Deck Parts Diagram

  • Title

1

MTD 16521

Chute Bracket (Steel)

$

$

Not available

2

MTD 16566

Chute Deflector (Steel)
(Superseded to 753-0567)

$136.99

$

Usually ships in 3-6 days

0

3

MTD 16879

36" Deep Deck Ass'y.

$

$

Currently unavailable

MTD 16880

36" Deep Deck Ass'y. Comp.
(Superseded to 753-0694-0637)

Note: (For Service Only)

$

$

Not available

4

MTD 16607

Belt Guard Deck-L.H.

Variations

MTD 16607-0637

Belt Guard Deck-L.H. - POWDER BLACK (0637)

$

$

Not available

$

$

5

MTD 16608A

Belt Guard Deck-R.H.

Variations

MTD 16608A-0637

No Longer Available GUARD-BELT - POWDER BLACK (0637)

$

$

Not available

$

$

6

MTD 710-0152

Hex Bolt 3/8-24 x 1.00"
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0195

Hex Bolt 1/4-28 x .62"
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

8

MTD 710-0255

Truss Mach. Scr. 1/4-20 x .75"
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0888

Hex Bolt Special 5/16-24 x 1.0"

$4.49

$

In Stock, Qty 20+

0

10

MTD 711-0792

Hinge Pin
(Superseded to 911-0792)

$4.99

$

In Stock, only 1 left!

0

11

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

12

MTD 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

14

MTD 712-0298

Hex Jam Nut 1/4-20 Thd.
(Superseded to 912-0298)

$6.49

$

Usually ships in 3-6 days

0

16

MTD 732-0542

Torsion Spring
(Superseded to 932-0542)

$

$

Not available

19

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

20

MTD 736-0217

L-Wash. 3/8" I.D.-H.D.

$4.49

$

In Stock, Qty 8

0

21

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

23

MTD 742-0496

High-Lift Blade

$

$

Not available

25

MTD 748-0300

Blade Adapter

$13.99

$

In Stock, only 4 left!

0

26

MTD 754-0364

5L V-Belt
(Superseded to 954-0364)

$66.99

$

Usually ships in 3-6 days

0

27

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

28

MTD 09322

Brake Disc

$

$

Not available

33

MTD 710-1012

Rib Neck Bolt 5/16-24 x .84" Lg.

$4.49

$

Usually ships in 3-6 days

0

35

MTD 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 12

0

37

MTD 736-0158

L-Wash. 5/8" I.D.

$4.49

$

In Stock, Qty 11

0

38

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

39

MTD 717-0900

Blade Spindle Ass'y. Comp.
(Superseded to 917-0900A)

Note: (Incl. Ref. 33)

$

$

Not available

42

MTD 756-0486

5" Dia. Pulley

$54.99

$

In Stock, only 3 left!

0

43

MTD 710-0134

Carr. Bolt 1/4-20 x .62"

$4.49

$

In Stock, Qty 20+

0

44

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

45

MTD 761-0168

Blade Brake Ass'y.
(Superseded to 961-0168D)

$31.99

$

In Stock, only 1 left!

0

46

MTD 14804

Link Deck Hanger Ass'y.

$

$

Not available

47

MTD 14800

Link Deck Hanger Ass'y.
(Superseded to 14800A-0637)

Note: (Dog Leg)

$

$

Not available

48

MTD 15925

Link Deck Hanger Ass'y.-L. H.

Variations

MTD 15925-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

49

MTD 736-0160

Fl-Wash. .53" I.D. x .93" O.D.

$4.49

$

In Stock, only 2 left!

0

50

MTD 714-0101

Inter. Cotter Pin .50" Dia.

$4.99

$

In Stock, only 2 left!

0

51

MTD 711-0790A

Stabilizer Rod

$

$

Not available

52

MTD 703-1693

Hinge Mtg. Brkt.
(Superseded to 703-1693A)

$23.99

$

In Stock, only 4 left!

0

53

MTD 732-0602

Torsion Spring
(Superseded to 732-0602A)

$12.99

$

In Stock, Qty 5

0

54

MTD 726-0106

Push Nut

$3.99

$

Usually ships in 3-6 days

0

55

MTD 731-1032

Chute Ass'y. Comp. (Plastic)
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 6

0

56

MTD 09164

Reinforcement Plate
(Superseded to 09164A-0637)

$33.99

$

In Stock, only 2 left!

0

57

MTD 750-0456

Spacer

$4.49

$

In Stock, Qty 20+

0
