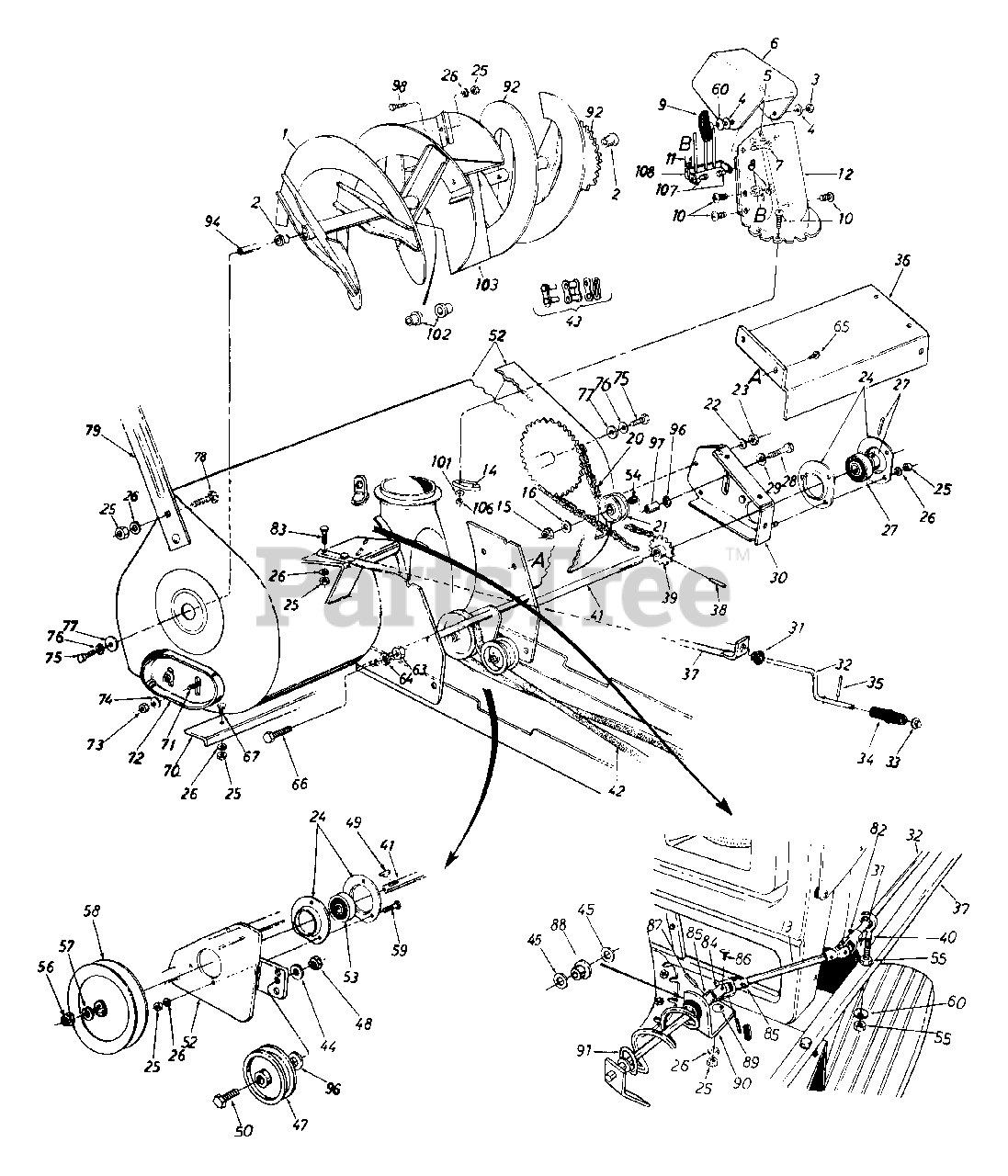

190-832-190 - White Outdoor 40" Snow Thrower Attachment (1995) Snow Thrower Parts Diagram

40" Snow Thrower Attachment

Snow Thrower Parts Diagram

  • Title

1

White Outdoor 784-5221

Spiral Ass'y.
(Superseded to 784-5221-0637)

Note: (L.H.)

Variations

White Outdoor 784-5221-0498

SPIRAL-LH - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 784-5221-0637

SPIRAL-LH - POWDER BLACK (0637)

$

$

Not available

$

$

2

White Outdoor 741-0227

Flange Bearing

$11.99

$

In Stock, Qty 20+

0

3

White Outdoor 712-0158

Hex L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

4

White Outdoor 736-0231

Fl-Wash. .344" I.D.

$4.99

$

In Stock, Qty 20+

0

5

White Outdoor 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

6

White Outdoor 731-0846B

Upper Chute
(Superseded to 731-0846C)

$52.99

$

In Stock, only 3 left!

0

7

White Outdoor 710-0276

Carriage Bolt 5/16-18 x 1.0" Lg.

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

9

White Outdoor 09966

Hand Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

10

White Outdoor 710-0255

Truss Mach. Scr. 1/4-20 x .75" Lg.
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 732-0118

Ext. Spring
(Superseded to 732-0118A)

$10.99

$

Usually ships in 3-6 days

0

12

White Outdoor 731-0843B

Lower Chute
(Superseded to 931-0843B)

$

$

Not available

13

White Outdoor 747-0523A

Chute Crank Extension Rod

$

$

Not available

14

White Outdoor 731-0851

Chute Flange Keeper
(Superseded to 731-0851A)

$4.49

$

In Stock, Qty 20+

0

15

White Outdoor 712-0375

L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

16

White Outdoor 736-0300

Fl-Wash.

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 713-0189

#420 Chain 1/2" Pitch x 77 Links

$

$

Not available

21

White Outdoor 756-0358A

Plastic Idler 2" O.D.

$

$

Not available

22

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

23

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

24

White Outdoor 741-0311

Bearing Housing
(Superseded to 941-0311)

$

$

Not available

25

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

26

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

27

White Outdoor 741-0310

Self-Aligning Bearing
(Superseded to 941-0310)

$

$

Not available

28

White Outdoor 710-0347

Hex Bolt 3/8-16 x 1.75" Lg.

$5.49

$

In Stock, Qty 20+

0

29

White Outdoor 736-0105

Belleville Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

30

White Outdoor 05721A

Chain Guard Ass'y.

Variations

White Outdoor 05721A-0637

No Longer Available GUARD-CHAIN - POWDER BLACK (0637)

$

$

Not available

$

$

31

White Outdoor 741-0475

Nylon Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

32

White Outdoor 747-0438

Chute Crank .375" Dia. x 34.5" Lg.
(Superseded to 747-0438A)

$

$

Not available

33

White Outdoor 726-0100

Push Nut 3/8" Rod

$4.49

$

In Stock, Qty 18

0

34

White Outdoor 720-0201A

Knob (Black)

$10.99

$

In Stock, Qty 5

0

35

White Outdoor 715-0138

Roll Pin
(Superseded to 915-0138)

$4.99

$

In Stock, only 1 left!

0

36

White Outdoor 784-5092A

Drive Shaft Cover

Variations

White Outdoor 784-5092A-0637

No Longer Available COVER-DRIVE SHAFT - POWDER BLACK (0637)

$

$

Not available

$

$

37

White Outdoor 749-0675

Crank Support Tubing

Variations

White Outdoor 749-0675-0637

No Longer Available TUBING-SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

38

White Outdoor 715-0118

Spring Pin Spiral 5/16" Dia. x 1.75" Lg.

$12.99

$

In Stock, Qty 7

0

39

White Outdoor 713-0188

14 Teeth Sprocket Ass'y.

$70.99

$

Usually ships in 3-6 days

0

40

White Outdoor 747-0481A

Eyebolt 5/16-18 x 3.0" Lg.

$

$

Not available

41

White Outdoor 784-5078

Drive Shaft

$

$

Not available

42

White Outdoor 754-0294

"V"-Belt
(Superseded to 954-0294)

$68.99

$

Usually ships in 3-6 days

0

43

White Outdoor 713-0154

Master Link for #420 Chain
(Superseded to 913-0154)

$

$

Not available

44

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

45

White Outdoor 736-0140

Fl-Wash. .385" I.D. x .62" O.D.

$7.49

$

In Stock, Qty 6

0

47

White Outdoor 756-0417

Fl-Idler with Flanges
(Superseded to 956-0417)

$

$

Not available

48

White Outdoor 712-0342

Hex Jam L-Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

49

White Outdoor 714-0388

#61 Hi-Pro Key 3/16 x 5/8 Dia.
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 20+

0

50

White Outdoor 710-0347

Hex Bolt 3/8-16 x 1.75" Lg.

$5.49

$

In Stock, Qty 20+

0

52

White Outdoor 784-5081A

Spiral Housing Ass'y.

$

$

Not available

53

White Outdoor 741-0309

Self-Aligning Bearing
(Superseded to 941-0309)

$74.99

$

Usually ships in 3-6 days

0

54

White Outdoor 741-0322

Sleeve Bearing .50" I.D.

$

$

Not available

55

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

56

White Outdoor 712-0301

Hex Nut 3/4-10 Thd.

$7.99

$

In Stock, only 1 left!

0

57

White Outdoor 736-0367

L-Wash. 3/4" I.D.
(Superseded to 936-0364)

$

$

Not available

58

White Outdoor 756-0456

"V"-Pulley .750" I.D. x 6" O.D.

$

$

Not available

59

White Outdoor 710-0198

Hex Sems Bolt 5/16-18 x .75" Lg.
(Superseded to 910-0198)

$

$

Not available

60

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

63

White Outdoor 712-0239

Hex L-Nut 1/2-20 Thd.

$5.99

$

In Stock, Qty 20+

0

64

White Outdoor 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 6

0

65

White Outdoor 710-0599

Hex Self-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

66

White Outdoor 710-0504

Hex Bolt 1/2-20 x 1.25" Lg.

$

$

Not available

67

White Outdoor 710-0451

Carriage Bolt 5/16-18 x .75"

$4.49

$

In Stock, Qty 20+

0

70

White Outdoor 05723

Shave Plate

Variations

White Outdoor 05723-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

71

White Outdoor 710-0389

Carriage Bolt 3/8-16 x .75" Lg.

$4.49

$

Usually ships in 3-6 days

0

72

White Outdoor 784-5038A

Skid Shoe
(Superseded to 784-5038B-0637)

$27.99

$

Usually ships in 3-6 days

0

73

White Outdoor 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

74

White Outdoor 736-0105

Belleville Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

75

White Outdoor 710-0474

Hex Bolt 1/2-13 x 1.25" Lg.

$

$

Not available

76

White Outdoor 736-0253

Belleville Wash. 1/2" I.D.

$3.99

$

In Stock, Qty 20+

0

77

White Outdoor 736-0179

Fl-Wash.

$4.99

$

In Stock, only 2 left!

0

78

White Outdoor 710-0260

Carriage Bolt 5/16-19 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

79

White Outdoor 05139A

Drift Cutter
(Superseded to 790-00181-0637)

Variations

White Outdoor 05139A-0498

BLADE-GUIDE (DRIFT - OLD CUB YELLOW (0498)

$43.99

$

Usually ships in 3-6 days

0

White Outdoor 05139A-0637

BLADE-GUIDE (DRIFT - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

White Outdoor 05139A-0638

BLADE-GUIDE (DRIFT - MTD/TROY-BILT RED (0638)

$43.99

$

Usually ships in 3-6 days

0

White Outdoor 05139A-0662

BLADE-GUIDE (DRIFT - OYSTER GRAY (0662)

$43.99

$

Usually ships in 3-6 days

0

White Outdoor 05139A-0665

BLADE-GUIDE (DRIFT - YARDMAN GREEN (0665)

$43.99

$

Usually ships in 3-6 days

0

White Outdoor 05139A-0674

BLADE-GUIDE (DRIFT - YARDMAN YELLOW (0674)

$43.99

$

Usually ships in 3-6 days

0

White Outdoor 05139A-0716

BLADE-GUIDE (DRIFT - CUB YELLOW-99 (0716)

$43.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

82

White Outdoor 714-0111

Cotter Pin

$4.99

$

In Stock, Qty 13

0

83

White Outdoor 710-0442

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

84

White Outdoor 711-0584

Joint Block

$

$

Not available

85

White Outdoor 05066

Joint Bracket Ass'y.

$

$

Not available

86

White Outdoor 728-0147

Oval Head Rivet

$

$

Not available

87

White Outdoor 715-0129

Spring Pin Roll 1/8" Dia. x .75" Lg.

$4.99

$

In Stock, only 1 left!

0

88

White Outdoor 741-0475

Nylon Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

89

White Outdoor 710-0451

Carriage Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

90

White Outdoor 784-5085A

Chute Crank Bracket

$

$

Not available

91

White Outdoor 784-5084A

Chute Crank Ass'y.
(Superseded to 784-5084)

$

$

Not available

92

White Outdoor 784-5222

Spiral Ass'y.

Note: (R.H.)

Variations

White Outdoor 784-5222-0637

SPIRAL-RH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 784-5222-0498

SPIRAL-RH - OLD CUB YELLOW (0498)

$

$

Not available

$

$

94

White Outdoor 05737

Spiral Axle

$

$

Not available

96

White Outdoor 736-0247

Flat Washer

$9.49

$

In Stock, Qty 12

0

97

White Outdoor 750-0252

Idler Spacer
(Superseded to 950-0252)

$21.99

$

In Stock, Qty 5

0

98

White Outdoor 710-0451

Carriage Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

101

White Outdoor 736-0142

Fl-Wash. 1/4" I.D.

$4.99

$

In Stock, Qty 20+

0

102

White Outdoor 741-0227

Plastic Bushing

$11.99

$

In Stock, Qty 20+

0

103

White Outdoor 784-5216

Rotor Paddle Ass'y.
(Superseded to 784-5216-0637)

Variations

White Outdoor 784-5216-0637

PADDLE ASSY-ROTOR - POWDER BLACK (0637)

$

$

Not available

$

$

106

White Outdoor 712-0107

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

107

White Outdoor 738-0561

Shld. Nut 1/4-20 Thd.
(Superseded to 938-0561)

$9.49

$

Usually ships in 3-6 days

0

108

White Outdoor 784-5192

Chute Guard Ass'y.
(Superseded to 784-5192-0637)

Variations

White Outdoor 784-5192-0637

GUARD ASSY-CHUTE - POWDER BLACK (0637)

$99.99

$

Usually ships in 3-6 days

0

$99.99

$

Usually ships in 3-6 days

0
