190-832-190 - White Outdoor 40" Snow Thrower Attachment (1994) Front/Rear Supports Parts Diagram

40" Snow Thrower Attachment

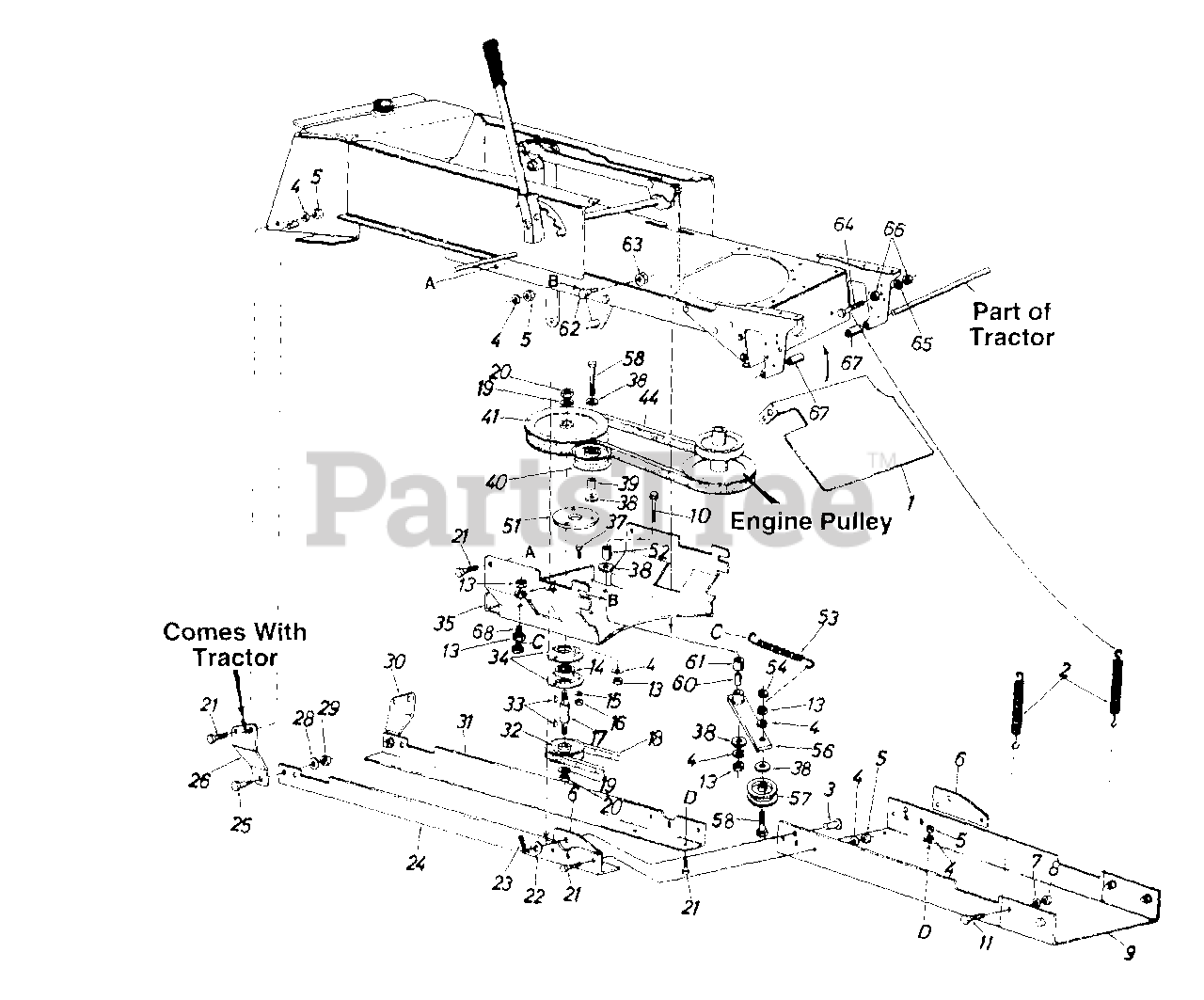

Front/Rear Supports Parts Diagram

  • Title

1

White Outdoor 784-5091B

Guide Bracket

Variations

White Outdoor 784-5091B-0637

No Longer Available BRACKET-GUIDE - POWDER BLACK (0637)

$

$

Not available

$

$

2

White Outdoor 732-0233

Helper Spring
(Superseded to 932-0233)

$

$

Not available

3

White Outdoor 711-0332

Clevis Pin
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 17

0

4

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

5

White Outdoor 712-0241

Hex L-Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

6

White Outdoor 05714

Attaching Plate

$

$

Not available

7

White Outdoor 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 6

0

8

White Outdoor 712-0239

Hex L-Nut 1/2-20 Thd.

$5.99

$

In Stock, Qty 20+

0

9

White Outdoor 05719B

Front Support Channel

Variations

White Outdoor 05719B-0637

No Longer Available CHANNEL-SUPPORT-FR - POWDER BLACK (0637)

$

$

Not available

$

$

10

White Outdoor 710-0771

Hex Bolt 3/8-16 x 3.75" Lg.
(Superseded to 710-04576)

$4.99

$

Usually ships in 3-6 days

0

11

White Outdoor 710-0504

Hex Bolt 1/2-20 x 1.25" Lg.

$

$

Not available

13

White Outdoor 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

14

White Outdoor 741-0919

Ball Bearing
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

15

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

17

White Outdoor 738-0246

Spindle

$

$

Not available

18

White Outdoor 754-0294

"V"-Belt
(Superseded to 954-0294)

$68.99

$

Usually ships in 3-6 days

0

19

White Outdoor 736-0158

L-Wash. 5/8" I.D.

$4.49

$

In Stock, Qty 11

0

20

White Outdoor 712-0242

Hex Jam Nut 5/8-11 Thd.
(Superseded to 912-0261)

$

$

Not available

21

White Outdoor 710-0152

Hex Bolt 3/8-24 x 1.00" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 736-0192

Flat Washer

$4.49

$

In Stock, Qty 18

0

23

White Outdoor 714-0101

Internal Cotter Pin

$4.99

$

In Stock, only 2 left!

0

24

White Outdoor 05718

Rear Support Angle - R.H.

Variations

White Outdoor 05718-0637

No Longer Available ANGLE-SUPPORT-RH-R - POWDER BLACK (0637)

$

$

Not available

$

$

25

White Outdoor 738-0163

Shld. Bolt .623" Dia.

$

$

Not available

26

White Outdoor 05716

Rear Hanger Brkt.
(Superseded to 05716-0637)

Variations

White Outdoor 05716-0637

BRACKET-HANGER - POWDER BLACK (0637)

$

$

Not available

$

$

28

White Outdoor 736-0171

L-Wash. 7/16" I.D.

$4.49

$

In Stock, only 4 left!

0

29

White Outdoor 712-0275

Hex Nut 7/16-14 Thd.
(Superseded to 912-3019)

$6.99

$

In Stock, only 1 left!

0

30

White Outdoor 05717

Rear Hanger Brkt. - L.H.
(Superseded to 05717-0637)

Variations

White Outdoor 05717-0637

ANGLE-SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

31

White Outdoor 05717

Rear Support Angle - L.H.
(Superseded to 05717-0637)

Variations

White Outdoor 05717-0637

ANGLE-SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

32

White Outdoor 756-0457

Lower Drive Pulley 5/8 x 5.56

$

$

Not available

33

White Outdoor 714-0388

#6 Hi-Pro Key 3/16 x 5/8" Dia.
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 20+

0

34

White Outdoor 08253B

Bearing Housing

$19.99

$

In Stock, only 1 left!

0

35

White Outdoor 05713B

Supporting Bracket

$

$

Not available

37

White Outdoor 710-0322

Hex Sems Bolt 5/16-18 x 1"
(Superseded to 910-0322)

$

$

Not available

38

White Outdoor 736-0258

Fl-Wash. .38" I.D. x 1" O.D.

$4.49

$

In Stock, only 3 left!

0

39

White Outdoor 748-0193

Spacer .38" I.D. x .62" O.D.
(Superseded to 948-0193)

$

$

Not available

40

White Outdoor 756-0405

Fl-Idler Pulley

$71.99

$

Usually ships in 3-6 days

0

41

White Outdoor 756-0216

Upper Drive Pulley

$

$

Not available

44

White Outdoor 754-0206

"V"-Belt
(Superseded to 954-0206)

$

$

Not available

51

White Outdoor 13778

Reinforcement Plate

Variations

White Outdoor 13778-0637

No Longer Available PLATE-MTG-SPINDLE - POWDER BLACK (0637)

$

$

Not available

$

$

52

White Outdoor 750-0511

Spacer .37" I.D. x 1.50" Lg.

$

$

Not available

53

White Outdoor 732-0470A

Extension Spring 4.75" Lg.
(Superseded to 932-0470A)

$9.99

$

In Stock, Qty 5

0

54

White Outdoor 712-0266

Hex L-Nut 3/8-16 Thd.
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

56

White Outdoor 703-1292

Idle Arm Ass'y.
(Superseded to 703-1396-0637)

$173.99

$

Usually ships in 3-6 days

0

57

White Outdoor 756-0417

Idler Pulley
(Superseded to 956-0417)

$

$

Not available

58

White Outdoor 710-0756

Hex Bolt 3/8-16 x 2.25" Lg.

$

$

Not available

60

White Outdoor 750-0252

Spacer .377" I.D. x .83" Lg.
(Superseded to 950-0252)

$21.99

$

In Stock, Qty 5

0

61

White Outdoor 748-0193

Spacer .38" I.D. x .565" Lg.
(Superseded to 948-0193)

$

$

Not available

62

White Outdoor 738-0143

Shoulder Bolt .498" Dia.

$4.49

$

In Stock, Qty 20+

0

63

White Outdoor 712-0375

Hex L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

64

White Outdoor 710-0698

Hex Bolt 1/4-28 x 1.50" Lg.

$

$

Not available

65

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

66

White Outdoor 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

67

White Outdoor 750-0757

Spacer .63" I.D. x 1.75" Lg.
(Superseded to 950-0932A)

$20.99

$

In Stock, Qty 11

0

68

White Outdoor 710-0427

Hex Bolt 3/8-16 x 2" Lg.
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0
