190-832-190 - White Outdoor 40" Snow Thrower Attachment (1992) Auger Housing Parts Diagram

40" Snow Thrower Attachment

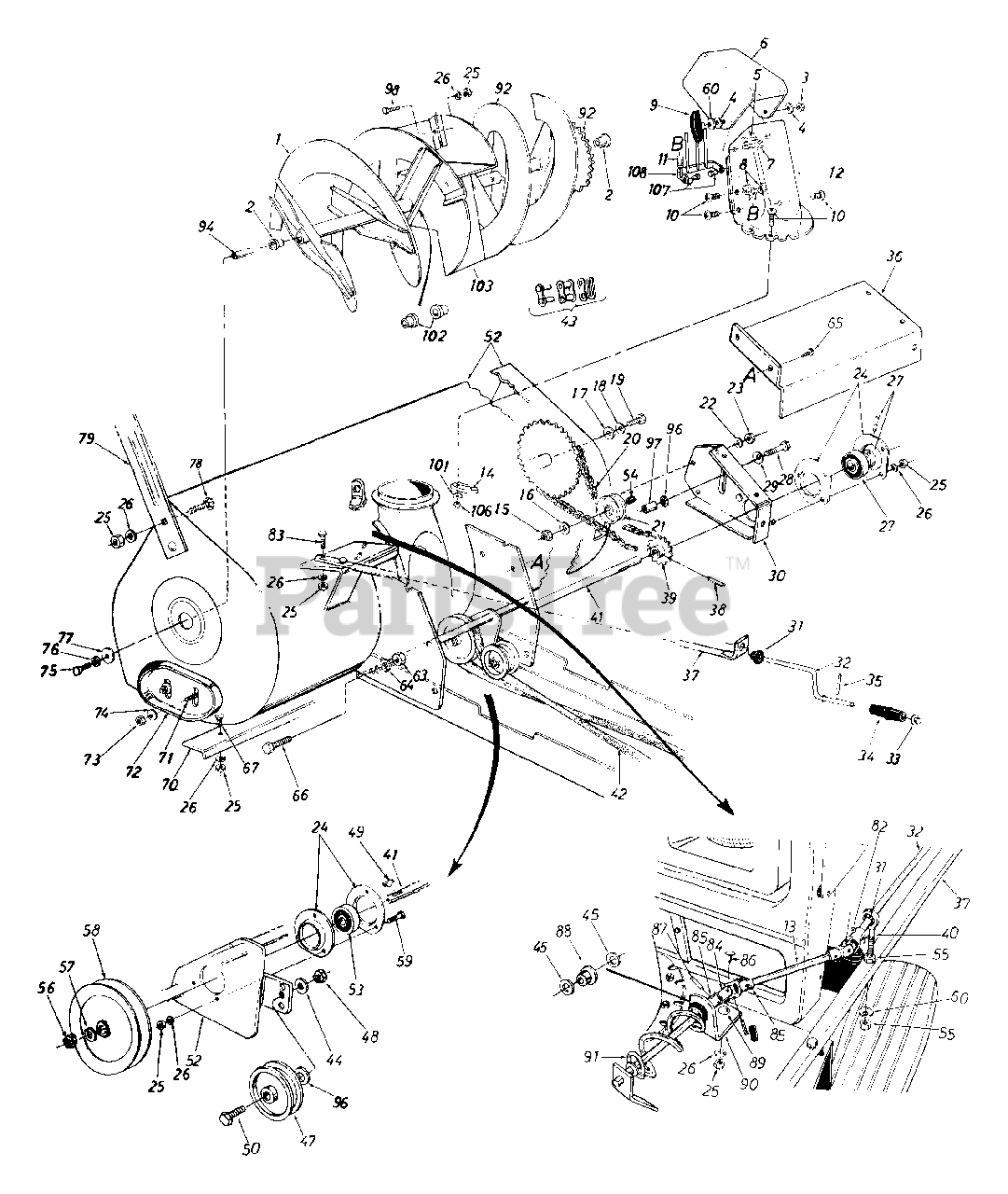

Auger Housing Parts Diagram

  • Title

1

MTD 784-5221-0637

Spiral Ass'y. (L.H.)

$

$

Not available

2

MTD 741-0227

Flange Bearing

$11.99

$

In Stock, Qty 20+

0

3

MTD 912-0158

Hex L-Nut 5/16-18 Thd.

$3.49

$

In Stock, Qty 18

0

4

MTD 936-0231

Fl-Wash. .344" I.D.
(Superseded to 736-0231)

$

$

Not available

5

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

6

MTD 731-0846C

Upper Chute

$52.99

$

In Stock, only 3 left!

0

7

MTD 710-0276

Carriage Bolt 5/16-18 x 1.0" Lg.

$3.99

$

In Stock, Qty 20+

0

8

MTD 912-0291

Hex L-Nut 1/4-20 Thd.
(Superseded to 712-0291)

$

$

Not available

9

MTD 720-04072A

Hand Knob

$6.99

$

In Stock, Qty 20+

0

10

MTD 710-0924

Truss Mach. Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

11

MTD 732-0118A

Ext. Spring

$10.99

$

Usually ships in 3-6 days

0

12

MTD 931-0843B

Lower Chute

$

$

Not available

13

MTD 747-0523A

Chute Crank Extension Rod

Note: NLA

$

$

Not available

14

MTD 731-0851A

Chute Flange Keeper

$4.49

$

In Stock, Qty 20+

0

15

MTD 712-0375

L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

16

MTD 936-0300

Fl-Wash.
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

17

MTD 936-0179

Fl-Wash.
(Superseded to 736-0179)

$4.99

$

In Stock, only 2 left!

0

18

MTD 936-0253

Belleville Wash.
(Superseded to 736-0253)

$

$

Not available

19

MTD 710-3131

Hex Bolt 1/2-13 x 1" Lg.

$5.49

$

In Stock, only 1 left!

0

20

MTD 713-0189

#420 Chain 1/2" Pitch x 77 Links

Note: NLA

$

$

Not available

21

MTD 756-0358A

Plastic Idler 2" O.D.

Note: NLA

$

$

Not available

22

MTD 936-0329

L-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 9

0

23

MTD 912-0287

Hex Nut 1/4-20 Thd.

$4.99

$

In Stock, only 1 left!

0

24

MTD 941-0311

Bearing Housing

$

$

Not available

25

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

26

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

27

MTD 941-0310

Self-Aligning Bearing

$

$

Not available

28

MTD 710-0347

Hex Bolt 3/8-16 x 1.75" Lg.

$5.49

$

In Stock, Qty 20+

0

29

MTD 736-0105

Belleville Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

30

MTD 05721A

Chain Guard Ass'y.

Note: NLA

Variations

MTD 05721A-0637

No Longer Available GUARD-CHAI - POWDER BLACK (0637)

$

$

Not available

$

$

31

MTD 941-0475

Nylon Bushing

$4.49

$

In Stock, Qty 20+

0

32

MTD 747-0438

Chute Crank .375" Dia. x 34.5" Lg.

Note: NLA

$

$

Not available

33

MTD 926-0100

Push Nut 3/8" Rod
(Superseded to 726-0100)

$

$

Not available

34

MTD 720-0201A

Knob (Black)

$10.99

$

In Stock, only 4 left!

0

35

MTD 915-0138

Roll Pin

$4.99

$

Usually ships in 3-6 days

0

36

MTD 784-5092A

Drive Shaft Cover

Note: NLA

Variations

MTD 784-5092A-0637

No Longer Available COVER-DRIV - POWDER BLACK (0637)

$

$

Not available

$

$

37

MTD 749-0675

Crank Support Tubing

Note: NLA

Variations

MTD 749-0675-0637

No Longer Available TUBING-SUP - POWDER BLACK (0637)

$

$

Not available

$

$

38

MTD 915-0118

Spring Pin Spiral 5/16" Dia. x 1.75" Lg.
(Superseded to 715-0118)

$

$

Not available

39

MTD 713-0188

14 Teeth Sprocket Ass'y.

$70.99

$

Usually ships in 3-6 days

0

40

MTD 747-0481A

Eyebolt 5/16-18 x 3.0" Lg.

$

$

Not available

41

MTD 784-5078

Drive Shaft

Note: NLA

$

$

Not available

42

MTD 954-0294

V-Belt

$68.99

$

Usually ships in 3-6 days

0

43

MTD 913-0154

Master Link for #420 Chain

$

$

Not available

44

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

45

MTD 936-0140

Fl-Wash. .385" I.D. x .62" O.D.
(Superseded to 736-0140)

$

$

Not available

47

MTD 956-0417

Fl-Idler with Flanges

$

$

Not available

48

MTD 712-0342

Hex Jam L-Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

49

MTD 914-0388

#61 Hi-Pro Key 3/16 x 5/8 Dia.

$7.99

$

In Stock, Qty 20+

0

50

MTD 710-0347

Hex Bolt 3/8-16 x 1.75" Lg.

$5.49

$

In Stock, Qty 20+

0

52

MTD 784-5081A

Spiral Housing Ass'y.

Note: NLA

$

$

Not available

53

MTD 941-0309

Self-Aligning Bearing

$74.99

$

Usually ships in 3-6 days

0

54

MTD 741-0322

Sleeve Bearing .50" I.D.

$

$

Not available

55

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

56

MTD 712-0301

Hex Nut 3/4-10 Thd.

$7.99

$

In Stock, only 1 left!

0

57

MTD 936-0364

L-Wash. 3/4" I.D.

$

$

Not available

58

MTD 756-0456

V-Pulley .750" I.D. x 6" O.D.

Note: NLA

$

$

Not available

59

MTD 910-0198

Hex Sems Bolt 5/16-18 x .75" Lg.

$

$

Not available

60

MTD 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

63

MTD 912-0206

Hex Nut 1/2-13 Thd.
(Superseded to 712-0206)

$4.49

$

In Stock, Qty 20+

0

64

MTD 936-0921

L-Wash. 1/2" I.D.
(Superseded to 736-0921)

$4.49

$

In Stock, only 2 left!

0

65

MTD 710-0599

Hex Self-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

66

MTD 710-0490

Hex Bolt 1/2-13 x 2.75" Lg.

Note: NLA

$

$

Not available

67

MTD 710-0451

Carriage Bolt 5/16-18 x .75"

$4.49

$

In Stock, Qty 20+

0

70

MTD 05723

Shave Plate

Note: NLA

Variations

MTD 05723-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

71

MTD 710-0389

Carriage Bolt 3/8-16 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

72

MTD 784-5038B-0637

Skid Shoe

$27.99

$

In Stock, only 4 left!

0

73

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

74

MTD 736-0105

Belleville Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

75

MTD 710-3131

Hex Bolt 1/2-13 x 1" Lg.

$5.49

$

In Stock, only 1 left!

0

76

MTD 936-0253

Belleville Wash. 1/2" I.D.
(Superseded to 736-0253)

$

$

Not available

77

MTD 936-0179

Fl-Wash.
(Superseded to 736-0179)

$4.99

$

In Stock, only 2 left!

0

78

MTD 710-0260A

Carriage Bolt 5/16-19 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

79

MTD 790-00181-0637

Drift Cutter

$43.99

$

Usually ships in 3-6 days

0

82

MTD 914-0111

Cotter Pin
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

83

MTD 710-0805

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

84

MTD 711-0584

Joint Block

$

$

Not available

85

MTD 05066

Joint Bracket Ass'y.

Note: NLA

$

$

Not available

86

MTD 728-0147

Oval Head Rivet

$

$

Not available

87

MTD 715-0129

Spring Pin Roll 1/8" Dia. x .75" Lg.

$4.99

$

In Stock, only 1 left!

0

88

MTD 941-0475

Nylon Bushing

$4.49

$

In Stock, Qty 20+

0

89

MTD 710-0451

Carriage Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

90

MTD 784-5085A

Chute Crank Bracket

$

$

Not available

91

MTD 784-5084

Chute Crank Ass'y.

Note: *CHOOSE COLOR WHEN ORDERING*

$

$

Not available

92

MTD 784-5222-0637

Spiral Ass'y. (R.H.)

$

$

Not available

94

MTD 05737

Spiral Axle

Note: NLA

$

$

Not available

96

MTD 736-0247

Flat Washer

$9.49

$

In Stock, Qty 12

0

97

MTD 950-0252

Idler Spacer

$21.99

$

In Stock, Qty 5

0

98

MTD 710-0451

Carriage Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

101

MTD 936-0142

Fl-Wash. 1/4" I.D.
(Superseded to 736-0142)

$4.99

$

In Stock, Qty 20+

0

102

MTD 741-0227

Plastic Bushing

$11.99

$

In Stock, Qty 20+

0

103

MTD 784-5216-0637

Rotor Paddle Ass'y.

$

$

Not available

106

MTD 912-0107

Hex L-Nut 1/4-20 Thd.

$4.99

$

In Stock, only 1 left!

0

107

MTD 938-0561

Shld. Nut 1/4-20 Thd.

$9.49

$

Usually ships in 3-6 days

0

108

MTD 784-5192-0637

Chute Guard Ass'y.

$99.99

$

Usually ships in 3-6 days
