190-832-000 - MTD 40" Snow Thrower Attachment (1996) Gear Housing, Belt Cover & Chain Gear Box Housing Parts Diagram

40" Snow Thrower Attachment

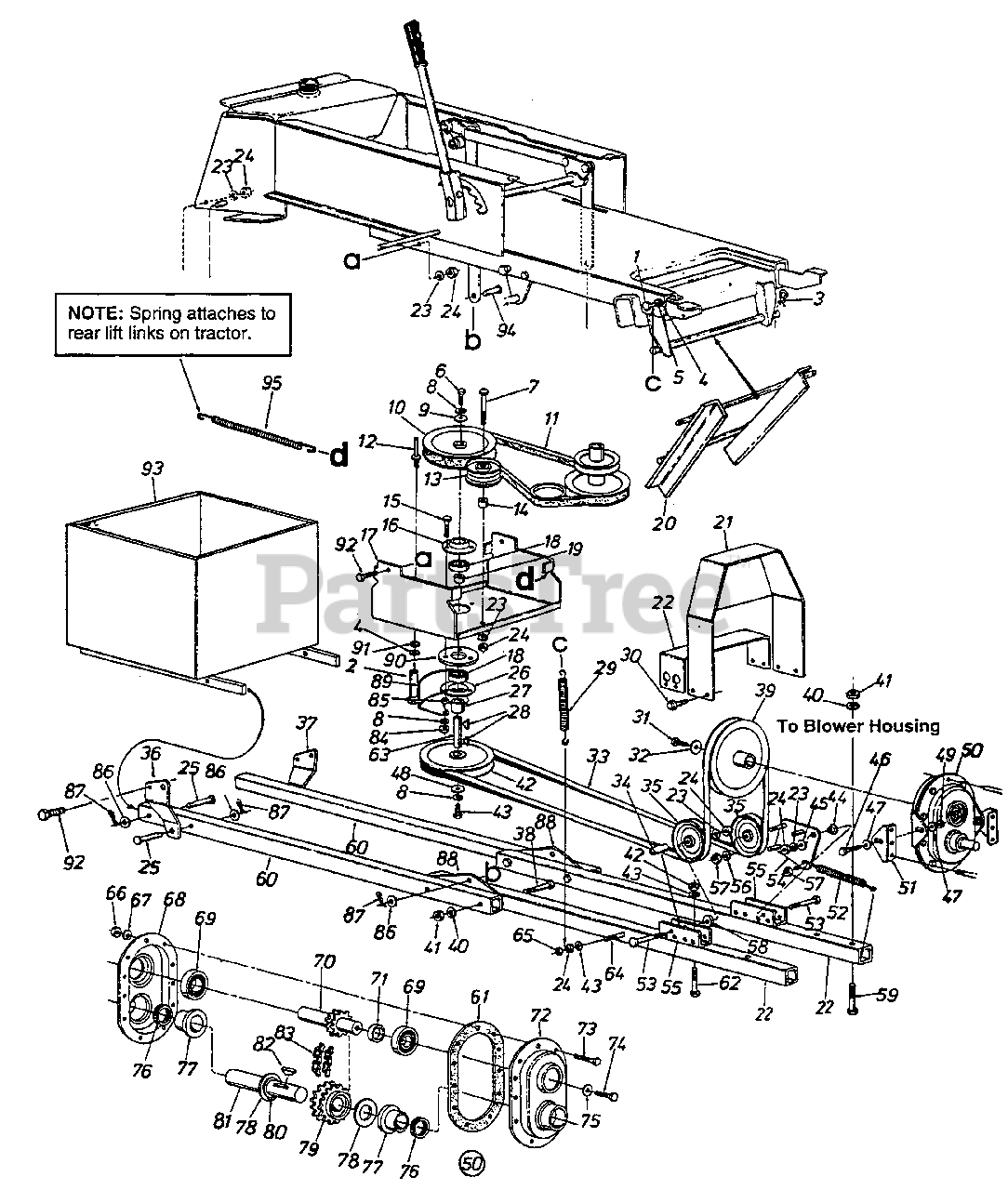

Gear Housing, Belt Cover & Chain Gear Box Housing Parts Diagram

  • Title

1

MTD 710-0772

Hex Bolt 5/16-24 x 2" Lg.

$4.49

$

Usually ships in 3-6 days

0

2

MTD 711-0793

Clevis Pin Spec. 3/8" Dia. x 2.62" Lg.

$

$

Not available

3

MTD 714-0101

Intern. Cot. Pin

$4.99

$

In Stock, only 1 left!

0

4

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

5

MTD 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

6

MTD 710-0591

Hex L-Scr. 3/8-24 x 1.0" Lg.

$4.49

$

Usually ships in 3-6 days

0

7

MTD 710-0756

Hex Bolt 3/8-16 x 2.25" Lg.

$

$

Not available

8

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

9

MTD 736-0116

Fl-Wash.
(Superseded to 936-0116)

$6.99

$

In Stock, only 1 left!

0

10

MTD 756-0438

5/8" "V"-Pulley .79" I.D. x .65" O.D.
(Superseded to 956-0438)

$83.99

$

Usually ships in 3-6 days

0

11

MTD 754-0229

"V"-Belt
(Superseded to 954-0229)

$59.99

$

Usually ships in 3-6 days

0

12

MTD 711-0747

Belt Guard Pin

$10.99

$

Usually ships in 3-6 days

0

13

MTD 756-0405

Fl-Idler 3.75" O.D.

$71.99

$

Usually ships in 3-6 days

0

14

MTD 711-0396

Spacer .385" I.D. x .63" O.D. x .76"

$11.99

$

Usually ships in 3-6 days

0

15

MTD 710-0624

Hex Bolt 5/16-24 x 1.50

$5.99

$

Usually ships in 3-6 days

0

16

MTD 15296A

Open Brg. Hsg.

$8.99

$

In Stock, only 2 left!

0

MTD 15297A

Open Brg. Hsg. Ass'y.

Note: (Incl. Ref. 18)

$69.99

$

Usually ships in 3-6 days

0

17

MTD 784-5146

Carr. Brkt.
(Superseded to 784-5146-0637)

Variations

MTD 784-5146-0637

BRACKET-CARRIAGE - POWDER BLACK (0637)

$

$

Not available

$

$

18

MTD 741-0919

Ball Brg. .787" I.D.
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

19

MTD 750-0456

Spacer .8" I.D. x 1" O.D.

$4.49

$

In Stock, Qty 20+

0

20

MTD 784-5148

Guide Brkt. Ass'y.

$

$

Not available

21

MTD 784-5227

Belt Cover Ass'y.

$

$

Currently unavailable

22

MTD 750-0659

Sq. Tubing 43" Lg.

Variations

MTD 750-0659-0637

No Longer Available TUBING-SQ - POWDER BLACK (0637)

$

$

Not available

$

$

23

UNKNOWN

$

$

Not available

24

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

25

MTD 711-0231

Clevis Pin .50" Dia. x 1.75" Lg.
(Superseded to 911-0231)

$6.49

$

In Stock, only 2 left!

0

26

MTD 741-0163

Brg. Hsg. Ass'y.
(Superseded to 741-0163A)

Note: (Incl. Ref. 18)

$48.99

$

Usually ships in 3-6 days

0

27

MTD 750-0660

Spacer .8" I.D. x 1" O.D. x .125"

$

$

Not available

28

MTD 714-0161

Woodruff Key 3/16" x 5/8" NT
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 20+

0

29

MTD 732-0323

Helper Spring

$

$

Not available

30

MTD 710-0600

Hex Wash. HD-Tap Scr. 5/16-18 x .50

$3.49

$

Usually ships in 3-6 days

0

31

MTD 710-0591

Hex L-Scr. 3/8-24 x 1.0" Lg.

$4.49

$

Usually ships in 3-6 days

0

32

UNKNOWN

$

$

Not available

33

MTD 754-0295

"V"-Belt
(Superseded to 954-0295)

$90.99

$

In Stock, only 1 left!

0

34

MTD 750-0668

Spacer .39" I.D. x .62" O.D. x 1.74" Lg.

$

$

Not available

35

MTD 756-0487

V-idler Pulley

$48.99

$

In Stock, only 1 left!

0

36

MTD 784-5204

Rear Hanger Brkt. - R.H.

Variations

MTD 784-5204-0637

No Longer Available BRACKET-HA - POWDER BLACK (0637)

$

$

Not available

$

$

37

MTD 784-5203

Rear Hanger Brkt. - L.H.
(Superseded to 784-5203-0637)

Variations

MTD 784-5203-0637

BRACKET-HANGER-LH - POWDER BLACK (0637)

$

$

Not available

$

$

38

MTD 710-0786

Hex Bolt 1/2-13 x 4.0" Lg.

$16.99

$

Usually ships in 3-6 days

0

39

MTD 756-0474

5/8" "V"-Pulley 7.5" O.D.

$

$

Not available

40

MTD 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 6

0

41

MTD 712-0206

Hex Nut 1/2-13 Thd,

$4.49

$

In Stock, Qty 20+

0

42

MTD 756-0438

5/8" "V"-Pulley
(Superseded to 956-0438)

$83.99

$

Usually ships in 3-6 days

0

43

UNKNOWN

$

$

Not available

44

MTD 738-0347

Shld. Spacer
(Superseded to 938-0347)

$10.99

$

Usually ships in 3-6 days

0

45

MTD 736-0247

Fl-Wash. .4" I.D. x 1.25" O.D. x .16"

$9.49

$

In Stock, Qty 12

0

46

MTD 710-0528

Hex Bolt 5/16-18 x 1.25" Lg.

$4.49

$

In Stock, Qty 19

0

47

MTD 736-0242

Bell-Wash. .345" I.D. x .88" O.D. x .06"

$4.49

$

In Stock, Qty 20+

0

48

UNKNOWN

$

$

Not available

49

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

50

MTD 717-0870

Comp. Chain Gear Box Ass'y.

$

$

Not available

51

MTD 05607

Gear Box Support Brkt.

$

$

Not available

52

MTD 732-0491

Ext. Spring .6" Lg.

$

$

Not available

53

UNKNOWN

$

$

Not available

54

MTD 784-5200

Idler Brkt. Ass'y.

Variations

MTD 784-5200-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)

$

$

Not available

$

$

55

MTD 784-5211A

Idler Support Brkt.

$

$

Not available

56

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

57

MTD 712-0116

Hex Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

58

UNKNOWN

$

$

Not available

59

MTD 710-0182

Hex Bolt 1/2-13 x 3" Lg.
(Superseded to 710-0182A)

$7.99

$

In Stock, only 2 left!

0

60

MTD 784-5573

Sq. Tubing 43" Lg.

$

$

Not available

61

MTD 721-0158

Gasket

$

$

Not available

62

MTD 710-0521

Hex Bolt 3/8-16 x 3" Lg.

$5.49

$

In Stock, Qty 11

0

63

MTD 738-0680

Shaft - .787" Dia. x 3.81" Lg.
(Superseded to 938-0680)

$102.99

$

Usually ships in 3-6 days

0

64

UNKNOWN

$

$

Not available

65

MTD 712-0266

Hex L-Nut 3/8-16 Thd.
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

66

UNKNOWN

$

$

Not available

67

MTD 736-0175

Wave Spring Wash. .27" I.D. x .51" O.D. x .03"
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

68

MTD 717-0359

Complete Gear Hsg. Half - L.H.

$

$

Not available

69

MTD 741-0131

Ball Brg. 1" I.D. x 2" O.D.
(Superseded to 941-0131)

$53.99

$

In Stock, Qty 5

0

70

MTD 713-0346A

11-2 x .5 Pitch Sprocket Shaft Ass'y.

$

$

Not available

71

MTD 750-0612A

Spacer 1" I.D. x 1.18" O.D. x .44"

$

$

Not available

72

MTD 717-0360

Comp. Gear Hsg. Half - R.H.

$

$

Not available

73

MTD 710-0299

Hex Bolt 1/4-28 x 1" Lg.

$4.49

$

Usually ships in 3-6 days

0

74

MTD 710-0591

Hex L-Scr. 3/8-24 x 1" Lg.

$4.49

$

Usually ships in 3-6 days

0

75

UNKNOWN

$

$

Not available

76

MTD 721-0117

Oil Seal 1.25" I.D.

$

$

Not available

77

MTD 748-0194

Flange Brg. 1.25" I.D.

$32.99

$

Usually ships in 3-6 days

0

78

MTD 736-0246

Fl-Wash. 1.25" I.D. x 2" O.D. x .036"

$

$

Not available

79

MTD 713-0348

DBL Sprocket 19-2 Teeth x .5" Pitch

$

$

Not available

80

MTD 716-0116

Snap Ring for 1.25" Dia. Shaft

$4.99

$

Usually ships in 3-6 days

0

81

MTD 738-0677

Gear Shaft 1.25 Dia. x 6" Lg.

$

$

Not available

82

MTD 714-0113

Hi-Pro Key 1/4" x 7/8"

$6.99

$

Usually ships in 3-6 days

0

83

MTD 713-0349

40-2 Chain 1/2" Pitch x 25 Links

$

$

Not available

MTD 713-0152

Master Link 440 Type IV

$

$

Not available

84

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 1 left!

0

85

MTD 750-0535

Spacer .380" I.D. x .625" O.D. x .227
(Superseded to 950-0535)

$4.49

$

In Stock, Qty 20+

0

86

MTD 736-0272

Fl-Wash. .53" I.D. x 1" O.D. x .06"

$4.99

$

In Stock, Qty 20+

0

87

UNKNOWN

$

$

Not available

88

MTD 784-5199

Attaching Plate
(Superseded to 984-5199)

Note: (Used w/Riders Built Before 1988)

$

$

Not available

MTD 784-5202

Attaching Plate

Note: (Used w/Riders Built 1988-Present)

Variations

MTD 784-5202-0637

No Longer Available PLATE-LIFT - POWDER BLACK (0637)

$

$

Not available

$

$

89

MTD 05406

Belt Guard
(Superseded to 05406-0637)

Variations

MTD 05406-0637

GUARD-BELT - POWDER BLACK (0637)

$

$

Not available

$

$

90

MTD 14088B

Spindle Spacer
(Superseded to 14088B-0637)

Variations

MTD 14088B-0637

Spindle Spacer - POWDER BLACK (0637)

$29.99

$

Usually ships in 3-6 days

0

$29.99

$

Usually ships in 3-6 days

0

91

MTD 712-0107

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

92

MTD 710-0514

Hex Bolt 3/16 x 1 Lg.

$4.49

$

In Stock, Qty 20+

0

93

MTD 784-5147

Weight Box Ass'y.

Variations

MTD 784-5147-0637

$

$

Not available

$

$

94

MTD 711-0332

Lift Brkt. Pin
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 14

0

95

MTD 732-0388

Extension Spring
(Superseded to 932-0388)

$

$

Not available

?97

MTD 17304

Deck Lift Link Ass'y.

$40.99

$

Usually ships in 3-6 days

0

?98

MTD 710-0959

Hex Bolt 5/16-18 x 1.5" Lg.

$7.49

$

Usually ships in 3-6 days

0

?99

MTD 711-0509

Spring Insert

$60.99

$

Usually ships in 3-6 days

0

?100

MTD 784-5686

Spring Mtg. Brkt.

Variations

MTD 784-5686-0637

BRACKET-SPRING MOUNTING - POWDER BLACK (0637)

$

$

Not available

$

$
