190-831-190 - White Outdoor 45" Snow Thrower Attachment (1995) Snow Thrower Attachment Parts Diagram

45" Snow Thrower Attachment

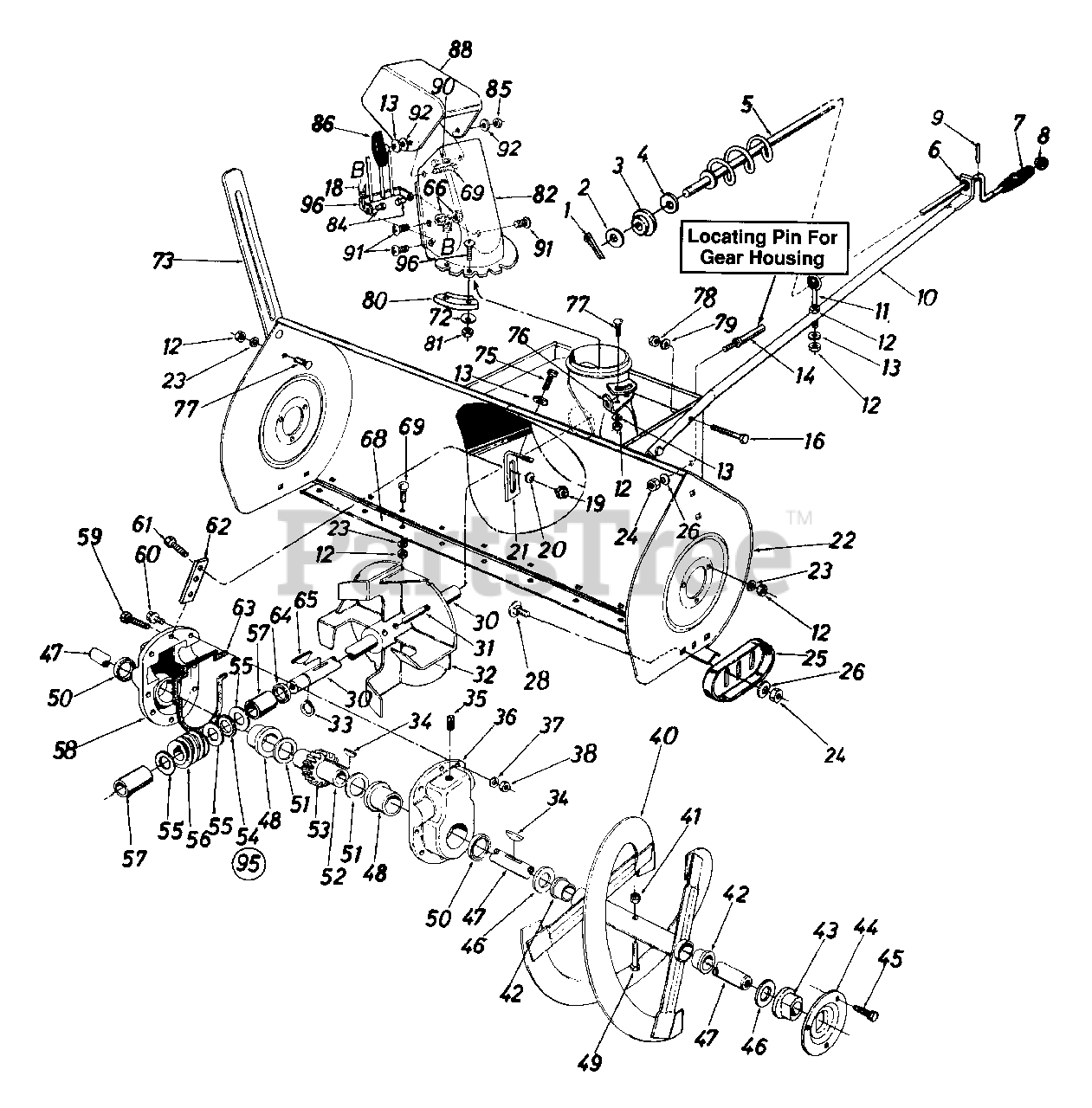

Snow Thrower Attachment Parts Diagram

  • Title

1

White Outdoor 714-0507

Cotter Pin 3/32" x .75"

$4.49

$

In Stock, only 2 left!

0

2

White Outdoor 736-0140

Fl-Wash. .385" I.D. x .62" O.D. x .06"

$7.49

$

In Stock, Qty 7

0

3

White Outdoor 741-0475

Plastic Bushing .380" I.D.
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 736-0140

Fl-Wash. .385" I.D. x .62" O.D. x .06"

$7.49

$

In Stock, Qty 7

0

5

White Outdoor 05983

Chute Crank Ass'y.

$

$

Not available

6

White Outdoor 741-0475

Plastic Bushing .38" I.D.
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 720-0171

Knob - Black
(Superseded to 920-0171)

$15.99

$

In Stock, only 1 left!

0

8

White Outdoor 726-0100

Cap Speed Nut 3/8" Rod

$4.49

$

In Stock, only 3 left!

0

9

White Outdoor 715-0138

Spring Pin
(Superseded to 915-0138)

$4.99

$

In Stock, only 1 left!

0

10

White Outdoor 749-0230

Chute Crank Supporting Tube

$

$

Not available

11

White Outdoor 747-0416

Eyebolt Chute Crank Support

$

$

Not available

12

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

13

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88" O.D. x .06"

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 711-0640

Bell Keeper Studs 3/8-16 x 2.75"

$7.99

$

Usually ships in 3-6 days

0

16

White Outdoor 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 8

0

18

White Outdoor 732-0118

Extension Spring
(Superseded to 732-0118A)

$10.99

$

Usually ships in 3-6 days

0

19

White Outdoor 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

20

White Outdoor 736-0270

Bell-Wash. .25" I.D. x .88" O.D. x .062"

$3.99

$

In Stock, Qty 20+

0

21

White Outdoor 784-5076

Gear Hsg. Support Brkt.
(Superseded to 784-5076-0637)

Variations

White Outdoor 784-5076-0637

PLATE-SUPPORT-GEAR - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

22

784-5036C

45" Snow Thrower Hsg. Ass'y.

$

$

Not available

23

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

24

White Outdoor 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

25

White Outdoor 784-5038A

Reversible Slide Shoe
(Superseded to 784-5038B-0637)

$27.99

$

In Stock, Qty 11

0

26

White Outdoor 736-0105

Bell-Wash. .4" I.D. x .88" O.D. x .06"

$4.49

$

In Stock, Qty 20+

0

28

White Outdoor 710-0790

Carr. Bolt 3/8-16 x .62" Lg.
(Superseded to 710-0389)

$4.49

$

In Stock, Qty 10

0

30

White Outdoor 738-0679

Blower Axle 14.75" Lg.

$

$

Not available

31

White Outdoor 715-0118

Spr. Spiral Pin - H.D.

$12.99

$

In Stock, Qty 7

0

32

White Outdoor 784-5145

Blower Fan Ass'y.
(Superseded to 784-5145-0637)

Variations

White Outdoor 784-5145-0637

Blower Fan Assembly, Black - POWDER BLACK (0637)

$

$

Not available

$

$

33

White Outdoor 716-0111

Snap Ring for .875" Dia. Shaft

$6.99

$

In Stock, Qty 8

0

34

White Outdoor 714-0135

#91 Woodruff Key 1/4" x 3/4" Dia.

$4.99

$

In Stock, only 2 left!

0

35

White Outdoor 737-0175

Plastic Vented Plug 1/4-18 Pipe Thd.

$6.99

$

In Stock, only 4 left!

0

36

White Outdoor 717-0297

Gear Hsg. Half - L.H.
(Superseded to 753-0889)

$

$

Not available

37

White Outdoor 736-0271

Shakeproof Spr. Wash.
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

38

White Outdoor 712-0429

Hex Ins. L-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

40

White Outdoor 05608

Spiral Ass'y. - R.H.
(Superseded to 684-04196)

Note: (Not shown)

Variations

White Outdoor 05608-0637

USE 684-04196 SPIRAL ASM-RH 4 - POWDER BLACK (0637)

$235.99

$

Usually ships in 3-6 days

0

$235.99

$

Usually ships in 3-6 days

0

White Outdoor 05609

Spiral Ass'y. - L.H.
(Superseded to 684-04197)

Variations

White Outdoor 05609-0637

USE 684-04197 SPIRAL ASM-LH 4 - POWDER BLACK (0637)

$235.99

$

Usually ships in 3-6 days

0

$235.99

$

Usually ships in 3-6 days

0

41

White Outdoor 712-0429

Hex Ins. L-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

42

White Outdoor 741-0494

Flange Bearing

$3.99

$

In Stock, only 2 left!

0

43

White Outdoor 741-0192

Flange Bearing w/Flats
(Superseded to 941-0170)

$19.99

$

In Stock, only 4 left!

0

44

White Outdoor 05845

Bearing Housing
(Superseded to 05845C-0637)

$23.99

$

In Stock, only 2 left!

0

45

White Outdoor 710-0198

Hex Sems Bolt 5/16-18 x .75" Lg.
(Superseded to 910-0198)

$

$

Not available

46

White Outdoor 736-0250

Fl-Wash.

$4.49

$

In Stock, only 2 left!

0

47

White Outdoor 738-0492

Spiral Axle

$205.99

$

Usually ships in 3-6 days

0

48

White Outdoor 741-0182

Flange Bearing

$

$

Not available

49

White Outdoor 710-0891

Shear Bolt 5/16-18 x 1.75

$7.49

$

In Stock, Qty 20+

0

50

White Outdoor 721-0146

Oil Seal 1.5" I.D. Garlock
(Superseded to 921-0146)

$12.99

$

In Stock, only 3 left!

0

51

White Outdoor 736-0266

Fl-Wash. 1.5" I.D. x 2" O.D. x .03"
(Superseded to 936-0266)

$

$

Not available

52

White Outdoor 738-0275

Worm Gear Shaft

$112.99

$

Usually ships in 3-6 days

0

53

White Outdoor 717-1425

Worm Wheel - L.H. Double Thd.
(Superseded to 917-1425)

$177.99

$

In Stock, only 2 left!

0

54

White Outdoor 741-0184

Thrust Brg. .88" I.D. x 1.44" O.D. x .078"

$16.99

$

In Stock, only 3 left!

0

55

White Outdoor 736-0291

Fl-Wash. .88" I.D. x 1.4" O.D. x .125"

$11.99

$

Usually ships in 3-6 days

0

56

White Outdoor 717-0299

Worm Gear - L.H. Double Thd.
(Superseded to 917-0299)

$124.99

$

In Stock, only 2 left!

0

57

White Outdoor 741-0217

Sleeve Brg. .875" I.D.
(Superseded to 941-0217)

$17.99

$

In Stock, Qty 10

0

58

White Outdoor 717-0298

Gear Hsg. Half - R.H.
(Superseded to 753-0889)

$

$

Not available

59

White Outdoor 710-0528

Hex Bolt 5/16-18 x 1.25" Lg.

$4.49

$

In Stock, Qty 20+

0

60

White Outdoor 710-0376

Hex Bolt 5/16 x 1" Lg.

$3.99

$

In Stock, only 4 left!

0

61

White Outdoor 710-0412

Hex Bolt 1/4-28 x .75" Lg.

$5.99

$

In Stock, Qty 8

0

62

White Outdoor 784-5075

Gear Hsg. Support Plate

$

$

Not available

63

White Outdoor 721-0144

Rubber Gasket
(Superseded to 921-0144)

$11.99

$

Usually ships in 3-6 days

0

64

White Outdoor 721-0145

Oil Seal for .875" I.D. Garlock
(Superseded to 921-0145)

$9.99

$

In Stock, only 1 left!

0

65

White Outdoor 714-0126

#9 Hi-Pro Key 3/16" x 3/4" Dia. - H.T.

$4.99

$

In Stock, Qty 19

0

66

White Outdoor 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

68

White Outdoor 05598

Shave Plate
(Superseded to 05598-0637)

Variations

White Outdoor 05598-0637

Shave Plate, Black - POWDER BLACK (0637)

$108.99

$

Usually ships in 3-6 days

0

$108.99

$

Usually ships in 3-6 days

0

69

White Outdoor 710-0276

Carr-Bolt 5/16-18 x 1" Lg.

$3.99

$

In Stock, Qty 14

0

72

White Outdoor 736-0142

Fl-Wash. .281" I.D. x .5" O.D. x .063"

$4.99

$

In Stock, only 4 left!

0

73

White Outdoor 05139A

Guide Blade
(Superseded to 790-00181-0637)

Variations

White Outdoor 05139A-0498

BLADE-GUIDE (DRIFT - OLD CUB YELLOW (0498)

$43.99

$

Usually ships in 3-6 days

0

White Outdoor 05139A-0637

BLADE-GUIDE (DRIFT - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

White Outdoor 05139A-0638

BLADE-GUIDE (DRIFT - MTD/TROY-BILT RED (0638)

$43.99

$

Usually ships in 3-6 days

0

White Outdoor 05139A-0662

BLADE-GUIDE (DRIFT - OYSTER GRAY (0662)

$43.99

$

Usually ships in 3-6 days

0

White Outdoor 05139A-0665

BLADE-GUIDE (DRIFT - YARDMAN GREEN (0665)

$43.99

$

Usually ships in 3-6 days

0

White Outdoor 05139A-0674

BLADE-GUIDE (DRIFT - YARDMAN YELLOW (0674)

$43.99

$

Usually ships in 3-6 days

0

White Outdoor 05139A-0716

BLADE-GUIDE (DRIFT - CUB YELLOW-99 (0716)

$43.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

75

White Outdoor 710-0726

Hex AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

76

White Outdoor 784-5123

Chute Crank Brkt.
(Superseded to 784-5123-0637)

Variations

White Outdoor 784-5123-0637

Chute Crank Bracket - POWDER BLACK (0637)

$17.99

$

In Stock, only 1 left!

0

$17.99

$

In Stock, only 1 left!

0

77

White Outdoor 710-0451

Carr. Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

78

White Outdoor 712-0116

Hex Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

79

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

80

White Outdoor 731-0851

Chute Flange Keeper
(Superseded to 731-0851A)

$4.49

$

In Stock, Qty 20+

0

81

White Outdoor 712-0107

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

82

White Outdoor 731-0843B

Lower Chute
(Superseded to 931-0843B)

$

$

Not available

84

White Outdoor 738-0561

Shld. Nut 1/4-20 Thd.
(Superseded to 938-0561)

$9.49

$

In Stock, only 2 left!

0

85

White Outdoor 712-0158

Hex L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

86

White Outdoor 09966

Hand Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

88

White Outdoor 731-0846B

Upper Chute
(Superseded to 731-0846C)

$52.99

$

Usually ships in 3-6 days

0

90

White Outdoor 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

91

White Outdoor 710-0286

Truss Mach. Scr. 1/4-20 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

92

White Outdoor 736-0231

Fl-Wash. .344" I.D. x 1.125" O.D. x .125"

$4.99

$

In Stock, Qty 11

0

95

White Outdoor 717-0871A

Gear Box Ass'y. Complete
(Superseded to 917-0871A)

$615.99

$

Usually ships in 3-6 days

0

96

White Outdoor 710-0255

Truss Mach. Scr. 1/4-20 x 3/4" Lg.
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

White Outdoor 737-0168

Shell Alvania Grease - EPR000
(Superseded to 737-0168A)

$30.99

$

In Stock, only 1 left!

0
