190-831-190 - White Outdoor 45" Snow Thrower Attachment (1994) Tine Assembly Parts Diagram

45" Snow Thrower Attachment

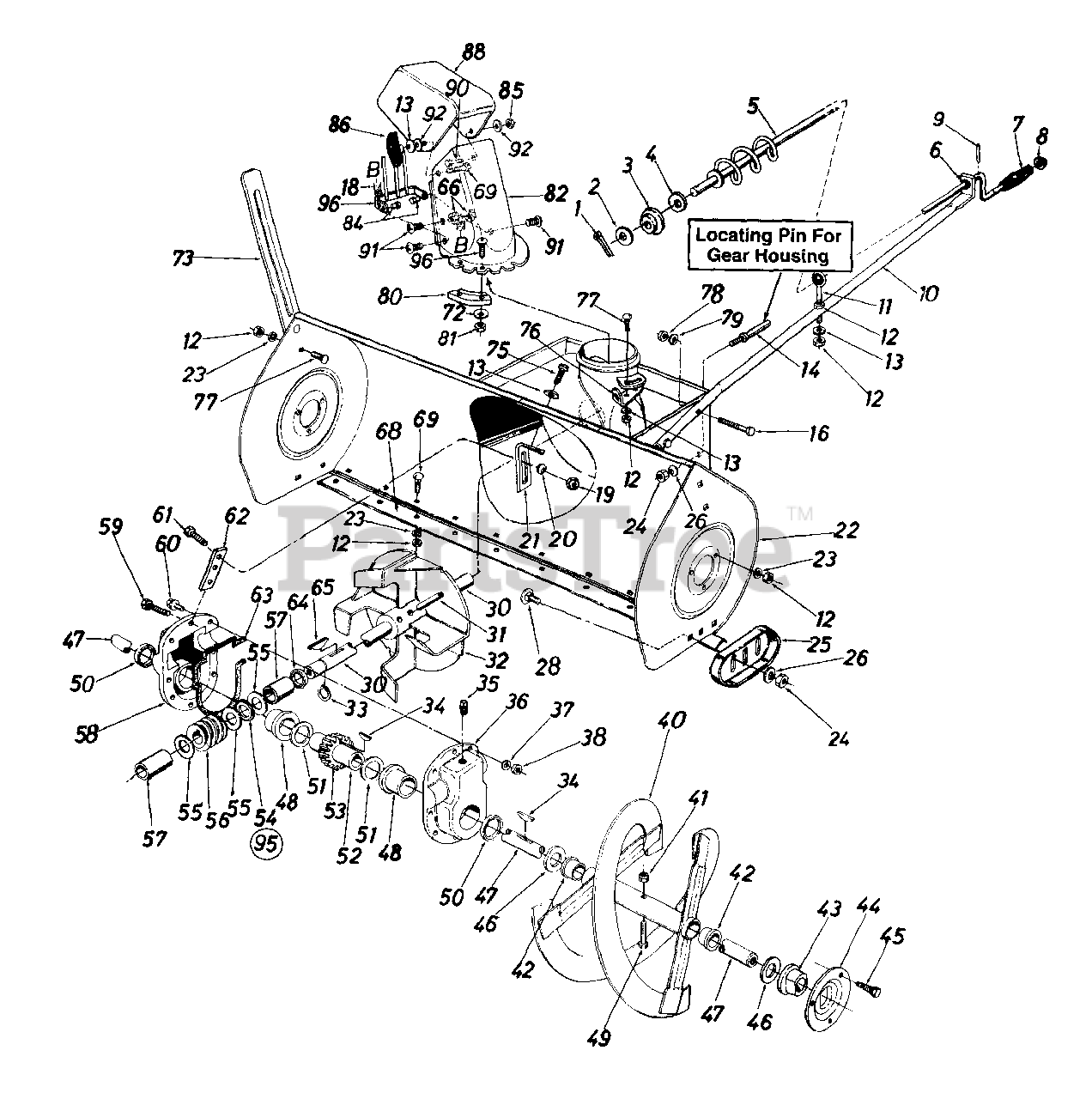

Tine Assembly Parts Diagram

  • Title

1

MTD 914-0507

Cotter Pin 3/32" x .75"

$4.49

$

In Stock, Qty 17

0

2

MTD 936-0140

Fl-Wash. .385" I.D. x .62" O.D. x .06"
(Superseded to 736-0140)

$

$

Not available

3

MTD 941-0475

Plastic Bushing .380" I.D.

$4.49

$

In Stock, Qty 20+

0

4

MTD 936-0140

Fl-Wash. .385" I.D. x .62" O.D. x .06"
(Superseded to 736-0140)

$

$

Not available

5

MTD 05983

Chute Crank Ass'y.

Note: NLA

$

$

Not available

6

MTD 941-0475

Plastic Bushing .38" I.D.

$4.49

$

In Stock, Qty 20+

0

7

MTD 920-0171

Knob - Black

$15.99

$

In Stock, only 1 left!

0

8

MTD 926-0100

Cap Speed Nut 3/8" Rod
(Superseded to 726-0100)

$

$

Not available

9

MTD 915-0138

Spring Pin

$4.99

$

In Stock, only 1 left!

0

10

MTD 749-0230

Chute Crank Supporting Tube

Note: NLA

$

$

Not available

11

MTD 747-0416

Eyebolt Chute Crank Support

Note: NLA

$

$

Not available

12

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

13

MTD 736-0242

Bell-Wash. .345" I.D. x .88" O.D. x .06"

$4.49

$

In Stock, Qty 20+

0

14

MTD 911-0640

Belt Keeper Studs 3/8-16 x 2.75"
(Superseded to 711-0640)

$7.99

$

Usually ships in 3-6 days

0

16

MTD 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 9

0

18

MTD 732-0118A

Extension Spring

$10.99

$

Usually ships in 3-6 days

0

19

MTD 912-0138

Hex Nut 1/4-28 Thd.
(Superseded to 712-0138)

$

$

Not available

20

MTD 736-0270

Bell-Wash. .25" I.D. x .88" O.D. x .062"

$3.99

$

In Stock, Qty 20+

0

21

MTD 784-5076-0637

Gear Hsg. Support Brkt.

$46.99

$

Usually ships in 3-6 days

0

22

MTD 784-5036C

45" Snow Thrower Hsg. Ass'y.

Note: NLA

$

$

Currently unavailable

23

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

24

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

25

MTD 784-5038B-0637

Reversible Slide Shoe

$27.99

$

In Stock, only 2 left!

0

26

MTD 736-0105

Bell-Wash. .4" I.D. x .88" O.D. x .06"

$4.49

$

In Stock, Qty 20+

0

28

MTD 710-0389

Carr. Bolt 3/8-16 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

30

MTD 738-0679

Blower Axle 14.75" Lg.

Note: NLA

$

$

Not available

31

MTD 915-0118

Spr. Spiral Pin - H.D.
(Superseded to 715-0118)

$

$

Not available

32

MTD 784-5145-0637

Blower Fan Ass'y.

$

$

Not available

33

MTD 716-0111

Snap Ring for .875" Dia. Shaft

$6.99

$

In Stock, only 4 left!

0

34

MTD 914-0135

#91 Woodruff Key 1/4" x 3/4" Dia.
(Superseded to 714-0135)

$

$

Not available

35

MTD 737-0175

Plastic Vented Plug 1/4-18 Pipe Thd.

$6.99

$

In Stock, only 4 left!

0

36

MTD 753-0889

Gear Hsg. Half - L.H.

$

$

Not available

37

MTD 936-0271

Shakeproof Spr. Wash.

$4.49

$

In Stock, Qty 10

0

38

MTD 912-0429

Hex Ins. L-Nut 5/16-18 Thd.
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

40

MTD 684-04196

Spiral Ass'y, - R.H.

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-04196-0498

Spiral Assembly, RH 45" - OLD CUB YELLOW (0498)

$291.99

$

Usually ships in 3-6 days

0

MTD 684-04196-0716

Spiral Assembly, RH 45" - CUB YELLOW-99 (0716)

$291.99

$

Usually ships in 3-6 days

0

MTD 684-04196-0637

SPIRAL ASM-RH 45" - POWDER BLACK (0637)

$291.99

$

Usually ships in 3-6 days

0

MTD 684-04196-0650

SPIRAL ASM-RH 45" - RED METALLIC (0650)

$291.99

$

Usually ships in 3-6 days

0

MTD 684-04196-0662

SPIRAL ASM-RH 45" - OYSTER GRAY (0662)

$291.99

$

Usually ships in 3-6 days

0

$235.99

$

Usually ships in 3-6 days

0

40

MTD 684-04197

Spiral Ass'y. - L.H.

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-04197-0716

Spiral Assembly, LH 45" - CUB YELLOW-99 (0716)

$284.99

$

Usually ships in 3-6 days

0

MTD 684-04197-0637

SPIRAL ASM-LH 45" - POWDER BLACK (0637)

$284.99

$

Usually ships in 3-6 days

0

MTD 684-04197-0650

SPIRAL ASM-LH 45" - RED METALLIC (0650)

$284.99

$

Usually ships in 3-6 days

0

MTD 684-04197-0662

SPIRAL ASM-LH 45" - OYSTER GRAY (0662)

$284.99

$

Usually ships in 3-6 days

0

$235.99

$

Usually ships in 3-6 days

0

41

MTD 912-0429

Hex Ins. L-Nut 5/16-18 Thd.
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

42

MTD 741-0494

Flange Bearing

$3.99

$

In Stock, Qty 20+

0

43

MTD 941-0170

Flange Bearing w/Flats

$19.99

$

In Stock, Qty 6

0

44

MTD 05845C-0637

Bearing Housing

$23.99

$

In Stock, only 1 left!

0

45

MTD 910-0198

Hex Sems Bolt 5/16-18 x .75" Lg.

$

$

Not available

46

MTD 736-0250

Fl-Wash.

$4.49

$

In Stock, Qty 20+

0

47

MTD 738-0492

Spiral Axle

$205.99

$

Usually ships in 3-6 days

0

48

MTD 741-0182

Flange Bearing

Note: NLA

$

$

Not available

49

MTD 710-0891

Shear Bolt 5/16-18 x 1.75

$7.49

$

In Stock, Qty 10

0

50

MTD 921-0146

Oil Seal 1.5" I.D. Garlock

$12.99

$

Usually ships in 3-6 days

0

51

MTD 936-0266

Fl-Wash. 1.5" I.D. x 2" O.D. x .03"
(Superseded to 736-0266)

$

$

Not available

52

MTD 738-0275

Worm Gear Shaft

$112.99

$

Usually ships in 3-6 days

0

53

MTD 917-1425

Worm Wheel - L.H. Double Thd.

$177.99

$

In Stock, only 2 left!

0

54

MTD 741-0184

Thrust Brg. .88" I.D. x 1.44" O.D. x .078"

$16.99

$

Usually ships in 3-6 days

0

55

MTD 936-0291

Fl-Wash. .88" I.D. x 1.4" O.D. x .125"
(Superseded to 736-0291)

$11.99

$

Usually ships in 3-6 days

0

56

MTD 917-0299

Worm Gear - L.H. Double Thd.

$124.99

$

In Stock, only 2 left!

0

57

MTD 941-0217

Sleeve Brg. .875" I.D.

$17.99

$

In Stock, Qty 7

0

58

MTD 753-0889

Gear Hsg. Half - R.H.

$

$

Not available

59

MTD 710-0528

Hex Bolt 5/16-18 x 1.25" Lg.

$4.49

$

In Stock, Qty 19

0

60

MTD 710-0376

Hex Bolt 5/16 x 1" Lg.

$3.99

$

In Stock, Qty 20+

0

61

MTD 710-0412

Hex Bolt 1/4-28 x .75" Lg.

$5.99

$

In Stock, Qty 9

0

62

MTD 784-5075

Gear Hsg. Support Plate

$

$

Not available

63

MTD 921-0144

Rubber Gasket

$11.99

$

Usually ships in 3-6 days

0

64

MTD 921-0145

Oil Seal for .875" I.D. Garlock

$9.99

$

Usually ships in 3-6 days

0

65

MTD 914-0126

#9 Hi-Pro Key 3/16" x 3/4" Dia. - H.T.
(Superseded to 714-0126)

$4.99

$

In Stock, Qty 12

0

66

MTD 912-0291

Hex L-Nut 1/4-20 Thd.
(Superseded to 712-0291)

$

$

Not available

68

MTD 05598-0637

Shave Plate

$108.99

$

Usually ships in 3-6 days

0

69

MTD 710-0276

Carr-Bolt 5/16-18 x 1" Lg.

$3.99

$

In Stock, Qty 20+

0

72

MTD 936-0142

Fl-Wash. .281" I.D. x .5" O.D. x .063"
(Superseded to 736-0142)

$4.99

$

In Stock, Qty 20+

0

73

MTD 790-00181-0637

Guide Blade

$43.99

$

Usually ships in 3-6 days

0

75

MTD 710-0726

Hex AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

76

MTD 784-5123-0637

Chute Crank Brkt.

Note: *CHOOSE COLOR WHEN ORDERING*

$17.99

$

In Stock, only 1 left!

0

77

MTD 710-0451

Carr. Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

78

MTD 912-0116

Hex Nut 3/8-24 Thd.
(Superseded to 712-0116)

$

$

Not available

79

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

80

MTD 731-0851A

Chute Flange Keeper

$4.49

$

In Stock, Qty 20+

0

81

MTD 912-0107

Hex L-Nut 1/4-20 Thd.

$4.99

$

In Stock, only 1 left!

0

82

MTD 931-0843B

Lower Chute

$

$

Not available

84

MTD 938-0561

Shld. Nut 1/4-20 Thd.

$9.49

$

Usually ships in 3-6 days

0

85

MTD 912-0158

Hex L-Nut 5/16-18 Thd.

$3.49

$

In Stock, Qty 18

0

86

MTD 720-04072A

Hand Knob

$6.99

$

In Stock, Qty 20+

0

88

MTD 731-0846C

Upper Chute

$52.99

$

In Stock, only 3 left!

0

90

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

91

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

92

MTD 936-0231

Fl-Wash. .344" I.D. x 1.125" O.D. x .125"
(Superseded to 736-0231)

$

$

Not available

95

MTD 917-0871A

Gear Box Ass'y. Complete

$615.99

$

Usually ships in 3-6 days

0

96

MTD 710-0924

Truss Mach. Scr. 1/4-20 x 3/4" Lg.

$4.49

$

In Stock, Qty 20+

0
