190-830-000 - MTD 45" Snow Thrower Attachment (1987) 45" Snow Thrower Parts Diagram

45" Snow Thrower Attachment

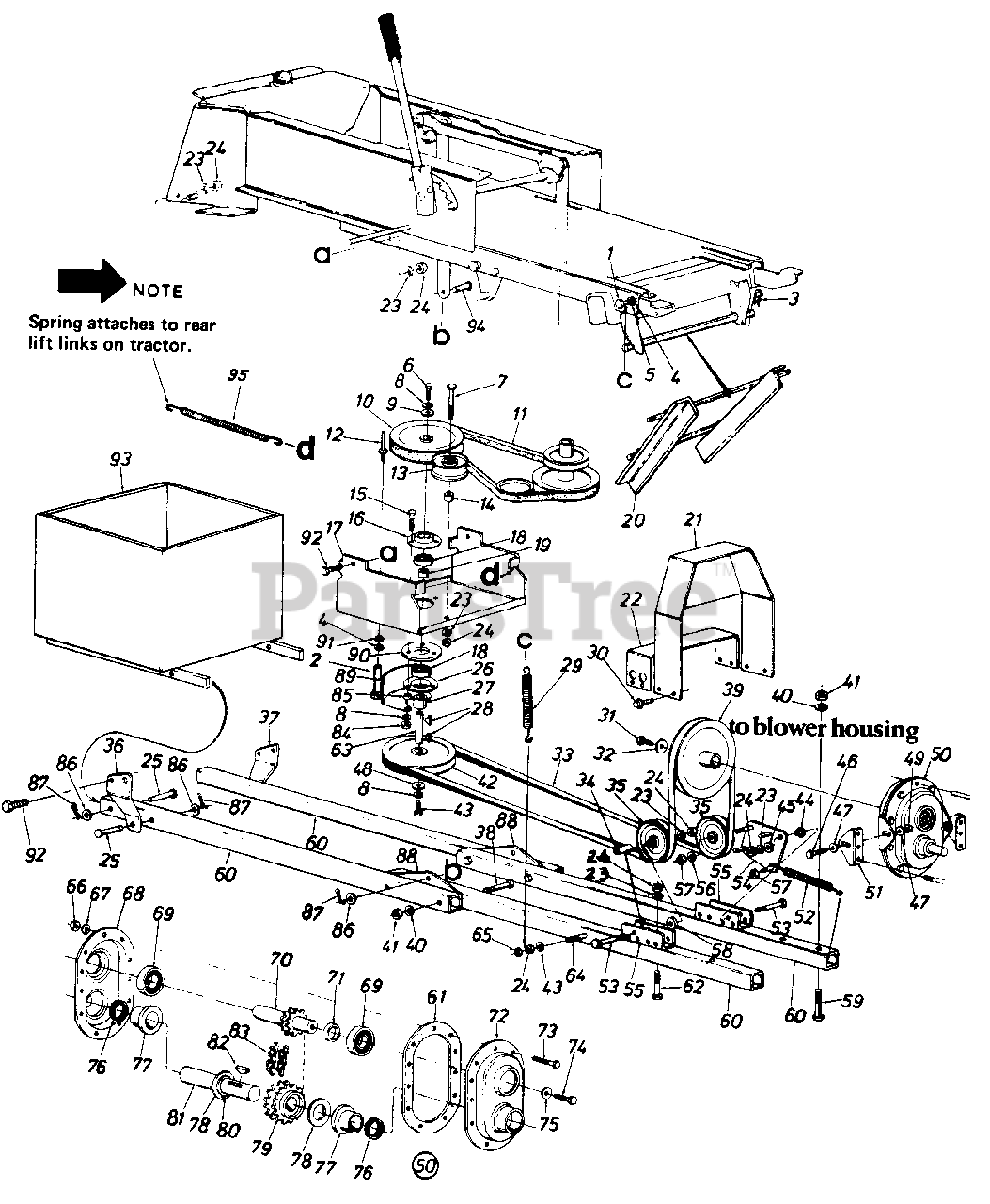

45" Snow Thrower Parts Diagram

  • Title

1

MTD 710-0698

Hex Bolt 1/4-28 x 1.50"

$

$

Not available

2

MTD 711-0793

Clevis Pin Special 3/8" Dia. x 2.62" Lg.

$

$

Not available

3

MTD 714-0101

Inter. Cotter Pin 1/2" Dia.

$4.99

$

In Stock, only 1 left!

0

4

MTD 736-0329

L.-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

5

MTD 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

6

MTD 710-0591

Hex Bolt 3/8-24 x 1.0" Lg.

Note: (Special)

$4.49

$

Usually ships in 3-6 days

0

7

MTD 710-0756

Hex Bolt 3/8-16 x 2.25" Lg.*

$

$

Not available

8

MTD 736-0169

L.-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

9

MTD 736-0247

L.-Wash. .39" I.D. x 1.25" O.D.

$9.49

$

In Stock, Qty 12

0

10

MTD 756-0438

5/8" "V"-Pulley .790" I.D. x 6.50 O. D
(Superseded to 956-0438)

$83.99

$

Usually ships in 3-6 days

0

11

MTD 754-0229

"V"-Belt 1/2" x 52.0" Lg.
(Superseded to 954-0229)

$59.99

$

Usually ships in 3-6 days

0

12

MTD 711-0747

Belt Guard Pin 1/4" Dia. x 1.68" Lg.

$10.99

$

Usually ships in 3-6 days

0

13

MTD 756-0405

Fl.-Idler w/flanges 3.75" O.D.

$71.99

$

Usually ships in 3-6 days

0

14

MTD 711-0369

Spacer.385" I.D. x .630" O.D. x.760" Lg.
(Superseded to 711-0396)

$11.99

$

Usually ships in 3-6 days

0

15

MTD 710-0624

Hex Bolt 5/16-24 x 1.50" Lg.

Note: (Special)

$5.99

$

Usually ships in 3-6 days

0

16

MTD 15296

Open Brg. Housing 1.85" I.D.
(Superseded to 15296A)

$8.99

$

In Stock, only 2 left!

0

17

MTD 784-5146

Carriage Bracket
(Superseded to 784-5146-0637)

Variations

MTD 784-5146-0637

BRACKET-CARRIAGE - POWDER BLACK (0637)

$

$

Not available

$

$

18

MTD 741-0919

Ball Brg. .787" I.D. x 1.85" O.D.
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

19

MTD 750-0456

Spacer 1.0" O.D. x .790" I.D. x.350" Lg.

$4.49

$

In Stock, Qty 20+

0

20

MTD 784-5148

Guide Bracket Ass'y.

$

$

Not available

21

MTD 784-5227

Belt Cover Ass'y.

$

$

Currently unavailable

22

MTD 784-5230

Belt Cover Brkt.

$

$

Not available

23

MTD 736-0169

L.-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

24

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, Qty 6

0

25

MTD 711-0775

Clevis Pin .50" Dia. x 2.75" Lg.

$

$

Currently unavailable

26

MTD 08253

Bearing Housing 1.85" I.D.
(Superseded to 08253B)

$19.99

$

In Stock, only 1 left!

0

27

MTD 750-0660

Spacer .80" I.D. x 1.00" O.D. x.125" Lg.

$

$

Not available

28

MTD 714-0161

Hi-Pro-Key 3/16 x 5/8"
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 20+

0

29

MTD 732-0492

Extension Spring 1.00" O.D. x 6.44" Lg.

$

$

Not available

30

MTD 710-0600

Hex Wash. HD. Sf. Tap Scr. 5/124 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

31

MTD 710-0591

Hex L.-Bolt 3/24 x 1.00" Lg.

$4.49

$

Usually ships in 3-6 days

0

32

MTD 736-0247

Bell.-Wash. .400"1.D. x 1.25" O.D.

$9.49

$

In Stock, Qty 12

0

33

MTD 754-0295

"V"-Belt 1/2" Ax 112.0" Lg.
(Superseded to 954-0295)

$90.99

$

In Stock, only 1 left!

0

34

MTD 750-0668

Spacer .39" I.D. x .62" O.D. x 1.74" Lg.

$

$

Not available

35

MTD 756-0293

5/8" "V"-Belt Idler 4.00" O. D.
(Superseded to 756-0487)

$48.99

$

In Stock, only 1 left!

0

36

MTD 784-5204

Rear Hanger Brkt. - R.H.

Variations

MTD 784-5204-0637

No Longer Available BRACKET-HA - POWDER BLACK (0637)

$

$

Not available

$

$

37

7845203

Rear Hanger Brkt. - L.H.

$

$

Not available

38

MTD 710-0382

Hex Bolt 1/2-13 x 5.00" Lg.*

$12.99

$

In Stock, only 2 left!

0

39

MTD 756-0474

5/8" "V"-Pulley 1.00" I . D. x 7.50" O. D .

$

$

Not available

40

MTD 736-0921

L.-Wash. 1/2" I.D.*

$4.49

$

In Stock, Qty 6

0

41

MTD 712-0206

Hex Nut 1/2-13 Thd.*

$4.49

$

In Stock, Qty 20+

0

42

MTD 756-0438

5/8" "V"-Pullev .79"1.D. x6.5"
(Superseded to 956-0438)

$83.99

$

Usually ships in 3-6 days

0

43

MTD 710-0591

Hex Bolt 3/8-24 x 1.0" Lg.

Note: (Special)

$4.49

$

Usually ships in 3-6 days

0

44

MTD 738-0347

ShoulderSpacer .625" I.D.
(Superseded to 938-0347)

$10.99

$

Usually ships in 3-6 days

0

45

MTD 736-0247

Fl.-Wash. .400" I.D. x 1.25" O.D.

$9.49

$

In Stock, Qty 12

0

46

MTD 710-0118

Hex Bolt 5/1 6-1 8 x .75" Lg.*
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

47

MTD 736-0242

Bell.-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

48

MTD 736-0247

Fl.-Wash. .39" 1 .D. x 1.25" O.D.

$9.49

$

In Stock, Qty 12

0

49

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

50

7t7-0870

Comp. Chain Gear Box Ass'y.

$

$

Not available

51

MTD 05607

Gear Box Support Brkt.

$

$

Not available

52

MTD 732-0491

Extension Spring .87" Dia. x 6.00" Lg.

$

$

Not available

53

MTD 710-0521

Hex Bolt 3/8-16 x 3.0" Lg. (Grade 8)

$5.49

$

In Stock, Qty 11

0

54

MTD 784-5200

Idler Bracket Ass'y.

Variations

MTD 784-5200-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)

$

$

Not available

$

$

55

MTD 784-5211

IdlerSupport Brkt.

$

$

Not available

56

MTD 736-0267

Fl.-Wash. .385"1.D. x .87 O.D.

$4.49

$

In Stock, Qty 20+

0

57

MTD 712-0116

Hex Ins. L.-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

58

MTD 736-0247

Fl.-Wash. .400" I.D. x 1.25" O.D. x .157 Thk.

$9.49

$

In Stock, Qty 12

0

59

MTD 710-0182

Hex Bolt 1/2-13 x 3.00" Lg.*
(Superseded to 710-0182A)

$7.99

$

In Stock, only 2 left!

0

60

MTD 750-0659

Sq. Tubing - 2.0 x 43.0" Lg.

Variations

MTD 750-0659-0637

No Longer Available TUBING-SQ - POWDER BLACK (0637)

$

$

Not available

$

$

61

MTD 721-0158

Gasket

$

$

Not available

62

MTD 710-0521

Hex Bolt 3/8-16 x 3.0" Lg. Grade 8)

$5.49

$

In Stock, Qty 11

0

63

MTD 738-0680

Shaft - .787" Dia. x 3.81" Lg.
(Superseded to 938-0680)

$102.99

$

Usually ships in 3-6 days

0

64

MTD 710-0644

Hex Bolt 3/8-16 x 3.25" Lg.
(Superseded to 710-3130)

$10.99

$

In Stock, only 4 left!

0

65

MTD 712-0266

Hex Cent. L.-Jam Nut 3/8-16 Thd.
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

66

MTD 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

67

MTD 736-0175

Spr.-Wash. .270" I.D. x.57" O.D.
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

68

MTD 717-0359

Gear Hsg. Half - L.H.

$

$

Not available

69

MTD 741-0131

Ball Br. 1.00"1.D. x 2.00" O.D.
(Superseded to 941-0131)

$53.99

$

In Stock, Qty 5

0

70

MTD 713-0346

11-2x.5 Pitch-Sprkit. Shaft Ass'y.

$

$

Not available

71

MTD 750-0612

Spacer 1.00" I.D. x 1.18" O.D. x .440 Lg.

$

$

Not available

72

MTD 717-0360

Gear Hsg. Half - R . H.

$

$

Not available

73

MTD 710-0299

Hex Bolt 1/4-28 x 1.00" Lg. (Grade 5)

$4.49

$

Usually ships in 3-6 days

0

74

MTD 710-0591

Hex L.-Bolt 3/8-24 x 1.00" L.

$4.49

$

Usually ships in 3-6 days

0

75

MTD 736-0247

Bell.-Wash. .400" I.D. x 1.25' O.D.

$9.49

$

In Stock, Qty 12

0

76

MTD 721-0117

Oil Seal 1.25" x 1.75" O.D.

$

$

Not available

77

MTD 748-0194

Flange Brg. 1.252" I.D.

$32.99

$

Usually ships in 3-6 days

0

78

MTD 736-0246

Fl.-Wash. 1.25" I.D. x 2.00" O.D

$

$

Not available

79

MTD 713-0348

DBL Sprkt. 19-2 Teeth x .500" Pitch

$

$

Not available

80

MTD 716-0116

Snap Ring for 1.25" Dia. Shaft

$4.99

$

Usually ships in 3-6 days

0

81

MTD 738-677

GearShaft 1.25" Dia. x 6.0" Lg.

$

$

Currently unavailable

82

MTD 714-0113

#A Hi-Pro Key 1/4 x 7/8" Dia. I

$6.99

$

Usually ships in 3-6 days

0

83

MTD 713-0349

40-2 Chain 1/2" Pitch x 25 Links

$

$

Not available

MTD 713-0152

Master Link #40 Type IV

$

$

Not available

84

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 2 left!

0

85

MTD 750-0535

Spacer .380" I.D. x .625" O.D. x.227" Lg.
(Superseded to 950-0535)

$4.49

$

In Stock, Qty 20+

0

86

MTD 736-0272

Fl.-Wash. .510" I.D. x 1.0" O.D.

$4.99

$

In Stock, Qty 20+

0

87

MTD 714-0101

Inter. Cot.-Pin 1/2" Dia.

$4.99

$

In Stock, only 1 left!

0

88

MTD 784-5202

Attaching Plate - Lift Linkage

Variations

MTD 784-5202-0637

No Longer Available PLATE-LIFT - POWDER BLACK (0637)

$

$

Not available

$

$

89

MTD 05406

Belt Guard
(Superseded to 05406-0637)

Variations

MTD 05406-0637

GUARD-BELT - POWDER BLACK (0637)

$

$

Not available

$

$

90

MTD 14088

Spindle Spacer
(Superseded to 14088B-0637)

$29.99

$

Usually ships in 3-6 days

0

91

MTD 712-0107

Hex Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

92

MTD 710-0514

Hex Bolt 3/8-16 x 1.0" Lg.-Gr. 5

$4.49

$

In Stock, Qty 20+

0

93

MTD 784-5147

Weight Box Ass'y.

Variations

MTD 784-5147-0637

$

$

Not available

$

$

94

MTD 711-0332

Lift Brkt. Pin
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 14

0

95

MTD 732-0388

Ext. Spring
(Superseded to 932-0388)

$

$

Not available
