190-825-101 - White Outdoor 30" Hydraulic Tiller Attachment (2005) Hydraulic Pump and Undercarriage Assembly Parts Diagram

30" Hydraulic Tiller Attachment

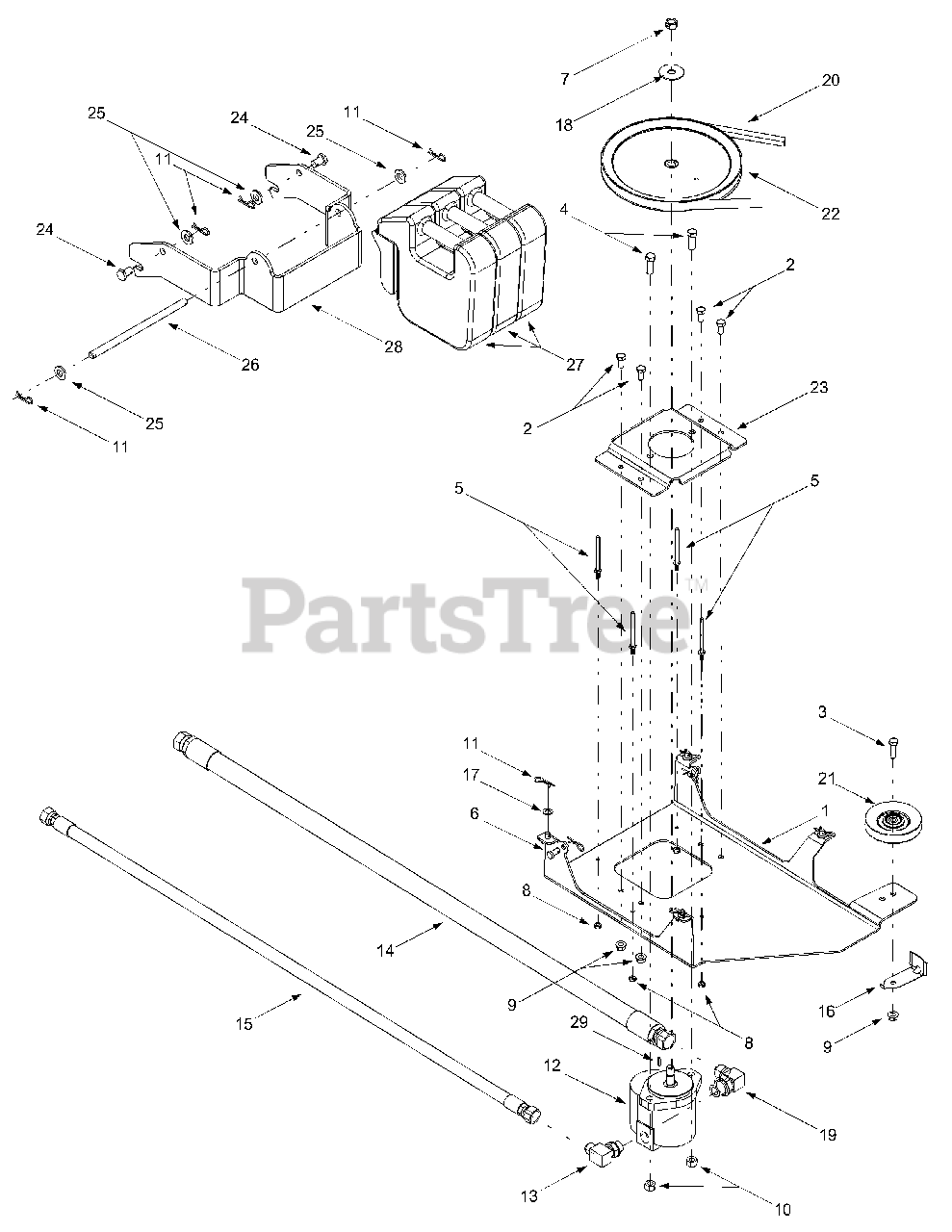

Hydraulic Pump and Undercarriage Assembly Parts Diagram

  • Title

1

MTD 683-0309-0637

Hydraulic Pump Bracket Assembly

$

$

Not available

2

MTD 710-0216

Hex Cap Screw, 3/8-16 x.75

$4.49

$

In Stock, Qty 12

0

3

MTD 710-3005

Hex Cap Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-3029

Hex Cap Screw, 7/16-20

$4.49

$

In Stock, Qty 12

0

5

MTD 911-1000

Belt Keeper Pin

$10.99

$

Usually ships in 3-6 days

0

6

MTD 711-1421

Clevis Pin, 3/8 x .75

$7.49

$

In Stock, only 3 left!

0

7

MTD 912-0239

Hex Lock Nut, 1/2-20
(Superseded to 712-0239)

$

$

Not available

8

MTD 912-0291

Hex Lock Nut, 1/4-20
(Superseded to 712-0291)

$

$

Not available

9

MTD 912-0431

Hex Lock Nut, 3/8-16

$4.99

$

In Stock, Qty 20+

0

10

MTD 712-3067

Hex Lock Nut, 7/16-20

$6.49

$

Usually ships in 3-6 days

0

11

MTD 914-0145

Click Pin, .092 x 1.64
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

12

MTD 718-0545

Eaton Hydraulic Pump (Includes Ref. 29)

$

$

Not available

13

MTD 727-0220

90 degree Hydraulic Adapter, 7/8

$

$

Not available

14

MTD 727-0628

Hydraulic Hose, 1.0625-12 x 54

$

$

Not available

15

MTD 727-0629

Hydraulic Hose, .875-14 x 49

$

$

Not available

16

MTD 732-0990

Belt Guard

$8.49

$

In Stock, only 1 left!

0

17

MTD 936-0275

Flat Washer, .344 x .688
(Superseded to 736-0275)

$

$

Not available

18

MTD 736-3027

Flat Washer, .531 x 1.75

$

$

Not available

19

MTD 737-0309

90 degree Hydraulic Adapter

$

$

Not available

20

MTD 954-0341

V-belt

Note: (For Manual PTO Tractors)

$52.99

$

Usually ships in 3-6 days

0

20

MTD 954-0473

V-belt

Note: (For Manual PTO Tractors equipped with a 46-inch deck)

$

$

Not available

20

MTD 954-0490

V-belt

Note: (For Electric PTO Tractors)

$

$

Not available

21

MTD 756-0487

Idler Pulley, 5/8 x 4.0

$48.99

$

In Stock, only 1 left!

0

22

MTD 756-1178

Drive Pulley, 10.0

$

$

Not available

23

MTD 786-0283

Pump Mounting Bracket

Note: NLA

Variations

MTD 786-0283-0637

Pump Mounting Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

24

MTD 911-0332

Clevis Pin, .5 x .78

$16.99

$

In Stock, Qty 14

0

25

MTD 736-3019

Flat Washer, .531 x 1.062

$5.99

$

In Stock, Qty 11

0

26

MTD 747-1186

Weight Guard Rod

$

$

Not available

27

MTD 959-3389

45 lb. Suitcase Weight
(Superseded to 490-900-M059)

$86.99

$

Usually ships in 3-6 days

0

28

MTD 783-0870

Weight Bracket

Note: NLA

Variations

MTD 783-0870-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

29

MTD 714-0237

Square Key,1552 x .1552 x.6875

$

$

Not available
