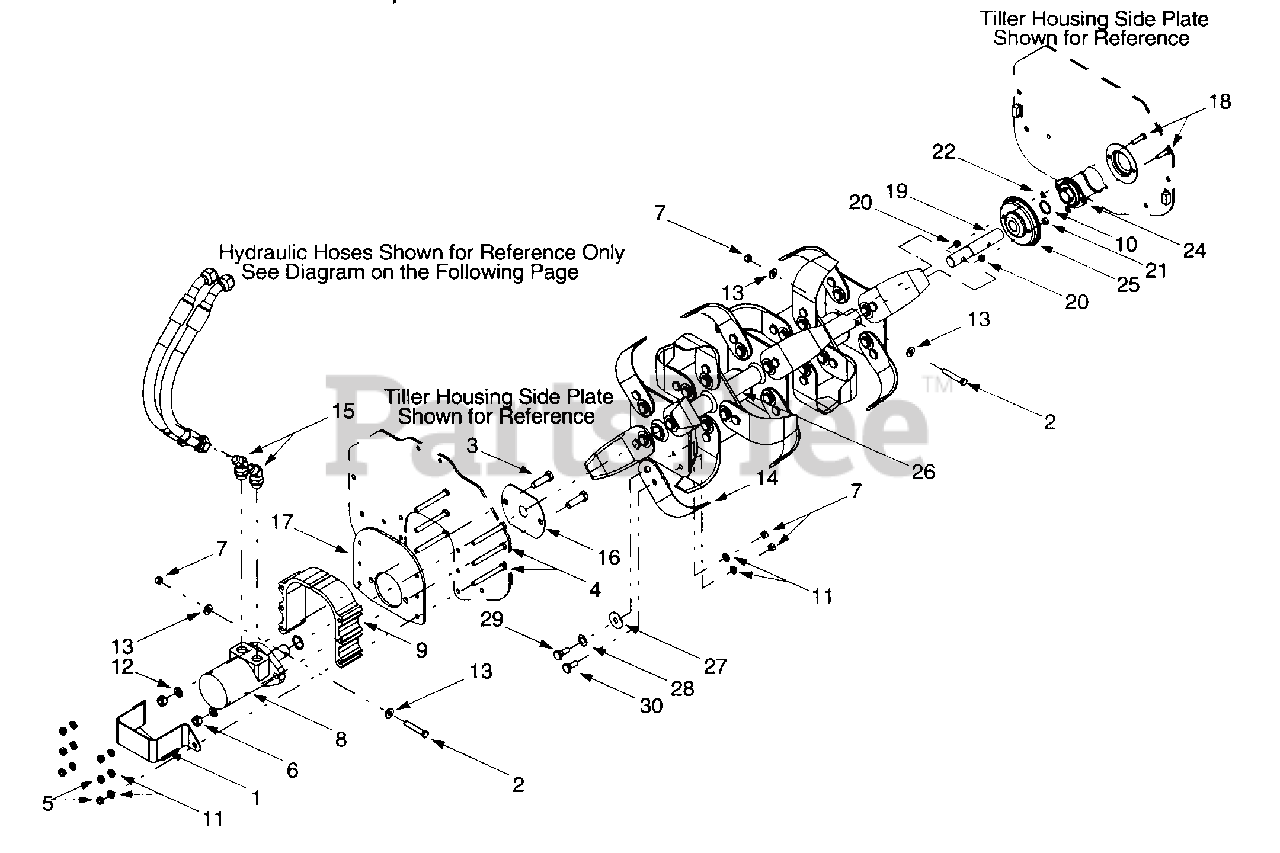

190-825-101 - White Outdoor 30" Hydraulic Tiller Attachment (2000) Tine & Motor Parts Diagram

30" Hydraulic Tiller Attachment

Tine & Motor Parts Diagram

  • Title
1

MTD 686-0123-0637

Hydraulic Motor Guard

$

$

Not available

2

MTD 710-1254

Hex Cap Screw, 3/8-24 x 2.25

$7.99

$

In Stock, Qty 8

0

3

MTD 710-3067

Hex Cap Screw, 1/2-13 x 1.75

$6.99

$

In Stock, only 2 left!

0

4

MTD 710-3085

Hex Cap Screw, 3/8-16 x 3.5

$4.49

$

In Stock, Qty 20+

0

5

MTD 912-3000

Hex Lock Nut, 3/8-16
(Superseded to 712-3000)

$4.49

$

In Stock, Qty 9

0

6

MTD 712-3022

Hex Lock Nut, 1/2-13

$3.99

$

In Stock, Qty 9

0

7

MTD 712-3054

Hex Lock Nut, 3/8-24

$4.49

$

In Stock, Qty 20+

0

8

MTD 718-0659

Eaton Hydraulic Motor

$

$

Not available

9

MTD 719-0552

Hydraulic Motor Mounting Spacer

$

$

Not available

10

MTD 721-0513

O Ring Seal

$

$

Not available

11

MTD 936-0217

Lock Washer, 3/8
(Superseded to 736-0217)

$4.49

$

In Stock, Qty 8

0

12

MTD 936-0921

Lock Washer, 1/2
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 6

0

13

MTD 936-3004

Flat Washer, .406 x.875 x.105
(Superseded to 736-3004)

$

$

Not available

14

MTD 786-0290-0637

Articulating Tine

$34.99

$

Usually ships in 3-6 days

0

15

MTD 737-0342

45° Hydraulic Adapter, 7/8

$

$

Not available

16

MTD 786-0241-0637

Hydraulic Motor Cover

$

$

Not available

17

MTD 786-0291-0637

Hydraulic Motor Mounting Plate

$

$

Not available

18

MTD 710-0528

Hex Cap Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

19

MTD 711-1418

Tine Shaft

$

$

Not available

20

MTD 912-3009

Hex Lock Nut, 5/16-18
(Superseded to 712-3009)

$

$

Not available

21

MTD 912-3010

Hex Nut, 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

22

MTD 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

23

MTD 741-0723

Flange Bearing, 1.0

$

$

Not available

24

MTD 786-0242-0637

Dust Cap Cover

$

$

Not available

25

MTD 786-0262-0637

Bearing Cover

$

$

Not available

26

MTD 686-0148-0637

Tine Adapter Assembly

$

$

Not available

27

MTD 936-0208

Flat Washer, .51 x 1.5 x .07
(Superseded to 736-0208)

$

$

Not available

28

MTD 936-0253

Belleville Washer
(Superseded to 736-0253)

$

$

Not available

29

MTD 738-1138

Shoulder Screw, .49 x .21, 3/8-24

$7.99

$

Usually ships in 3-6 days

0

30

MTD 738-1139

Shoulder Screw, .49 x .34, 3/8-24

$

$

Not available
