190-825-101 - White Outdoor 30" Hydraulic Tiller Attachment (2000) General Assembly Parts Diagram

30" Hydraulic Tiller Attachment

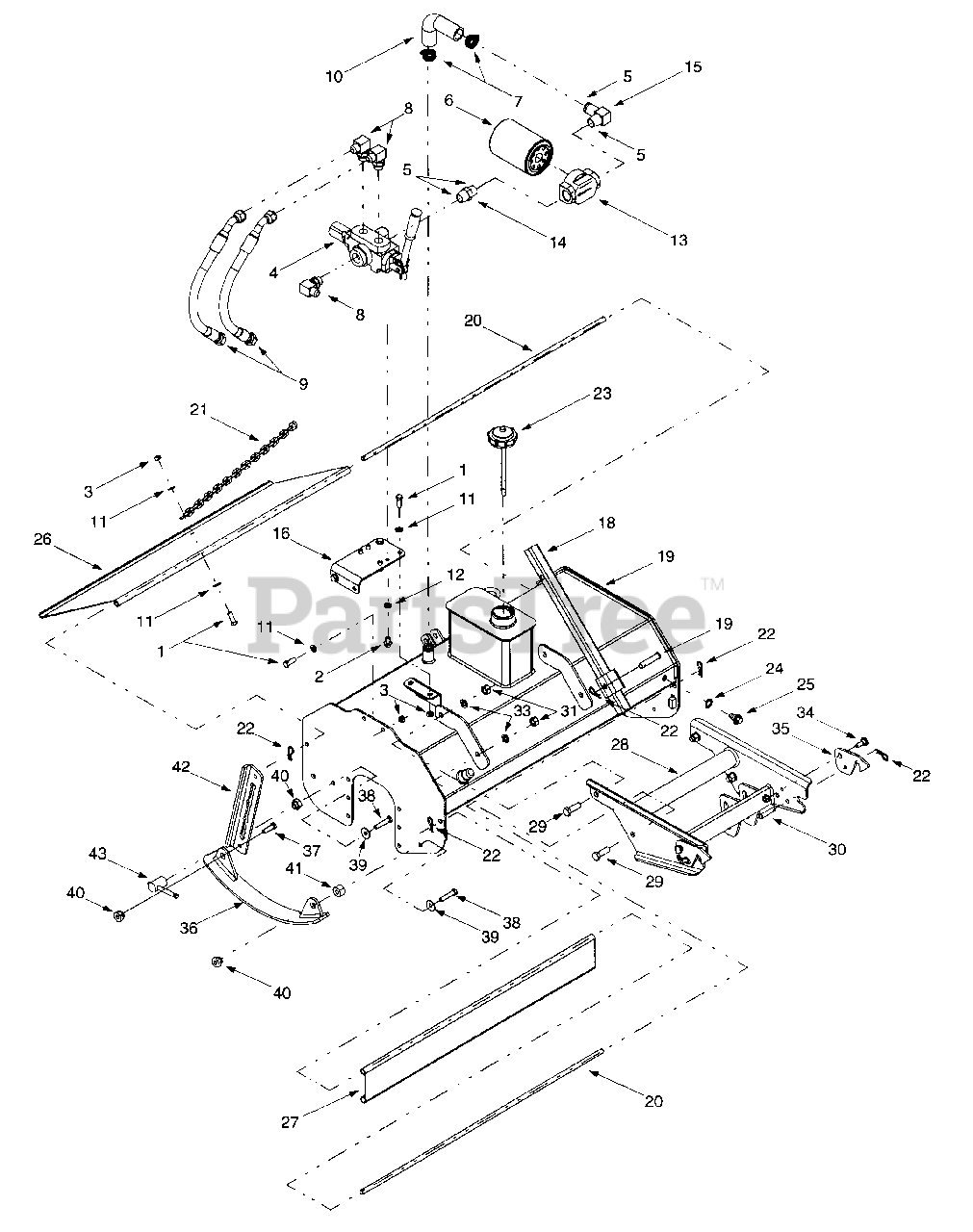

General Assembly Parts Diagram

  • Title
1

MTD 710-0514

Hex Cap Screw, 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-0870

Shoulder Screw, 3/8-16 x.625

$6.49

$

In Stock, only 1 left!

0

3

MTD 912-3000

Hex Lock Nut, 3/8-16
(Superseded to 712-3000)

$4.49

$

In Stock, Qty 9

0

4

MTD 918-0673

Energy Hydraulic Valve

$

$

Not available

5

MTD n/a

Locktite Hydraulic Sealant

$

$

Currently unavailable

6

MTD 723-0405

Oil Filter
(Superseded to 723P0405)

$42.99

$

In Stock, Qty 20+

0

7

MTD 726-0132

Adjustable Hose Clamp

$15.99

$

Usually ships in 3-6 days

0

8

MTD 727-0220

90° Hydraulic Adapter, 7/8

$

$

Not available

9

MTD 727-0520

Hydraulic Hose, 7/8-14

$

$

Not available

10

MTD 727-0625

90° Hydraulic Hose, 1.37 x 1.0

$

$

Not available

11

MTD 936-0185

Flat Washer, .375 x .738 x .063
(Superseded to 736-0185)

$3.99

$

In Stock, Qty 20+

0

12

MTD 936-0217

Lock Washer, 3/8
(Superseded to 736-0217)

$4.49

$

In Stock, Qty 6

0

13

MTD 681-0179

Filter Housing

$

$

Not available

14

MTD 737-0338

Hydraulic Adapter, 3/4 x 3/4

$

$

Not available

15

MTD 737-0341

90° Hydraulic Adapter, 3/4 x 1.0

Note: NLA

$

$

Not available

16

MTD 786-0265-0637

Valve Mounting Bracket

$

$

Not available

17

MTD 686-0143

Frame Assembly

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 686-0143-0637

FRAME ASM-30"TILLER - POWDER BLACK (0637)

$

$

Not available

MTD 686-0143-0716

FRAME ASM-30"TILLER - CUB YELLOW-99 (0716)

$

$

Not available

$

$

18

MTD 686-0155-0637

Tiller Stand

$

$

Not available

19

MTD 711-0510

Clevis Pin, .50 x 2.0

$11.99

$

Usually ships in 3-6 days

0

20

MTD 711-1380

Shield Pivot Rod

$

$

Not available

21

MTD 713-0490

Chain, 24.37"

$

$

Not available

22

MTD 714-0419B

Internal Cotter Pin

Note: NLA

$

$

Currently unavailable

23

MTD 720-0315

Vented Tank Cap

$

$

Not available

24

MTD 921-0223

Stat-O-Seal/O Ring

$

$

Not available

25

MTD 738-0940

Drain Plug

$8.49

$

Usually ships in 3-6 days

0

26

MTD 786-0252

Rear Tine Shield, 30"

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 786-0252-0637

SHIELD-REAR TINE - POWDER BLACK (0637)

$

$

Not available

MTD 786-0252-0716

SHIELD-REAR TINE - CUB YELLOW-99 (0716)

$

$

Not available

$

$

27

MTD 786-0274

Front Tine Shield, 30"

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 786-0274-0637

SHIELD-FRONT TINE - POWDER BLACK (0637)

$

$

Not available

MTD 786-0274-0716

SHIELD-FRONT TINE - CUB YELLOW-99 (0716)

$

$

Not available

$

$

28

MTD 686-0142

Hitch Link Assembly

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 686-0142-0637

LINK ASM-SLEV HITCH - POWDER BLACK (0637)

$

$

Not available

MTD 686-0142-0716

LINK ASM-SLEV HITCH - CUB YELLOW-99 (0716)

$

$

Not available

$

$

29

MTD 710-3181

Hex Cap Screw, 1/2-13 x 1.5

$6.99

$

In Stock, only 1 left!

0

30

MTD 911-0415

Clevis Pin, 3/8 x 1.75
(Superseded to 711-0415)

$4.99

$

In Stock, Qty 20+

0

31

MTD 912-0206

Hex Nut, 1/2-13
(Superseded to 712-0206)

$4.49

$

In Stock, Qty 20+

0

?32

MTD 912-0431

Flange Lock Nut, 3/8-16

$4.99

$

In Stock, Qty 20+

0

33

MTD 936-0921

Lock Washer, 1/2
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 6

0

34

MTD 938-0380

Shoulder Screw, .50 x .27, 3/8-16
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

35

MTD 786-0281-0637

Hitch Latch

$

$

Not available

36

MTD 686-0154-0637

Skid Bracket Assembly

$

$

Not available

37

MTD 710-1039

Hex Cap Screw, 3/8-24 x 1.0

$4.49

$

In Stock, Qty 20+

0

38

MTD 710-1810

Hex Cap Screw, 3/8-24 x 1.75

$26.99

$

Usually ships in 3-6 days

0

39

MTD 936-0452

Bell Washer, .396 x 1.14 x .095
(Superseded to 736-0452)

$4.99

$

In Stock, Qty 5

0

40

MTD 738-1144

Shoulder Nut, 3/8-24

$14.99

$

Usually ships in 3-6 days

0

41

MTD 950-0706

Spacer, 1.0 x .380 x .64

$

$

Not available

42

MTD 786-0302-0637

Skid Adjuster Bracket

$46.99

$

Usually ships in 3-6 days

0

43

MTD 786-0308

Adjuster Crank

$

$

Not available
