190-825-000 - MTD Hydraulic Tiller Attachment (2000) Motor & Tines Parts Diagram

Hydraulic Tiller Attachment

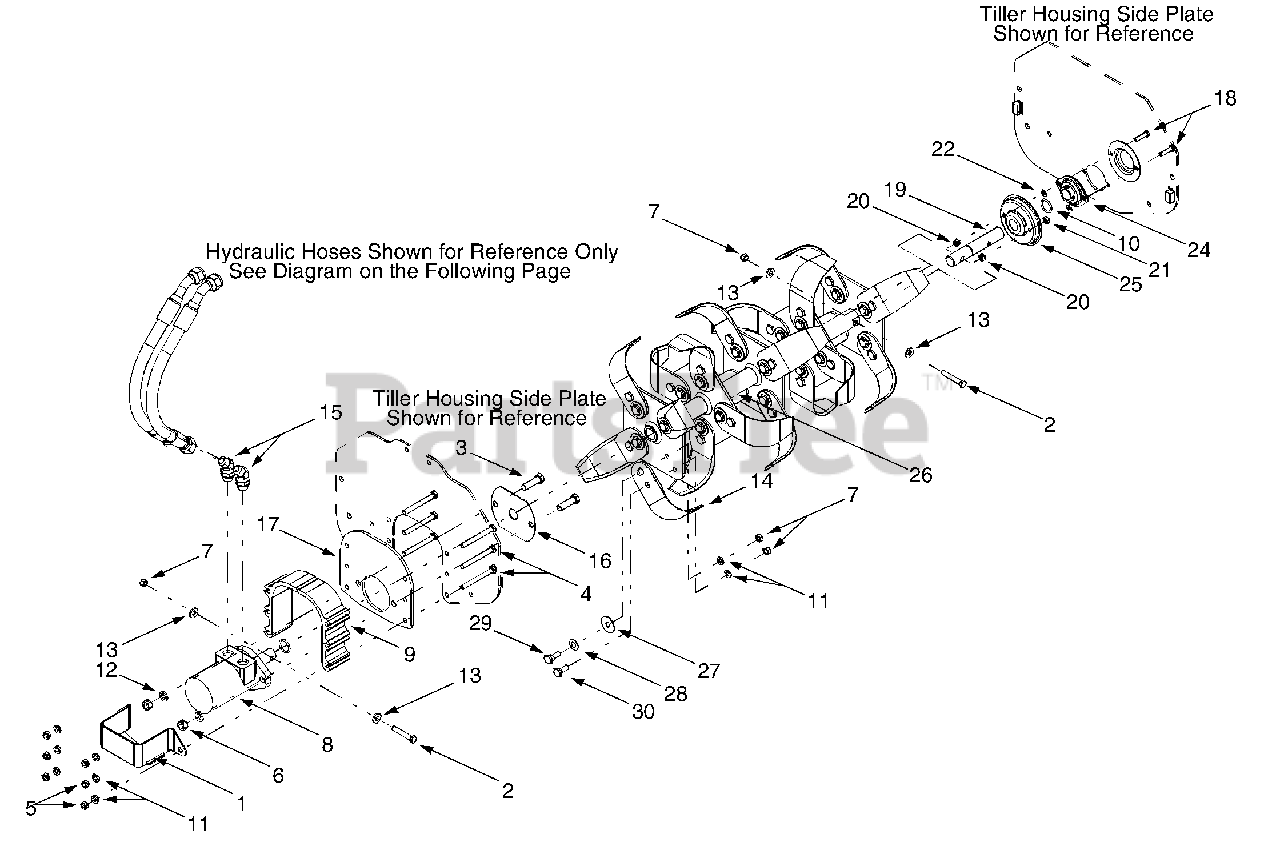

Motor & Tines Parts Diagram

  • Title

1

MTD 686-0123

Hydraulic Motor Guard
(Superseded to 686-0123-0637)

Variations

MTD 686-0123-0637

GUARD-HYD MOTOR - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 710-1254

Hex Cap Screw, 3/8-24 x 2.25

$7.99

$

In Stock, Qty 8

0

3

MTD 710-3067

Hex Cap Screw, 1/2-13 x 1.75

$6.99

$

In Stock, only 2 left!

0

4

MTD 710-3085

Hex Cap Screw, 3/8-16 x 3.5

$4.49

$

In Stock, Qty 20+

0

5

MTD 712-3000

Hex Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 9

0

6

MTD 712-3022

Hex Lock Nut, 1/2-13

$3.99

$

In Stock, Qty 20+

0

7

MTD 712-3054

Hex Lock Nut, 3/8-24

$4.49

$

In Stock, Qty 20+

0

8

MTD 718-0659

Eaton Hydraulic Motor

$

$

Not available

9

MTD 719-0552

Hydraulic Motor Mounting Spacer

$

$

Not available

10

MTD 721-0513

O Ring Seal

$

$

Not available

11

MTD 736-0217

Lock Washer, 3/8

$4.49

$

In Stock, Qty 8

0

12

MTD 736-0921

Lock Washer, 1/2

$4.49

$

In Stock, Qty 6

0

13

MTD 736-3004

Flat Washer, .406 x .875 x .105

$4.99

$

In Stock, Qty 6

0

14

MTD 786-0290

Articulating Tine
(Superseded to 786-0290-0637)

Variations

MTD 786-0290-0637

Tiller Tine - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

15

MTD 737-0342

45° Hydraulic Adapter, 7/8

$

$

Not available

16

MTD 786-0241

Hydraulic Motor Cover
(Superseded to 786-0241-0637)

Variations

MTD 786-0241-0637

COVER-HYD MOTOR - POWDER BLACK (0637)

$

$

Not available

$

$

17

MTD 786-0291

Hydraulic Motor Mounting Plate
(Superseded to 786-0291-0637)

Variations

MTD 786-0291-0637

PLATE-HYD MTR MTG - POWDER BLACK (0637)

$

$

Not available

$

$

18

MTD 710-0528

Hex Cap Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

19

MTD 711-1418

Tine Shaft

$

$

Not available

20

MTD 712-3009

Hex Lock Nut, 5/16-18

$6.99

$

In Stock, Qty 20+

0

21

MTD 712-3010

Hex Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

22

MTD 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

?23

MTD 741-0723

Flange Bearing, 1.0

$

$

Not available

24

MTD 786-0242

Dust Cap Cover
(Superseded to 786-0242-0637)

Variations

MTD 786-0242-0637

COVER-DUST CAP - POWDER BLACK (0637)

$

$

Not available

$

$

25

MTD 786-0262

Bearing Cover
(Superseded to 786-0262-0637)

Variations

MTD 786-0262-0637

COVER-BEARING - POWDER BLACK (0637)

$

$

Not available

$

$

26

MTD 686-0148

Tine Adapter Assembly
(Superseded to 686-0148-0637)

Variations

MTD 686-0148-0637

ADAPTER. ASM-TINE 30" - POWDER BLACK (0637)

$

$

Not available

$

$

27

MTD 736-0208

Flat Washer, .51 x 1.5 x .07

$4.49

$

In Stock, Qty 9

0

28

MTD 736-0253

Belleville Washer

$3.99

$

In Stock, Qty 20+

0

29

MTD 738-1138

Shoulder Screw, .49 x .21, 3/8-24

$7.99

$

Usually ships in 3-6 days

0

30

MTD 738-1139

Shoulder Screw, .49 x .34, 3/8-24

$

$

Not available
