190-824-000 - White Outdoor Electric Sleeve Hitch (1999) Hitch Bracket Assembly Parts Diagram

Electric Sleeve Hitch

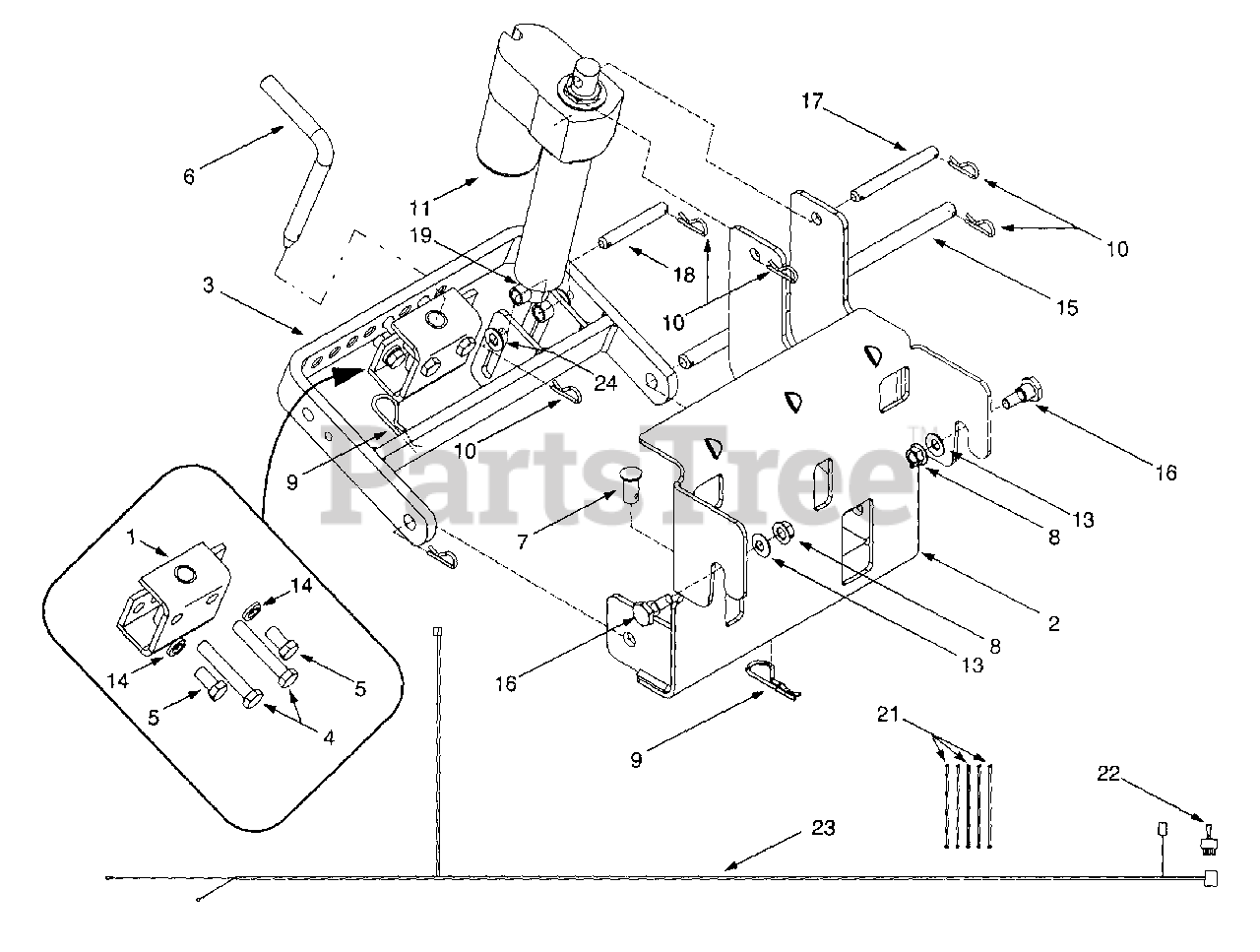

Hitch Bracket Assembly Parts Diagram

  • Title

1

White Outdoor 13269

Hitch Bracket Assembly
(Superseded to 13269-0637)

Variations

White Outdoor 13269-0637

BRACKET ASSY-HITCH - POWDER BLACK (0637)

$

$

Not available

$

$

2

White Outdoor 683-0272

Sleeve Hitch Bracket Assembly
(Superseded to 683-0272A-0637)

Variations

White Outdoor 683-0272-0637

BRACKET ASSY-FAST - POWDER BLACK (0637)

$

$

Not available

$

$

3

White Outdoor 683-0273

Sleeve Hitch Assembly
(Superseded to 683-0273-0637)

Variations

White Outdoor 683-0273-0637

HITCH SLEEVE ASSY - POWDER BLACK (0637)

$

$

Not available

$

$

4

White Outdoor 710-0182

Hex Cap Screw, 1/2-13 x 3 (Grade 5)
(Superseded to 710-0182A)

$7.99

$

In Stock, only 2 left!

0

5

White Outdoor 710-3131

Hex Cap Screw, 1/2-13 x 1 (Grade 5)

$5.49

$

In Stock, only 1 left!

0

6

White Outdoor 711-0282

Hitch Pin

$72.99

$

Usually ships in 3-6 days

0

7

White Outdoor 711-0309

Clevis Pin
(Superseded to 711-0309A)

$12.99

$

In Stock, Qty 7

0

8

White Outdoor 712-0459

Hex Flange Lock Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

9

White Outdoor 714-0117

Internal Cotter Pin, .148 x 3

$4.49

$

In Stock, Qty 16

0

10

White Outdoor 714-0149B

Internal Cotter Pin

$4.49

$

In Stock, Qty 18

0

11

White Outdoor 717-0620

Electromechanical Linear Actuator
(Superseded to 917-0620)

$1244.99

$

Usually ships in 3-6 days

0

?12

White Outdoor 736-0272

Flat Washer, .51 x 1.0 x .06

$4.99

$

In Stock, Qty 20+

0

13

White Outdoor 736-0407

Bell Washer, .45 x 1.0 x .062

$3.99

$

In Stock, Qty 12

0

14

White Outdoor 736-0921

Lock Washer, 1/2

$4.49

$

In Stock, Qty 6

0

15

White Outdoor 738-0482

Hitch Rod

$

$

Not available

16

White Outdoor 738-1020

Shoulder Screw, .625 x .5, 7/16-20

$7.49

$

Usually ships in 3-6 days

0

17

White Outdoor 747-1170

Upper Cylinder Support Rod

$

$

Not available

18

White Outdoor 747-1171

Lower Cylinder Support Rod

$

$

Not available

19

White Outdoor 750-1206

Spacer, .542 x,750 x .5

$16.99

$

In Stock, only 1 left!

0

?20

White Outdoor 783-0668

Hitch Plate

Variations

White Outdoor 783-0668-0498

No Longer Available PLATE-HITCH - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 783-0668-0637

No Longer Available PLATE-HITCH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0668-0665

No Longer Available PLATE-HITCH - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0668-0691

No Longer Available PLATE-HITCH - BLACK JACK (0691)

$

$

Not available

$

$

21

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

22

White Outdoor 725-1053

Toggle Switch
(Superseded to 925-1053)

$105.99

$

Usually ships in 3-6 days

0

23

White Outdoor 629-0919

Wire Harness
(Superseded to 929-0919)

$

$

Not available

24

White Outdoor 736-3084

Flat Washer, .51 x 1.12 x .060

$4.99

$

In Stock, Qty 20+

0
