190-823-101 - White Outdoor 42" 2-Stage Snow Thrower Attachment (2006) 753-05097 Adapter Kit Parts Diagram

42" 2-Stage Snow Thrower Attachment

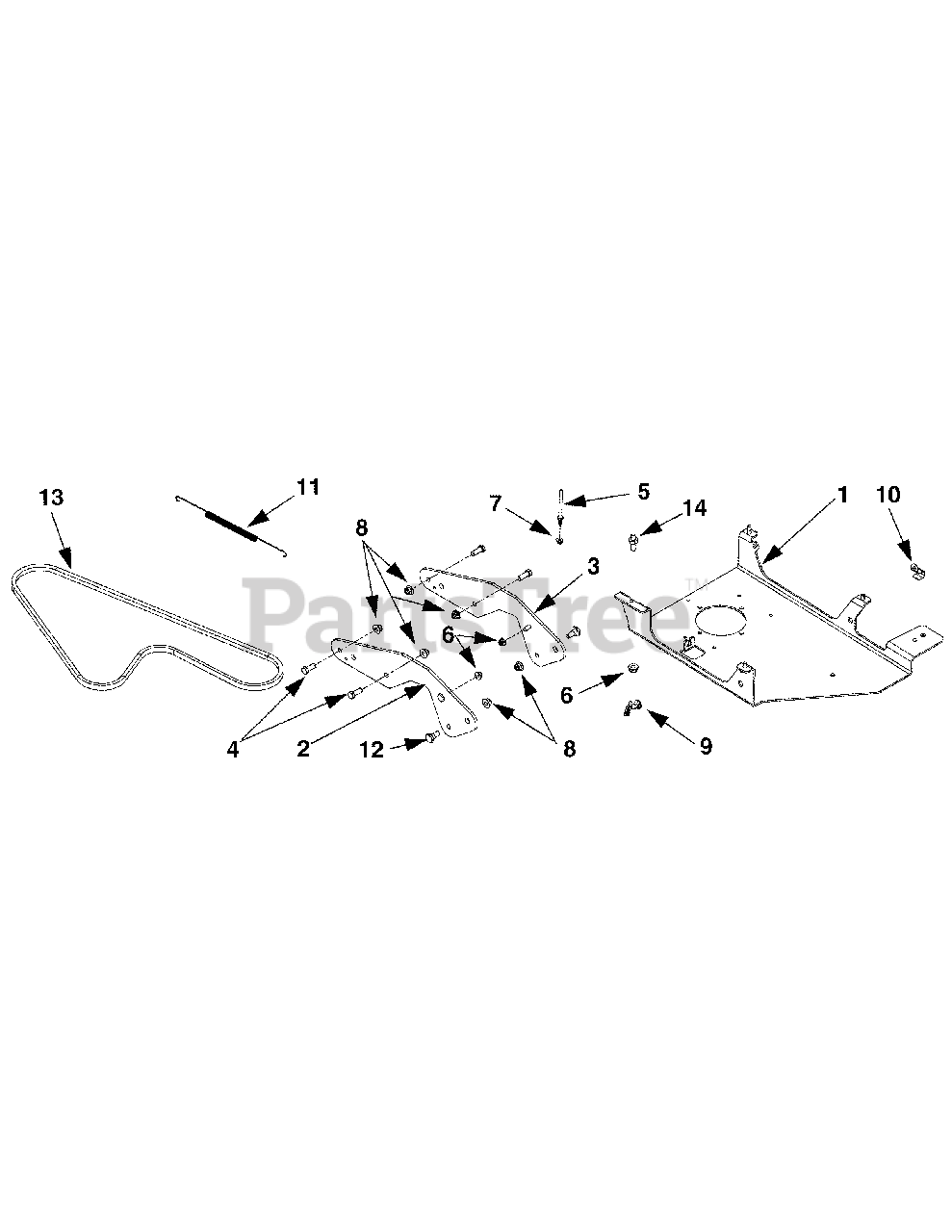

753-05097 Adapter Kit Parts Diagram

  • Title

1

MTD 683-04210-0637

BRACKET: ASSEMBLY: UNDERCARRIAGE

$

$

Not available

2

MTD 683-04214-0637

BRACKET: ASSEMBLY: SNOW LT-5 RH

$100.99

$

In Stock, only 1 left!

0

3

MTD 683-04215-0637

BRACKET: ASSEMBLY: SNOW LT-5 LH

$100.99

$

In Stock, only 1 left!

0

4

MTD 710-0514

SCREW: HEX HD: 3/8"-16 x 1.00: GR5: STD

$4.49

$

In Stock, Qty 20+

0

5

MTD 911-1000

KEEPER: BELT:.25 DIA x 3.0

$10.99

$

Usually ships in 3-6 days

0

6

MTD 712-04063

NUT: FLANGELOCK: 5/16"-18: GRF: NYLON

$3.99

$

In Stock, Qty 20+

0

7

MTD 712-04064

NUT: FLANGELOCK: 1/4"-20: GRF: NYLON

$3.99

$

In Stock, Qty 20+

0

8

MTD 712-04065

NUT: FLANGELOCK: 3/8"-16: GRF: NYLON

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-04100

NUT: WING: 5/16"-18 NYLOK

$10.99

$

Usually ships in 3-6 days

0

10

MTD 726-0354

CLAMP:16MM

$5.49

$

Usually ships in 3-6 days

0

11

MTD 732-04237

SPRING: EXTENSION: .50 DIA x 12.00 LG

$23.99

$

In Stock, Qty 5

0

12

MTD 738-0143

SCREW: SHOULDER: .498 x .340: 3/8"-16

$4.49

$

In Stock, Qty 20+

0

13

MTD 954-0498

BELT: V TYPE: A SECTION x 66.90"

$44.99

$

In Stock, Qty 7

0

14

MTD 710-04511

PIN: 5/16"-18

$34.99

$

Usually ships in 3-6 days

0
