190-823-101 - White Outdoor 42" 2-Stage Snow Thrower Attachment (2001) Auger & Housing Assembly Parts Diagram

42" 2-Stage Snow Thrower Attachment

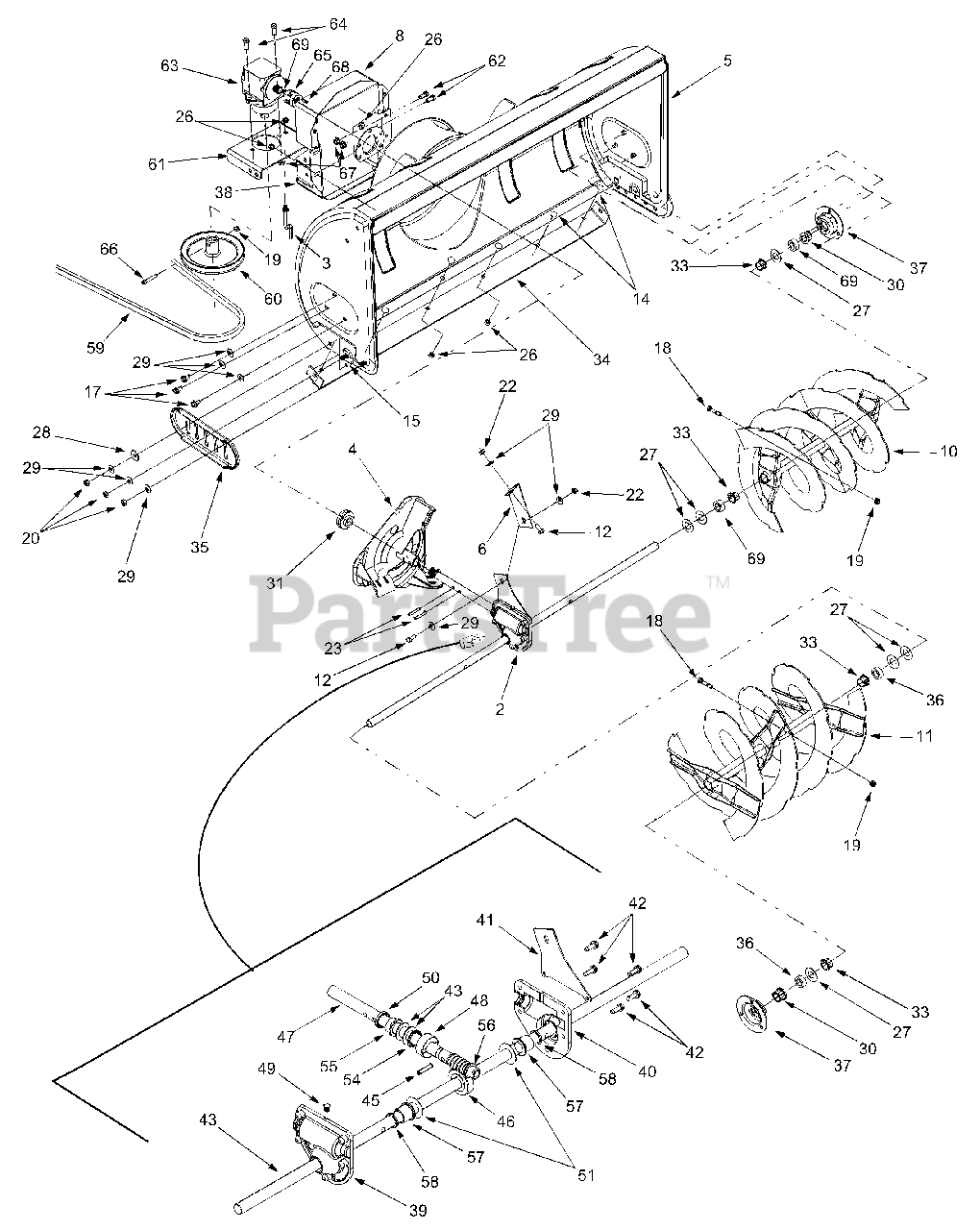

Auger & Housing Assembly Parts Diagram

  • Title

1

MTD 05931A

Bearing Housing, 1.85 ID

$10.99

$

In Stock, only 2 left!

0

2

MTD 618-0407

Auger Gear Case

$274.99

$

Usually ships in 3-6 days

0

3

MTD 747-1257

Belt Keeper Rod

$21.99

$

In Stock, only 2 left!

0

4

MTD 984-0065-0637

Impeller Assembly, 12"
(Superseded to 684-06276-0637)

$90.99

$

In Stock, only 1 left!

0

5

MTD 684-0148

Housing Assembly

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-0148-0637

HOUSING ASM-42"ATTCHMT - POWDER BLACK (0637)

$885.99

$

Usually ships in 3-6 days

0

MTD 684-0148-0716

HOUSING ASM-42"ATTCHMT - CUB YELLOW-99 (0716)

$823.99

$

Usually ships in 3-6 days

0

$823.99

$

Usually ships in 3-6 days

0

6

MTD 703-2734

Housing Brace Bracket

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-2734-0498

BRACKET-HOUSING BR - OLD CUB YELLOW (0498)

$10.99

$

Usually ships in 3-6 days

0

MTD 703-2734-0637

BRACKET-HOUSING BR - POWDER BLACK (0637)

$10.99

$

In Stock, only 1 left!

0

MTD 703-2734-0716

BRACKET-HOUSING BR - CUB YELLOW-99 (0716)

$10.99

$

In Stock, only 1 left!

0

$10.99

$

Usually ships in 3-6 days

0

7

MTD 703-2735A

Chute Crank Bracket

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-2735A-0716

BRACKET-CHUTE - CUB YELLOW-99 (0716)

$18.99

$

Usually ships in 3-6 days

0

MTD 703-2735A-0498

BRACKET-CHUTE - OLD CUB YELLOW (0498)

$19.99

$

Usually ships in 3-6 days

0

MTD 703-2735A-0637

BRACKET-CHUTE - POWDER BLACK (0637)

$19.99

$

Usually ships in 3-6 days

0

$18.99

$

Usually ships in 3-6 days

0

8

MTD 703-2736

Belt Cover

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-2736-0498

COVER-BELT - OLD CUB YELLOW (0498)

$33.99

$

Usually ships in 3-6 days

0

MTD 703-2736-0637

COVER-BELT - POWDER BLACK (0637)

$33.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

9

MTD 705-5226

Chute Reinforcer

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 705-5226-0637

Chute Reinforcement - POWDER BLACK (0637)

$10.99

$

In Stock, Qty 7

0

MTD 705-5226-0638

Chute Reinforcement - MTD/TROY-BILT RED (0638)

$10.99

$

In Stock, Qty 7

0

$9.99

$

Usually ships in 3-6 days

0

10

MTD 753-05285-0637

LH Spiral Auger, 40"

$

$

Not available

11

MTD 753-05286-0637

RH Spiral Auger, 40"

$

$

Not available

12

MTD 710-0157

Hex Cap Screw, 5/16-24 x .75

$4.49

$

In Stock, Qty 8

0

13

MTD 710-0167

Carriage Screw, 1/4-20 x .5
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

14

MTD 710-0260A

Carriage Bolt, 5/16-18 x .62

$4.49

$

In Stock, Qty 20+

0

15

MTD 710-0276

Splined Carriage Screw, 5/16-18 x 1.0

$3.99

$

In Stock, Qty 14

0

16

MTD 710-0451

Carriage Bolt, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

17

MTD 710-0604A

Self Tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

18

MTD 710-0890A

Shear Bolt, 5/16-18 x 1.5

$1.99

$

In Stock, Qty 20+

0

19

MTD 912-0429

Hex Lock Nut, 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

20

MTD 912-3010

Hex Nut, 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

21

MTD 912-3027

Hex Flange Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

22

MTD 912-3057

Hex Nut, 5/16-24

$6.99

$

In Stock, only 3 left!

0

23

MTD 915-0114

Spirol Pin, 1/4 x 1-1/2
(Superseded to 715-0114)

$9.49

$

In Stock, Qty 5

0

24

MTD 715-0129

Spirol Pin, .125 x .812

$4.99

$

In Stock, only 1 left!

0

25

MTD 731-1379D

Adapter Chute

$65.99

$

In Stock, only 1 left!

0

26

MTD 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

27

MTD 736-0188

Flat Washer, .76 x 1.49 x .06

$4.49

$

In Stock, Qty 20+

0

28

MTD 936-0231

Flat Washer, .344 x 1.125 x .12
(Superseded to 736-0231)

$

$

Not available

29

MTD 736-0242

Bell Washer, .340 x .872

$4.49

$

In Stock, Qty 20+

0

30

MTD 941-0245

Hex Flange Bearing, .75 ID

$9.99

$

In Stock, Qty 20+

0

31

MTD 941-0309

Flange Ball Bearing, .75 x 1.85

$74.99

$

In Stock, only 2 left!

0

32

MTD 941-0475

Plastic Bushing, .38

$4.49

$

In Stock, Qty 20+

0

33

MTD 741-0493A

Flange Bushing, .80 x .91
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

34

MTD 784-0396B-0637

Skid Plate Bracket, 42"
(Superseded to 784-0396C-0637)

$64.99

$

Usually ships in 3-6 days

0

35

MTD 784-5038B-0637

Slide Shoe

$27.99

$

In Stock, Qty 11

0

36

MTD 711-0469

Spacer, .75 x .125 x .5

$7.99

$

Usually ships in 3-6 days

0

37

MTD 784-5618A-0637

Hex Bearing Housing, 1.0

$13.99

$

In Stock, Qty 6

0

38

MTD 784-0402-0637

Skid Plate

$112.99

$

Usually ships in 3-6 days

0

39

MTD 918-0123A

RH Reducer Housing

Note: (Incl. Ref. 57,

$52.99

$

In Stock, Qty 10

0

40

MTD 918-0124A

LH Reducer Housing

Note: (Incl. Ref. 57,

$52.99

$

In Stock, Qty 12

0

41

MTD 703-2733

Housing Brace Plate
(Superseded to 703-2733A)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-2733-0637

PLATE-HOUSING - POWDER BLACK (0637)

$19.99

$

Usually ships in 3-6 days

0

MTD 703-2733-0498

No Longer Available PLATE-HOUS - OLD CUB YELLOW (0498)

$

$

Not available

$16.99

$

Usually ships in 3-6 days

0

42

MTD 710-0642

Self Tapping Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

43

MTD 711-1395

Spiral Axle, 41.5"

$130.99

$

Usually ships in 3-6 days

0

44

MTD 914-0161

Hi-Pro Key, 3/16 x 5/8

$4.49

$

In Stock, Qty 20+

0

45

MTD 915-0143

Spring Spirol Pin, .25 x 1.25
(Superseded to 715-0143)

$

$

Not available

46

MTD 917-0528A

Worm Gear, 20-tooth
(Superseded to 917-04861)

$43.99

$

In Stock, Qty 20+

0

47

MTD 717-3320

Worm Shaft

$135.99

$

Usually ships in 3-6 days

0

48

MTD 718-0513

Thrust Collar

$13.99

$

In Stock, only 4 left!

0

49

MTD 721-0325

Grease Plug

$4.49

$

In Stock, only 4 left!

0

50

MTD 721-0327

Grease Seal

$6.99

$

In Stock, Qty 20+

0

51

MTD 936-0351

Flat Washer, .76 x 1.5 x .030
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

52

MTD 936-0369

Flat Washer, .508 x 1.0 x .020
(Superseded to 736-0369)

$4.49

$

In Stock, Qty 8

0

53

MTD 736-0617

Thrust Washer, .75 x 1.25 x .0615

$11.99

$

In Stock, Qty 5

0

54

MTD IH-324105-R92

Thrust Bearing, .75 x 1.25 x .078

$11.99

$

In Stock, only 1 left!

0

55

MTD 741-0700

Flange Bearing, .75 x 1.0 x .59

$11.99

$

In Stock, only 1 left!

0

56

MTD 948-0108

Flange Bearing, .503 x .75

$8.99

$

In Stock, only 4 left!

0

57

MTD 741-0661A

Flange Bearing, .754 x 1.0 x .925
(Superseded to 741-0661B)

$10.99

$

In Stock, only 1 left!

0

58

MTD 921-0179

Grease Seal
(Superseded to 721-0179)

$

$

Not available

59

MTD 954-0125A

Lower V-belt

$55.99

$

In Stock, only 1 left!

0

60

MTD 756-1181A

Drive Pulley, 7"

$113.99

$

In Stock, only 1 left!

0

61

MTD 783-1014A-0637

Drive Mounting Bracket

$86.99

$

Usually ships in 3-6 days

0

62

MTD 710-0216

Hex Cap Screw, 3/8-16 x .75

$4.49

$

In Stock, Qty 16

0

63

MTD 917-1714B

Right Angle Drive

$621.99

$

Usually ships in 3-6 days

0

64

MTD 710-0514

Hex Cap Screw, 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

65

MTD 918-0691

Coupling

$170.99

$

In Stock, only 4 left!

0

66

MTD 710-3251

Socket Head Cap Screw, 5/16-18 x

$5.99

$

In Stock, only 2 left!

0

67

MTD 912-0431

Flange Lock Nut, 3/8-16

$4.99

$

In Stock, Qty 20+

0

68

MTD 914-0122

Square Key, 3/16 x .75
(Superseded to 714-0122)

$

$

Not available

69

MTD 914-0126

Hi-pro Key, 3/16 x .75
(Superseded to 714-0126)

$4.99

$

In Stock, Qty 19

0

70

MTD 05931A

Bearing Housing, 1.85 ID

$10.99

$

In Stock, only 2 left!

0
