190-823-000 - MTD Snow Thrower Attachment (2000) Controls & Upper Drive Belt Parts Diagram

Snow Thrower Attachment

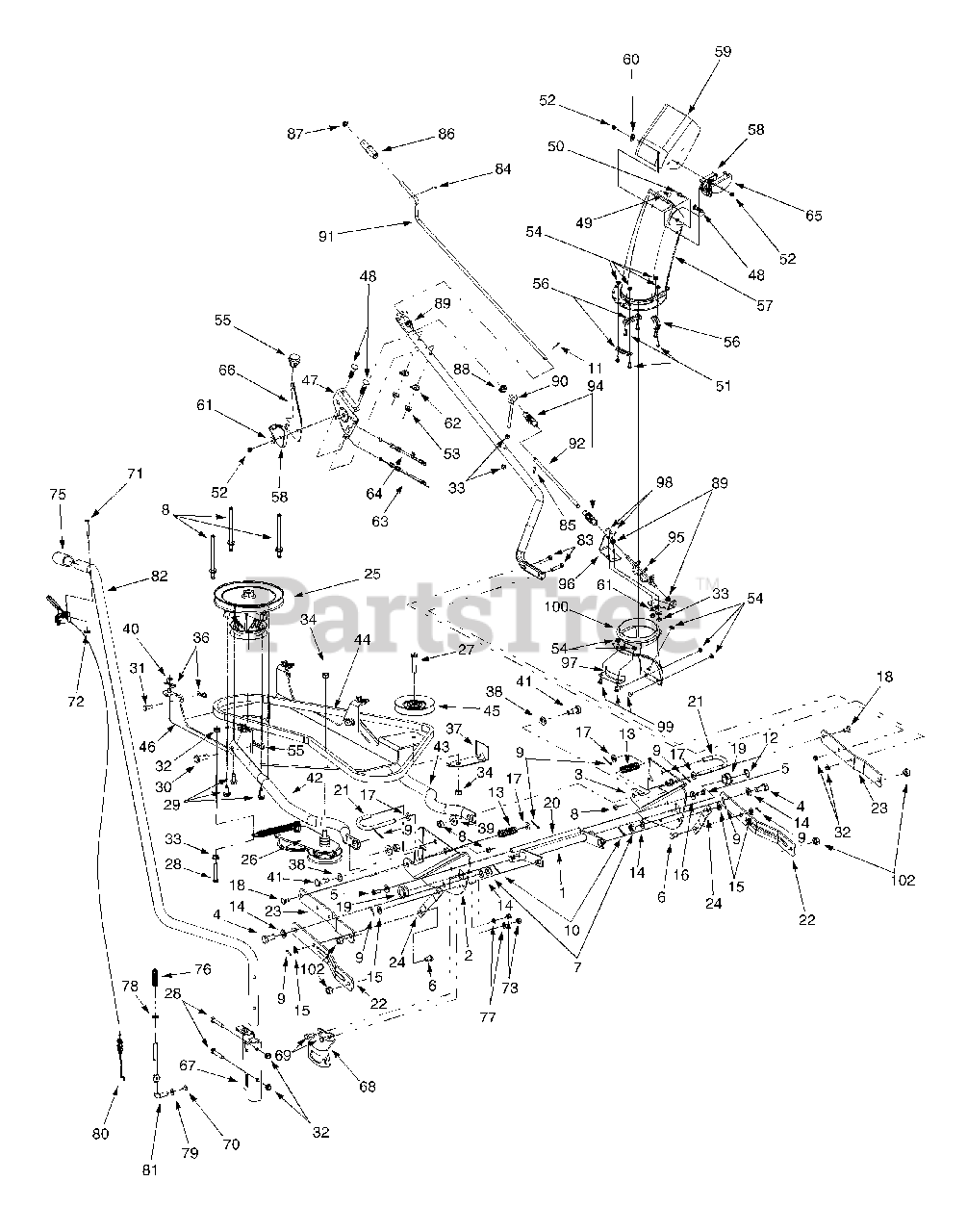

Controls & Upper Drive Belt Parts Diagram

  • Title

1

MTD 611-0132

Rod Assembly
(Superseded to 611-0132A-0637)

Variations

MTD 611-0132-0637

ROD ASM - POWDER BLACK (0637)

$352.99

$

Usually ships in 3-6 days

0

$352.99

$

Usually ships in 3-6 days

0

2

MTD 684-0150

RH Support Plate Assembly
(Superseded to 684-0150A)

$

$

Not available

3

MTD 684-0151

LH Support Plate Assembly

$

$

Not available

4

MTD 710-0964A

Hex Cap Screw, 5/8-18 x 1.31

$11.99

$

Usually ships in 3-6 days

0

5

MTD 710-0514

Hex Cap Screw, 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

6

MTD 711-0332

Clevis Pin, .5 x .78
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 18

0

7

MTD 712-0386A

Slotted Hex Nut, 5/8-18

$7.99

$

Usually ships in 3-6 days

0

8

MTD 711-1000

Belt Keeper Pin
(Superseded to 911-1000)

$10.99

$

In Stock, only 2 left!

0

9

MTD 714-0474

Cotter Pin, .125 x .75

$4.99

$

In Stock, Qty 14

0

10

MTD 714-0470

Cotter Pin, 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

11

MTD 714-0507

Cotter Pin

$4.49

$

In Stock, only 2 left!

0

12

MTD 716-0102

Snap Ring

$5.49

$

In Stock, Qty 20+

0

13

MTD 732-0987

Compression Spring, .72 x 2.25

$4.49

$

Usually ships in 3-6 days

0

14

MTD 736-0366

Flat Washer, .64 x 1.12 x .125

$4.49

$

In Stock, only 2 left!

0

15

MTD 736-0272

Flat Washer, .51 x 1.0 x .060

$4.99

$

In Stock, Qty 20+

0

16

MTD 736-0452

Bell Washer, .396 x 1.14 x .095

$4.99

$

In Stock, Qty 7

0

17

MTD 736-3069

Flat Washer, .531 x .875 x .15

$3.49

$

In Stock, only 1 left!

0

18

MTD 738-0234

Shoulder Screw, .5 x .29, 3/8-16

$10.99

$

In Stock, only 1 left!

0

19

MTD 741-0170

Flange Bearing w/ Flats
(Superseded to 941-0170)

$19.99

$

In Stock, only 4 left!

0

20

MTD 747-1192

Rod, 1/2 x 11.55

$50.99

$

Usually ships in 3-6 days

0

21

MTD 747-1191

Handle Rod

$27.99

$

Usually ships in 3-6 days

0

22

MTD 783-0877

Link, 15.3
(Superseded to 783-0877-0637)

Variations

MTD 783-0877-0637

LINK 15.3"LG - POWDER BLACK (0637)

$87.99

$

Usually ships in 3-6 days

0

$87.99

$

Usually ships in 3-6 days

0

23

MTD 783-0878

Link, 13.25
(Superseded to 783-0878B-0637)

Variations

MTD 783-0878-0637

LINK-UPPER SHAVED - POWDER BLACK (0637)

$50.99

$

Usually ships in 3-6 days

0

$50.99

$

Usually ships in 3-6 days

0

24

MTD 783-0876

Link, 5.875

Variations

MTD 783-0876-0637

LINK - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

$37.99

$

Usually ships in 3-6 days

0

25

MTD 618-0411

Spindle Assembly
(Superseded to 918-0411A)

$125.99

$

Usually ships in 3-6 days

0

26

MTD 684-0149

Double-idler Bracket Assembly
(Superseded to 753-08594)

Note: (Incl. pulleys, bracket, spring & hardware)

$178.99

$

In Stock, only 1 left!

0

27

MTD 710-0347

Hex Cap Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

28

MTD 710-3180

Hex Cap Screw, 5/16-18 x 1.75

$5.49

$

In Stock, Qty 15

0

29

MTD 710-1260A

Self Tapping Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

30

MTD 711-0310

Clevis Pin, .5 x 1.18

$10.99

$

Usually ships in 3-6 days

0

31

MTD 711-1421

Clevis Pin, 3/8 x .75

$7.49

$

In Stock, only 3 left!

0

32

MTD 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

33

MTD 712-3010

Hex Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

34

MTD 712-0431

Hex Flange Lock Nut, 3/8-24
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

?35

MTD 714-0147

Internal Cotter Pin, .125 x 1.75

$4.99

$

In Stock, Qty 7

0

36

MTD 714-0145

Click Pin, .092 x 1.64

$4.99

$

In Stock, Qty 20+

0

37

MTD 732-0990

Belt Guard

$8.49

$

In Stock, only 1 left!

0

38

MTD 736-0192

Flat Washer, .531 x .93 x .09

$4.49

$

In Stock, Qty 8

0

39

MTD 736-3072

Flat Washer, .38 x .93 x .11

$4.49

$

In Stock, Qty 20+

0

40

MTD 736-0275

Flat Washer, .344 x .688 x .065

$6.99

$

Usually ships in 3-6 days

0

41

MTD 738-0145

Shoulder Screw, 3/8-16, .5 x .835,

$6.99

$

Usually ships in 3-6 days

0

42

MTD 749-1104

RH Support Tube
(Superseded to 749-1104-0637)

Variations

MTD 749-1104-0637

TUBE-SUPPORT RH - POWDER BLACK (0637)

$52.99

$

Usually ships in 3-6 days

0

$52.99

$

Usually ships in 3-6 days

0

43

MTD 749-1103

LH Support Tube
(Superseded to 749-1103-0637)

Variations

MTD 749-1103-0637

TUBE-SUPPORT LH - POWDER BLACK (0637)

$52.99

$

Usually ships in 3-6 days

0

$52.99

$

Usually ships in 3-6 days

0

44

MTD 754-0371A

Upper V-belt
(Superseded to 954-0371A)

Note: (Tractor's w/ Electric PTO)

$103.99

$

In Stock, only 2 left!

0

MTD 754-0481

Upper V-belt
(Superseded to 954-0481)

Note: (Tractor's w/ Manual PTO)

$83.99

$

Usually ships in 3-6 days

0

45

MTD 756-0627

Idler Pulley, 3.5" Diameter
(Superseded to 756-0627D)

$30.99

$

In Stock, Qty 20+

0

46

MTD 683-0306

Pulley Mounting Bracket
(Superseded to 683-0306A)

$

$

Not available

47

MTD 603-0302

Chute Tilt Bracket Assembly
(Superseded to 603-0302A-0637)

Variations

MTD 603-0302-0637

Chute Tilt Bracket - POWDER BLACK (0637)

$69.99

$

Usually ships in 3-6 days

0

MTD 603-0302-0716

Chute Tilt Bracket - CUB YELLOW-99 (0716)

$69.99

$

Usually ships in 3-6 days

0

$69.99

$

Usually ships in 3-6 days

0

48

MTD 710-0262

Carriage Bolt, 5/16-18 x 1.5

$3.99

$

In Stock, Qty 13

0

49

MTD 710-0451

Carriage Bolt, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

50

MTD 710-0896

Hex Index Washer Screw, 1/4-14 x

$4.49

$

In Stock, Qty 20+

0

51

MTD 710-3015

Hex Cap Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

52

MTD 712-0429

Nylon Hex Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

53

MTD 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

54

MTD 712-3027

Hex Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

55

MTD 720-0232

Knob
(Superseded to 920-0232)

$10.99

$

In Stock, only 1 left!

0

56

MTD 731-0851A

Chute Flange Keeper

$4.49

$

In Stock, Qty 20+

0

57

MTD 731-1300A

Lower Chute
(Superseded to 731-1300E)

$56.99

$

In Stock, Qty 8

0

58

MTD 731-1313B

Chute Tilt Cable Guide
(Superseded to 731-1313C)

$11.99

$

In Stock, Qty 20+

0

59

MTD 731-1320

Upper Chute
(Superseded to 731-04427B)

$16.99

$

In Stock, only 1 left!

0

60

MTD 736-0231

Flat Washer, .344 x 1.125 x .125

$4.99

$

In Stock, Qty 11

0

61

MTD 736-0242

Bell Washer, .34 x .872

$4.49

$

In Stock, Qty 20+

0

62

MTD 736-0451

Saddle Washer, .32 x .93

$4.49

$

Usually ships in 3-6 days

0

63

MTD 746-1108

Chute Cable, 62"
(Superseded to 946-1108)

$62.99

$

Usually ships in 3-6 days

0

64

MTD 746-1109

Chute Cable w/ Clip, 62"
(Superseded to 746P1109)

$68.99

$

In Stock, Qty 5

0

65

MTD 784-5594

Cable Bracket

Variations

MTD 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$11.99

$

In Stock, only 1 left!

0

MTD 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$11.99

$

In Stock, only 1 left!

0

MTD 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$11.99

$

In Stock, only 1 left!

0

$10.99

$

Usually ships in 3-6 days

0

66

MTD 784-5604

Chute Tilt Handle
(Superseded to 784-5604A-0637)

Variations

MTD 784-5604-0637

Chute Handle Bracket - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

67

MTD 683-0298

Lift Bracket Assembly

Variations

MTD 683-0298-0637

BRACKET ASM-LIFT - POWDER BLACK (0637)

$

$

Not available

MTD 683-0298-0716

BRACKET ASSY LIFT - CUB YELLOW-99 (0716)

$

$

Not available

$

$

68

MTD 703-2728A

Snow Thrower Lift Bracket

Variations

MTD 703-2728A-0637

Lift Latch Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

69

MTD 710-0157

Hex Cap Screw, 5/16-24 x .75

$4.49

$

In Stock, Qty 8

0

70

MTD 710-1268

Hex Index Washer Screw #10-16 x

$4.49

$

In Stock, only 2 left!

0

71

MTD 710-3143

Pan Phillips Screw, #10-24 x .75

$11.99

$

Usually ships in 3-6 days

0

72

MTD 712-0127

Flat Weld Nut, #10-24

$3.49

$

In Stock, Qty 13

0

73

MTD 712-3057

Hex Nut, 5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

?74

MTD 715-0114

Heavy Duty Spirol Pin, 1/4 x 1.5

$9.49

$

In Stock, Qty 5

0

75

MTD 720-0274

Handle Grip

$11.99

$

In Stock, only 1 left!

0

76

MTD 732-0306

Compression Spring, .406 x .531 x
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

77

MTD 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

78

MTD 736-0140

Flat Washer, .385 x .62 x .063

$7.49

$

In Stock, Qty 7

0

79

MTD 736-0400

Flat Washer, .194 x .62 x .063

$5.49

$

In Stock, Qty 14

0

80

MTD 746-1103

Lift Cable, 42" w/ Trigger Control
(Superseded to 946-1103A)

$73.99

$

In Stock, only 3 left!

0

81

MTD 747-1203

Lift Index Rod

$55.99

$

In Stock, only 4 left!

0

82

MTD 750-1221

Lift Handle Tube

Variations

MTD 750-1221-0637

TUBE-LIFT HANDLE - POWDER BLACK (0637)

$279.99

$

Usually ships in 3-6 days

0

MTD 750-1221-0716

TUBE-LIFT HANDLE - CUB YELLOW-99 (0716)

$279.99

$

Usually ships in 3-6 days

0

$279.99

$

Usually ships in 3-6 days

0

83

MTD 710-0805

Hex Cap Screw, 5/16-18 x 1.5
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

84

MTD 715-0138

Rolled Pin, 1/8 x .63
(Superseded to 915-0138)

$4.99

$

In Stock, only 1 left!

0

85

MTD 715-0129

Spirol Pin, .125 x .82

$4.99

$

In Stock, only 1 left!

0

86

MTD 720-0201A

Crank Knob

$10.99

$

In Stock, only 4 left!

0

87

MTD 726-0100

Push Cap, 3/8 ID

$4.49

$

In Stock, only 3 left!

0

88

MTD 735-0234

Rubber Grommet , .44 x .94 x .5

$5.49

$

In Stock, only 2 left!

0

89

MTD 741-0475

Plastic Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

90

MTD 747-0697

Eye Bolt

$8.49

$

In Stock, only 1 left!

0

91

MTD 747-1201

Chute Crank Rod, .375 x 33
(Superseded to 747-1201A)

$80.99

$

Usually ships in 3-6 days

0

92

MTD 747-0932

Rod, .375 x 11.375

$

$

Not available

?93

MTD 750-1231

Support Chute Tube

$

$

Not available

94

MTD 784-5149

Joint Block Assembly
(Superseded to 684-04350)

$29.99

$

In Stock, only 4 left!

0

95

MTD 684-0061

Chute Crank Assembly
(Superseded to 684-0061A)

$41.99

$

Usually ships in 3-6 days

0

96

MTD 703-2735A

Chute Crank Bracket

Variations

MTD 703-2735A-0716

BRACKET-CHUTE - CUB YELLOW-99 (0716)

$18.99

$

Usually ships in 3-6 days

0

MTD 703-2735A-0498

BRACKET-CHUTE - OLD CUB YELLOW (0498)

$19.99

$

Usually ships in 3-6 days

0

MTD 703-2735A-0637

BRACKET-CHUTE - POWDER BLACK (0637)

$19.99

$

Usually ships in 3-6 days

0

$18.99

$

Usually ships in 3-6 days

0

97

MTD 705-5226

Chute Reinforcer

Variations

MTD 705-5226-0637

Chute Reinforcement - POWDER BLACK (0637)

$10.99

$

In Stock, Qty 7

0

MTD 705-5226-0638

Chute Reinforcement - MTD/TROY-BILT RED (0638)

$10.99

$

In Stock, Qty 7

0

$9.99

$

Usually ships in 3-6 days

0

98

MTD 710-0276

Splined Carriage Screw, 5/16-18 x 1.0

$3.99

$

In Stock, Qty 14

0

99

MTD 710-0167

Carriage Screw, 1/4-20 x .5
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

100

MTD 731-1379

Adapter Chute
(Superseded to 731-1379D)

$65.99

$

In Stock, only 1 left!

0

?101

MTD 784-5647

Chute Crank Bracket
(Superseded to 784-5647-0637)

Variations

MTD 784-5647-0637

Chute Crank Bracket, Black - POWDER BLACK (0637)

$14.99

$

In Stock, Qty 7

0

$14.99

$

In Stock, Qty 7

0

102

MTD 712-3022

Hex Lock Nut, 1/2-13

$3.99

$

In Stock, Qty 8

0
