190-798-000 - MTD Mower Deck Assembly Only (1987) 36" Rear Discharge Mowing Deck Parts Diagram

Mower Deck Assembly Only

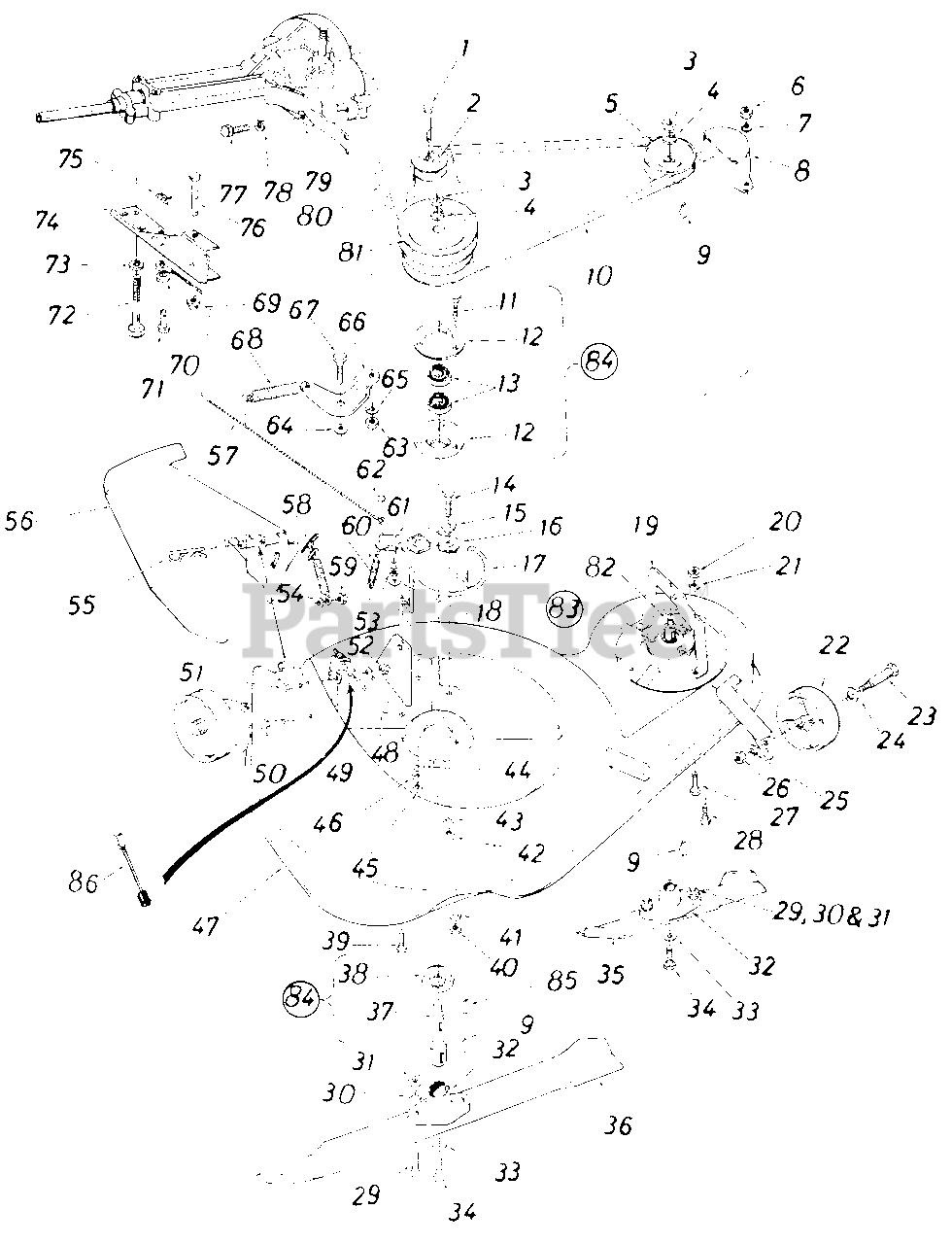

36" Rear Discharge Mowing Deck Parts Diagram

  • Title

1

MTD 710-0459

Hex Bolt 3/8-24 x 1.50" Lg.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

2

MTD 756-0116

"V"-Idler Pulley 3.06" O.D.
(Superseded to 756-04209)

$22.99

$

In Stock, Qty 20+

0

3

MTD 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 13

0

4

MTD 736-0317

Bell-Wash. .630" I.D. x 1.25 x .090

$7.99

$

In Stock, Qty 20+

0

5

MTD 756-0407

Pulley 3.56" O.D. x 5/8

$

$

Not available

6

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

7

MTD 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

8

MTD 11987

Belt Guard Cover

$

$

Not available

9

MTD 714-0365

#6 Hi-Pro Key 5/32 x 5/8" Dia.

$5.49

$

Usually ships in 3-6 days

0

10

MTD 754-0250

V-Belt 1/2 x 53" Lg. (4L)
(Superseded to 954-0250)

$

$

Not available

11

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

12

MTD 08253

Brg. Housing 1.85" I.D.
(Superseded to 08253B)

$19.99

$

In Stock, only 1 left!

0

13

MTD 741-0919

Ball Bearing .787" I.D. x 1.85" O.D.
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

14

MTD 710-0376

Hex Bolt 5/16-18 x 1.0" Lg. (Grade 5)

$3.99

$

In Stock, Qty 5

0

15

MTD 748-0234

Shld. Spacer .500" Dia. x .27" Lg.

$4.49

$

Usually ships in 3-6 days

0

16

MTD 16053

Blade Brake Brkt. Ass'y.

$

$

Not available

17

MTD 747-0465

Belt Guard

$

$

Not available

18

MTD 736-0159

Fl-Wash. .344" I.D. x .875" O.D.

$4.49

$

In Stock, Qty 20+

0

19

MTD 15736

Deck Bracket

$

$

Currently unavailable

20

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

21

MTD 736-0119

L-Wash. 5/16 I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

22

MTD 734-0973

Deck Wheel 5.0" x 1.38"

$12.99

$

In Stock, Qty 20+

0

23

MTD 738-0414

Shoulder Bolt .498" Dia. x 1 .635

$

$

Not available

24

MTD 736-0105

Belleville .400" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

25

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

26

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

27

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

28

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

29

MTD 710-0117

Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5)
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 5

0

30

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

31

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

32

MTD 748-0189

Blade Adapter

$

$

Not available

33

MTD 736-0217

L-Wash. 3/8" I.D. H.D.

$4.49

$

In Stock, Qty 9

0

34

MTD 710-0459

Hex Bolt 3/8-24 x 1.50" Lg. (Grade 5)
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

35

MTD 742-0206

13" Blade

$

$

Not available

36

MTD 742-0267

24" Blade

$

$

Not available

37

MTD 738-0568

Blade Spindle (4.90" Lg.)

$

$

Not available

38

MTD 13703

Bearing Shield

$

$

Not available

39

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

40

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

41

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

42

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

43

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

44

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

45

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

46

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

47

MTD 15741

36" Deck Ass'y.

$

$

Currently unavailable

48

MTD 725-0765

Ground Wire

$

$

Not available

49

MTD 725-1001

Safety Switch

$

$

Not available

50

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .50" Lg.*

$4.49

$

Usually ships in 3-6 days

0

51

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.*
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

52

MTD 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

53

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

54

MTD 736-0142

Fl-Wash. .281" I.D. x .50" O.D.

$4.99

$

In Stock, only 4 left!

0

55

MTD 714-0174

Internal Cotter Pin

$

$

Not available

56

MTD 15990

Chute Deflector

$

$

Not available

57

MTD 727-0295

Brake Cable Ass'y. (1 3.75" Lg.)

$

$

Not available

58

MTD 723-0296

Spring Latch Ass'y.

$

$

Not available

59

MTD 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

60

MTD 732-0157

Extension Spring .38" O.D. x 3.25" Lg.

$14.99

$

Usually ships in 3-6 days

0

61

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

62

MTD 726-0106

Cap Speed Nut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

63

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, only 2 left!

0

64

MTD 736-0159

Fl-Wash. .344" I.D. x .875" O.D.

$4.49

$

In Stock, Qty 20+

0

65

MTD 736-0169

L-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

66

MTD 16420

Deck Idler Brkt. Ass'y.

$

$

Currently unavailable

67

MTD 738-0297

Shoulder Bolt .498" Dia. x .710
(Superseded to 938-0297)

$

$

Not available

68

MTD 732-0199

Extension Spring

$

$

Not available

69

MTD 726-0106

Cap Speed Nut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

70

MTD 736-0142

Fl-Wash. .281" I.D. x .50" O.D.

$4.99

$

In Stock, only 4 left!

0

71

MTD 711-0701

Clevis Pin 1/4" Dia. x .53" Lg.
(Superseded to 911-0701)

$6.99

$

In Stock, only 1 left!

0

72

MTD 710-0176

Hex Bolt 5/16-18 x 2.75" Lg.*

$4.49

$

In Stock, only 2 left!

0

73

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

74

MTD 15625

Lower Outside Belt Guard

$

$

Not available

75

MTD 714-0104

Intern. Cot-Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

76

MTD 710-0586

Weld Pin .25" Dia. x 2.5" Lg.

$

$

Not available

77

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.*
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

78

MTD 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

79

MTD 15997

Lower Inside Belt Guard

$

$

Not available

80

MTD 754-0214

V-Belt 1/2 x 50" Lg.
(Superseded to 954-0214)

$

$

Not available

81

MTD 756-0409

Pulley 5.81" O.D. x 5/8

$

$

Currently unavailable

82

MTD 738-0567

Blade Spindle (3.70" Lg.)

$

$

Not available

83

MTD 717-0809

Spindle Ass'y.

Note: (For 13" Blade)

$

$

Not available

84

MTD 717-0810

Spindle Ass'y.

Note: (For 24" Blade)

$

$

Not available

85

MTD 714-0388

#61 Hi-Pro Key 3/16" x 5/8" Dia.
(Superseded to 914-0388)

$7.99

$

In Stock, only 4 left!

0

86

MTD 725-1037

Wire Lead

$

$

Not available

MTD 15740

36" Deck Ass'y. Comp.

Note: (Service Only)

$

$

Currently unavailable
