190-795-000 - MTD Mower Deck Assembly Only (1989) 26" Side Discharge Mowing Deck Parts Diagram

Mower Deck Assembly Only

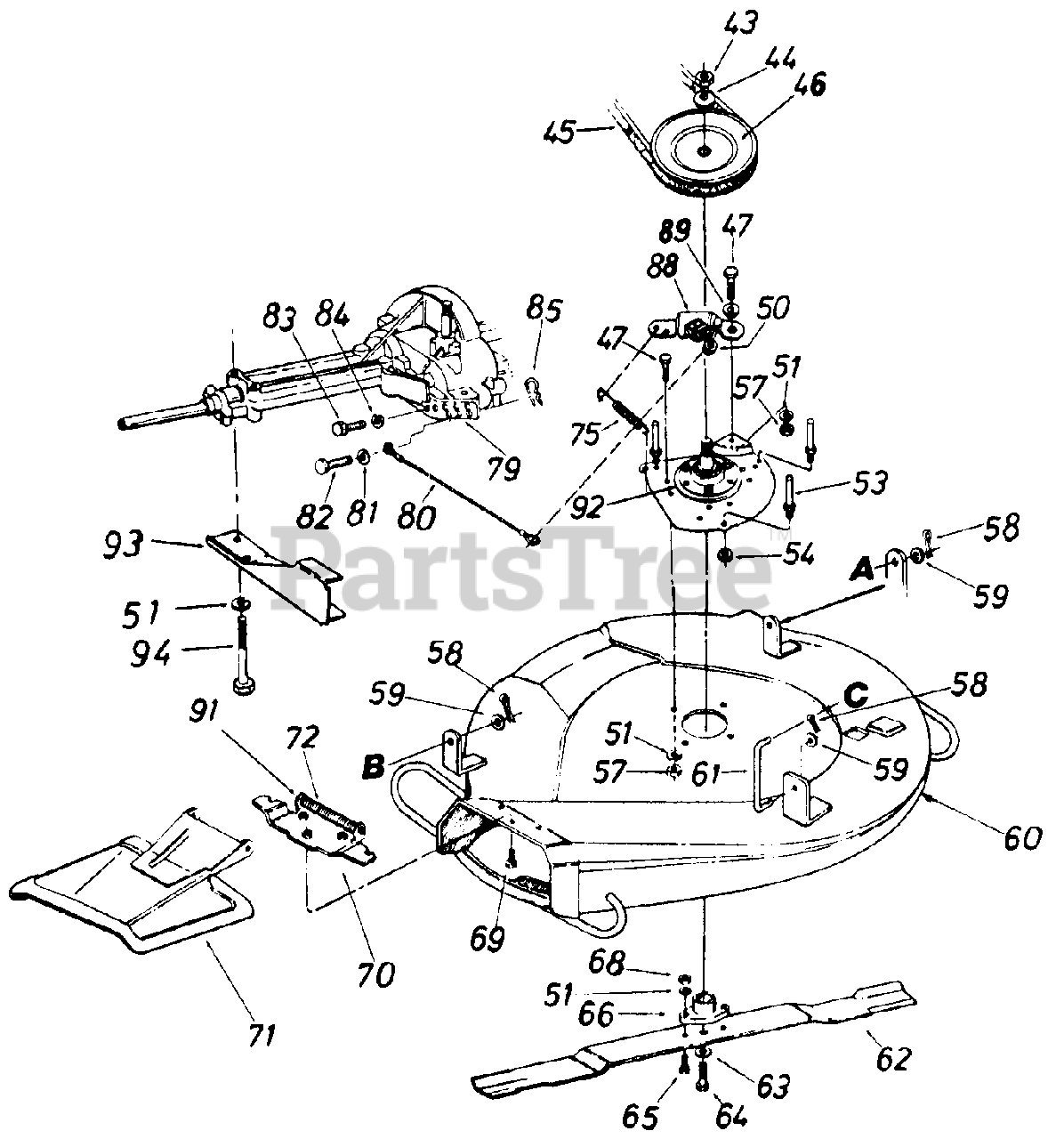

26" Side Discharge Mowing Deck Parts Diagram

  • Title

43

MTD 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 12

0

44

MTD 736-0317

Bell-Wash. .63" I.D. x 1.25" O.D.

$7.99

$

In Stock, Qty 20+

0

45

MTD 754-0264

V-Belt 1/2 x 52" Lg.
(Superseded to 954-0264)

$51.99

$

Usually ships in 3-6 days

0

46

MTD 756-0485

1/2" V-Pulley .625" I.D. x 6.0" O.D.

$

$

Not available

47

MTD 710-0118

Hex Bolt 5/16-18 x .75
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

50

MTD 726-0106

Cap Speed Nut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

51

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

53

MTD 711-0780

Stud 3/8-16 x 3.00" Lg.

$

$

Not available

54

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

57

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

58

MTD 714-0145

Intern. Cotter Pin 1/2" Dia.

$4.99

$

In Stock, Qty 20+

0

59

MTD 736-0300

Fl-Wash. .385" I.D. x .87"

$4.49

$

In Stock, Qty 20+

0

60

MTD 16498

26" Deck Ass'y.

$

$

Currently unavailable

61

MTD 747-0428

Deck Link 3.9" Lg.

$

$

Currently unavailable

62

MTD 742-0255

26" High Lift Blade

$

$

Not available

63

MTD 736-0356

Bell-Wash. .39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

64

MTD 710-0152

Hex Bolt 3/8-24 x 1.0"*
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

65

MTD 710-0888

Hex Bolt Spec. 5/16-24 x 1.0" Lg.

$4.49

$

In Stock, Qty 20+

0

66

MTD 748-0300

Blade Adapter

$13.99

$

In Stock, only 4 left!

0

68

MTD 712-0123

Hex Nut 5/16-24 Thd.*
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

69

MTD 710-0599

Hex Wash. S-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

70

MTD 11396

Adapter Plate-Chute

$

$

Not available

71

MTD 11634

Chute Cover Ass'y. Comp.

$

$

Not available

72

MTD 732-0261

Torsion Spring

$

$

Not available

75

MTD 732-0157

Extension Spring 3.25" Lg.

$14.99

$

Usually ships in 3-6 days

0

79

MTD 15626

Lower Inside Belt Guard
(Superseded to 15626B-0637)

$

$

Not available

80

MTD 727-0290

Brake Cable 11.75" Lg.
(Superseded to 727-0290A)

$12.99

$

Usually ships in 3-6 days

0

81

MTD 736-0142

Fl-Wash. .281" I.D. x .50"

$4.99

$

In Stock, Qty 20+

0

82

MTD 711-0701

Clevis Pin 1/4" Dia. x .53" O.D.
(Superseded to 911-0701)

$6.99

$

In Stock, only 1 left!

0

83

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

84

MTD 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

85

MTD 714-0104

Intern. Cot.-Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

88

MTD 16053

Blade Brake Brkt. Ass'y.

$

$

Not available

89

MTD 748-0234

Shld. Spacer .27" Lg.

$4.49

$

In Stock, Qty 20+

0

91

MTD 711-0571

Hinge Pin

$

$

Not available

92

MTD 717-0915

Blade Spindle Ass'y. Comp.

$

$

Not available

93

MTD 15625

Lower Outside Belt Guard

$

$

Not available

94

MTD 710-0378

Hex Bolt 5/16-18 x 2.5" Lg.

$4.99

$

In Stock, only 4 left!

0
