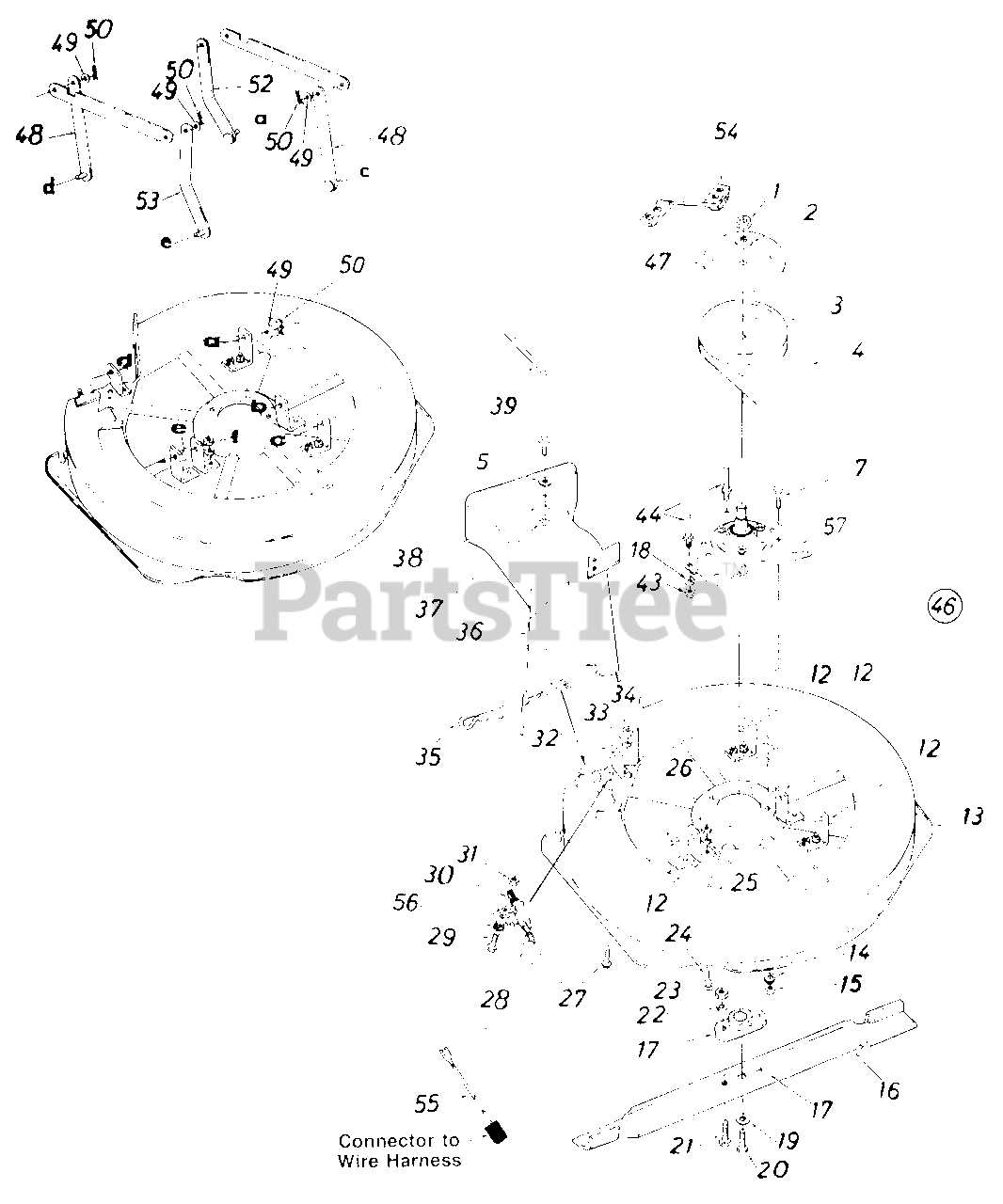

190-794-000 - MTD Mower Deck Assembly Only (1988) 30" Rear Discharge Mowing Deck Parts Diagram

Mower Deck Assembly Only

30" Rear Discharge Mowing Deck Parts Diagram

  • Title

1

MTD 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 13

0

2

MTD 736-0317

Bell-Wash. .630" I.D. x 1.25"

$7.99

$

In Stock, Qty 20+

0

3

MTD 756-0444

5/8" V-Pulley .75" I.D. x 7"
(Superseded to 756-0444-0637)

Variations

MTD 756-0444-0637

PULLEY - POWDER BLACK (0637)

$

$

Not available

$

$

4

MTD 754-0328

"V"-Belt
(Superseded to 954-0328)

$74.99

$

Usually ships in 3-6 days

0

5

MTD 736-0231

Fl-Wash. .344" I.D. x 1.12" 0. D.

$4.99

$

In Stock, Qty 20+

0

7

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.*
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

12

MTD 16707

Hanger Bracket

$

$

Not available

13

MTD 15906

30" R.D. Deck Ass'y.

Variations

MTD 15906-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 15906-0637

No Longer Available DECK ASM- - POWDER BLACK (0637)

$

$

Not available

MTD 15906-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

14

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

15

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

16

MTD 742-0280

30" High Lift Blade-R.H.

$

$

Not available

17

MTD 748-0300

Blade Adapter

$13.99

$

In Stock, only 4 left!

0

18

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

19

MTD 736-0356

Bell-Wash. .39" I.D. x 1.38" O.D.
(Superseded to 936-0356)

$

$

Not available

20

MTD 710-0152

Hex Bolt 3/8-24 x 1.00" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, only 3 left!

0

21

MTD 710-0888

Hex Bolt 5/16-24 x 1.00" Lg.

Note: (Special)

$4.49

$

In Stock, Qty 5

0

22

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

23

MTD 712-0123

Hex Nut 5/16-24 Thd.*
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

24

MTD 710-0259

Hex Sems Bolt 5/16-18 x .62" Lg.*

$

$

Not available

25

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

26

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

27

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.*

$4.99

$

In Stock, only 2 left!

0

28

MTD 725-0765

Electrical Wire

$

$

Not available

29

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

30

MTD 725-0269

Safety Switch
(Superseded to 925-0269)

$

$

Not available

31

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

32

MTD 16708

Angle Hanger Brkt.

$

$

Not available

33

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

34

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

35

MTD 714-0155

Internal Cotter Pin
(Superseded to 714-0174)

$

$

Not available

36

MTD 731-0715

R.D. Chute Deflector
(Superseded to 96094A)

$

$

Not available

37

MTD 712-0158

Hex L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

38

MTD 736-0271

L-Wash. .32" I.D. x .62" O.D.
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

39

MTD 747-0474

90ø Rod 5/16-18 Thd.

$

$

Not available

43

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

44

MTD 711-0780

Stud 3/8-16 x 3.0" Lg.

$

$

Not available

46

MTD 16710

30" R.D. Deck Ass'y. Comp.

Note: (Service)

$

$

Currently unavailable

47

MTD 16101

Brake Disc

$

$

Not available

48

MTD 14804

Link Deck Hanger Ass'y.

$

$

Not available

49

MTD 736-0160

Fl-Wash. .53" I.D. x .93 O.D.

$4.49

$

In Stock, only 2 left!

0

50

MTD 714-0101

Inter. Cotter Pin .50" Dia.

$4.99

$

In Stock, only 2 left!

0

52

MTD 15925

Link Deck Hanger Ass'y.-L.H.

Note: (Dog Leg)

Variations

MTD 15925-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

53

MTD 14800

Link Deck Hanger Ass'y.
(Superseded to 14800A-0637)

Note: (Dog Leg)

$

$

Not available

54

MTD 761-0192

Blade Brake Ass y.

$

$

Not available

55

MTD 725-1000

Wire Lead

$

$

Currently unavailable

56

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

57

MTD 717-0916

Blade Spindle Ass'y. Comp.

$

$

Not available
