190-766-000 - MTD Tiller Attachment (1989) Tiller Attachment Parts Diagram

Tiller Attachment

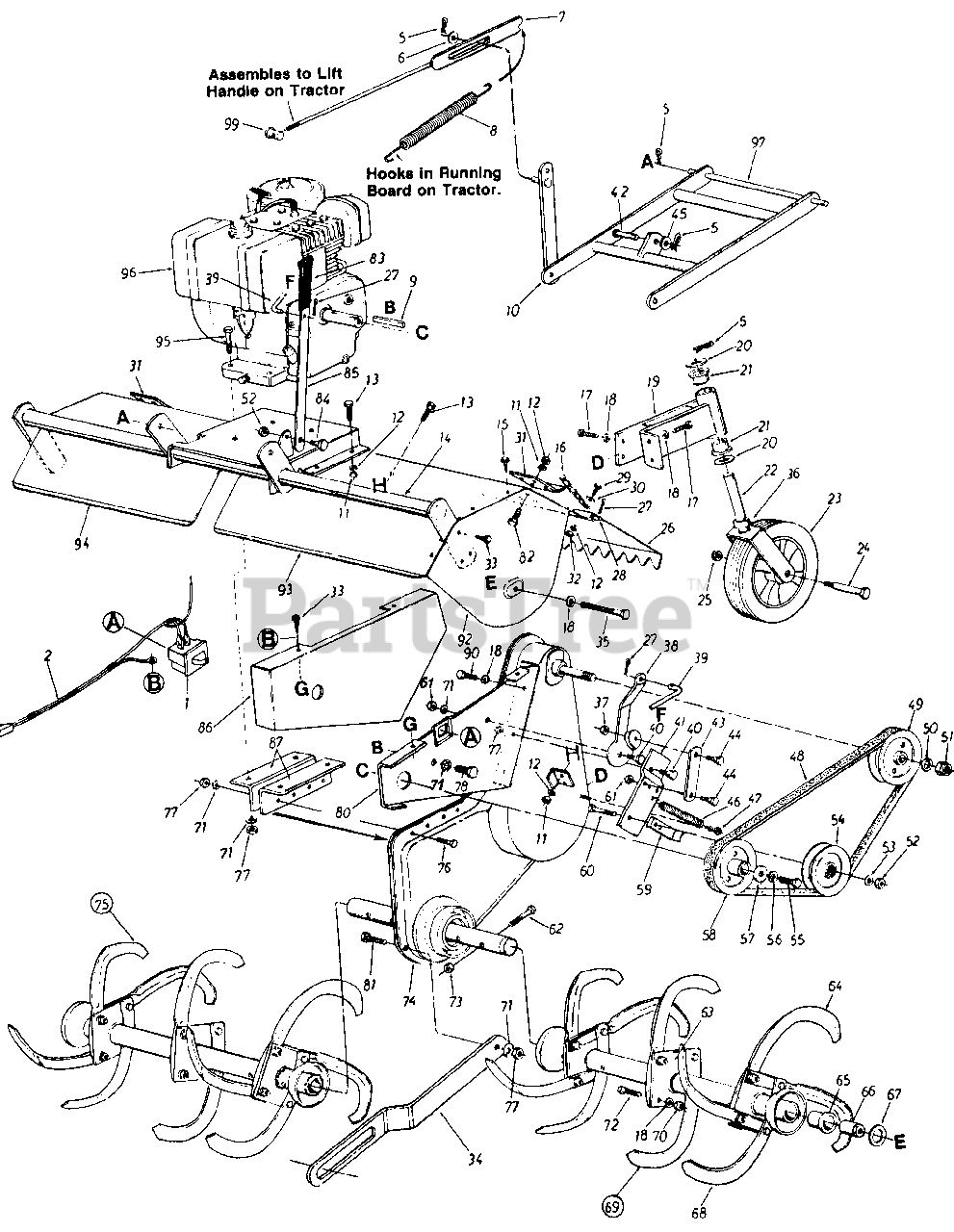

Tiller Attachment Parts Diagram

  • Title

1

MTD 725-0713

Safety Switch

$

$

Not available

2

MTD 725-1290

Wire Harness

$

$

Not available

5

MTD 714-0147

Internal Cotter Pin

$4.99

$

In Stock, Qty 6

0

6

MTD 736-0179

Fl-Wash. 1/2" I.D. x .93" O.D.

$4.99

$

In Stock, only 2 left!

0

7

MTD 04997

Link Rod Assemblv

Variations

MTD 04997-0637

No Longer Available ROD ASM-L - POWDER BLACK (0637)

$

$

Not available

$

$

8

MTD 732-0390

Extension Spring i.25" O.D. x 12.75" Lg.

$

$

Not available

9

MTD 714-0114

Sq. Key 1/4" x 1/4" x 2.00" Lg.
(Superseded to 914-0114)

$4.49

$

Usually ships in 3-6 days

0

10

MTD 04993

Hitch Bar Assembly

Variations

MTD 04993-0637

No Longer Available Bar - POWDER BLACK (0637)

$

$

Not available

$

$

11

MTD 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

12

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

13

MTD 710-0195

Hex Bolt 1/4-28 x .62" Lg.
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

14

MTD 04966

Support Frame Assembly
(Superseded to 04966A)

Variations

MTD 04966-0498

FRAME ASSEMBLY-SUPPORT - OLD CUB YELLOW (0498)

$

$

Not available

MTD 04966-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

15

MTD 710-0429

Hex Hd. 'IB"-Tap Scr. #10 x 62" Lg
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

16

MTD 727-0225

#2 Dog Chain x 20" Lg.

$

$

Not available

17

MTD 710-0623

Hex Wash. Hd. Self-Tap Scr. 318-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

18

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

19

MTD 04978

Swivel Wheel Support
(Superseded to 04978-0637)

Variations

MTD 04978-0498

SUPPORT-SWIVEL WHE - OLD CUB YELLOW (0498)

$

$

Not available

MTD 04978-0637

SUPPORT-SWIVEL WHE - POWDER BLACK (0637)

$

$

Not available

$

$

20

MTD 736-0188

Fl-Wash. 3/4" I.D. x 1.50" O.D.

$4.49

$

In Stock, Qty 20+

0

21

MTD 741-0382

Flange Bearing 3/4" I.D. x 1.001' O.D.

$

$

Not available

22

MTD 04981

Swivel Wheel Caster

Variations

MTD 04981-0637

Swivel Wheel Caster - POWDER BLACK (0637)

$

$

Not available

$

$

23

MTD 734-0979

Wheel Assembly 10.0 x 2.75

$

$

Not available

24

MTD 738-0476

Shoulder Bolt .623" I.D. x 3 . 62 " Lg .

$

$

Not available

25

MTD 712-0290

Hex Cent. L-Nut 7/16-14 Thd.

$4.99

$

In Stock, Qty 11

0

26

MTD 04985

L.H. Shield Hinge Flap

Variations

MTD 04985-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 04985-0637

No Longer Available FLAP-HINGE - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 04986

R.H. Shield Hinge Flap

Note: (Not Shown)

Variations

MTD 04986-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 04986-0637

No Longer Available FLAP-HINGE - POWDER BLACK (0637)

$

$

Not available

$

$

27

MTD 714-0115

Cotter Pin 118" Dia. x 1.00" Lg.

$3.99

$

In Stock, only 2 left!

0

28

MTD 747-0340

L.H. Flap Rod

$

$

Currently unavailable

MTD 747-0339

R.H. Flap Rod

Note: (Not Shown)

$

$

Currently unavailable

29

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

30

MTD 736-0173

Fl-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 20+

0

31

MTD 14891

Brace-Tine Shield

Variations

MTD 14891-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 14891-0637

No Longer Available BRACE TINE - POWDER BLACK (0637)

$

$

Not available

$

$

32

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

33

MTD 710-0776

Hex Wash. Hd. Self-Tap Scr. 1/4" x .62" Lg
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

34

MTD 14890

Stabilizer Link

Variations

MTD 14890-0637

Stabilizer Link - POWDER BLACK (0637)

$

$

Not available

$

$

35

MTD 710-0342

Hex Bolt 3/8-16 x 1.25" Lg.
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

36

MTD 711-0469

Spacer .752" I.D. x 1.25"O.D.

$7.99

$

Usually ships in 3-6 days

0

37

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

38

MTD 04987

Clutch Lever

Variations

MTD 04987-0637

No Longer Available LEVER-CLUT - POWDER BLACK (0637)

$

$

Not available

$

$

39

MTD 747-0379

Clutch Rod

$

$

Not available

40

MTD 738-0140

Shoulder Bolt 7116" Dia. x 1.75" Lg.

$5.99

$

In Stock, Qty 15

0

41

MTD 04992

Idler Bracket

Variations

MTD 04992-0637

No Longer Available BRACKET-ID - POWDER BLACK (0637)

$

$

Not available

$

$

42

MTD 711-0310

Clevis Pin

$10.99

$

Usually ships in 3-6 days

0

43

MTD 747-0342

Clutch Link 3.62" Lg.

Variations

MTD 747-0342-0637

No Longer Available CLUTCH LIN - POWDER BLACK (0637)

$

$

Not available

$

$

44

MTD 738-0155

Shoulder Bolt .435" Dia. x .160" Lg.
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

45

MTD 736-0273

Fl-Wash. .50" I.D. x 1.0" O.D. x .06
(Superseded to 936-0176)

$4.99

$

In Stock, only 4 left!

0

46

MTD 732-0384

Extension Spring .62" O.D. x 6.12" Lg.
(Superseded to 932-0384)

$14.99

$

In Stock, Qty 11

0

47

MTD 712-0214

Hex Crown Nut 3/8-24 Thd.

$6.49

$

In Stock, only 2 left!

0

48

MTD 754-0253

"V"-Belt (Kevlar)

$

$

Not available

49

MTD 756-0351

1/2" "V"-Pulley 4.75" O.D. x .625" Bore

$

$

Not available

50

MTD 736-0158

L-Wash. 5/8" I.D.

$4.49

$

In Stock, Qty 11

0

51

MTD 712-0221

Hex Ins. L-Nut 5/8-18 Thd.

$

$

Not available

52

MTD 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

53

MTD 736-0140

Fl-Wash. 3/8" I.D.

$7.49

$

In Stock, Qty 6

0

54

MTD 756-0293

Idler Pulley 4.0" O.D.
(Superseded to 756-0487)

$48.99

$

In Stock, only 1 left!

0

55

MTD 710-0314

Hex Bolt

$4.49

$

In Stock, Qty 13

0

56

MTD 736-0171

L-Wash. 7/16" I.D.

$4.49

$

In Stock, Qty 5

0

57

MTD 736-0319

Fl-Wash. 7/16" I.D. x 1.38"
(Superseded to 936-0319)

$11.99

$

Usually ships in 3-6 days

0

58

MTD 756-0350

1/2" "V"-Pulley .475" O.D. x 1.00" Bore

$

$

Not available

59

MTD 13819

Belt Guard

Variations

MTD 13819-0637

No Longer Available GUARD-BELT - POWDER BLACK (0637)

$

$

Not available

$

$

60

MTD 710-0520

Hex Bolt 3/8-16 x 1.50" Lg.

$4.49

$

In Stock, Qty 5

0

61

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

62

MTD 710-0780

Hex Bolt 7/16-14 x 2.00" Lg.

$

$

Not available

63

MTD 04970

Tine Adapter Assembly

Variations

MTD 04970-0637

No Longer Available ADAPTER AS - POWDER BLACK (0637)

$

$

Not available

$

$

64

MTD 742-0243

Tine-L.H.

Variations

MTD 742-0243-0637

Tine 14" x 5/16" - POWDER BLACK (0637)

$

$

Not available

$

$

65

MTD 731-0374

Flange Bearing 1.00" I.D.
(Superseded to 931-0374)

$7.49

$

In Stock, only 3 left!

0

66

MTD 748-0276

Spacer

$

$

Not available

67

MTD 736-0281

Thrust Wash. 1/2" I.D. x 1.55"
(Superseded to 936-0163)

$

$

Not available

68

MTD 742-0244

Tine-R.H.
(Superseded to 742-0244-0637)

Variations

MTD 742-0244-0637

TINE-RH BLADE - POWDER BLACK (0637)

$29.99

$

Usually ships in 3-6 days

0

$29.99

$

Usually ships in 3-6 days

0

69

MTD 04995

Tine Assembly Comp.-L.H.
(Superseded to 04995-0637)

Variations

MTD 04995-0637

Tine Assembly Comp.-L.H. - POWDER BLACK (0637)

$

$

Not available

$

$

70

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

71

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

72

MTD 710-0459

Hex Bolt 3/8-24 x 1.5" Lg.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

73

MTD 712-0290

Hex Cent. L-Nut 7/16-14 Thd.

$4.99

$

In Stock, Qty 11

0

74

MTD 04991

Chain Case Ass'y. Comp.

Variations

MTD 04991-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 04991-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 04991-0716

No Longer Available - CUB YELLOW-99 (0716)

$

$

Not available

$

$

75

MTD 04996

Tine Assembly Comp.-R.H.

Variations

MTD 04996-0637

No Longer Available TINE ASM- - POWDER BLACK (0637)

$

$

Not available

$

$

76

MTD 710-0376

Hex Bolt 5/16-18 x 1.00" Lg.

$3.99

$

In Stock, Qty 20+

0

77

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

78

MTD 710-0237

Hex Bolt 5/16-24 x .62"

$4.49

$

In Stock, only 1 left!

0

80

MTD 04988

Clutch Support Bracket

$

$

Currently unavailable

81

MTD 738-0296

Shld. Bolt .435 Dia. x .265 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

82

MTD 710-0412

Hex Bolt 1/4-28 x .75" Lg.

$5.99

$

In Stock, Qty 9

0

83

MTD 720-0142

Plastic Grip

$3.99

$

Usually ships in 3-6 days

0

84

MTD 738-0183

Shoulder Bolt .498 Dia. x .212 Lg.
(Superseded to 938-0183)

$

$

Not available

85

MTD 747-0378

Clutch Handle

Variations

MTD 747-0378-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

86

MTD 14298

Clutch Support Shroud
(Superseded to 14298-0637)

Variations

MTD 14298-0498

SHROUD-CLUTCH SUP - OLD CUB YELLOW (0498)

$

$

Not available

MTD 14298-0637

SHROUD-CLUTCH SUP - POWDER BLACK (0637)

$

$

Not available

$

$

87

MTD 04519

Engine Mounting Bracket

Variations

MTD 04519-0637

Engine Mounting Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

90

MTD 710-0201

Hex Bolt 3/8-16 x .62" Lg.

$

$

Not available

92

MTD 04975

L.H.-Side Plate
(Superseded to 04975-0637)

Variations

MTD 04975-0498

PLATE ASSY-SIDE-LH - OLD CUB YELLOW (0498)

$

$

Not available

MTD 04975-0637

PLATE ASSY-SIDE-LH - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 04976

R.H.-Side Plate

Note: (Not Shown)

Variations

MTD 04976-0498

No Longer Available PLATE ASM - OLD CUB YELLOW (0498)

$

$

Not available

MTD 04976-0637

No Longer Available PLATE ASM - POWDER BLACK (0637)

$

$

Not available

$

$

93

MTD 04983

L.H.-Tine Shield

Variations

MTD 04983-0498

No Longer Available SHIELD-TIN - OLD CUB YELLOW (0498)

$

$

Not available

MTD 04983-0637

L.H.-Tine Shield - POWDER BLACK (0637)

$

$

Not available

$

$

94

MTD 04984

R.H.-Tine Shield

Variations

MTD 04984-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 04984-0637

No Longer Available SHIELD-TIN - POWDER BLACK (0637)

$

$

Not available

$

$

95

MTD 710-0116

Hex Bolt 5/16-18 x 2.00" Lg.
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 20+

0

96

8 H.P. Engine

$

$

Not available

97

MTD 738-0482

Hitch Rod

$

$

Not available

99

MTD 711-0700

Ferrule

$

$

Not available
