190-756-000 - MTD 28" Tiller Attachment (1992) Bearing Housing Model 756 28" Tiller Attachment Parts Diagram

28" Tiller Attachment

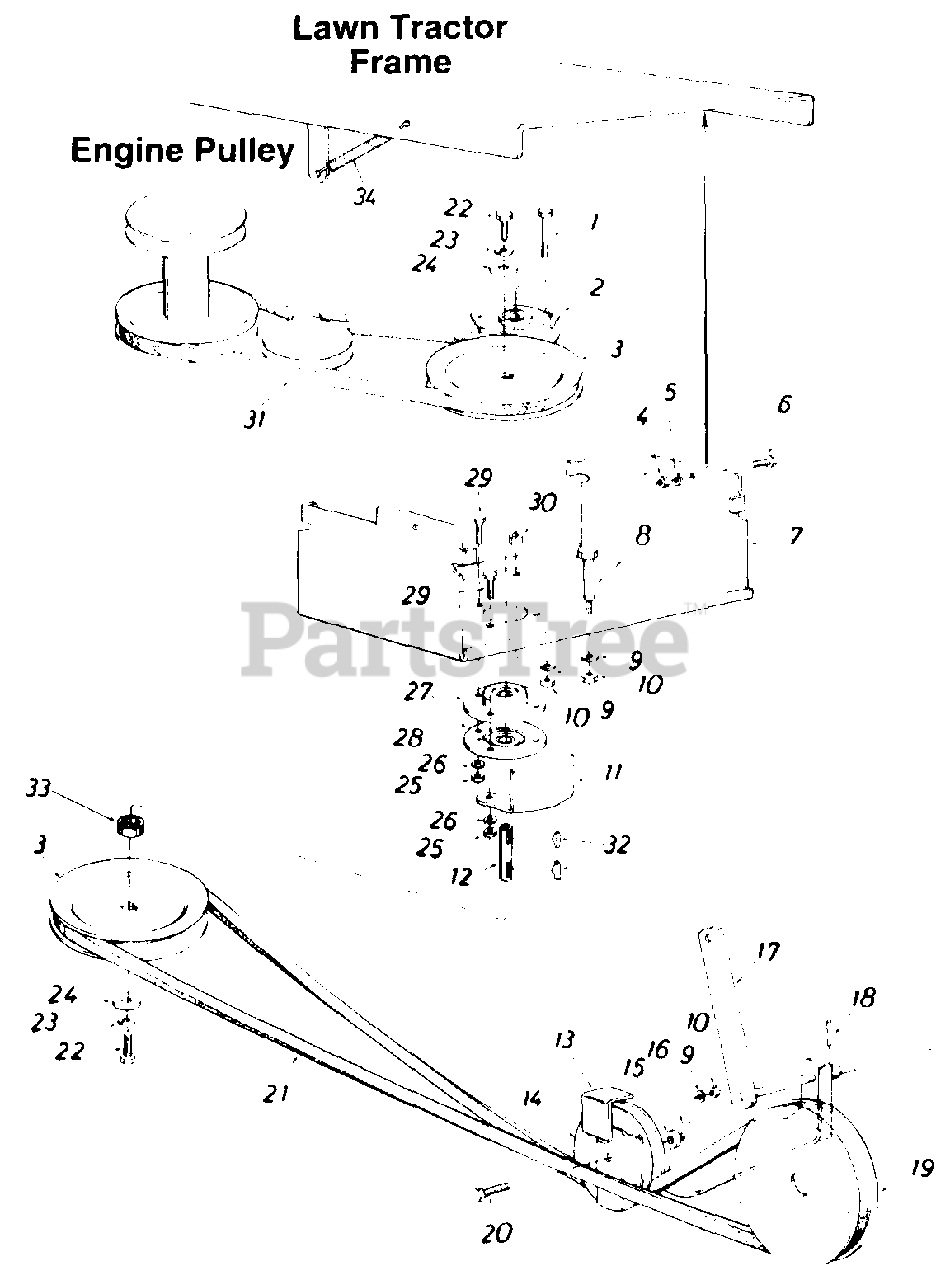

Bearing Housing Model 756 28" Tiller Attachment Parts Diagram

  • Title

1

MTD 710-0427

Hex Bolt 3/8-16 x 2" Lg.
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

2

MTD 756-0405

Fl-Idler w/Flanges 3-3/4" O.D.

$71.99

$

Usually ships in 3-6 days

0

3

MTD 756-0438

5/8" "V"-Pulley .79" I.D. x .65" O.D.
(Superseded to 956-0438)

$83.99

$

Usually ships in 3-6 days

0

4

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

5

MTD 736-0217

L-Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 6

0

6

MTD 710-0696

Hex Bolt 3/8-24 x .88" Lg.

$6.99

$

In Stock, only 2 left!

0

7

MTD 784-0054A

Carriage Bracket

Variations

MTD 784-0054A-0637

Carriage Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

8

MTD 738-0533

Shoulder Bolt .498" Dia.

$7.99

$

Usually ships in 3-6 days

0

9

MTD 736-0169

l-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

10

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

11

MTD 05406

Belt Guard
(Superseded to 05406-0637)

Variations

MTD 05406-0637

GUARD-BELT - POWDER BLACK (0637)

$

$

Not available

$

$

12

MTD 738-0789

Shaft .787" Dia. x 3.21" Lg.

$

$

Not available

13

MTD 784-0070

Belt Separator Plate

$

$

Not available

14

MTD 756-0433

Fl-Idler w/Flanges 3.25"

$

$

Not available

15

MTD 736-0235

Fl-Wash..406" I.D. x 1.25"
(Superseded to 736-0247)

$9.49

$

In Stock, Qty 12

0

16

MTD 784-0071

Idler Brkt. Ass'y.

Variations

MTD 784-0071-0637

No Longer Available IDLER-BELT - POWDER BLACK (0637)

$

$

Not available

$

$

17

MTD 784-0073

Idler Brkt. Support Ass'y.

$

$

Not available

18

MTD 715-0105

Spring Pin Roll 3/16" Dia.

$

$

Not available

19

MTD 756-0439

5/8" V-Pulley 1.50" I.D. x 6.5" O.D.

$

$

Not available

20

MTD 710-0347

Hex Bolt 3/8-16 x 1.75" Lg.

$5.49

$

In Stock, Qty 20+

0

21

MTD 754-0283A

"V"-Belt

$

$

Not available

22

MTD 710-0371

Hex Bolt 5/16-18 x .88" Lg. Spec.
(Superseded to 710-1880)

$4.99

$

In Stock, Qty 11

0

23

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

24

MTD 736-0231

Fl-Wash..344" I.D. x 1.125"

$4.99

$

In Stock, Qty 20+

0

25

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

26

MTD 736-0119

L-Wash. 5/16" l.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

27

MTD 08253B

Bearing Housing 1.85" I.D.

$19.99

$

In Stock, only 1 left!

0

28

MTD 741-0919

Ball Bearing 1.85" O.D.
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

29

MTD 710-0198

Hex Sems Bolt 5/16-18 x .75"
(Superseded to 910-0198)

$

$

Not available

30

MTD 750-0497

Spacer

$10.99

$

Usually ships in 3-6 days

0

31

MTD 754-0229

Belt
(Superseded to 954-0229)

$59.99

$

Usually ships in 3-6 days

0

32

MTD 714-0161

Hi-Pro Key 3/16" x 5/8"
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 20+

0

33

MTD 750-0763

Spacer.66" I.D. x 1" O.D.

$

$

Not available

34

MTD 732-0611

Extension Spring
(Superseded to 932-0611)

$7.49

$

In Stock, Qty 20+

0
