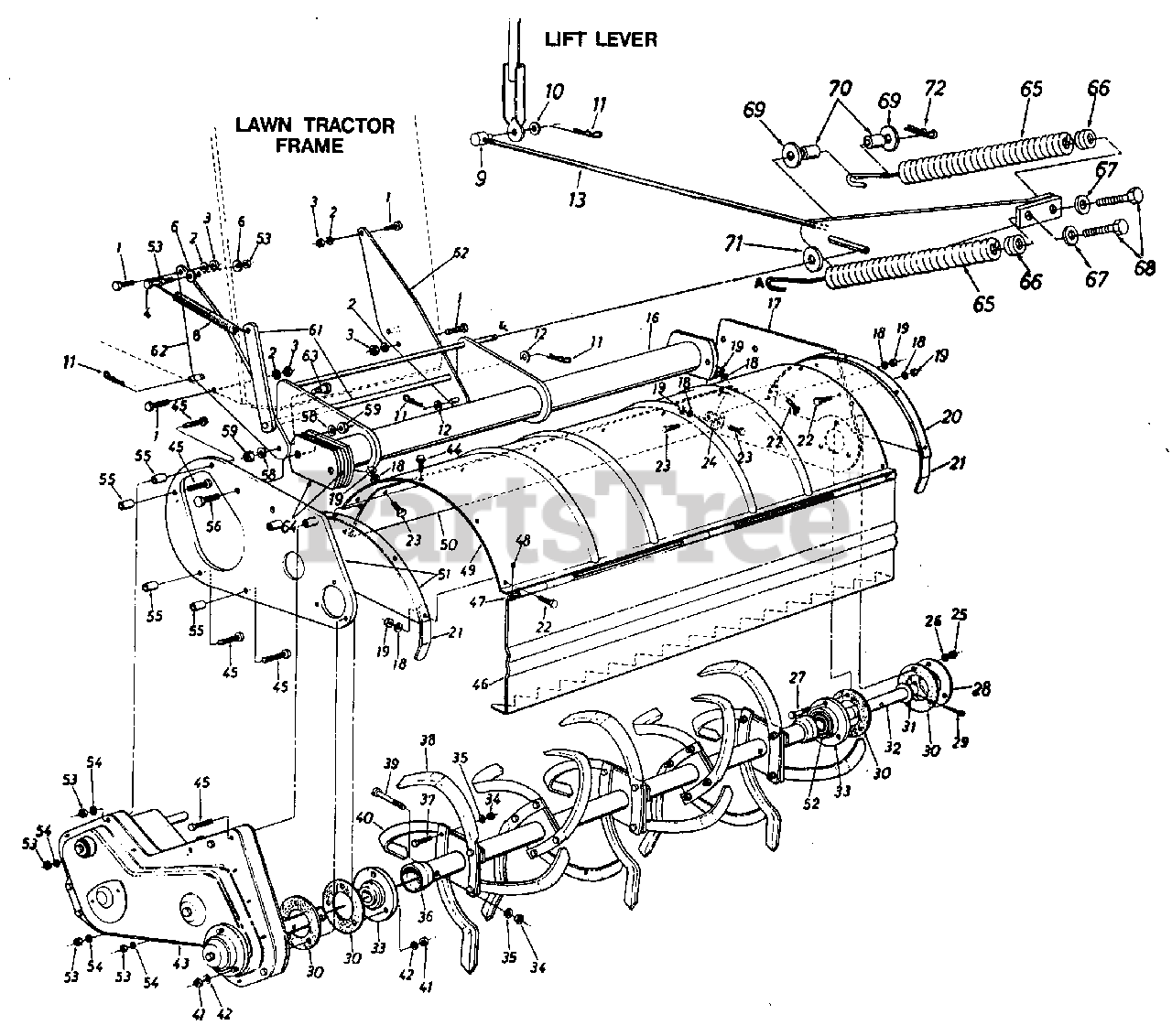

190-756-000 - MTD 28" Tiller Attachment (1991) Tiller Attachment Parts Diagram

28" Tiller Attachment

Tiller Attachment Parts Diagram

  • Title

1

MTD 710-0696

Hex Bolt 3/8-24 x .88" Lg.

$6.99

$

In Stock, only 2 left!

0

2

MTD 736-0217

L-Wash. 3/8" I.D.-H.D.

$4.49

$

In Stock, Qty 6

0

3

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

4

MTD 710-0106

Hex Bolt 1/4-20 x 1.25" Lg.

$3.99

$

In Stock, Qty 12

0

6

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

8

MTD 732-0185

Ext. Spring 7.75" Lg.
(Superseded to 732-0185A)

$

$

Not available

9

MTD 711-0770

Adjustment Ferrule 1/2-13 Thd.
(Superseded to 911-0770)

$

$

Not available

10

MTD 736-0187

Fl-Wash. .64" I.D. x 1.24" O.D. x .06"

$4.49

$

In Stock, Qty 20+

0

11

MTD 714-0145

Intern. Cotter Pin 1/2" Dia.

$4.99

$

In Stock, Qty 20+

0

12

MTD 736-0272

Fl-Wash 51" I.D. x 1.0" O.D. x .06"

$4.99

$

In Stock, Qty 20+

0

13

MTD 689-0000

Lift Rod Ass'y. 39" Lg.
(Superseded to 689-0000-0637)

Variations

MTD 689-0000-0637

Lift Rod Ass'y. 39" Lg. - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 732-0460

Comp. Spring 1.5" O.D. x 15" Lg.

$

$

Not available

MTD 736-0208

Fl-Wash. .51" I.D. x 1.5" O.D. x .075"

$4.49

$

In Stock, Qty 9

0

16

MTD 784-0279

Pivot Bracket Assembly

$

$

Not available

17

MTD 784-0056

Tiller Housing Plate-R.H.

Variations

MTD 784-0056-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-0056-0637

No Longer Available PLATE-RH - POWDER BLACK (0637)

$

$

Not available

$

$

18

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

19

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 2 left!

0

20

MTD 784-0058

End Cover Tine Shield-R.H.

Variations

MTD 784-0058-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-0058-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

21

MTD 784-0069

Tine Shield Hinge Flap Support

Variations

MTD 784-0069-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

22

MTD 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 15

0

23

MTD 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

In Stock, only 1 left!

0

24

MTD 12541

Chute Pivot Bracket

$

$

Currently unavailable

25

MTD 712-0158

Hex L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

26

UNKNOWN

$

$

Not available

27

MTD 710-0376

Hex Bolt 5/16-18 x 1" Lg. (Grade 5)

$3.99

$

In Stock, Qty 20+

0

28

MTD 784-0068

Grease Housing Cup

Variations

MTD 784-0068-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 784-0068-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-0068-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 784-0068-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

$

$

29

MTD 714-0470

Cotter Pin 1/8" Dia. x 1.25" Lg.

$4.49

$

In Stock, Qty 20+

0

30

MTD 721-0133

Gasket for Brg. Housing

$

$

Not available

31

MTD 736-0246

Fl-Wash. 1.25" I.D. x 2.0" O.D. x .06"

$

$

Not available

32

MTD 738-0630

Tine Shaft 1.25" Dia. x 6.25" Lg.

$

$

Not available

33

MTD 741-0417

Bearing Housing w/Bearing

$

$

Not available

34

UNKNOWN

$

$

Not available

35

UNKNOWN

$

$

Not available

36

MTD 784-0107

Tine Adapter Ass'y.

Variations

MTD 784-0107-0637

No Longer Available ADAPTER-TI - POWDER BLACK (0637)

$

$

Not available

$

$

37

MTD 710-0459

Hex Bolt 3/8-24 x 1.5" Lg.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

38

MTD 742-0243

Tine 14" x 5/16"

Variations

MTD 742-0243-0637

Tine 14" x 5/16" - POWDER BLACK (0637)

$

$

Not available

$

$

39

MTD 710-0331

Hex Bolt 3/8-24 x 2.25" Lg.

$6.99

$

In Stock, Qty 7

0

40

MTD 742-0244

Tine 14" x 5/16"
(Superseded to 742-0244-0637)

Variations

MTD 742-0244-0637

TINE-RH BLADE - POWDER BLACK (0637)

$29.99

$

Usually ships in 3-6 days

0

$29.99

$

Usually ships in 3-6 days

0

41

UNKNOWN

$

$

Not available

42

UNKNOWN

$

$

Not available

43

MTD 884-0061-5

Chain Case Ass'y. Comp.

$

$

Not available

44

MTD 710-0604

Hex TT-Tap Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

45

MTD 710-0564

Hex Bolt 1/4-20 x 2.75" Lg.

$6.99

$

In Stock, only 3 left!

0

46

MTD 784-0076

Hinge Flap Ass'y.

Variations

MTD 784-0076-0498

No Longer Available HINGE ASM - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-0076-0637

HINGE ASSY-FLAP - POWDER BLACK (0637)

$

$

Not available

$

$

47

MTD 747-0479

Tiller Flap Rod 29.7" Lg.

$

$

Not available

48

MTD 714-0115

Cotter Pin 1/8" Dia. x 1" Lg.

$3.99

$

In Stock, only 2 left!

0

49

MTD 784-0074

Tine Shield Ass'y. 30" Lg.

Variations

MTD 784-0074-0498

No Longer Available SHIELD-TIN - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-0074-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

50

MTD 784-0060

Reinforcement Brkt.-Tine Shield

$

$

Not available

51

MTD 784-0055

Tiller Housing Plate Ass'y.

Variations

MTD 784-0055-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-0055-0637

No Longer Available PLATE ASM - POWDER BLACK (0637)

$

$

Not available

$

$

52

MTD 721-0192

Oil Seal 1-1/4" Shaft

$

$

Not available

53

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

54

MTD 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

55

MTD 750-0599

Spacer .28" I.D. x .62" O.D. x .9" Lg.
(Superseded to 950-0599)

$

$

Not available

56

MTD 710-3177

Hex Bolt 1/2-20 x 1.5" Lg.

$

$

Not available

58

MTD 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 6

0

59

MTD 712-0922

Hex Nut 1/2-20 Thd.
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

61

MTD 784-0073

Idler Brkt. Support Arm Ass'y.

$

$

Not available

62

MTD 784-0064B

Pivot Brkt. Support
(Superseded to 784-0064B-0637)

Variations

MTD 784-0064B-0637

BRACKET-PIVOT SUP - POWDER BLACK (0637)

$

$

Not available

$

$

63

MTD 738-0816

Shoulder Bolt
(Superseded to 938-0816)

$

$

Not available

64

MTD 784-0066

Support Plate

$

$

Not available

65

MTD 732-0323

Helper Spring

$

$

Not available

66

MTD 711-0509

Spring Insert

$60.99

$

Usually ships in 3-6 days

0

67

MTD 736-0275

Fl-Wash. .34" I.D. x .68" O.D.

$6.99

$

Usually ships in 3-6 days

0

68

MTD 710-1207

Hex Bolt 5/16-18 x 3.25" Lg.

$6.99

$

In Stock, only 4 left!

0

69

MTD 736-0208

Fl-Wash. .61" I.D. x 1.5" O.D.

$4.49

$

In Stock, Qty 9

0

70

MTD 750-0881

Split Spacer .505" I.D. x .57" Lg.

$

$

Not available

71

MTD 736-0100

Fl-Wash. .631" I.D. x 1.25" O.D.

$6.99

$

In Stock, Qty 7

0

72

MTD 714-0145

Internal Cotter Pin 3/8" Dia.

$4.99

$

In Stock, Qty 20+

0
