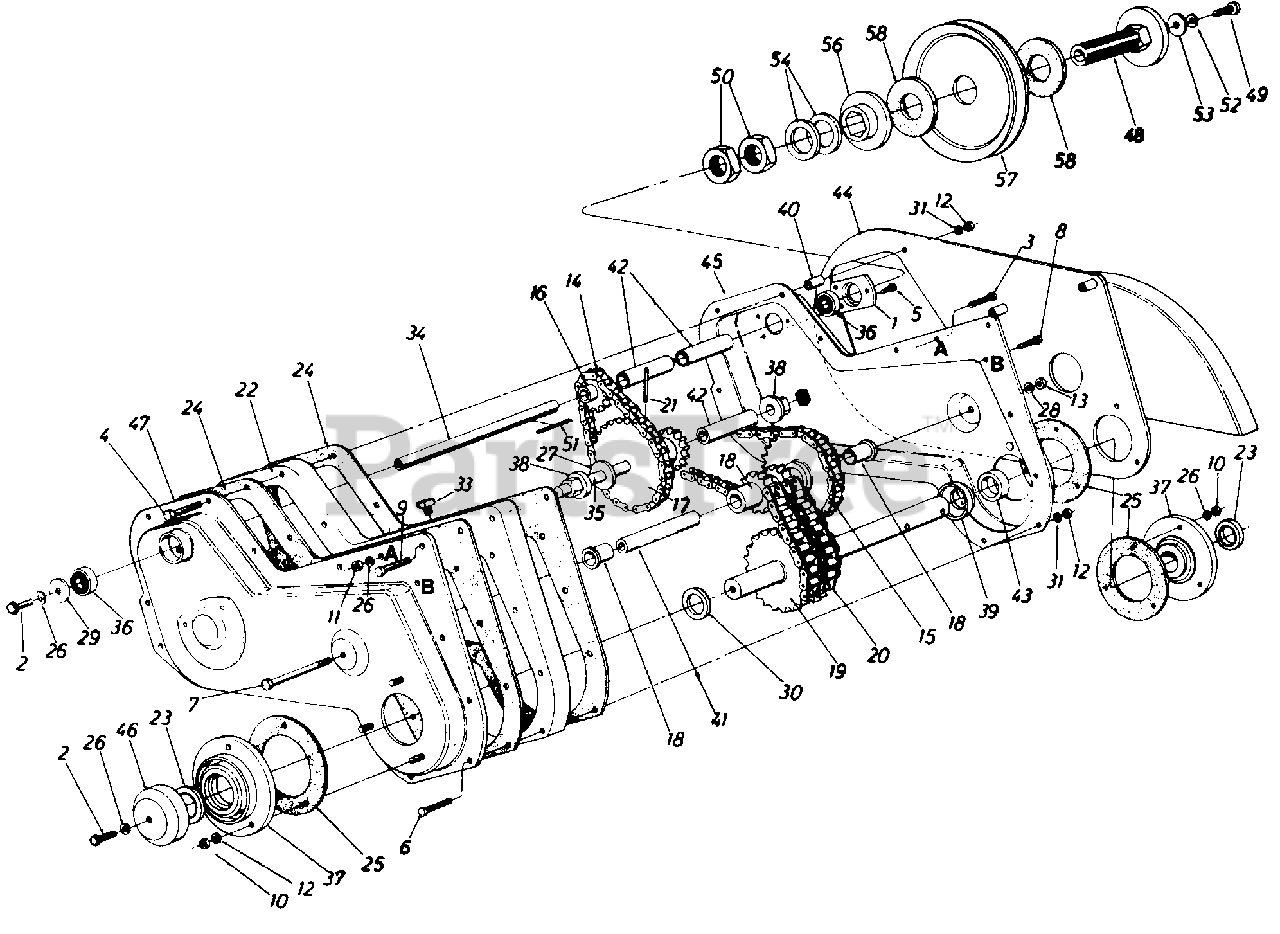

190-756-000 - MTD 28" Tiller Attachment (1991) Chain Case Assembly Parts Diagram

28" Tiller Attachment

Chain Case Assembly Parts Diagram

  • Title

1

MTD 05034

Bearing Housing 1-3/8" Dia.
(Superseded to 05034A)

$

$

Not available

2

MTD 710-0371

Hex Bolt 5/16-18 x .88"
(Superseded to 710-1880)

Note: (Spec.)

$4.99

$

In Stock, Qty 11

0

3

MTD 710-0442

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0564

Hex Bolt 1/4-20 x 2.75" Lg.

$6.99

$

In Stock, only 3 left!

0

5

MTD 710-0599

Hex S-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0606

Hex Bolt 1/4-20 x 1.5" Lg.

$5.49

$

In Stock, Qty 10

0

7

MTD 710-0693

Hex Bolt 3/8-16 x 4.5" Lg.

$14.99

$

In Stock, only 2 left!

0

8

MTD 710-0778

Hex Scr. 1/4-20 x 1.5" Lg.

$4.49

$

In Stock, only 1 left!

0

9

MTD 710-0909

Hex TT-Tap Scr. 5/16-18 x 1.75"
(Superseded to 710-0909A)

$10.99

$

In Stock, only 2 left!

0

10

MTD 712-0158

Hex L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

11

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

12

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

13

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

14

MTD 713-0131

#41 Chain 1/2" Pitch x 34 Links-Endless

$

$

Not available

15

MTD 713-0186

#42 Chain 1/2" Pitch x 48 Links-Endless
(Superseded to 913-0186)

$

$

Not available

16

MTD 713-0206

Sprocket 10 Tooth .5" Pitch

$

$

Not available

17

MTD 713-0341

10 & 28 Teeth Sprocket Ass'y.

$

$

Not available

18

MTD 713-0342

8-2 & 28 Sprocket Sleeve Ass'y.

$

$

Not available

19

MTD 713-0362

18-2 Sprocket Shaft Ass'y.

$252.99

$

Usually ships in 3-6 days

0

20

MTD 713-0344

#50-2 Chain 5/8" Pitch x 28 Links-Endless

$

$

Not available

21

MTD 715-0114

Spring,, LPin Spir. 1/4 Dia. x 1.5" Lg.

$9.49

$

In Stock, Qty 5

0

22

MTD 717-0811

Spacer Block-Tiller Housing

$

$

Not available

23

MTD 721-0192

Oil Seal 1-1/4" Dia.

$

$

Not available

24

MTD 721-0132

Gasket for Tiller Housing
(Superseded to 921-0132)

$35.99

$

Usually ships in 3-6 days

0

25

MTD 721-0133

GasketforBrg. Housing

$

$

Not available

26

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

27

MTD 736-0187

Fl-Wash. .64" I.D. x 1.24" O.D.

$4.49

$

In Stock, Qty 20+

0

28

MTD 736-0217

L-Wash. 3/8" I.D.-H.D.

$4.49

$

In Stock, Qty 8

0

29

MTD 736-0231

Fl-Wash. .344" I.D. x 1.125"

$4.99

$

In Stock, Qty 20+

0

30

MTD 736-0368

Special Washer

$

$

Not available

31

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

33

MTD 737-0175

Vent Plug

$6.99

$

In Stock, only 4 left!

0

34

MTD 738-0181

Jack Shaft .525" I.D. x 7.78"

$

$

Not available

35

MTD 738-0594

Sprocket Shaft .63" Dia. x 5"

$

$

Not available

36

MTD 741-0155

Ball Brg. .62" I.D. x 1.38" O.D.
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 15

0

37

MTD 741-0417

Bearing Housing-1-1/4"

$

$

Not available

38

MTD 748-0229

Hex Flange Brg.
(Superseded to 948-0229)

$

$

Not available

39

MTD 750-0563

Spacer 1.25" I.D. x 2.0" O.D.

$

$

Not available

40

MTD 750-0599

Spacer .9" Lg.
(Superseded to 950-0599)

$

$

Not available

41

MTD 750-0600

Spacer 3.44" Lg.

$24.99

$

Usually ships in 3-6 days

0

42

MTD 750-0601

Spacer 1.56" Lg.
(Superseded to 950-0601)

$

$

Not available

43

MTD 750-0636

Spacer .5" Lg.

$

$

Not available

44

MTD 784-0055

Tiller Housing Plate Ass'y.-L.H.

Variations

MTD 784-0055-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-0055-0637

No Longer Available PLATE ASM - POWDER BLACK (0637)

$

$

Not available

$

$

45

MTD 784-0061

Tiller Housing Ass'y.
(Superseded to 784-0061-0637)

Variations

MTD 784-0061-0498

HOUSING-TILLER - OLD CUB YELLOW (0498)

$170.99

$

Usually ships in 3-6 days

0

MTD 784-0061-0637

HOUSING-TILLER - POWDER BLACK (0637)

$170.99

$

Usually ships in 3-6 days

0

MTD 784-0061-0638

HOUSING-TILLER - MTD/TROY-BILT RED (0638)

$170.99

$

Usually ships in 3-6 days

0

$170.99

$

Usually ships in 3-6 days

0

46

MTD 784-0067

Dust Cap

$

$

Not available

47

MTD 784-0077

Tiller Housing Ass'y.-R.H.

Variations

MTD 784-0077-0498

No Longer Available HOUSING-RH - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-0077-0637

No Longer Available HOUSING-RH - POWDER BLACK (0637)

$

$

Not available

$

$

48

MTD 15727

Friction DiscAss'y.

$

$

Not available

49

MTD 710-0573

Hex Bolt 5/16-18 x 1.25" Lg. Grade 5

$6.49

$

In Stock, Qty 13

0

50

MTD 712-0331

Hex Jam Nut 1.0-14 x 28 Thd.

$

$

Not available

51

MTD 714-0133

Sq. Key 3/16 x 1.5" Lg.

$4.99

$

In Stock, Qty 12

0

52

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

53

MTD 736-0231

Fl-Wash. .344" I.D. x 1.125"

$4.99

$

In Stock, Qty 20+

0

54

MTD 736-0352

Bell-Wash. 1.0" I.D. x 2.0"

$

$

Not available

56

MTD 748-0296

Floating Disc 3-1/4" O.D.

$

$

Not available

57

MTD 756-0439

5/8 V-Pulley 1.5" I.D. x 6.5"

$

$

Not available

58

MTD 761-0189

Friction Pad 3-1/4" O.D. x 1-3/8" I.D.

$

$

Not available

MTD 737-0133

Grease-Plastilube #0
(Superseded to 737-0300A)

$34.99

$

In Stock, Qty 20+

0
