190-749-190 - White Outdoor Electric Lift Kit (1995) Electric Lift Kit Parts Diagram

Electric Lift Kit

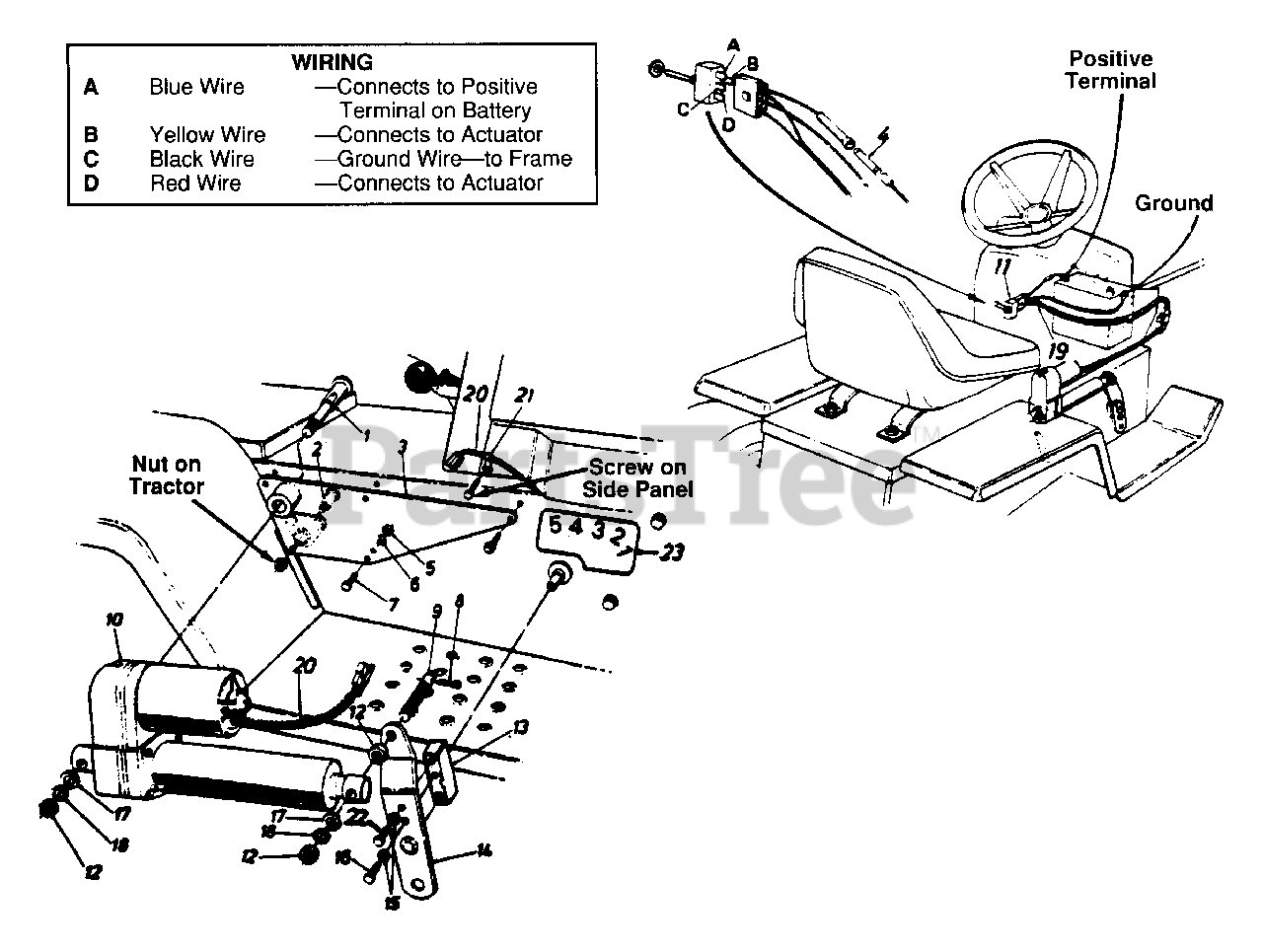

Electric Lift Kit Parts Diagram

  • Title

$69.99

$

Usually ships in 3-6 days

0

2

White Outdoor 738-0150

Shld. Bolt .626" Dia. x .96"
(Superseded to 938-0150)

$24.99

$

Usually ships in 3-6 days

0

3

White Outdoor 16385

Mtg. Plate Ass'y.

Variations

White Outdoor 16385-0637

No Longer Available PLATE ASSY MTG. - POWDER BLACK (0637)

$

$

Not available

$

$

4

725-0300

Fuse 30 AMP

Note: (For Service Only)

$

$

Not available

5

White Outdoor 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

6

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

7

White Outdoor 710-0412

Hex Bolt 1/4-28 x .75" Lg. (Grade 5)

$5.99

$

In Stock, Qty 9

0

8

$3.99

$

In Stock, only 2 left!

0

9

White Outdoor 738-0640

Indicator & Mtg. Pin

$

$

Not available

10

White Outdoor 717-0620

Electric Actuator
(Superseded to 917-0620)

$1244.99

$

Usually ships in 3-6 days

0

11

White Outdoor 725-1053

Toggle Switch
(Superseded to 925-1053)

$105.99

$

Usually ships in 3-6 days

0

12

White Outdoor 712-0461

Hex Jam Nut 1/2-13 Thd.
(Superseded to 912-3048)

$4.99

$

In Stock, Qty 20+

0

13

White Outdoor 748-0307A

Lift Shaft Drive

$48.99

$

Usually ships in 3-6 days

0

14

White Outdoor 16387

Lift Bracket Ass'y.
(Superseded to 16387-0637)

Variations

White Outdoor 16387-0637

BRACKET ASSY-LIFT - POWDER BLACK (0637)

$

$

Not available

$

$

15

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

White Outdoor 710-0117

Hex Bolt 5/16-24 x 1.0" Lg. (Grade 5)
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 736-0192

Fl-Wash. .53" I.D. x .93" O.D.

$4.49

$

In Stock, Qty 16

0

18

712-0921

L-Wash. 1/2" I.D.

$

$

Not available

19

White Outdoor 725-1108

Wire Harness

$

$

Not available

20

White Outdoor 731-0759

Plastic Tubing - 7"

$

$

Not available

$

$

Not available

22

White Outdoor 710-0376

Hex Bolt 5/16-18 x 1" Lg. (Grade 5)

$3.99

$

In Stock, Qty 20+

0

23

777-5406

Label

$

$

Not available

A

Blue Wire

Note: Connects to Positive Terminal on Battery

$

$

Not available

B

Yellow Wire

Note: Connects to Actuator

$

$

Not available

C

Black Wire

Note: Ground Wire to Frame

$

$

Not available

D

Red Wire

Note: Connects to Actuator

$

$

Not available
