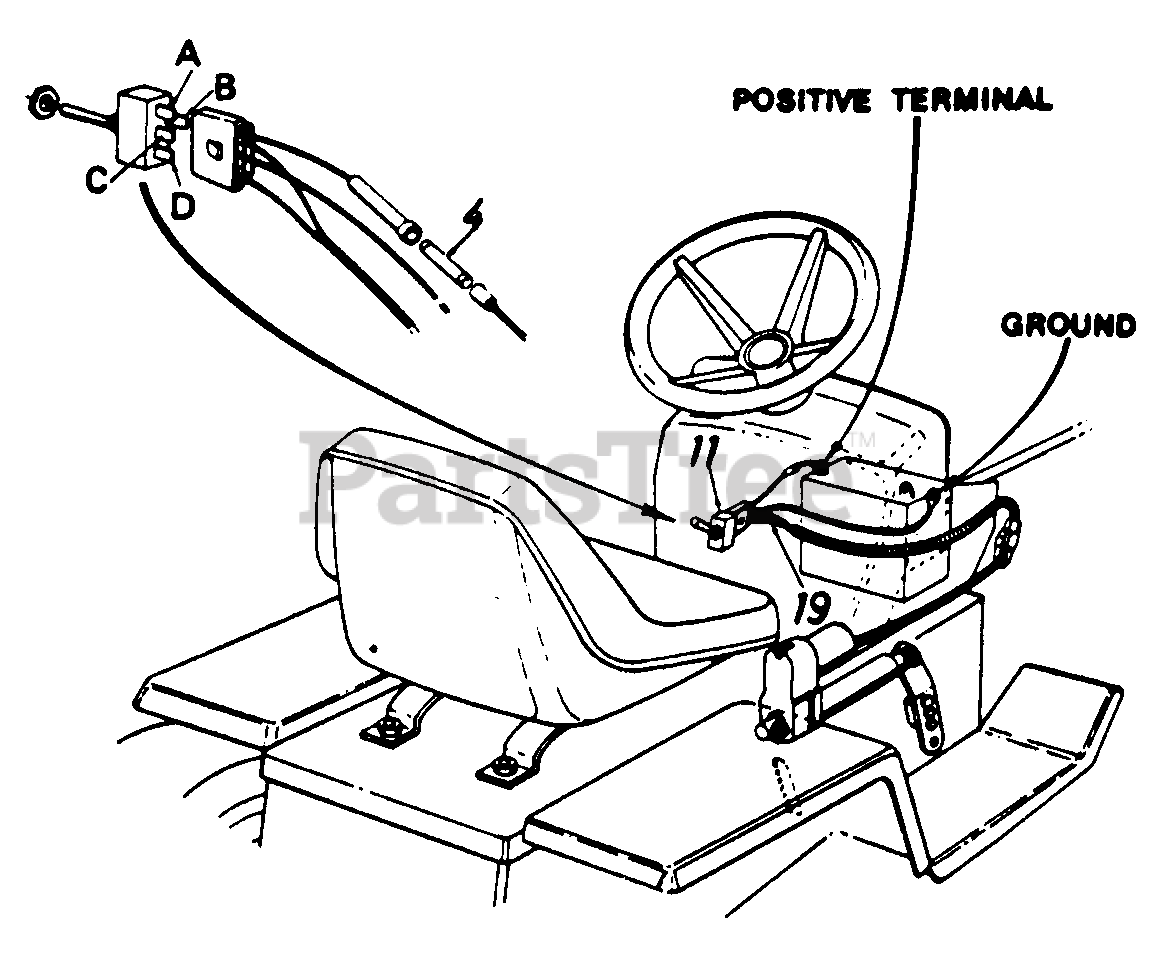

190-749-190 - White Outdoor Electric Lift Kit (1989) Lift Wiring Parts Diagram

Electric Lift Kit

Lift Wiring Parts Diagram

  • Title
4

725-0300

Fuse 30 AMP

Note: (For Service Only)

$

$

Not available

11

White Outdoor 725-1053

Toggle Switch
(Superseded to 925-1053)

$105.99

$

Usually ships in 3-6 days

0

19

White Outdoor 725-1108

Wire Harness

$

$

Not available

A

Blue Wire-Connects to Positive Terminal on Battery

$

$

Not available

B

Yellow Wire-Connects to Actuator

$

$

Not available

C

Black Wire-Ground Wire-to Frame

$

$

Not available

D

Red Wire-Connects to Actuator

$

$

Not available
