190-749-190 - White Outdoor Electric Lift Kit (1988) Electric Lift Kit Parts Diagram

Electric Lift Kit

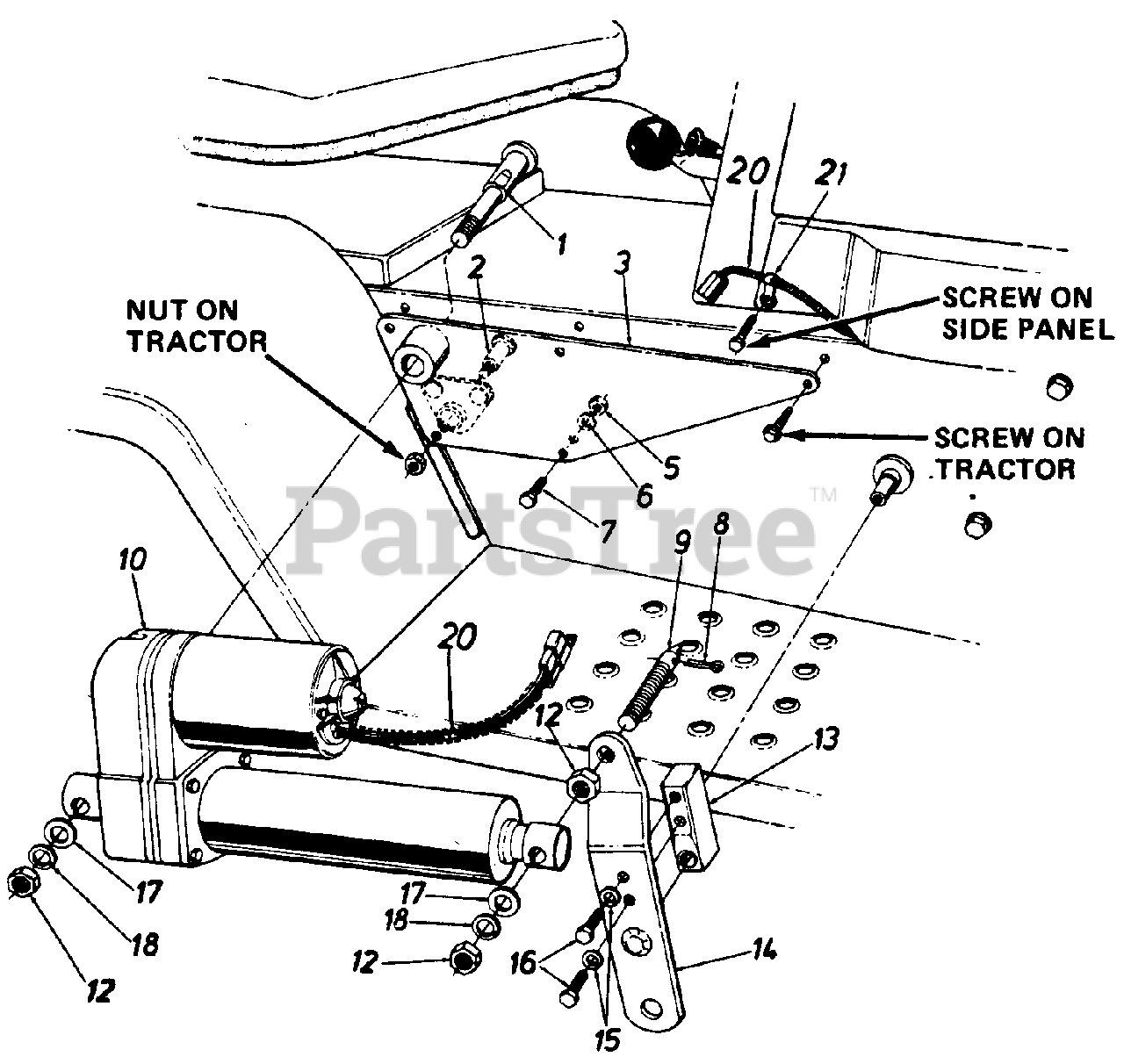

Electric Lift Kit Parts Diagram

  • Title

1

MTD 738-0639

Pivot Pin

$69.99

$

Usually ships in 3-6 days

0

2

MTD 938-0150

Shld. Bolt.626 Dia. x .96"

$24.99

$

Usually ships in 3-6 days

0

3

MTD 16385

Mtg. Plate Ass'y.

Note: NLA

Variations

MTD 16385-0637

No Longer Available PLATE ASM - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 725-0300

Fuse 30 AMP

Note: NLA

$

$

Currently unavailable

5

MTD 912-0138

Hex Nut 1/428 Thd.
(Superseded to 712-0138)

$

$

Not available

6

MTD 936-0329

L-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 11

0

7

MTD 710-0412

Hex Bolt 1/4-28 x .75" Lg. (Grade 5)

$5.99

$

In Stock, Qty 9

0

8

MTD 914-0115

Cotter Pin
(Superseded to 714-0115)

$3.99

$

In Stock, Qty 20+

0

9

MTD 738-0640

Indicator & Mtg. Pin

Note: NLA

$

$

Not available

10

MTD 917-0620

Electric Actuator

$1244.99

$

Usually ships in 3-6 days

0

10

MTD 925-1053

Toggle Switch

$105.99

$

Usually ships in 3-6 days

0

12

MTD 912-3048

Hex Jam Nut 1/2-13 Thd.
(Superseded to 712-3048)

$4.99

$

In Stock, Qty 20+

0

13

MTD 748-0307A

Lift Shaft Drive

$48.99

$

Usually ships in 3-6 days

0

14

MTD 16387-0637

Lift Bracket Ass'y.

$

$

Not available

15

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

16

MTD 710-0888

Hex Bolt 5/16-24 x 1.0" Lg. (Grade 5)

$4.49

$

In Stock, Qty 20+

0

17

MTD 936-0192

Fl-Wash. .53" I.D. x.93" O.C.

$4.49

$

In Stock, Qty 18

0

18

MTD 712-0921

L-Wash. 1/2" I.D.

Note: NLA

$

$

Currently unavailable

18

MTD 725-1108

Wire Harness

Note: NLA

$

$

Not available

20

MTD 731-0759

Plastic Tubing-7"

Note: NLA

$

$

Not available

21

MTD 726-0175

Clamp

$

$

Not available
