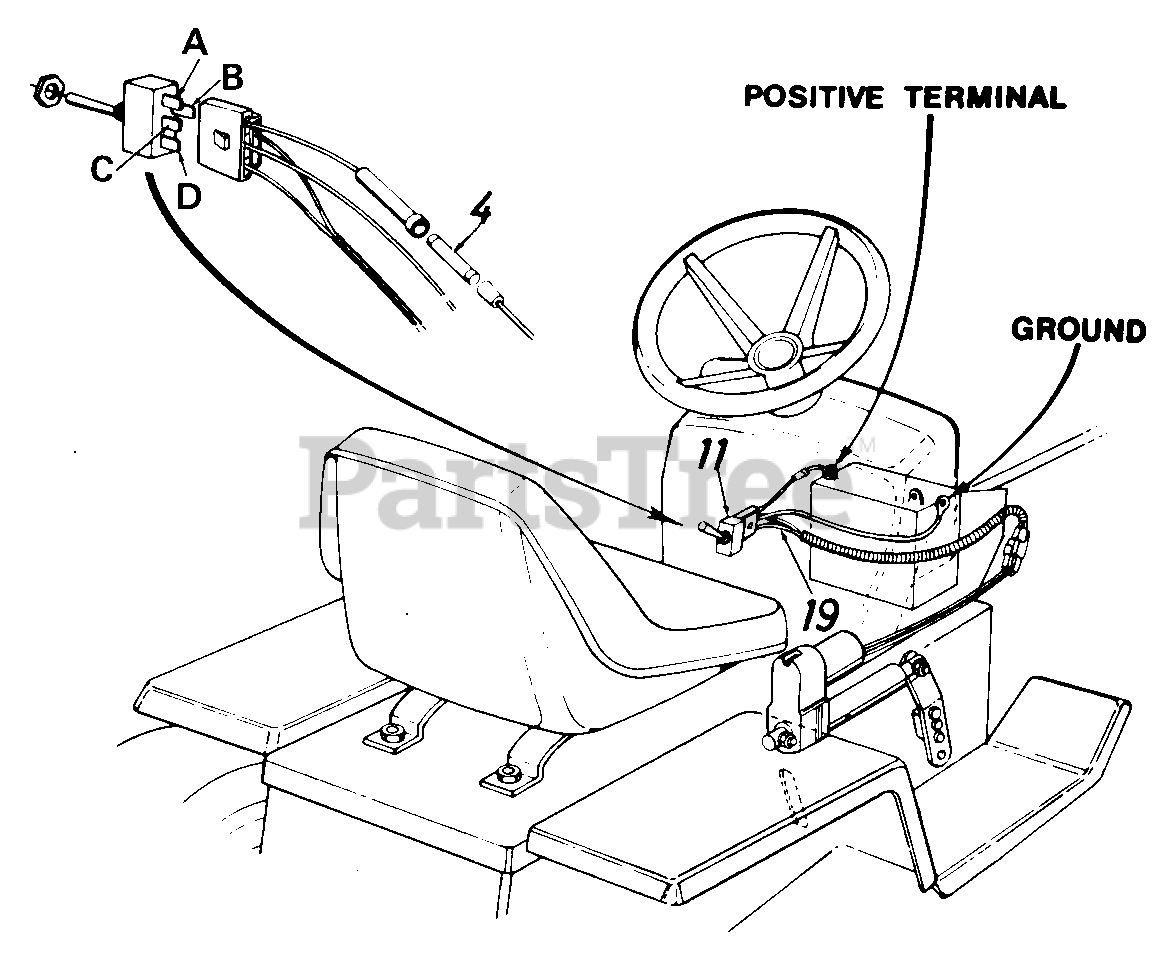

190-749-190 - White Outdoor Electric Lift Kit (1987) Wiring Diagram Parts Diagram

Electric Lift Kit

Wiring Diagram Parts Diagram

  • Title
4

725-0300

Fuse 30 AMP

Note: ( For Service Only)

$

$

Not available

11

White Outdoor 725-1053

Toggle Switch
(Superseded to 925-1053)

$105.99

$

Usually ships in 3-6 days

0

19

White Outdoor 725-1108

Wire Harness

$

$

Not available

A

Blue WireConnects to Positve Terminal on Battery

$

$

Not available

B

Yellow WireConnects to Actuator

$

$

Not available

C

Black WireGround Wire-to Frame

$

$

Not available

D

Red WireConnects to Actuator

$

$

Not available
