190-749-000 - MTD Electric Lift Kit (1992) Electric Lift Kit Parts Diagram

Electric Lift Kit

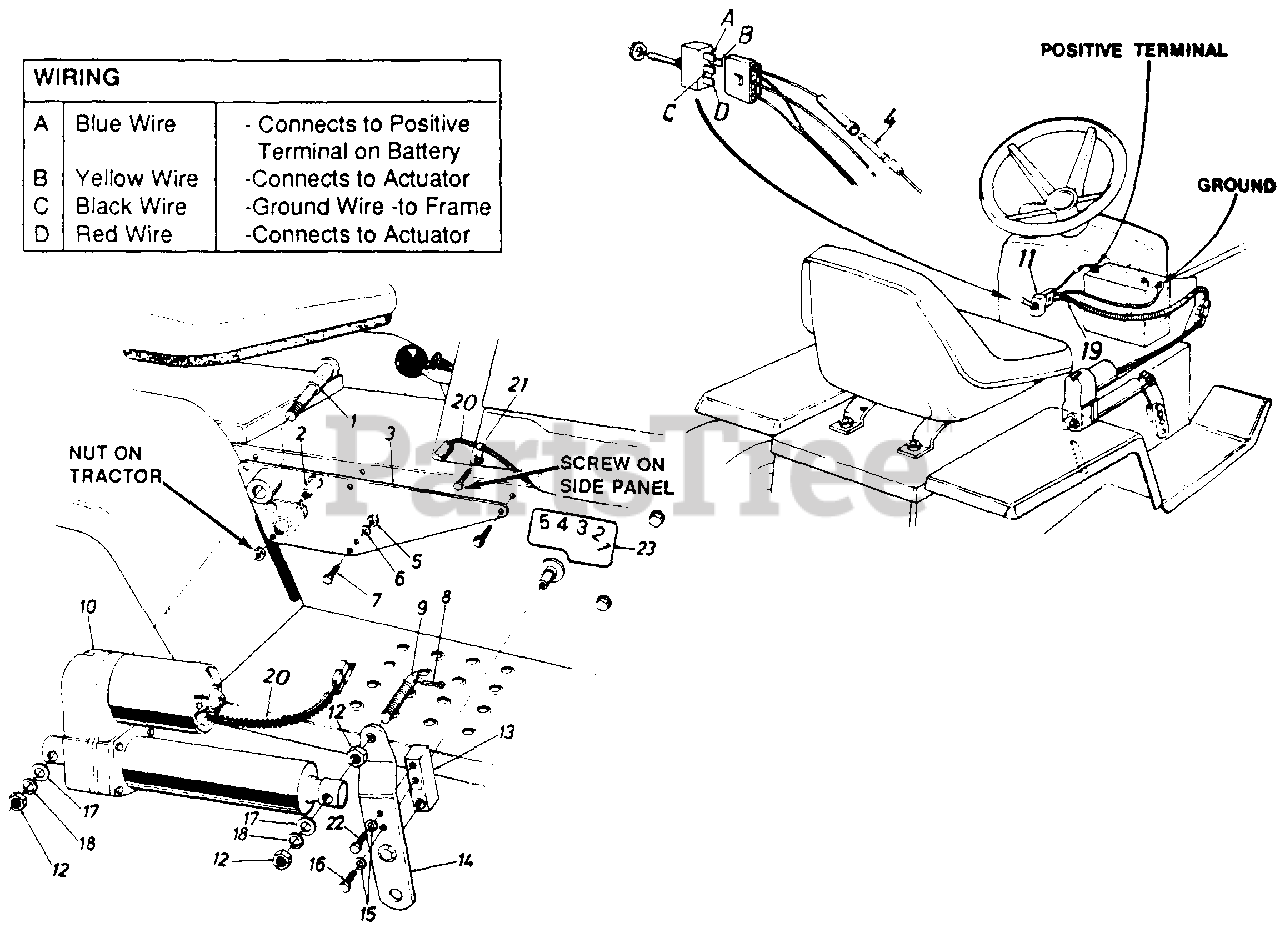

Electric Lift Kit Parts Diagram

  • Title

1

MTD 738-0639

Pivot Pin

$69.99

$

Usually ships in 3-6 days

0

2

MTD 738-0150

Shld. Bolt .626 Dia. x .96"
(Superseded to 938-0150)

$24.99

$

Usually ships in 3-6 days

0

3

MTD 16385

Mtg. Plate Ass'y.

Variations

MTD 16385-0637

No Longer Available PLATE ASM - POWDER BLACK (0637)

$

$

Not available

$

$

4

MTD 725-0300

Fuse 30 AMP

Note: (For Service Only)

$

$

Currently unavailable

5

MTD 712-0138

Hex Nut 1/4"-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

6

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

7

MTD 710-0412

Hex Bolt 1/4-28 x .75" Lg. (Gr. 5)

$5.99

$

In Stock, Qty 8

0

8

MTD 714-0115

Cotter Pin

$3.99

$

Usually ships in 3-6 days

0

9

MTD 738-0640

Indicator & kg. Pin

$

$

Not available

10

MTD 717-0620

Electric Actuator
(Superseded to 917-0620)

$1244.99

$

Usually ships in 3-6 days

0

11

MTD 725-1053

Toggle Switch
(Superseded to 925-1053)

$105.99

$

Usually ships in 3-6 days

0

12

MTD 712-0461

Hex Jam Nut 1/2-13 Thd.
(Superseded to 912-3048)

$4.99

$

In Stock, Qty 7

0

13

MTD 748-0307

Lift Shaft Drive
(Superseded to 748-0307A)

$48.99

$

Usually ships in 3-6 days

0

14

MTD 16387

Lift Bracket Ass'y.
(Superseded to 16387-0637)

Variations

MTD 16387-0637

Lift Bracket Ass'y. - POWDER BLACK (0637)

$

$

Not available

$

$

15

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

MTD 710-0117

Hex Bolt 5/16-24 x 1.0" Lg.(Gr. 5)
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 5

0

17

MTD 736-0129

Fl-Wash..53" I.D. x .93" O.D.

$

$

Not available

18

MTD 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 5

0

19

MTD 725-1108

Wire Harness

$

$

Not available

20

MTD 731-0759

Plastic Harness

$

$

Not available

21

MTD 726-0175

Clamp

$

$

Not available

22

MTD 710-0376

Hex Bolt 5/16-18 x 1" Lg. (Gr.5)

$3.99

$

In Stock, only 4 left!

0

23

MTD 777-5406

Label

$

$

Currently unavailable

A

Connects to Positive Terminal on Battery

$

$

Not available

B

Connects to Actuator

$

$

Not available

C

Ground Wire to Frame

$

$

Not available

D

Connects to Actuator

$

$

Not available
