190-749-000 - MTD Electric Lift Kit (1987) Electric Lift Kit Parts Diagram

Electric Lift Kit

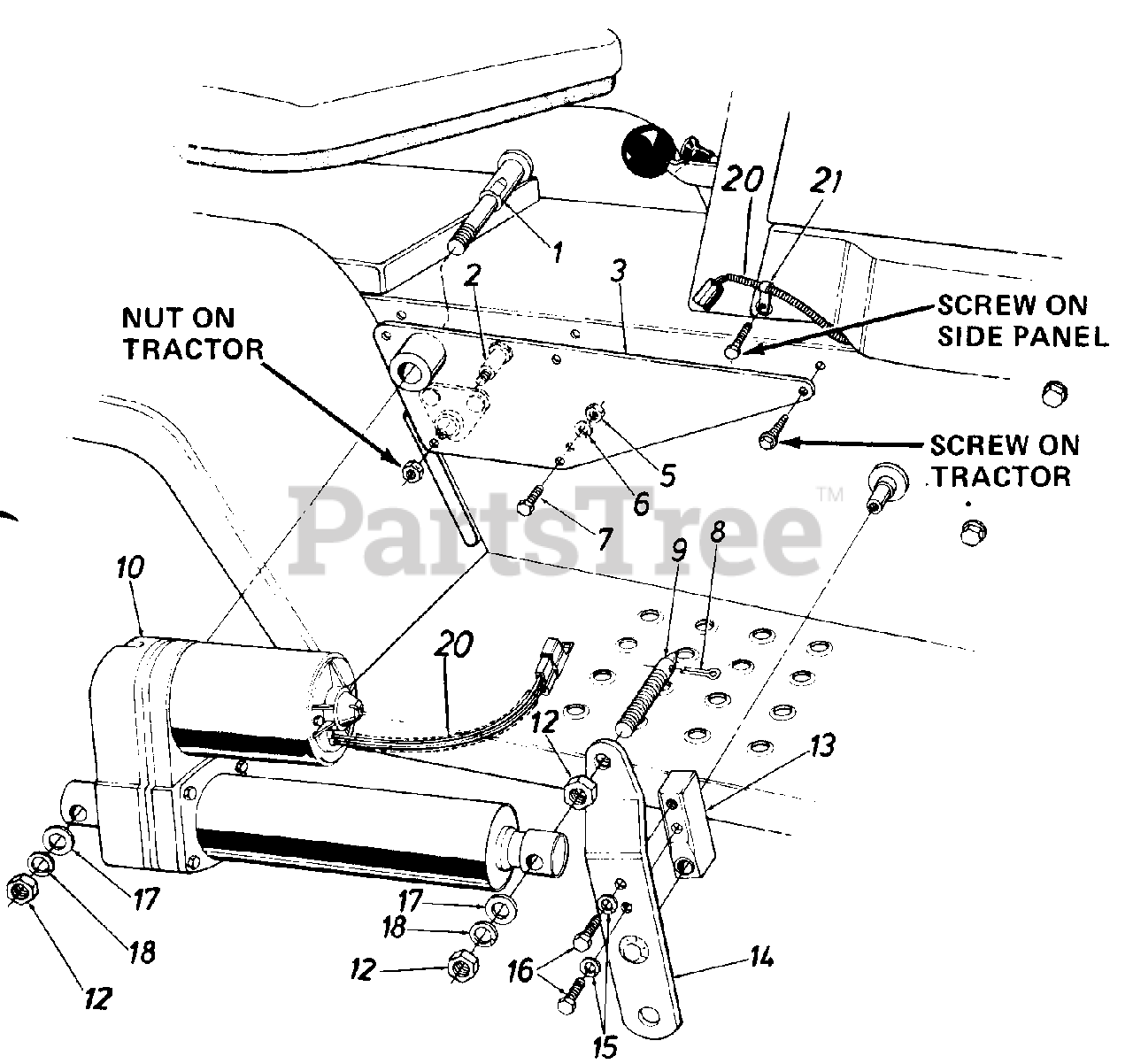

Electric Lift Kit Parts Diagram

  • Title

1

MTD 738-0639

Pivot Pin

$69.99

$

Usually ships in 3-6 days

0

2

MTD 738-0150

Shld. Bolt.626 Dia. x .96"
(Superseded to 938-0150)

$24.99

$

Usually ships in 3-6 days

0

3

MTD 16385

Mtg. Plate Ass'y.

Variations

MTD 16385-0637

No Longer Available PLATE ASM - POWDER BLACK (0637)

$

$

Not available

$

$

5

MTD 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

6

MTD 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

7

MTD 710-0412

Hex Bolt 1/4-28 x .75" Lg.

Note: (Grade 5)

$5.99

$

In Stock, Qty 9

0

8

MTD 714-0115

Cotter Pin

$3.99

$

In Stock, only 2 left!

0

9

MTD 738-0640

Indicator & Mtg. Pin

$

$

Not available

10

MTD 717-0620

Electric Actuator
(Superseded to 917-0620)

$1244.99

$

Usually ships in 3-6 days

0

12

MTD 712-0461

Hex Jam Nut 1/2-13 Thd.
(Superseded to 912-3048)

$4.99

$

In Stock, Qty 20+

0

13

MTD 748-0307

Lift Shaft Drive
(Superseded to 748-0307A)

$48.99

$

Usually ships in 3-6 days

0

14

MTD 16387

Lift Bracket Ass'y.
(Superseded to 16387-0637)

Variations

MTD 16387-0637

Lift Bracket Ass'y. - POWDER BLACK (0637)

$

$

Not available

$

$

15

MTD 736-0119

L-Wash.5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

MTD 710-0117

Hex Bolt 5/16-24x 1.0" Lg.
(Superseded to 710-0888)

Note: (Grade 5)

$4.49

$

In Stock, Qty 20+

0

17

MTD 736-0192

Fl-Wash. .53" I.D. x.93" O.D.

$4.49

$

In Stock, Qty 18

0

18

MTD 712-0921

L-Wash. 1/2" I.D.*

$

$

Currently unavailable

20

MTD 731-0759

Plastic Tubing-7"

$

$

Not available

21

MTD 726-0175

Clamp

$

$

Not available
