190-740-000 - White Outdoor 60" Deck Mower Deck Assembly (1997) Drive Shaft - Front Half Parts Diagram

60" Deck Mower Deck Assembly

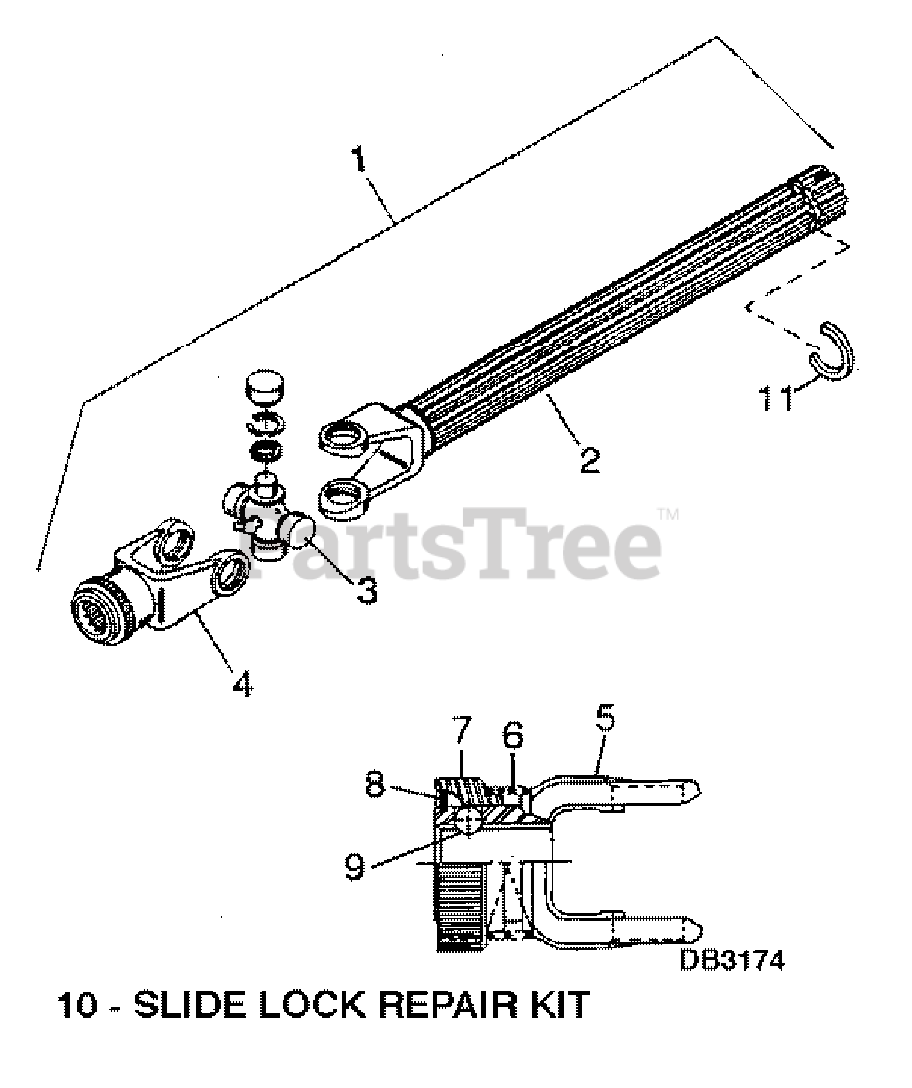

Drive Shaft - Front Half Parts Diagram

  • Title

1

Rear half U-joint drive

Note: Not Sold Separately

$

$

Not available

2

MTD WM-67492

Yoke and shaft

Note: NLA

$

$

Not available

3

MTD WM-65689

U-Joint repair kit - #0600

$

$

Not available

4

MTD WM-34508

Slide collar yoke assembly, 15-tooth #0600

Note: (Includes items 5, 6, 7, 8 & 9

$

$

Not available

5

Slide collar yoke Not Sold Separately

Note: Not Sold Separately

$

$

Not available

6

Spring

Note: Not Sold Separately

$

$

Not available

7

Slide collar

Note: Not Sold Separately

$

$

Not available

8

Snap ring

Note: Not Sold Separately

$

$

Not available

9

Steel ball

Note: Not Sold Separately

$

$

Not available

10

MTD WM-65690

Slide lock repair kit #0600

Note: (Includes items 6, 7, 8 & 9)

$259.99

$

Usually ships in 3-6 days

0

11

MTD WM-34578

.080 x .773 External retaining ring

$

$

Not available
