190-626 - Troy-Bilt Twin Bagger (2005) General Assembly Parts Diagram

Twin Bagger

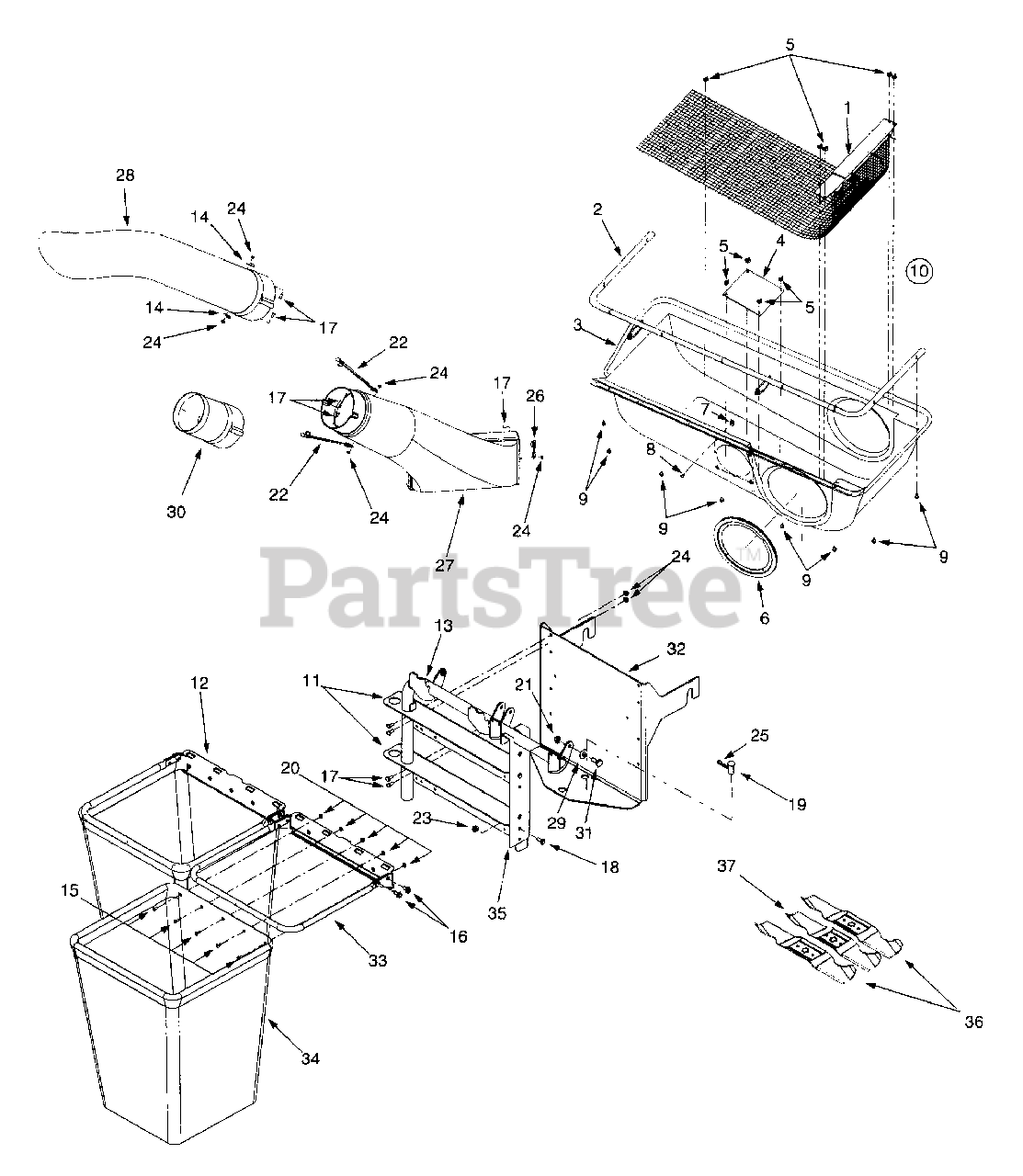

General Assembly Parts Diagram

  • Title

1

MTD 16847A

Screen Assembly

Variations

Troy-Bilt 16847A-0637

SCREEN ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

$

$

2

Troy-Bilt 16596

Hinge Bracket Assembly
(Superseded to 16596-0637)

Variations

Troy-Bilt 16596-0637

BRACKET ASSY-HINGE - POWDER BLACK (0637)

$105.99

$

Usually ships in 3-6 days

0

$105.99

$

Usually ships in 3-6 days

0

3

MTD 731-0821A

Grass Catcher Cover (Model 625)

$

$

Not available

MTD 731-1417

Grass Catcher Cover (Model 626)

$

$

Not available

4

MTD 731-0824A

Plastic Plate, 1/8 x 5.6 sq.

$

$

Not available

5

Troy-Bilt 726-0258

Zip Twist Fastener

$4.49

$

Usually ships in 3-6 days

0

6

Troy-Bilt 723-0412

Tube Seal (Model 625)

$32.99

$

Usually ships in 3-6 days

0

Troy-Bilt 723-0413

Tube Seal (Model 626)

$30.99

$

In Stock, only 2 left!

0

7

Troy-Bilt 712-0147

U-Type Speed Nut, #10-24

$6.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 710-0473

Screw, #10-24 x .5

$4.49

$

In Stock, only 2 left!

0

9

Troy-Bilt 710-0599

Hex Screw, 1/4-20 x .5 (Model 625)

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt 710-0896

Hex Screw, 1/4-14 x ..625 (Model 626)

$4.49

$

In Stock, Qty 20+

0

10

MTD 16594A

Cover Assembly (Model 626)

$

$

Not available

MTD 631-0007

Cover Assembly (Model 626)

$

$

Not available

11

Troy-Bilt 16587D

1 Catcher Support Tube Mounting Bracket
(Superseded to 16587D-0637)

Variations

Troy-Bilt 16587D-0637

Mounting Bracket - POWDER BLACK (0637)

$82.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 16591A

Bag Frame Hanger Bracket
(Superseded to 16591A-0637)

Variations

Troy-Bilt 16591A-0637

Bag Hanger Bracket, Black - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 16592

Catcher Support Tube Assembly
(Superseded to 16592-0637)

Variations

Troy-Bilt 16592-0637

Support Tube Assembly, Black - POWDER BLACK (0637)

$194.99

$

Usually ships in 3-6 days

0

$194.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 16606

Retainer Hook Bracket
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

15

Troy-Bilt 710-0473

Screw, #10-24 x .5

$4.49

$

In Stock, only 2 left!

0

16

Troy-Bilt 710-0604A

Self Tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 710-3008

Hex Cap Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 711-0309A

Clevis Pin

$12.99

$

In Stock, Qty 7

0

20

Troy-Bilt 712-0272

Hex Sems Nut, 10-24

$3.99

$

In Stock, only 1 left!

0

21

Troy-Bilt 712-0431

Hex Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 723-0476

Retainer Strap Assembly

$33.99

$

In Stock, only 1 left!

0

23

Troy-Bilt 712-3004A

Hex Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 712-3027

Hex Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0

25

Troy-Bilt 714-0117

Internal Cotter Pin, .148 x 3

$4.49

$

In Stock, Qty 16

0

26

Troy-Bilt 723-0383

Retainer Strap Assembly
(Superseded to 923-0383)

$15.99

$

In Stock, Qty 5

0

27

Troy-Bilt 731-0827B

Discharge Chute (Model 625)
(Superseded to 731-0827D)

$143.99

$

In Stock, only 1 left!

0

Troy-Bilt 731-0925B

Discharge Chute (Model 626)
(Superseded to 731-0925C)

$162.99

$

In Stock, only 2 left!

0

28

Troy-Bilt 731-0899A

Chute Tube (Model 625)
(Superseded to 731-0899E)

$108.99

$

In Stock, only 2 left!

0

Troy-Bilt 731-0926

Chute Tube (Model 626)
(Superseded to 731-0926B)

$142.99

$

In Stock, only 1 left!

0

29

Troy-Bilt 736-0253

Bell Washer

$3.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 731-3272

Extension Tube (Model 625)
(Superseded to 731-3272B)

$

$

Not available

Troy-Bilt 731-2299

Extension Tube (Model 626)
(Superseded to 731-2299A)

$73.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 738-0380

Shoulder Screw, .50 x .27, 3/8-16

$7.99

$

In Stock, only 1 left!

0

32

Troy-Bilt 783-1079

Catcher Support Bracket
(Superseded to 783-1079-0637)

Variations

Troy-Bilt 783-1079-0637

BRACKET-SUPPORT G-6 - POWDER BLACK (0637)

$

$

Not available

$

$

33

Troy-Bilt 749-0701A

Bag Frame Tube
(Superseded to 749-0701A-0637)

Variations

Troy-Bilt 749-0701A-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 764-0221

Bag
(Superseded to 964-0221)

$73.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 783-0601

Catcher Support Bracket
(Superseded to 783-0601-0637)

Variations

Troy-Bilt 783-0601-0637

Support Bracket - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 742-0644

Star Center Blade, 16.28 (Model 626)
(Superseded to 942-0611A)

$29.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 742-0645

Star Center Blade, 14.88 (Model 626)
(Superseded to 942-0645)

$25.99

$

Usually ships in 3-6 days

0
