190-624-000 - White Outdoor 45" Snow Thrower Attachment (1998) Sub Frame Parts Diagram

45" Snow Thrower Attachment

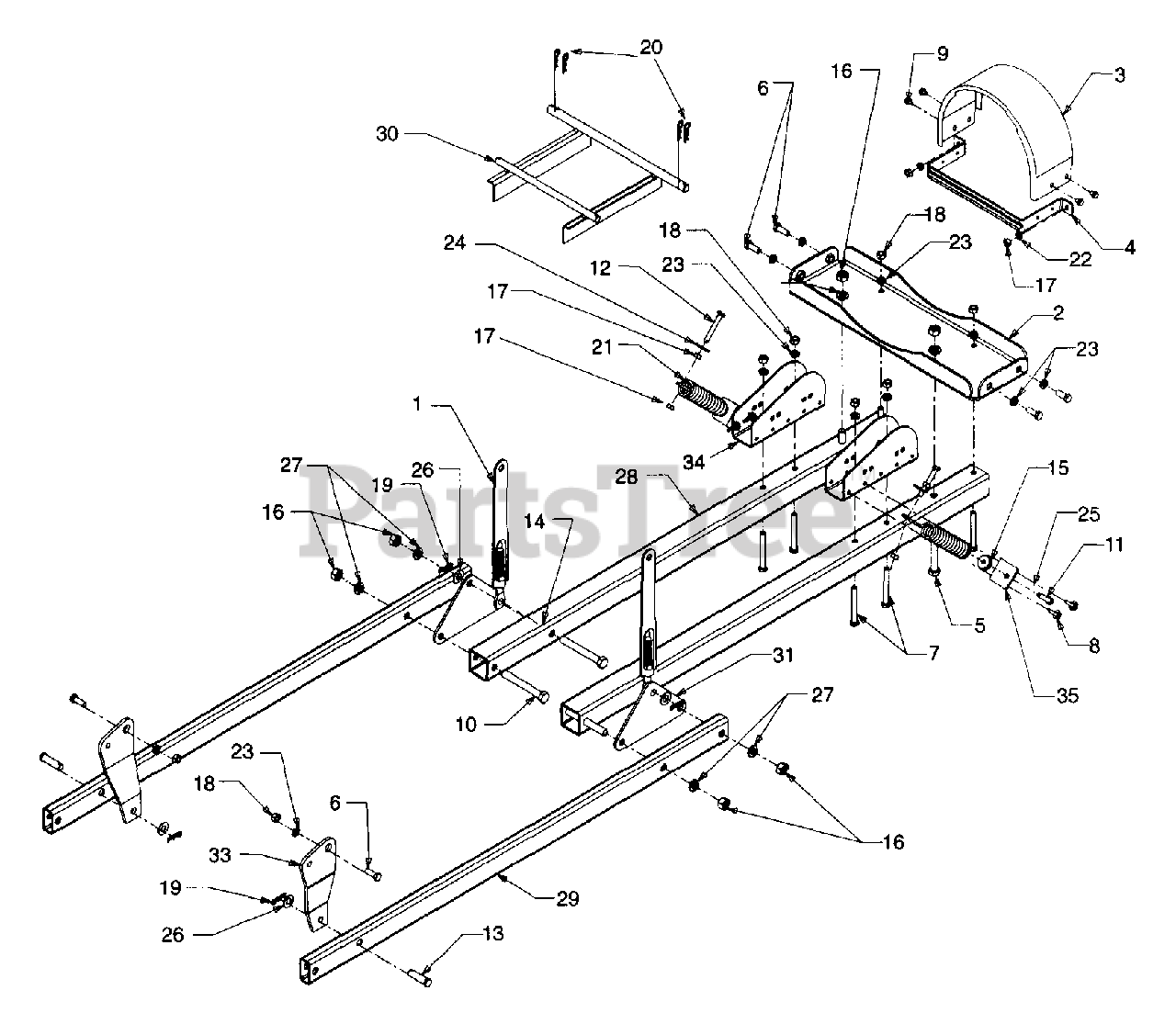

Sub Frame Parts Diagram

  • Title

1

MTD 17304

Lift Asm:Deck Link:Front

$40.99

$

Usually ships in 3-6 days

0

2

MTD 684-0110

Brkt Asm:Hsg.

Note: NLA

Variations

MTD 684-0110-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 703-2869

Cvr:Belt

Note: NLA

Variations

MTD 703-2869-0498

No Longer Available COVER-BELT - OLD CUB YELLOW (0498)

$

$

Not available

MTD 703-2869-0637

No Longer Available COVER-BELT - POWDER BLACK (0637)

$

$

Not available

$

$

4

MTD 703-2870

Brkt:Cvr:Belt

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-2870-0498

No Longer Available BRACKET-BE - OLD CUB YELLOW (0498)

$

$

Not available

MTD 703-2870-0637

BRACKET-BELT COVER - POWDER BLACK (0637)

$

$

Not available

$

$

5

MTD 710-0182

HHCS:1/2-13:3.00:GR5:Std.
(Superseded to 710-0182A)

$7.99

$

In Stock, only 2 left!

0

6

MTD 710-0514

HHCS:3/8-16:1.00:GR5:Std.

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0521

HHCS:3/8-16:3.00:GR8:Std.

$5.49

$

In Stock, Qty 11

0

8

MTD 710-0607

Scr. TT 5/16-16:.50 HxIndWsh.

$6.99

$

In Stock, Qty 9

0

9

MTD 710-0653

Scr:TT:1/4-20:.375:HxIndWsh.

$4.49

$

In Stock, Qty 7

0

10

MTD 710-0786

HHCS:1/2-13:4.00:Gr5:Std.

$16.99

$

Usually ships in 3-6 days

0

11

MTD 710-0959

HHCS:5/16-18:1.50:Gr5:Spec.

$7.49

$

Usually ships in 3-6 days

0

12

MTD 710-0395

HHCS:5/16-18: 2.50:Gr5:Std.

$4.99

$

In Stock, only 1 left!

0

13

MTD 911-0231

Pin:Clv:.50 Dia. x 1.59 Lg.
(Superseded to 711-0231A)

$6.49

$

In Stock, only 2 left!

0

14

MTD 911-0332

Pin:Clv:.50 Dia. x .78 Lg.

$16.99

$

In Stock, Qty 14

0

15

MTD 711-0509

Ins:Spring

$60.99

$

Usually ships in 3-6 days

0

16

MTD 912-0206

Nut:1/2-13:GrA:Hx
(Superseded to 712-0206)

$4.49

$

In Stock, Qty 20+

0

17

MTD 912-3010

Nut:5/16-18:GrB:Hx
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

18

MTD 912-3017

Nut:3/8-16:GrB:Hx
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

19

MTD 914-0101

Pin:Cot:Int .08 x 1.42
(Superseded to 714-0101)

$

$

Not available

20

MTD 714-0147

Pin:Cot:.125 x 1.75 Internal

$4.99

$

In Stock, Qty 6

0

21

MTD 732-0813

Spr:Extn:1.25 O.D. x 7.25

$

$

Not available

22

MTD 936-0119

Wash:Lock:5/16: Regular Duty

$4.99

$

In Stock, Qty 20+

0

23

MTD 936-0169

Wash:Lock:3/8:Regular Duty
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

24

MTD 936-0231

Wash:Fl:.344 I.D. x 1.125 O.D.
(Superseded to 736-0231)

$

$

Not available

25

MTD 736-0242

Wash:Belvl:.340 I.D. X .872 O.D.

$4.49

$

In Stock, Qty 20+

0

26

MTD 936-0272

Wash:Fl:.510 X 1.00 X .060
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0

27

MTD 936-0921

Wash:Lock:1/2:Regular Duty
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 6

0

28

MTD 750-1057

Tube:Lift:2.0 x 2.0 x 42.0 Lg.

Note: NLA

$

$

Not available

29

MTD 750-1059

Tube:Lift:1.0 x 2.0 x 43.0 Lg.

Note: NLA

Variations

MTD 750-1059-0637

No Longer Available TUBING SQ - POWDER BLACK (0637)

$

$

Not available

$

$

30

MTD 784-5148A

Guide Bracket Assy.

Note: NLA

$

$

Not available

31

MTD 984-5199

Brkt:Lift Plate

$

$

Not available

32

MTD 784-5203-0637

Brkt:Hngr:RR LH

$

$

Not available

33

MTD 784-5204

Brkt:Hngr:RR RH

Note: NLA

Variations

MTD 784-5204-0637

No Longer Available BRACKET-HA - POWDER BLACK (0637)

$

$

Not available

$

$

34

MTD 784-5211B

Brkt:Idlr:Supt.

Note: NLA

$

$

Not available

35

MTD 784-5686-0637

Brkt:Spr:Mt.

$

$

Not available
