190-624-000 - White Outdoor 45" Snow Thrower Attachment (1998) Auger Gear Assembly Parts Diagram

45" Snow Thrower Attachment

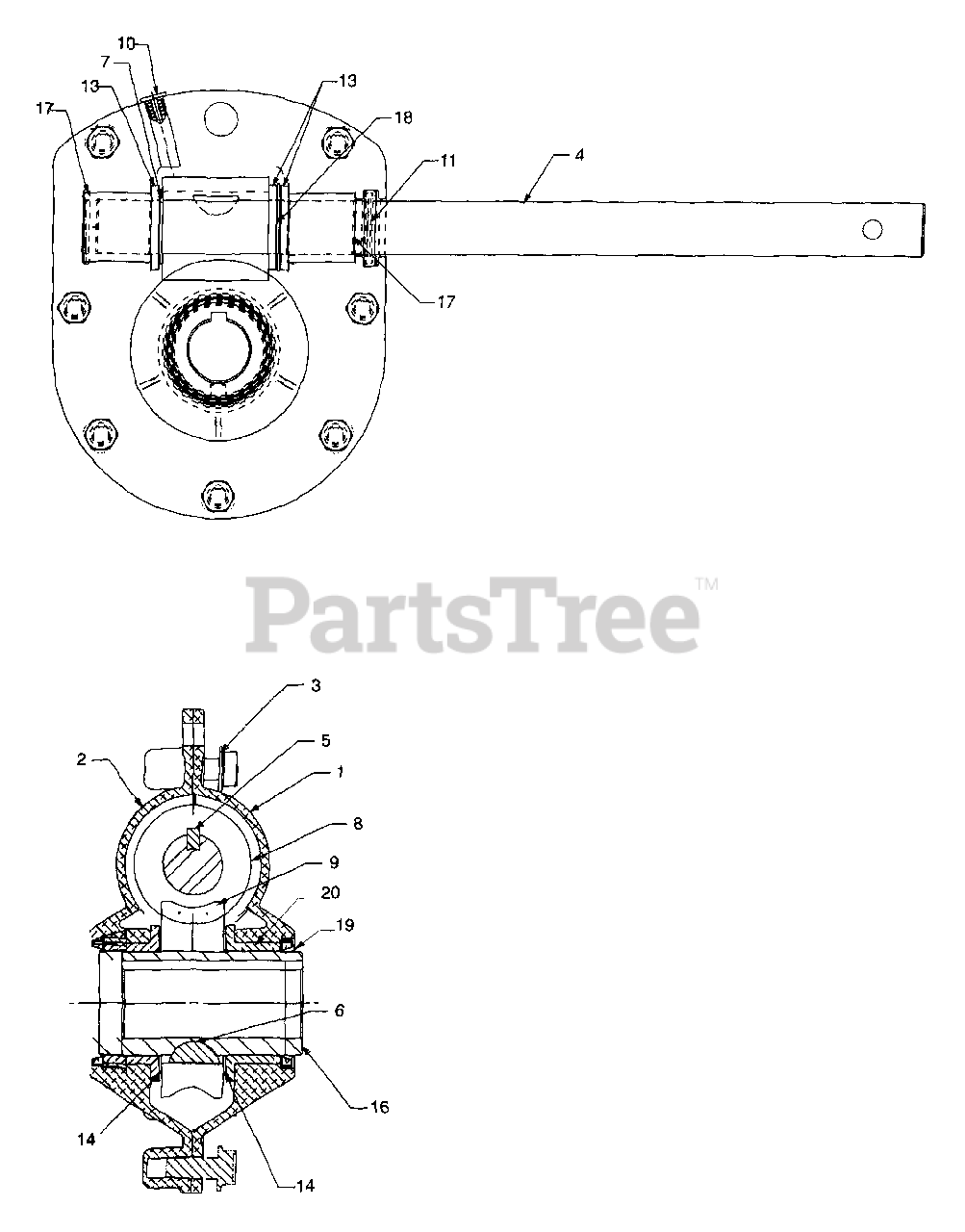

Auger Gear Assembly Parts Diagram

  • Title

1

MTD 918-0247

Auger Housing Ass'y, L.H.

$103.99

$

In Stock, only 1 left!

0

2

MTD 918-0246

Auger Housing Ass'y, R.H.

$

$

Not available

3

MTD 710-1260A

Scr. TT HxWash. 5/16-18:.75" Lg.

$3.99

$

In Stock, Qty 20+

0

4

MTD 711-1097A

Auger Input Shaft

$

$

Not available

5

MTD 914-0126

Key, Hi Pro 3/16 x 3/4 Dia.
(Superseded to 714-0126)

$4.99

$

In Stock, Qty 16

0

6

MTD 914-0135

Key, Woodruff #91:1/4 x 3/4
(Superseded to 714-0135)

$

$

Not available

7

MTD 716-0111

Retaining Ring

$6.99

$

In Stock, only 4 left!

0

8

MTD 917-0299

Worm Gear Double Thread LH

$124.99

$

In Stock, only 2 left!

0

9

MTD 917-1425

Worm Gear LH

$177.99

$

In Stock, only 2 left!

0

10

MTD 721-0325

Plug

$4.49

$

In Stock, Qty 20+

0

11

MTD 921-0145

Oil Seal

$9.99

$

Usually ships in 3-6 days

0

13

MTD 936-0291

Wash. Flat .88 I.D. x 1.380 O.D. x .125
(Superseded to 736-0291)

$11.99

$

Usually ships in 3-6 days

0

14

MTD 936-0266

Wash. Fl. 1.52 I.D. x 2.0 O.D. x .30
(Superseded to 736-0266)

$

$

Not available

16

MTD 738-0275

Worm Gear Shaft

$112.99

$

Usually ships in 3-6 days

0

17

MTD 941-0217

Sleeve

$17.99

$

In Stock, Qty 9

0

18

MTD 741-0184

Thrust Bearing

$16.99

$

Usually ships in 3-6 days

0

19

MTD 921-0146

Oil Seal

$12.99

$

In Stock, only 1 left!

0

20

MTD 741-0670

Flange Bearing

$13.99

$

Usually ships in 3-6 days

0

MTD 918-0244

Auger Gear Ass'y.

Note: Complete

$

$

Not available
