190-624-000 - White Outdoor 45" Snow Thrower Attachment (1997) Carriage Assembly Parts Diagram

45" Snow Thrower Attachment

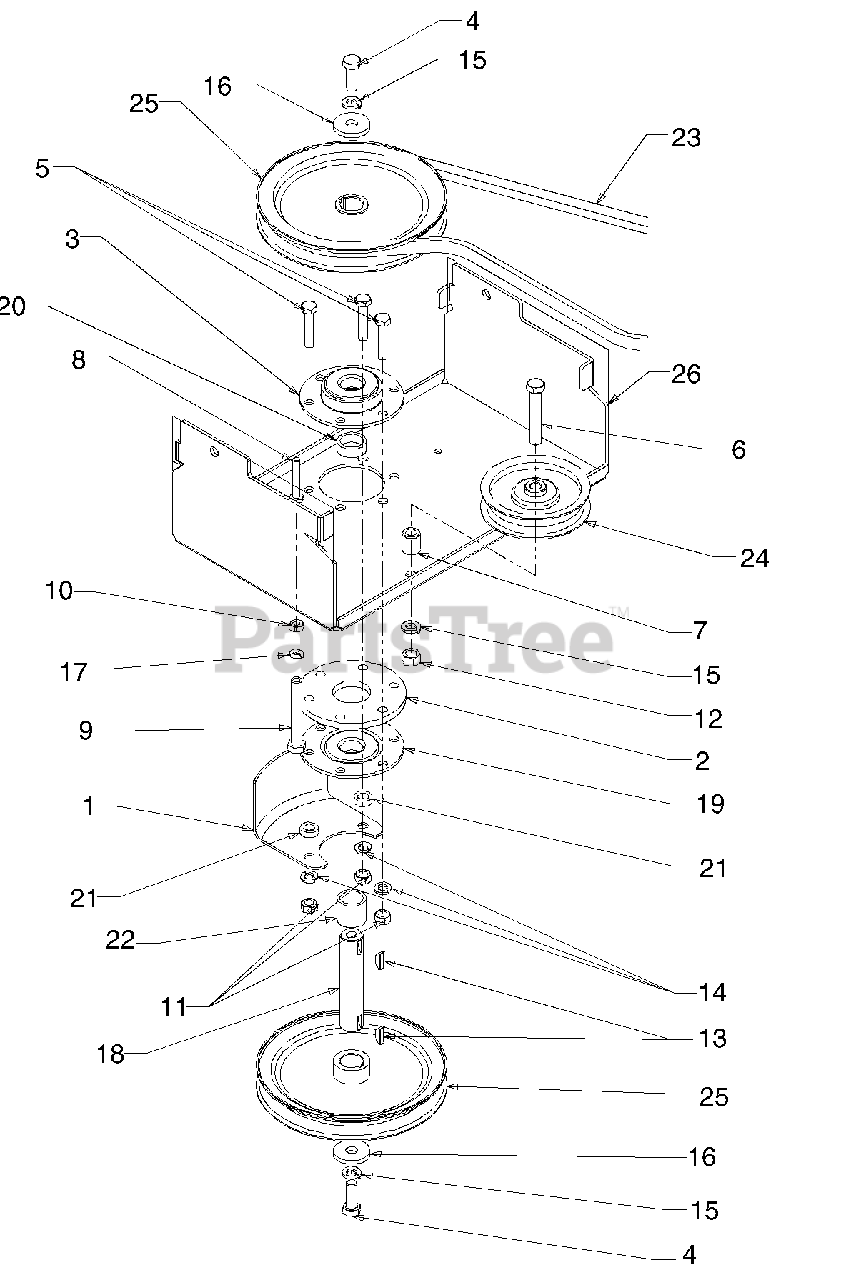

Carriage Assembly Parts Diagram

  • Title

1

White Outdoor 05406

BELT GUARD
(Superseded to 05406-0637)

Variations

White Outdoor 05406-0637

GUARD-BELT - POWDER BLACK (0637)

$

$

Not available

$

$

2

White Outdoor 14088B

PLT:SPDL:SPCR
(Superseded to 14088B-0637)

Variations

White Outdoor 14088B-0637

Spindle Spacer - POWDER BLACK (0637)

$29.99

$

Usually ships in 3-6 days

0

$29.99

$

Usually ships in 3-6 days

0

3

White Outdoor 15297A

OPEN BRG. HOUSING 1.85

$69.99

$

Usually ships in 3-6 days

0

4

White Outdoor 710-0591

HHCS:3/8-24:1.00:GR5:LOCK

$4.49

$

In Stock, only 1 left!

0

5

White Outdoor 710-0624

HHCS:5/16-24:1.50:GR5:STD

$5.99

$

Usually ships in 3-6 days

0

6

White Outdoor 710-0756

HHCS:3/8-16:2.25:GR2:STD

$

$

Not available

7

White Outdoor 711-0396

SPCR:.385 X .623 X .750 LG

$11.99

$

Usually ships in 3-6 days

0

8

White Outdoor 711-0747

PIN:GDE:.250 DIA X 1.68 LG

$10.99

$

Usually ships in 3-6 days

0

9

White Outdoor 711-0793

PIN:CLEVIS:.375 DIA X 2.63 LG

$

$

Not available

10

White Outdoor 712-0107

NUT:LOCK:1/4-20
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

11

White Outdoor 712-0123

NUT:5/16-24:GRA:HX
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

12

White Outdoor 712-0798

NUT:3/8-16:GRA:HX

$4.49

$

In Stock, only 2 left!

0

13

White Outdoor 714-0161

KEY:HI-PRO 3/16 X 5/8
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 736-0119

WASH:LOCK:5/16:REGULAR DUTY
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

15

White Outdoor 736-0169

WASH:LOCK:3/8:REGULAR DUTY

$3.99

$

In Stock, Qty 20+

0

16

White Outdoor 736-0247

FLAT WASHER .406 ID X 1 1/4 OD

$9.49

$

In Stock, Qty 16

0

17

White Outdoor 736-0329

WASH:LOCK:1/4:REGULAR DUTY
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

18

White Outdoor 738-0680

SHAFT- .787 DIA X 3.81 LG.
(Superseded to 938-0680)

$102.99

$

Usually ships in 3-6 days

0

19

White Outdoor 741-0163A

HSG ASM:BEARING

$48.99

$

Usually ships in 3-6 days

0

20

White Outdoor 750-0456

SPACER .790 ID X .347 LG.

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 750-0535

SPACER .378 ID X .625 OD X .22
(Superseded to 950-0535)

$4.49

$

In Stock, only 4 left!

0

22

White Outdoor 750-0660

SPACER-.80 ID X 1.00 OD X .900

$

$

Not available

23

White Outdoor 754-0229

BELT: V: 1/2 X 52.00 LG
(Superseded to 954-0229)

$59.99

$

Usually ships in 3-6 days

0

24

White Outdoor 756-0405

FL-IDLER W/ FLANGES 3.75 OD

$71.99

$

Usually ships in 3-6 days

0

25

White Outdoor 756-0438

PUL:V TYP:6.50 OD
(Superseded to 956-0438)

$83.99

$

Usually ships in 3-6 days

0

26

White Outdoor 784-5146

BRKT: CARR
(Superseded to 784-5146-0637)

Variations

White Outdoor 784-5146-0637

BRACKET-CARRIAGE - POWDER BLACK (0637)

$

$

Not available

$

$
