190-624-000 - MTD 45" Snow Thrower Attachment (1998) Drive Assembly Parts Diagram

45" Snow Thrower Attachment

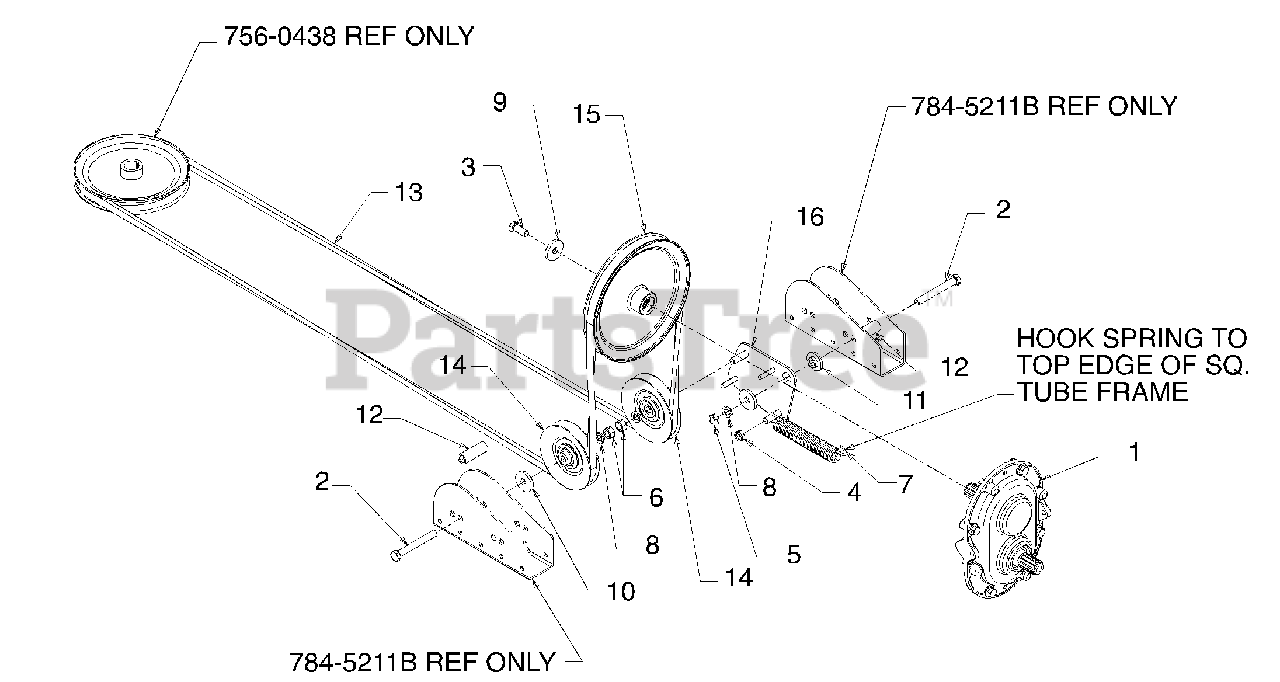

Drive Assembly Parts Diagram

  • Title

1

MTD 684-0113

BOX ASM:SPKT
(Superseded to 984-0113A)

$

$

Not available

2

MTD 710-0521

HHCS:3/8-16:3.00:GR8:STD

$5.49

$

In Stock, Qty 11

0

3

MTD 710-0696

HHCS:3/8-24:.875:GR8:STD

$6.99

$

In Stock, only 2 left!

0

4

MTD 712-0116

NUT:JAM:3/8-24:INS LOCK

$4.99

$

In Stock, Qty 6

0

5

MTD 712-0266

HEX CENT L-JAM NUT 3/8-16
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

6

MTD 712-3017

NUT:3/8-16:GRB:HX

$4.49

$

In Stock, Qty 20+

0

7

MTD 732-0491

SPR:EXTN:.87 DIA X 6.00 LG

$

$

Not available

8

MTD 736-0169

WASH:LOCK:3/8:REGULAR DUTY

$3.99

$

In Stock, Qty 20+

0

9

MTD 736-0235

FL-WASH .406 ID X 1.25 OD
(Superseded to 736-0247)

$9.49

$

In Stock, Qty 12

0

10

MTD 736-0247

FLAT WASHER .406 ID X 1 1/4 OD

$9.49

$

In Stock, Qty 12

0

11

MTD 738-0347

SHLD SPACER .625 ID X .169
(Superseded to 938-0347)

$10.99

$

Usually ships in 3-6 days

0

12

MTD 750-0668

SPACER .32 ID X .625 OD X 1.74

$

$

Not available

13

MTD 754-0458

BELT:V TYP:A SECT X 113" POLY
(Superseded to 954-0458)

$84.99

$

Usually ships in 3-6 days

0

14

MTD 756-0487

V-BELT IDLER-.38 ID X 4.0 DIA

$48.99

$

In Stock, only 1 left!

0

15

MTD 756-0496

PUL:DR:7.00 DIA

$

$

Not available

16

MTD 784-5200

BRKT ASM:IDLR

Variations

MTD 784-5200-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)

$

$

Not available

$

$
