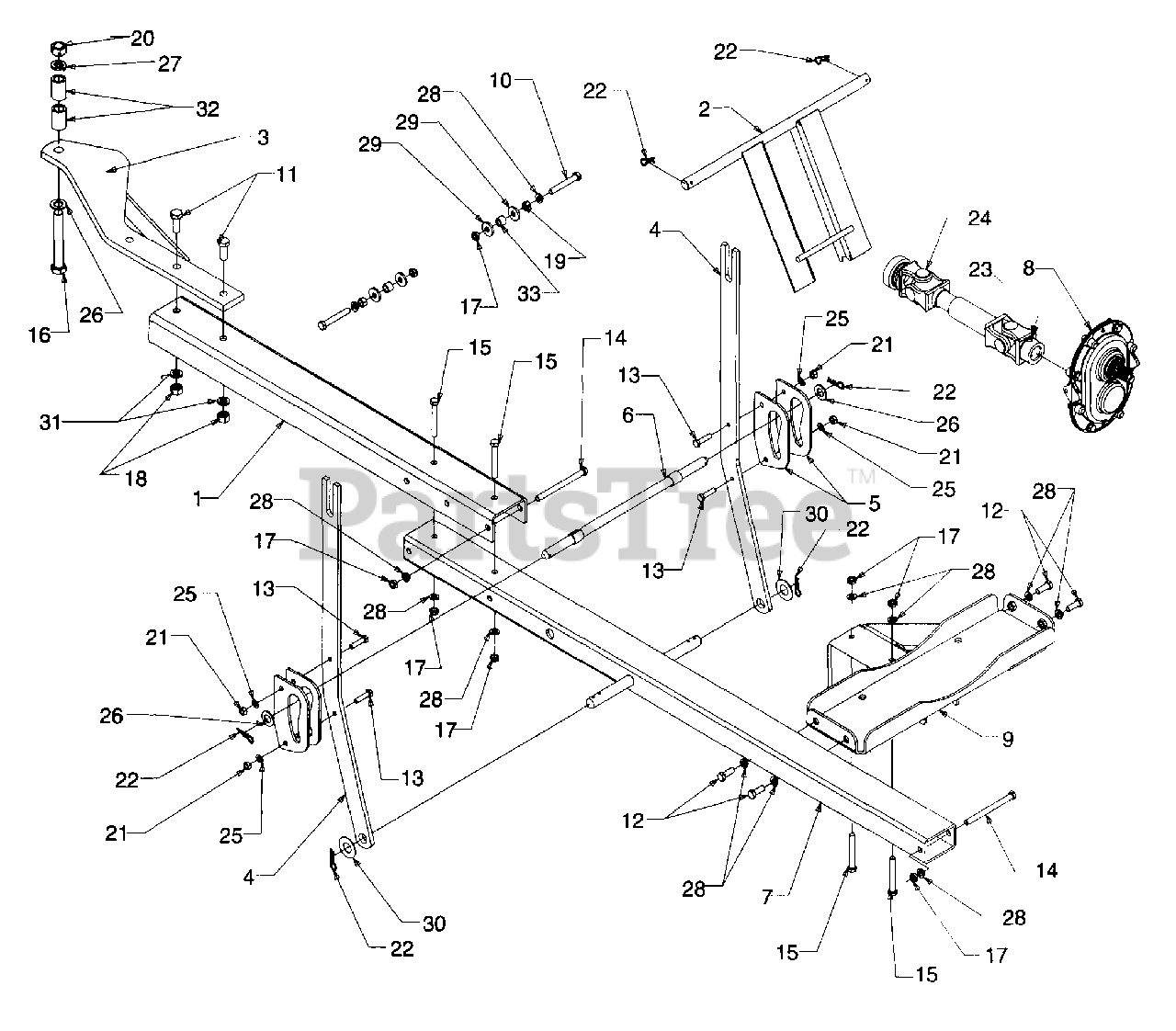

190-623-000 - White Outdoor 45" Snow Thrower Attachment (1998) Sub Frame Parts Diagram

45" Snow Thrower Attachment

Sub Frame Parts Diagram

  • Title

1

White Outdoor 05611A

LIFT BRKT

Variations

White Outdoor 05611A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

2

White Outdoor 05613

BRKT ASM:GUIDE
(Superseded to 05707)

$

$

Not available

3

White Outdoor 05646

HITCH HANGING BAR
(Superseded to 05646-0637)

Variations

White Outdoor 05646-0637

PLATE ASSY - POWDER BLACK (0637)

$

$

Not available

$

$

4

White Outdoor 13780

LIFT BAR

Variations

White Outdoor 13780-0637

No Longer Available BAR-LIFT - POWDER BLACK (0637)

$

$

Not available

$

$

5

White Outdoor 13781

CAM:LIFT

Variations

White Outdoor 13781-0637

No Longer Available CAM-LIFT BAR - POWDER BLACK (0637)

$

$

Not available

$

$

6

White Outdoor 13789

CROSS SHAFT ASSY FRONT

$

$

Not available

7

White Outdoor 684-0094

LIFT ASM:TUBE

Variations

White Outdoor 684-0094-0637

No Longer Available TUBE ASSEMBLY LIFT - POWDER BLACK (0637)

$

$

Not available

$

$

8

White Outdoor 684-0097

BOX ASM:GEAR

$

$

Not available

9

684-0124

BRKT ASM:HSG:MT

$

$

Not available

10

White Outdoor 710-0369

HHCS:3/8-24:2.50:GR5:SPEC

$6.49

$

Usually ships in 3-6 days

0

11

White Outdoor 710-0474

HHCS:1/2-13:1.25:GR2:STD

$

$

Not available

12

White Outdoor 710-0514

HHCS:3/8-16:1.00:GR5:STD

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 710-0528

HHCS:5/16-18:1.25:GR5:STD

$4.49

$

In Stock, Qty 19

0

14

White Outdoor 710-0620

HHCS:3/8-24:4.50:GR5:STD

$11.99

$

In Stock, only 2 left!

0

15

White Outdoor 710-0629

HHCS:3/8-24:2.75:GR5:STD

$

$

Not available

16

White Outdoor 710-0929

HHCS:5/8-18:4.50:GR5:STD
(Superseded to 710-3151A)

$18.99

$

Usually ships in 3-6 days

0

17

White Outdoor 712-0116

NUT:JAM:3/8-24:INS LOCK

$4.99

$

In Stock, Qty 6

0

18

White Outdoor 712-0206

NUT:1/2-13:GRA:HX

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 712-0241

NUT:3/8-24:GRA:HX

$4.49

$

In Stock, Qty 13

0

20

White Outdoor 712-0337

NUT:5/8-18:GRD:HX

$4.49

$

In Stock, only 4 left!

0

21

White Outdoor 712-3010

NUT:5/16-18:GRB:HX

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 714-0147

PIN:COT:.125 X 1.75 INTERNAL

$4.99

$

In Stock, Qty 6

0

23

White Outdoor 715-0113

PIN:SPIROL:5/16:2.50

$

$

Not available

24

White Outdoor 717-0366

SHF:DR:UNIV X 1344 LG

$

$

Not available

25

White Outdoor 736-0119

WASH:LOCK:5/16:REGULAR DUTY
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

26

White Outdoor 736-0156

WASH:FL:.635 X 1.125 X .090

$4.49

$

In Stock, Qty 12

0

27

White Outdoor 736-0158

WASH:LOCK:5/8:REGULAR DUTY

$4.49

$

In Stock, Qty 11

0

28

White Outdoor 736-0169

WASH:LOCK:3/8:REGULAR DUTY

$3.99

$

In Stock, Qty 20+

0

29

White Outdoor 736-0258

WASH:FLAT:.385 X 1.0 X .135

$4.49

$

In Stock, only 4 left!

0

30

White Outdoor 736-0316

WASH:FL:.78ID X 1.590 OD X .06

$4.49

$

In Stock, Qty 20+

0

31

White Outdoor 736-0921

WASH:LOCK:1/2:REGULAR DUTY

$4.49

$

In Stock, only 2 left!

0

32

750-0156

HUB .635 ID X 1.00 OD X 1.50

$

$

Not available

33

White Outdoor 750-0497

SPCR:.375 IDX .625 OD X .445 LG

$10.99

$

Usually ships in 3-6 days

0
