190-623-000 - White Outdoor 45" Snow Thrower Attachment (1997) 45-Inch Snow Thrower Attachment (Part 1) Parts Diagram

45" Snow Thrower Attachment

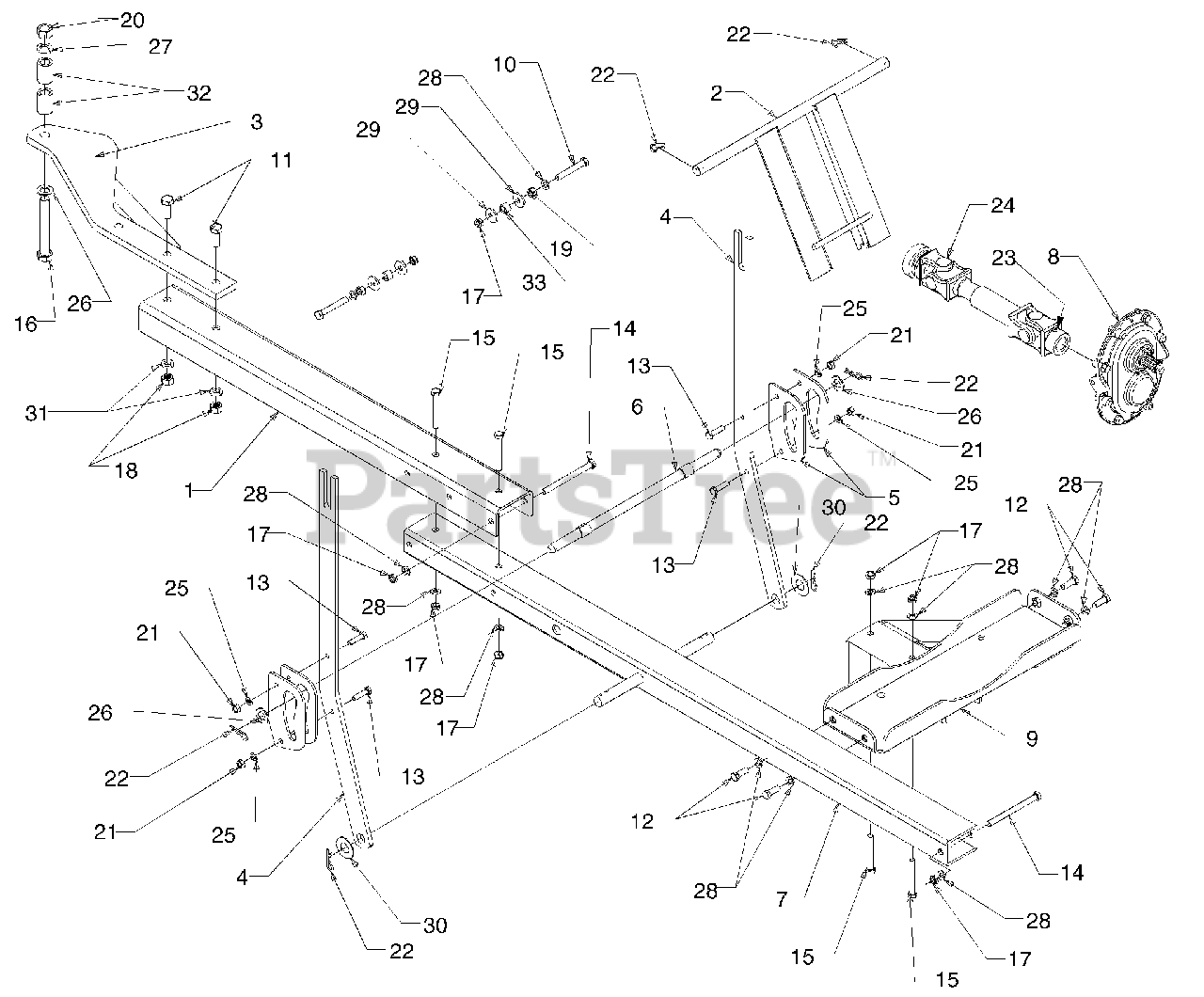

45-Inch Snow Thrower Attachment (Part 1) Parts Diagram

  • Title

1

MTD 05611A

LIFT BRKT

Note: NLA

Variations

MTD 05611A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 5613

BRKT ASM:GUIDE

Note: NLA

$

$

Currently unavailable

3

MTD 5646

HITCH HANGING BAR

Note: NLA

$

$

Currently unavailable

4

MTD 13780

LIFT BAR

Note: NLA

Variations

MTD 13780-0637

No Longer Available BAR-LIFT - POWDER BLACK (0637)

$

$

Not available

$

$

5

MTD 13781

CAM:LIFT

Note: NLA

Variations

MTD 13781-0637

No Longer Available CAM-LIFT B - POWDER BLACK (0637)

$

$

Not available

$

$

6

MTD 13789

CROSS SHAFT ASSY FRONT

Note: NLA

$

$

Not available

7

MTD 684-0094

LIFT ASM:TUBE

Note: NLA

Variations

MTD 684-0094-0637

No Longer Available TUBE ASM - POWDER BLACK (0637)

$

$

Not available

$

$

8

MTD 684-0097

BOX ASM:GEAR

Note: NLA

$

$

Not available

9

MTD 684-0124

BRKT ASM:HSG:MT

Note: NLA

$

$

Currently unavailable

10

MTD 710-0369

SCREW-HEX 3/8-24X2

$6.49

$

Usually ships in 3-6 days

0

11

MTD 710-0474

SCREW-HEX 1/2-13 X

$

$

Not available

12

MTD 710-0514

SCREW-HEX 3/8-16 X

$4.49

$

In Stock, Qty 20+

0

13

MTD 710-0528

SCREW-HEX 5/16-18

$4.49

$

In Stock, Qty 19

0

14

MTD 710-0620

SCREW-HEX HD 3/8 2

$11.99

$

In Stock, only 2 left!

0

15

MTD 710-0629

SCREW-HEX 3/8-24 X

$

$

Not available

16

MTD 710-3151A

BOLT-HEX 5/8-18

$18.99

$

Usually ships in 3-6 days

0

17

MTD 912-0116

NUT-HEX INS
(Superseded to 712-0116)

$

$

Not available

18

MTD 912-0206

NUT-HEX 1/2-13
(Superseded to 712-0206)

$4.49

$

In Stock, Qty 20+

0

19

MTD 712-0241

NUT-HEX 3/8-24

$4.49

$

In Stock, Qty 13

0

20

MTD 712-0337

NUT-HEX 5/8-18

$4.49

$

In Stock, only 4 left!

0

21

MTD 912-3010

NUT-HEX 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

22

MTD 714-0147

HITCH PIN CLIP

$4.99

$

In Stock, Qty 6

0

23

MTD 715-0113

PIN-SPRING SPIR 5/

$

$

Not available

24

MTD 717-0366

SHF:DR:UNIV X 1344 LG

Note: NLA

$

$

Not available

25

MTD 936-0119

WASHER-LOCK 5/16

$4.99

$

In Stock, Qty 20+

0

26

MTD 736-0156

WASHER-FL-.635 ID

$4.49

$

In Stock, Qty 12

0

27

MTD 936-0158

WASHER-LOCK 5/8

$4.49

$

In Stock, Qty 11

0

28

MTD 936-0169

WASHER LOCK-3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

29

MTD 736-0258

WASHER-FL-.385 X 1

$4.49

$

In Stock, only 4 left!

0

30

MTD 936-0316

WASHER-FL
(Superseded to 736-0316)

$4.49

$

In Stock, Qty 20+

0

31

MTD 936-0921

WASHER LOCK-1/2
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 6

0

32

MTD 750-0156

HUB .635 ID X 1.00 OD X 1.50

Note: NLA

$

$

Currently unavailable

33

MTD 750-0497

SPACER-.375 X .625

$10.99

$

Usually ships in 3-6 days

0
