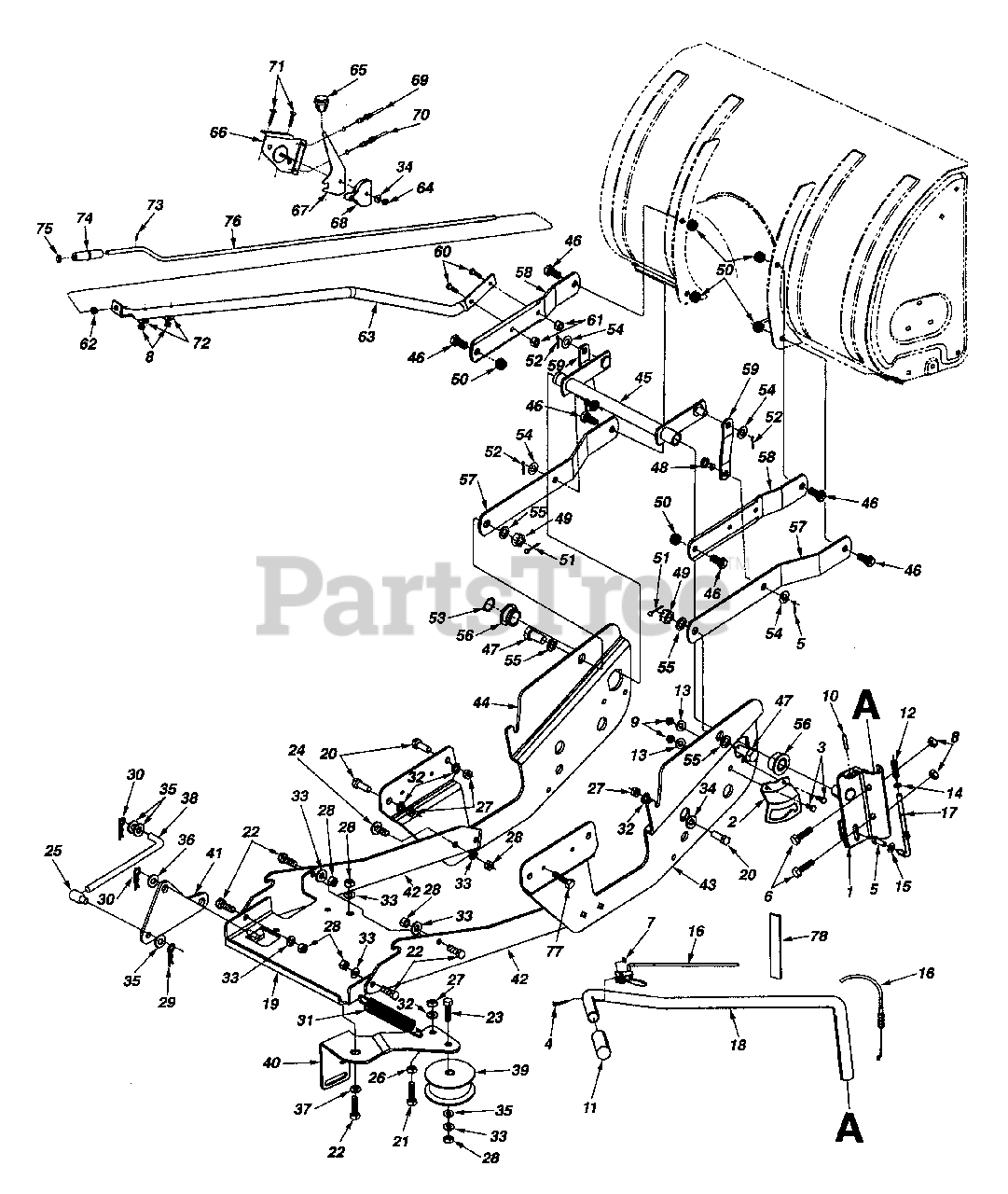

190-621-190 - White Outdoor 40" Snow Thrower Attachment (1996) Snow Thrower (Part 2) Parts Diagram

40" Snow Thrower Attachment

Snow Thrower (Part 2) Parts Diagram

  • Title

1

White Outdoor 683-0130

Lift Bracket Ass'y.

Variations

White Outdoor 683-0130-0637

No Longer Available BRACKET ASSY-HNDL - POWDER BLACK (0637)

$

$

Not available

$

$

2

White Outdoor 703-2728A

Lift Bracket

Variations

White Outdoor 703-2728A-0637

Lift Latch Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

3

White Outdoor 710-0157

Hex Bolt 5/16-24 x .75" Lg. (Gr. 5)

$4.49

$

In Stock, Qty 15

0

4

White Outdoor 710-1233

Oval C-Sunk Scr. #10-24 x 1.36" Lg.

$4.99

$

In Stock, Qty 11

0

5

White Outdoor 710-1238

Wax Wash. Hd. Scr. 5/16-18 x .87" Lg.
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 710-3180

Hex Bolt 5/16-18 x 1.75" Lg.

$5.49

$

In Stock, Qty 20+

0

7

White Outdoor 712-0127

Flat Weld Nut #10-24 Thd.

$3.49

$

In Stock, Qty 13

0

8

White Outdoor 712-3004A

Hex Flange L-Nut 5/16-18 Thd.

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 712-3057

Hex Nut 5/16-18 Thd. (Gr. 5)
(Superseded to 912-3057)

$6.99

$

In Stock, only 2 left!

0

10

White Outdoor 715-0114

Spring Pin 1.5" Lg.

$9.49

$

In Stock, Qty 20+

0

11

White Outdoor 720-0274

Grip

$11.99

$

In Stock, Qty 8

0

12

White Outdoor 732-0306

Ext. Spring 1.75" Lg.
(Superseded to 932-0306A)

$8.49

$

In Stock, only 2 left!

0

13

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

14

White Outdoor 736-0140

Fl-Wash. .385" I.D. x .62" O.D.

$7.49

$

In Stock, Qty 6

0

15

White Outdoor 736-0400

Fl-Wash. .194" I.D. x .62" O.D.

$5.49

$

In Stock, Qty 11

0

16

White Outdoor 746-3060

Lift Cable
(Superseded to 946-3060B)

Note: Code: N notates a new part (not previously existing).

$

$

Not available

17

White Outdoor 747-3248A

Lift Index Rod
(Superseded to 947-3248A)

Note: Code: N notates a new part (not previously existing).

$

$

Not available

18

White Outdoor 750-1028

Lift Handle Tube
(Superseded to 750-1028A)

Note: Code: N notates a new part (not previously existing).

$

$

Not available

19

White Outdoor 683-0133

Pulley Mounting Brkt. Ass'y.

Variations

White Outdoor 683-0133-0637

BRACKET ASSY-PUL M - POWDER BLACK (0637)

$

$

Not available

$

$

20

White Outdoor 710-0376

Hex Bolt 5/16-18 x 1" Lg. (Gr. 5)

$3.99

$

In Stock, Qty 20+

0

21

White Outdoor 710-0395

Hex Bolt 5/16-18 x 2.25" Lg.

$4.99

$

In Stock, only 1 left!

0

22

White Outdoor 710-0514

Hex Bolt 3/8-16 x 1" Lg.

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 710-3144

Hex Bolt 3/8-16 x 2" Lg. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

24

White Outdoor 710-3168

Carriage Bolt 3/8-16 x 1" Lg. (Gr. 5)

$3.99

$

In Stock, Qty 20+

0

25

White Outdoor 711-0198

Ferrule 3/8-24 Thd.
(Superseded to 911-0198)

$13.99

$

In Stock, Qty 17

0

26

White Outdoor 712-3007

Hex Jam Nut 5/16-18 Thd.

$6.99

$

In Stock, only 2 left!

0

27

White Outdoor 712-3010

Hex Nut 5/16-18 Thd. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

28

White Outdoor 712-3017

Hex Nut 3/8-16 Thd. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 714-0101

Hairpin Clip 1.42" Lg.

$4.99

$

In Stock, only 1 left!

0

30

White Outdoor 714-0145

Hairpin Clip 1.62" Lg.

$4.99

$

In Stock, Qty 20+

0

31

White Outdoor 732-0773

Ext. Spring 5.5" Lg.

$49.99

$

Usually ships in 3-6 days

0

32

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

33

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

34

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

35

White Outdoor 736-0300

Fl-Wash. .406" I.D. x .875" O.D.

$4.49

$

In Stock, Qty 20+

0

36

White Outdoor 736-3019

Fl-Wash. .531" I.D. x 1" O.D.

$5.99

$

In Stock, Qty 11

0

37

White Outdoor 738-0347

Shoulder Spacer
(Superseded to 938-0347)

$10.99

$

Usually ships in 3-6 days

0

38

White Outdoor 747-0533

Adj. Clutch Control Rod
(Superseded to 747-0533A)

$

$

Not available

39

White Outdoor 756-0218

Idler Pulley

$34.99

$

Usually ships in 3-6 days

0

40

White Outdoor 783-0358

Idler Bracket

Variations

White Outdoor 783-0358-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

41

White Outdoor 783-0359

Idler Engagement Bracket
(Superseded to 783-0359-0637)

Variations

White Outdoor 783-0359-0637

BRACKET-IDLER ENGA - POWDER BLACK (0637)

$50.99

$

Usually ships in 3-6 days

0

$50.99

$

Usually ships in 3-6 days

0

42

White Outdoor 783-0362

Hanger Bracket
(Superseded to 783-0362A-0637)

Variations

White Outdoor 783-0362-0637

BRACKET-MT HANGER - POWDER BLACK (0637)

$

$

Not available

$

$

43

White Outdoor 783-0372

Side Plate - R.H.
(Superseded to 783-0372-0637)

Variations

White Outdoor 783-0372-0637

PLATE-SIDE RH - POWDER BLACK (0637)

$

$

Not available

$

$

44

White Outdoor 783-0373

Side Plate - L.H.
(Superseded to 783-0373-0637)

Variations

White Outdoor 783-0373-0637

PLATE-SIDE LH - POWDER BLACK (0637)

$

$

Not available

$

$

45

White Outdoor 650-0004

Tube Ass'y.

Variations

White Outdoor 650-0004-0637

No Longer Available 28DE ASSY - POWDER BLACK (0637)

$

$

Not available

$

$

46

White Outdoor 710-0865

Hex Bolt 1/2-13 x 1" Lg. (Gr. 5)

$

$

Not available

47

White Outdoor 710-0964A

Hex Bolt 5/8-18 x 1.25" Lg. (Gr. 5)

$11.99

$

Usually ships in 3-6 days

0

48

White Outdoor 711-0332

Lift Bracket Pin
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 14

0

49

White Outdoor 712-0386A

Hex Slotted Nut 5/8-18 Thd.

$7.99

$

Usually ships in 3-6 days

0

50

White Outdoor 712-3022

Hex Cent. L-Nut 1/2-13 Thd. (Gr. 5)

Note: Code: N notates a new part (not previously existing).

$3.99

$

In Stock, Qty 20+

0

51

White Outdoor 714-0470

Cotter Pin 1.25" Lg.

$4.49

$

In Stock, Qty 20+

0

52

White Outdoor 714-0474

Cotter Pin .75" Lg.

$4.99

$

In Stock, Qty 13

0

53

White Outdoor 716-0102

Snap Ring

$5.49

$

In Stock, Qty 20+

0

54

White Outdoor 736-0272

Fl-Wash. .51" I.D. x 1" O.D.

$4.99

$

In Stock, Qty 20+

0

55

White Outdoor 736-0366

Fl-Wash. 5/8" I.D. x 1" O.D.

$4.49

$

In Stock, Qty 20+

0

56

White Outdoor 741-0170

Flange Bearing w/Flats
(Superseded to 941-0170)

$19.99

$

In Stock, Qty 6

0

57

White Outdoor 783-0380

Link 15.80" Lg.
(Superseded to 783-0380-0637)

Variations

White Outdoor 783-0380-0637

LINK-15.80 LG - POWDER BLACK (0637)

$

$

Not available

$

$

58

White Outdoor 783-0381

Link 11.75" Lg.
(Superseded to 783-0381-0637)

Variations

White Outdoor 783-0381-0637

LINK-11.75 LG - POWDER BLACK (0637)

$

$

Not available

$

$

59

White Outdoor 783-0382

Link 4.88" Lg.
(Superseded to 783-0382-0637)

Variations

White Outdoor 783-0382-0637

LINK-4.88 LG - POWDER BLACK (0637)

$

$

Not available

$

$

60

White Outdoor 710-0442

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

61

White Outdoor 712-3004A

Hex Flange L-Nut 5/16-18 Thd.

$3.99

$

In Stock, Qty 20+

0

62

White Outdoor 741-0475

Plastic Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

63

White Outdoor 750-1029

Chute Support Tube

Variations

White Outdoor 750-1029-0637

No Longer Available HANDLE-AUGER - POWDER BLACK (0637)

$

$

Not available

$

$

64

White Outdoor 712-3068

Hex Jam Nut 5/16-18 Thd.
(Superseded to 912-3009)

$

$

Not available

65

White Outdoor 720-0232

Knob
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

66

White Outdoor 603-0302

Chute Tilt Brkt. Ass'y.
(Superseded to 603-0302A-0637)

Note: Code: N notates a new part (not previously existing).

Variations

White Outdoor 603-0302-0637

Chute Tilt Bracket - POWDER BLACK (0637)

$69.99

$

Usually ships in 3-6 days

0

White Outdoor 603-0302-0716

Chute Tilt Bracket - CUB YELLOW-99 (0716)

$69.99

$

Usually ships in 3-6 days

0

$69.99

$

Usually ships in 3-6 days

0

67

White Outdoor 784-5604

Chute Tilt Handle
(Superseded to 784-5604A-0637)

Variations

White Outdoor 784-5604-0637

Chute Handle Bracket - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

68

White Outdoor 731-1313

Cable Guide
(Superseded to 731-1313C)

$11.99

$

In Stock, Qty 20+

0

69

White Outdoor 746-0929

Chute Control Cable w/Clip
(Superseded to 946-0929)

$

$

Not available

70

White Outdoor 746-0928

Chute Control Cable

$75.99

$

Usually ships in 3-6 days

0

71

White Outdoor 710-0262

Carriage Bolt 5/16-18 x 1.5" Lg.

$3.99

$

In Stock, Qty 9

0

72

White Outdoor 736-0451

Saddle Wash. .32" I.D.

$4.49

$

In Stock, Qty 11

0

73

White Outdoor 715-0138

Roll Pin .63" Lg.
(Superseded to 915-0138)

$4.99

$

In Stock, only 1 left!

0

74

White Outdoor 720-0201A

Chute Crank Knob

$10.99

$

In Stock, Qty 5

0

75

White Outdoor 726-0100

Push Cap 3/8" Rod

$4.49

$

In Stock, Qty 18

0

76

White Outdoor 747-3247

Chute Crank Rod

Note: Code: N notates a new part (not previously existing).

$

$

Not available

77

White Outdoor 710-0642

Hex Wash. Hd. Tap Scr. 1/4-20 x .75" Lg.

Note: Used On Riders Made Before 1995

$4.49

$

In Stock, Qty 20+

0

78

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0
