190-608 - Troy-Bilt Sleeve Hitch Kit (2005) 190-608 Steeve Hitch Parts Diagram

Sleeve Hitch Kit

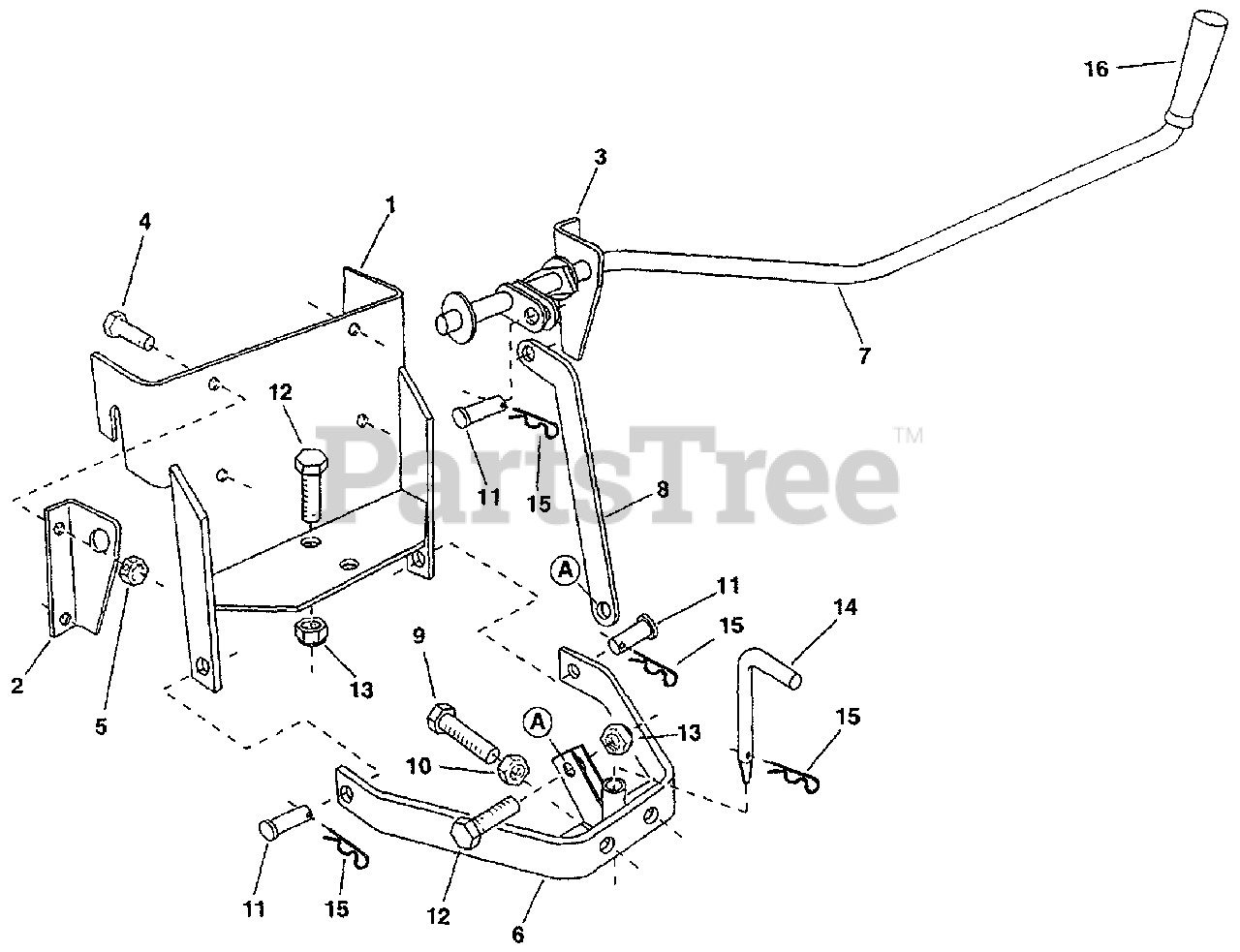

190-608 Steeve Hitch Parts Diagram

  • Title
1

Troy-Bilt AF-64097P

Sleeve Hitch Frame Assembly

$

$

Currently unavailable

2

Troy-Bilt AF-24723P

Pivot Bracket, L.H.

$

$

Currently unavailable

3

Troy-Bilt AF-24792P

Pivot Bracket, R.H.

$

$

Currently unavailable

4

Troy-Bilt AF-43001P

Bolt, Hex 3/8-16 x 1"

$

$

Currently unavailable

5

Troy-Bilt AF-43082P

Hex Lock Nut, 3/8-16

$

$

Currently unavailable

6

Troy-Bilt AF-64098P

Sleeve Hitch Lift Assembly

$

$

Currently unavailable

7

Troy-Bilt AF-64099P

Lift Lever Assembly

$

$

Currently unavailable

8

Troy-Bilt AF-24732P

Lifting Link Plate

$

$

Currently unavailable

9

Troy-Bilt AF-47947P

Bolt, Hex 5/8-11 x 2-1/2"

$

$

Currently unavailable

10

Troy-Bilt AF-712-0242P

Nut, Hex Jam 5/8-11

$

$

Currently unavailable

11

Troy-Bilt AF-HA3980P

Clevis Pin, 5/8" x 1-3/4"

$

$

Currently unavailable

12

Troy-Bilt AF-47951P

Bolt, Hex 5/8-11 x 1-3/4"

$

$

Currently unavailable

13

Troy-Bilt AF-712-0261P

Nut, Nylock 5/8-11

$

$

Currently unavailable

14

Troy-Bilt AF-47950P

Pin, Sleeve Hitch

$

$

Currently unavailable

15

Troy-Bilt AF-HA3341P

Pin, Hair Cotter 5/32"

$

$

Currently unavailable

16

Troy-Bilt AF-46471P

Grip, Plastic

$

$

Currently unavailable
