190-604 - Troy-Bilt Tool Box Kit (2005) General Assembly Parts Diagram

Tool Box Kit

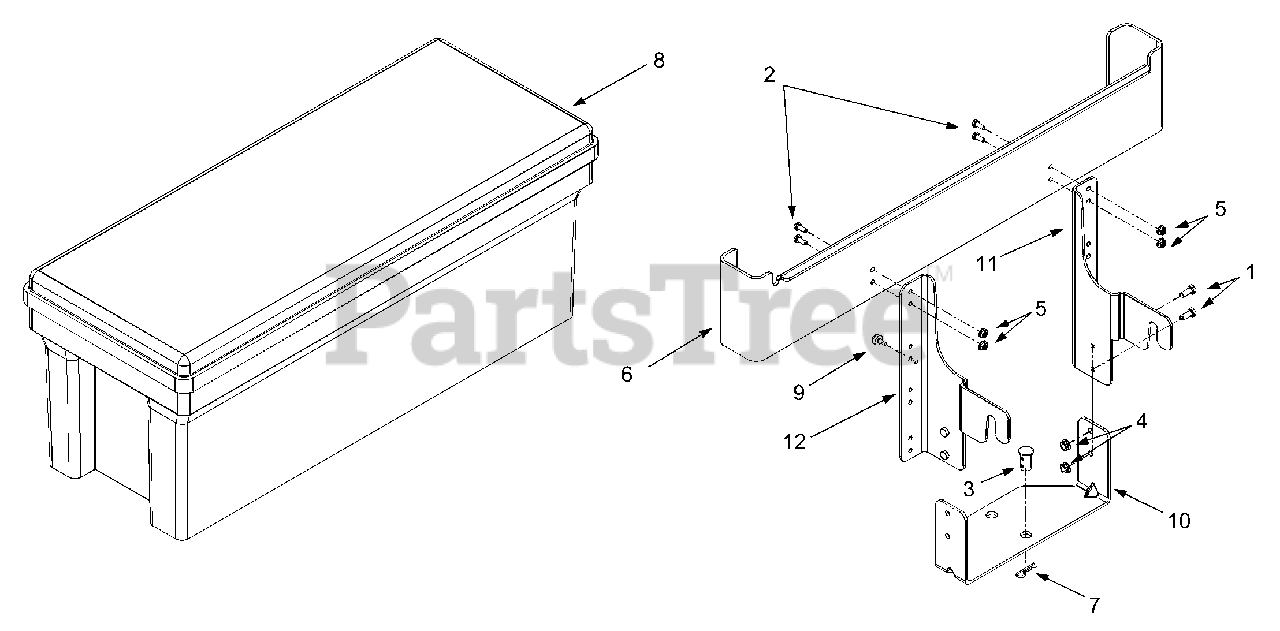

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 710-3008

Hex Cap Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 711-0309A

Clevis Pin

$12.99

$

In Stock, Qty 6

0

4

Troy-Bilt 712-3004A

Hex Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 712-3027

Hex Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

6

MTD 783-0777

Tool Box Support Bracket

Variations

Troy-Bilt 783-0777-0637

BRACKET-SUPT - POWDER BLACK (0637)

$

$

Not available

$

$

7

Troy-Bilt 714-0117

Internal Cotter Pin, .148 x 3

$4.49

$

In Stock, Qty 16

0

8

MTD 731-2110

Plastic Tool Box

$

$

Not available

9

Troy-Bilt 735-0271

Bumper, .62 Dia. x .3
(Superseded to 735-0271A)

$8.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 783-0765

Cross Support Bracket
(Superseded to 783-0765-0637)

Variations

Troy-Bilt 783-0765-0637

Cross Support Bracket - POWDER BLACK (0637)

$77.99

$

In Stock, only 1 left!

0

$77.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 783-0764

LH Support Bracket
(Superseded to 783-0764B-0637)

Variations

Troy-Bilt 783-0764-0637

Catcher Support Bracket, LH - POWDER BLACK (0637)

$69.99

$

Usually ships in 3-6 days

0

$69.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 783-0673

RH Support Bracket
(Superseded to 783-0673B-0637)

Variations

Troy-Bilt 783-0673-0637

Catcher Support Bracket, RH - POWDER BLACK (0637)

$68.99

$

Usually ships in 3-6 days

0

$68.99

$

Usually ships in 3-6 days

0
