190-601-000 - MTD Grass Catcher (1999) General Assembly Parts Diagram

Grass Catcher

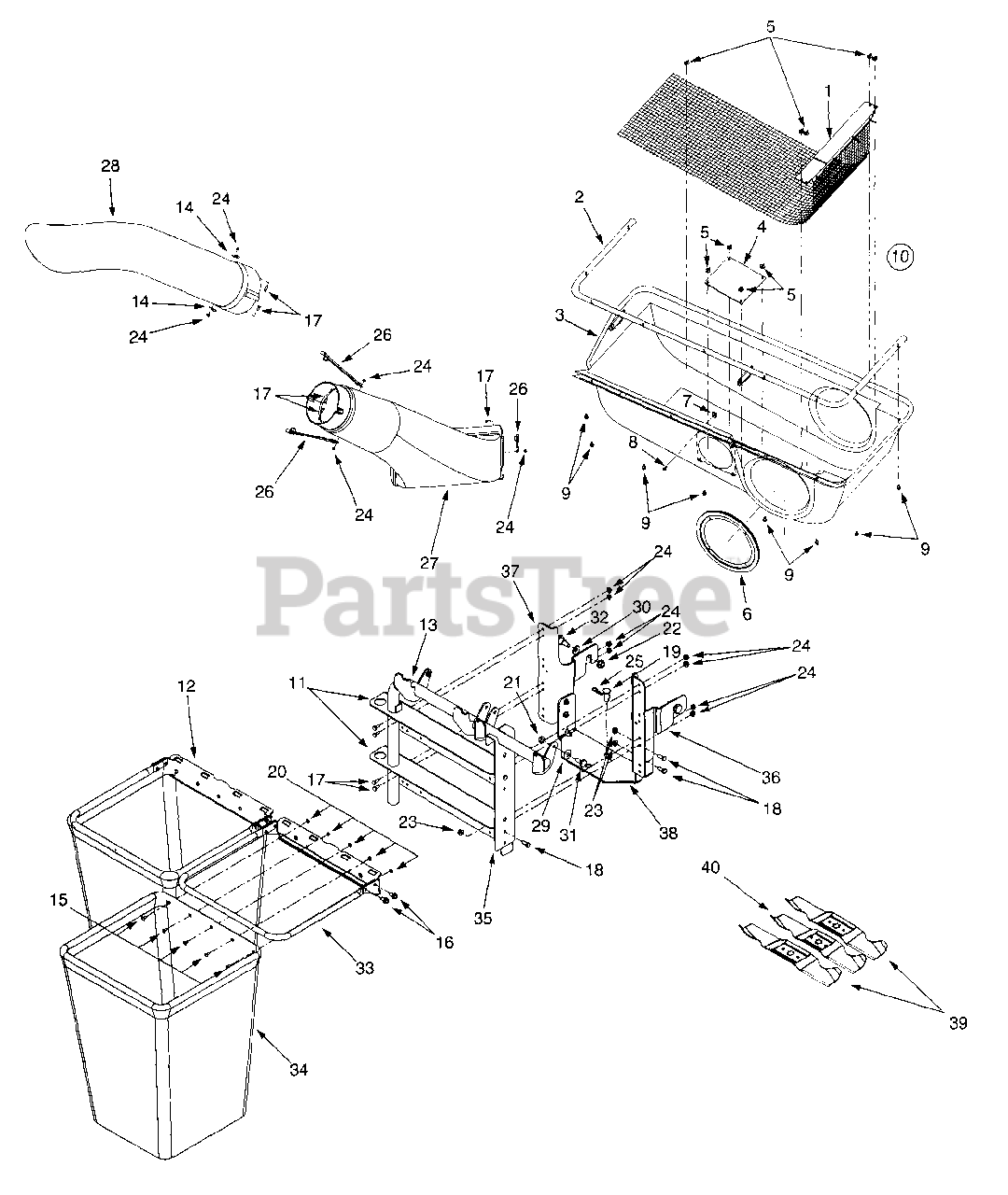

General Assembly Parts Diagram

  • Title

1

MTD 16847A

Screen Assembly

Variations

MTD 16847A-0637

No Longer Available SCREEN ASM - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 16596

Hinge Bracket Assembly
(Superseded to 16596-0637)

Variations

MTD 16596-0637

BRACKET ASSY-HINGE - POWDER BLACK (0637)

$105.99

$

Usually ships in 3-6 days

0

$105.99

$

Usually ships in 3-6 days

0

3

MTD 731-0821A

Grass Catcher Cover

Note: (For model 601)

$

$

Not available

MTD 731-1417

Grass Catcher Cover

Note: (For model 602)

$

$

Not available

4

MTD 731-0824A

Plastic Plate, 1/8 x 5.6 sq.

$

$

Not available

5

MTD 726-0258

Zip Twist Fastener

$4.49

$

Usually ships in 3-6 days

0

6

MTD 723-0412

Tube Seal

Note: (For model 601)

$32.99

$

Usually ships in 3-6 days

0

MTD 723-0413

Tube Seal

Note: (For model 602)

$30.99

$

In Stock, only 2 left!

0

7

MTD 712-0147

U-Type Speed Nut, #10-24

$6.99

$

Usually ships in 3-6 days

0

8

MTD 710-0351

Screw, #10-16 x .5

Note: (For model 601)

$4.49

$

Usually ships in 3-6 days

0

MTD 710-0473

Screw, #10-24 x .5

Note: (For model 602)

$4.49

$

In Stock, only 2 left!

0

9

MTD 710-0599

Hex Screw, 1/4-20 x .5

Note: (For model 601)

$4.49

$

In Stock, Qty 20+

0

MTD 710-0896

Hex Screw, 1/4-14 x ..625

Note: (For model 602)

$4.49

$

In Stock, Qty 20+

0

10

MTD 16594A

Cover Assembly

Note: (For model 601)

$

$

Not available

MTD 631-0007

Cover Assembly

Note: (For model 602)

$

$

Not available

11

MTD 16587B

Catcher Support Tube Mounting Bracket
(Superseded to 16587D-0637)

Variations

MTD 16587B-0637

Mounting Bracket - POWDER BLACK (0637)

$82.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0

12

MTD 16591A

Bag Frame Hanger Bracket
(Superseded to 16591A-0637)

Variations

MTD 16591A-0637

Bag Hanger Bracket, Black - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0

13

MTD 16592

Catcher Support Tube Assembly
(Superseded to 16592-0637)

Variations

MTD 16592-0637

Support Tube Assembly, Black - POWDER BLACK (0637)

$194.99

$

Usually ships in 3-6 days

0

$194.99

$

Usually ships in 3-6 days

0

14

MTD 16606

Retainer Hook Bracket
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

15

MTD 710-0473

Screw, #10-24 x .5

$4.49

$

In Stock, only 2 left!

0

16

MTD 710-0604

Self Tapping Screw, 5/16-18 x .625
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

17

MTD 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

18

MTD 710-3008

Hex Cap Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

19

MTD 711-0309

Clevis Pin
(Superseded to 711-0309A)

$12.99

$

In Stock, Qty 6

0

20

MTD 712-0272

Hex Sems Nut, 10-24

$3.99

$

Usually ships in 3-6 days

0

21

MTD 712-0431

Hex Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

22

MTD 712-0459

Hex Flange Lock Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

23

MTD 712-3004A

Hex Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

24

MTD 712-3027

Hex Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

25

MTD 714-0117

Internal Cotter Pin, .148 x 3

$4.49

$

In Stock, Qty 16

0

26

MTD 723-0383

Retainer Strap Assembly
(Superseded to 923-0383)

$15.99

$

In Stock, Qty 5

0

27

MTD 731-0827A

Discharge Chute
(Superseded to 731-0827D)

Note: (For model 601)

$143.99

$

In Stock, only 1 left!

0

MTD 731-0925

Discharge Chute
(Superseded to 731-0925C)

Note: (For model 602)

$162.99

$

In Stock, only 2 left!

0

28

MTD 731-0899A

Chute Tube
(Superseded to 731-0899E)

Note: (For model 601)

$108.99

$

In Stock, only 2 left!

0

MTD 731-0926

Chute Tube
(Superseded to 731-0926B)

Note: (For model 602)

$142.99

$

In Stock, only 1 left!

0

29

MTD 736-0255

Bell Washer

Note: (For model 601)

$4.99

$

In Stock, only 3 left!

0

MTD 736-0253

Bell Washer

Note: (For model 602)

$3.99

$

In Stock, Qty 20+

0

30

MTD 736-0407

Bell Washer, .45 x 1.0 x .062

$3.99

$

In Stock, Qty 11

0

31

MTD 738-0380

Shoulder Screw, .50 x .27, 3/8-16

$7.99

$

In Stock, only 1 left!

0

32

MTD 738-1020

Shoulder Screw, .625 x .5, 7/16-20

$7.49

$

Usually ships in 3-6 days

0

33

MTD 749-0701A

Bag Frame Tube
(Superseded to 749-0701A-0637)

Variations

MTD 749-0701A-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0

34

MTD 764-0221

Bag
(Superseded to 964-0221)

$73.99

$

In Stock, Qty 20+

0

35

MTD 783-0601

Catcher Support Bracket
(Superseded to 783-0601-0637)

Variations

MTD 783-0601-0637

Support Bracket - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0

36

MTD 783-0673

RH Catcher Support Bracket
(Superseded to 783-0673B-0637)

Variations

MTD 783-0673-0637

Catcher Support Bracket, RH - POWDER BLACK (0637)

$68.99

$

Usually ships in 3-6 days

0

$68.99

$

Usually ships in 3-6 days

0

37

MTD 783-0764

LH Catcher Support Bracket
(Superseded to 783-0764B-0637)

Variations

MTD 783-0764-0637

Catcher Support Bracket, LH - POWDER BLACK (0637)

$69.99

$

Usually ships in 3-6 days

0

$69.99

$

Usually ships in 3-6 days

0

38

MTD 783-0765

Support Cross Bracket
(Superseded to 783-0765-0637)

Variations

MTD 783-0765-0637

Cross Support Bracket - POWDER BLACK (0637)

$77.99

$

In Stock, only 1 left!

0

$77.99

$

In Stock, only 1 left!

0

39

MTD 742-0644

Star Center Blade, 16.28
(Superseded to 942-0611A)

Note: (For model 602)

$29.99

$

In Stock, Qty 20+

0

40

MTD 742-0645

Star Center Blade, 14.88
(Superseded to 942-0645)

Note: (For model 602)

$25.99

$

In Stock, only 1 left!

0
